So my aircon hasnt worked since i bought the car last year, stuck it into a garage and was told the compressor was knackered. Before i fork out over £600 i thought i would investigate first.
ACCORDING TO VCDS I ONLY HAD 2 BAR OF PRESSURE SO HAD IT TOPPED UP IN A GARAGE AND NOW SAYS 6 BAR
Using VCDS I fired up the car and turned on the climate control on auto and set temp to low.
ECON IS OFF
VCDS says....
AC VALVE CURRENT (N280) 0.652A AC VALVE (N280) DUTY CYCLE 60.1% HIGH PRESSURE SIGNAL (G65) 24.5% REFRIGERANT PRESSURE 6 BAR
COMPRESSOR SHUT OFF IS 0 LAST SHUT OFF 1 SECOND TO LAST 12 THIRD TO LAST 1
RADIATOR FAN REQUESTED 14.8% RADIATOR FAN ACTUAL 30% AIR QUALITY SENSOR NOT INSTALLED FRESH/RECIRCULATED AIR REQUEST 40
RADIATOR FAN STARTS UP
With a multimeter i tested the feed to the compressor valve and was getting 9.5v
When I turn the ECON on the AC VALVE CURRENT AND THE AC VALVE DUTY CYCLE GOES TO 0
THE CURRENT SHUT OFF CRITERIA CHANGES TO 6
THE RADIATOR FAN REQUESTED AND ACTUAL GOES TO 0
THE REST STAY THE SAME
THE FAN STOPS
VOLTAGE DROPS TO ZERO ON THE FEED TO THE COMPRESSOR VALVE

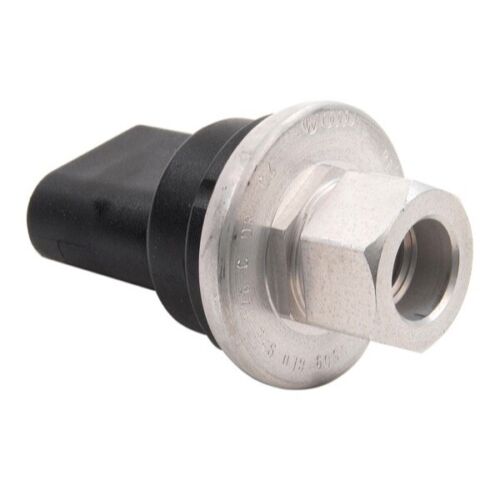

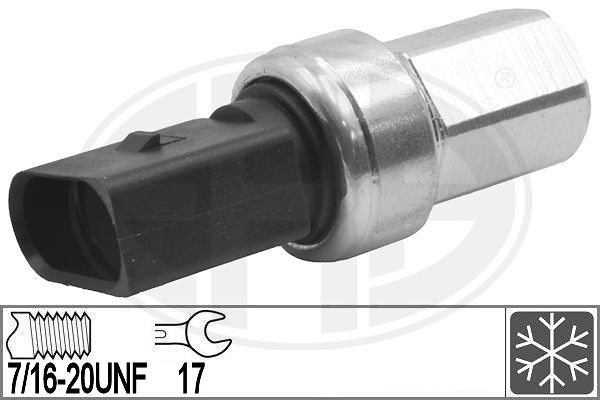

I have a new pressure sensor coming as see that can cause alot of problems, am i right in seeing that this can be changed without draining the system?
Ive watched loads of utube vids and read alot of posts but now a little stuck
Do all these look about right? I thought the ECON was an a/c override but find it strange that things turn off, is this correct?
I would appreciate any help or advice on any obvious problems with these readings or other things to try to diagnose where the fault is.
Many thanks
M9GUK
