Marco315

Thanks mate. I rang them yesterday but apparently they can’t help. Unfortunately I’m probably going to have to sell the car, I just can’t justify spending anymore on it.

So here is the story so far… I had an auto electrician come and have a look at the car and he said that the ECU was knackered and that he was almost positive as soon as I got my ECU cloned the car would start up… now I’ve had my ECU cloned and fitted the new ECU and now it’s throwing the faults up as below. Now the ones which I think are causing the problem is the P1040 & P1042 but the problem is I aren’t getting a voltage to the plugs on the injectors. Now I can’t find a lot on line about this but what I can find is everyone pointing to the ECU… but my ECU can’t be the issue as I’ve just had it cloned 🤦🏼‍♂️. Anyone shed any light on it or help in any way? [Friday,29,September,2023,10:21:18:00009 VCDS -- Windows Based VAG/VAS Emulator Running on Windows 10 x86 VCDS Version: 21.3.0.0 Data version: 20210226 DS325.0 www.Ross-Tech.com VIN: WAUZZZ4L27D033457 License Plate: FRIDAY 2ND TEST Mileage: 179410km-111480mi Repair Order: Chassis Type: 4L (4L0) Scan: 01 02 03 05 07 08 09 0E 15 16 17 18 19 34 3742 46 47 4F 52 55 56 61 62 6D 6F 72 76 VIN: WAUZZZ4L27D033457 Mileage: 179410km-111480miles 00-Steering Angle Sensor -- Status: OK 0000 01-Engine -- Status: Malfunction 0010 02-Auto Trans -- Status: OK 0000 03-ABS Brakes -- Status: Malfunction 0010 05-Acc/Start Auth. -- Status: OK 0000 07-Control Head -- Status: OK 0000 08-Auto HVAC -- Status: Malfunction 0010 09-Cent. Elect. -- Status: OK 0000 0E-Media Player 1 -- Status: OK 0000 15-Airbags -- Status: OK 0000 16-Steering wheel -- Status: OK 0000 17-Instruments -- Status: OK 0000 18-Aux. Heat -- Status: Malfunction 0010 19-CAN Gateway -- Status: Malfunction 0010 34-Level Control -- Status: OK 0000 37-Navigation -- Status: OK 0000 42-Door Elect, Driver -- Status: OK 0000 46-Central Conv. -- Status: Malfunction 0010 47-Sound System -- Status: OK 0000 4F-Centr. Electr. II -- Status: OK 0000 52-Door Elect, Pass. -- Status: OK 0000 55-Headlight Range -- Status: Cannot be reached 1100 56-Radio -- Status: OK 0000 61-Battery Regul. -- Status: Malfunction 0010 62-Door, Rear Left -- Status: OK 0000 6D-Trunk Elect. -- Status: Malfunction 0010 6F-Centr. Conv. II -- Status: OK 0000 72-Door, Rear Right -- Status: OK 0000 76-Park Assist -- Status: OK 0000 ------------------------------------------------------------------------------- Address 01: Engine Labels: 059-907-401-ASB.clb Part No SW: 4L0 910 401 K HW: 4L0 907 401 Component: 3.0L V6TDI G001AG 0030 Revision: --H03--- Serial number: Coding: 0011775 Shop #: WSC 31414 790 00001 VCID: 2A5BB7AF85FF20DBBD-807E 8 Faults Found: 004160 - Supply Voltage A for Injectors P1040 - 005 - Circuit Malfunction - MIL ON Freeze Frame: Fault Status: 11110101 Fault Priority: 0 Fault Frequency: 1 Reset counter: 255 Mileage: 179414 km Time Indication: 0 Date: 2006.04.23 Time: 17:20:44 Freeze Frame: RPM: 84 /min Torque: 616.2 Nm Speed: 0.0 km/h Inj. Quantity: 69.7 mg/str Voltage: 0.23 V Pressure: 269.8 bar Temperature: 10.8°C 004162 - Supply Voltage B for Injectors P1042 - 005 - Circuit Malfunction - MIL ON Freeze Frame: Fault Status: 11110101 Fault Priority: 0 Fault Frequency: 1 Reset counter: 255 Mileage: 179414 km Time Indication: 0 Date: 2006.04.23 Time: 17:20:44 Freeze Frame: RPM: 84 /min Torque: 616.2 Nm Speed: 0.0 km/h Inj. Quantity: 69.7 mg/str Voltage: 0.23 V Pressure: 269.8 bar Temperature: 10.8°C 009301 - Diesel Particle Filter; Differential Pressure Sensor P2455 - 001 - Short to Plus Freeze Frame: Fault Status: 01100001 Fault Priority: 0 Fault Frequency: 1 Reset counter: 255 Time Indication: 0 Freeze Frame: RPM: 0 /min Torque: 0.0 Nm Speed: 0.0 km/h Temperature: 893.2°C Temperature: 554.6°C (no units): 0.0 Absolute Pres.: 81.6 mbar 009258 - Exhaust Gas Temperature Sensor; B1 S3 P242A - 000 - Malfunction Freeze Frame: Fault Status: 01100000 Fault Priority: 0 Fault Frequency: 1 Reset counter: 255 Time Indication: 0 Freeze Frame: RPM: 0 /min Torque: 0.0 Nm Speed: 0.0 km/h Temperature: 893.2°C Temperature: 554.6°C (no units): 0.0 Temperature: 14.4°C 005658 - Glowplug for Cylinder 1 (Q10) P161A - 001 - Open Circuit Freeze Frame: Fault Status: 01100001 Fault Priority: 0 Fault Frequency: 1 Reset counter: 255 Mileage: 179414 km Time Indication: 0 Date: 2006.03.15 Time: 12:00:34 Freeze Frame: RPM: 0 /min Torque: 0.0 Nm Speed: 0.0 km/h Duty Cycle: 1.0 % Voltage: 11.93 V Duty Cycle: 15.0 % Temperature: 13.5°C 005659 - Glowplug for Cylinder 2 (Q11) P161B - 001 - Open Circuit Freeze Frame: Fault Status: 01100001 Fault Priority: 0 Fault Frequency: 1 Reset counter: 255 Mileage: 179414 km Time Indication: 0 Date: 2006.03.15 Time: 12:00:34 Freeze Frame: RPM: 0 /min Torque: 0.0 Nm Speed: 0.0 km/h Duty Cycle: 1.0 % Voltage: 11.93 V Duty Cycle: 15.0 % Temperature: 13.5°C 005660 - Glowplug for Cylinder 3 (Q12) P161C - 001 - Open Circuit Freeze Frame: Fault Status: 01100001 Fault Priority: 0 Fault Frequency: 1 Reset counter: 255 Mileage: 179414 km Time Indication: 0 Date: 2006.03.15 Time: 12:00:34 Freeze Frame: RPM: 0 /min Torque: 0.0 Nm Speed: 0.0 km/h Duty Cycle: 1.0 % Voltage: 11.93 V Duty Cycle: 15.0 % Temperature: 13.5°C 005661 - Glowplug for Cylinder 4 (Q13) P161D - 001 - Open Circuit Freeze Frame: Fault Status: 01100001 Fault Priority: 0 Fault Frequency: 1 Reset counter: 255 Mileage: 179414 km Time Indication: 0 Date: 2006.03.15 Time: 12:00:34 Freeze Frame: RPM: 0 /min Torque: 0.0 Nm Speed: 0.0 km/h Duty Cycle: 1.0 % Voltage: 11.93 V Duty Cycle: 15.0 % Temperature: 13.5°C Readiness: 1 2 0 0 1 ------------------------------------------------------------------------------- Address 02: Auto Trans Labels: 09D-927-750.clb Part No SW: 09D 927 750 FK HW: 09D 927 750 FK Component: AL 750 6A 0940 Revision: 00H52000 Serial number: Coding: 0000504 Shop #: WSC 31414 790 00001 VCID: 7CF741F73FEB6E6B9F-8028 No fault code found. ------------------------------------------------------------------------------- Address 03: ABS Brakes Labels:. 4L0-910-517-V1.clb Part No SW: 4L0 910 517 A HW: 4L0 614 517 A Component: ESP ALLRAD MK25E1 0130 Revision: 00H21001 Coding: 0038033 Shop #: WSC 31414 790 00001 VCID: 285F4DA79BF312CBAB-807C 1 Fault Found: 01826 - Sensor for Steering Angle (G85); Supply Voltage Terminal 30 000 - - Freeze Frame: Fault Status: 01100000 Fault Priority: 2 Fault Frequency: 1 Reset counter: 63 Mileage: 179414 km Time Indication: 0 Date: 2023.09.29 Time: 10:16:18 Freeze Frame: Count: 0 Count: 4353 Count: 297 Count: 42496 ------------------------------------------------------------------------------- Address 05: Acc/Start Auth. Labels:. 4F0-910-852.clb Part No SW: 4F0 910 852 HW: 4F0 905 852 B Component: FBSAUDIC6 ELV H31 0220 Revision: 31050601 Serial number: 10601000473437 Coding: 0000147 Shop #: WSC 00579 210 89301 VCID: 63C51A8BA255B193BE-8036 Subsystem 1 - Part No: 4F0 910 131 E Component: FBSAUDIC6 EZS H45 0080 Subsystem 2 - Part No: 4F0 910 220 D Component: FBSAUDIC6 IDG H01 0040 No fault code found. ------------------------------------------------------------------------------- Address 07: Control Head Labels: 4L0-910-7xx-07-H.clb Part No SW: 4L0 910 729 S HW: 4E0 035 729 Component: Interfacebox H43 2830 Revision: 00000000 Serial number: 386GV067515281 Coding: 0002002 Shop #: WSC 31414 790 00001 VCID: 3F8DF6FB6E7DB573FA-806A Subsystem 1 - Part No: 4L0 910 609 Component: E0380 BedienteilH02 0060 Subsystem 2 - Serial number: 00000000460480 Subsystem 3 - Serial number: 0103.07.060000000100010728ÿ Subsystem 4 - Serial number: 010728ÿ No fault code found. ------------------------------------------------------------------------------- Address 08: Auto HVAC Labels: None Part No SW: 4L0 910 043 HW: 4L0 820 043 F Component: KLIMABETAETIGUNGH05 0040 Revision: 00---008 Serial number: 00000000051235 Coding: 0001046 Shop #: WSC 31414 790 00001 VCID: 61C91083B849A383AC-8034 1 Fault Found: 01592 - Air Quality Sensor (G238) 014 - Defective Freeze Frame: Fault Status: 01101110 Fault Priority: 3 Fault Frequency: 1 Reset counter: 63 Mileage: 179414 km Time Indication: 0 Date: 2023.09.29 Time: 10:16:23 Freeze Frame: Temperature: 10.0°C ------------------------------------------------------------------------------- Address 09: Cent. Elect. Labels: 4F0-910-279.lbl Part No SW: 4F0 910 279 K HW: 4F0 907 279 Component: ILM Fahrer H17 0240 Revision: 00000000 Serial number: 4F0907279 Coding: 0011101 Shop #: WSC 31414 790 00001 VCID: 3169A0C3A82953037C-8064 Subsystem 1 - Part No: 4L2 910 113 Labels: 1KX-955-119.CLB Component: Wischer AU716 H08 0080 Coding: 00064792 Shop #: WSC 31414 Subsystem 2 - Part No: 4E0 910 557 A Labels: 8K0-955-559.CLB Component: REGENLICHTSENSORH13 0090 Coding: 00150059 Shop #: WSC 31414 No fault code found. ------------------------------------------------------------------------------- Address 0E: Media Player 1 Labels: 4E0-910-111.lbl Part No SW: 4L0 910 111 A HW: 4L0 035 111 Component: CD-Changer H41 0100 Revision: 00000000 Serial number: AUZ5ZBF3029137 Shop #: WSC 00000 000 00000 VCID: 1E336B7FC9B7DC7BD1-804A No fault code found. ------------------------------------------------------------------------------- Address 15: Airbags Labels: 4L0-910-655.lbl Part No SW: 4L0 910 655 B HW: 4L0 959 655 Component: 31 AIRBAG AUDI8RH38 0120 Revision: 05H38000 Serial number: 0037GD06DEJ5 Coding: 0013105 Shop #: WSC 31414 790 00001 VCID: 2C57B1B78F0B3EEB4F-8078 Subsystem 1 - Serial number: 6332QSME0F433F1DT Subsystem 2 - Serial number: 6342QSME0F3035215 Subsystem 3 - Serial number: 6352QSME0F31146FM Subsystem 4 - Serial number: 6362QSME1241403D6 Subsystem 5 - Serial number: 63734SME11632061L Subsystem 6 - Serial number: 63834SME116D2239$ No fault code found. ------------------------------------------------------------------------------- Address 16: Steering wheel Labels: 4F0-910-549.lbl Part No SW: 4F0 910 549 HW: 4F0 953 549 A Component: Lenksäulenmodul H08 0230 Revision: 00H08000 Serial number: 90054061950102 Coding: 0102142 Shop #: WSC 31414 790 00001 VCID: 66C3039F5167C4BB59-8032 Subsystem 1 - Part No: XXXXXXXXXXX Component: Lenkradmodul H07 0090 No fault code found. ------------------------------------------------------------------------------- Address 17: Instruments Labels: 4L0-910-xxx-17.lbl Part No SW: 4F0 910 930 C HW: 4L0 920 980 G Component: KOMBIINSTR. M73 H17 0110 Revision: 00300000 Serial number: 5HJ321M76 Coding: 2593443 Shop #: WSC 27313 067 57207 VCID: 23455A8BE2D5F193FE-8076 No fault code found. ------------------------------------------------------------------------------- Address 18: Aux. Heat Labels: 4L0-910-105.lbl Part No SW: 4L0 910 105 HW: 4L0 815 071 C Component: Heizgeraet H07 0060 Revision: 0000000E Serial number: 00000009011043 Coding: 0000002 Shop #: WSC 31414 790 00001 VCID: 60CF1587B343AA8BA3-8034 4 Faults Found: 01330 - Central Control Module for Central Convenience (J393) 004 - No Signal/Communication - Intermittent 00456 - Control Module for Access and Start Control (J518) 004 - No Signal/Communication - Intermittent 02072 - Control Module for Energy Management (J644) 004 - No Signal/Communication - Intermittent 01408 - Under-Voltage Shut-Off (fixed Value) 000 - - - Intermittent ------------------------------------------------------------------------------- Address 19: CAN Gateway Labels:. 4L0-910-468.clb Part No SW: 4L0 910 468 HW: 4L0 907 468 Component: J533__Gateway H06 0040 Revision: 00H06000 Serial number: 0900B06715804B Coding: F55BBE7F302202 Shop #: WSC 80093 222 69422 VCID: 6CD771B74F8BFEEB0F-8038 1 Fault Found: 01771 - Control Module for Headlight Range (J431) 004 - No Signal/Communication Freeze Frame: Fault Status: 01100100 Fault Priority: 2 Fault Frequency: 1 Reset counter: 63 Mileage: 179414 km Time Indication: 0 Date: 2023.09.29 Time: 10:16:20 ------------------------------------------------------------------------------- Address 34: Level Control Labels: 4L0-910-553.lbl Part No SW: 4L0 910 553 B HW: 4L0 907 553 Component: LUFTFDR.-CDC H03 7550 Revision: --H03001 Serial number: 15.1528-0095.2 Coding: 0015510 Shop #: WSC 80093 222 69422 VCID: 295948A380F92BC3B4-807C No fault code found. ------------------------------------------------------------------------------- Address 37: Navigation Labels: 4E0-910-88x-37.lbl Part No SW: 4E0 910 887 Q HW: 4E0 919 887 D Component: MNS ECE H48 0850 Revision: 00000000 Serial number: 399GU067530216 Shop #: WSC 00579 210 08335 VCID: 3B7582EB7A65A953D6-806E No fault code found. ------------------------------------------------------------------------------- Address 42: Door Elect, Driver Labels: 4L0-910-793-42.lbl Part No SW: 4L0 910 793 B HW: 4L0 959 793 B Component: TSG FA H12 0130 Revision: 00-00000 Coding: 0002651 Shop #: WSC 31414 790 00001 VCID: 2F6DA6BBBE1D45F36A-807A No fault code found. ------------------------------------------------------------------------------- Address 46: Central Conv. Labels:. 4L0-910-289.lbl Part No SW: 4L0 910 289 D HW: 4L0 907 289 A Component: Komfortgeraet H05 0020 Revision: 0020 --- Serial number: 01016234250000 Coding: 7348475 Shop #: WSC 31414 790 00001 VCID: 3169A0C3A82953037C-8064 Subsystem 1 - Part No: 1K0 951 605 C Component: LIN BACKUP HORN H03 1301 Subsystem 2 - Part No: 4F0 910 177 Component: Innenraumueberw.H01 0020 2 Faults Found: 01504 - Bulb for License-Plate Light (X) 009 - Open or Short to Ground Freeze Frame: Fault Status: 01101001 Fault Priority: 3 Fault Frequency: 254 Reset counter: 63 Mileage: 177361 km Time Indication: 0 Date: 2020.11.19 Time: 18:58:40 01696 - Footwell Lighting; Rear Left (W45) 011 - Open Circuit Freeze Frame: Fault Status: 01101011 Fault Priority: 3 Fault Frequency: 13 Reset counter: 63 Mileage: 179414 km Time Indication: 0 Date: 2006.03.15 Time: 12:02:20 ------------------------------------------------------------------------------- Address 47: Sound System Labels: 4F0-910-223-AS.lbl Part No SW: 4L0 910 223 B HW: 4L0 035 223 Component: DSP-AU716 H20 0100 Revision: 11S00001 Serial number: 01507060321569 Coding: 0000003 Shop #: WSC 31414 790 00001 VCID: 23455A8BE2D5F193FE-8076 No fault code found. ------------------------------------------------------------------------------- Address 4F: Centr. Electr. II Labels: 4F0-910-280.lbl Part No SW: 4F0 910 280 HW: 4F0 907 280 E Component: ILM Beifahrer H10 0080 Revision: Serial number: 00000000002416 Coding: 0011101 Shop #: WSC 31414 790 00001 VCID: 5EB32B7F89379C7B91-800A No fault code found. ------------------------------------------------------------------------------- Address 52: Door Elect, Pass. Labels: 4L0-910-793-52.lbl Part No SW: 4L0 910 793 B HW: 4L0 959 792 B Component: TSG BF H12 0130 Revision: 00-00000 Coding: 0002651 Shop #: WSC 31414 790 00001 VCID: 2F6DA6BBBE1D45F36A-807A No fault code found. ------------------------------------------------------------------------------- Address 55: Headlight Range Cannot be reached ------------------------------------------------------------------------------- Address 56: Radio Labels: 4E0-910-541.lbl Part No SW: 4E0 910 541 M HW: 4E0 035 541 P Component: TUNER EU/US/RDW H42 0570 Revision: 00000000 Serial number: 388G%067539581 Coding: 0000001 Shop #: WSC 31414 790 00001 VCID: 2A5BB7AF85FF20DBBD-807E No fault code found. ------------------------------------------------------------------------------- Address 61: Battery Regul. Labels: 4F0-910-181.lbl Part No SW: 4L0 910 181 HW: 4L0 915 181 Component: J0644 BEM H12 0530 Revision: -------- Serial number: 00000000029587 Shop #: WSC 80093 222 69422 VCID: 64C71997A75BB6AB47-8030 Subsystem 1 - Part No: 4F0 915 105 D Component: von VA0 2607171435 Coding: 344630393135313035442056413032363037313731343335 Shop #: WSC 31414 790 00001 1 Fault Found: 01299 - Diagnostic Interface for Data Bus (J533) 004 - No Signal/Communication - Intermittent Freeze Frame: Fault Status: 00100100 Fault Priority: 5 Fault Frequency: 1 Reset counter: 103 Mileage: 179414 km Time Indication: 0 Date: 2023.09.29 Time: 10:16:18 ------------------------------------------------------------------------------- Address 62: Door, Rear Left Labels: 4L0-910-795.lbl Part No SW: 4L0 910 795 B HW: 4L0 959 795 B Component: TSG HL H21 0050 Coding: 0002058 Shop #: WSC 31414 790 00001 VCID: 3169A0C3A82953037C-8064 No fault code found. ------------------------------------------------------------------------------- Address 6D: Trunk Elect. Labels: 4L0-910-945.clb Part No SW: 4L0 910 945 HW: 4L0 827 851 A Component: ValeoHeckdeckel H20 0280 Revision: --H20001 Serial number: E5030000B Shop #: WSC 98765 666 38354 VCID: 6CD771B74F8BFEEB0F-8038 Subsystem 1 - Part No: 4L0 910 946 Component: ValeoHeckdeckel H20 0280 Subsystem 2 - Serial number: E5030100B Subsystem 3 - Serial number: RD22.07.06--H20001001C0142ÿ Subsystem 4 - Serial number: 1C0142ÿ 1 Fault Found: 00317 - Rear Lid Control Module (J605) 008 - Implausible Signal - Intermittent Freeze Frame: Fault Status: 00101000 Fault Priority: 3 Fault Frequency: 1 Reset counter: 103 Mileage: 179414 km Time Indication: 0 ------------------------------------------------------------------------------- Address 6F: Centr. Conv. II Labels:. 4L0-910-290.lbl Part No SW: 4L0 910 290 HW: 4L0 907 290 Component: ILM HINTEN 2 H05 0060 Revision: AAH05061 Serial number: 001845080----- Coding: 0000001 Shop #: WSC 31414 790 00001 VCID: 65C10493AC61CFA350-8030 No fault code found. ------------------------------------------------------------------------------- Address 72: Door, Rear Right Labels: 4L0-910-795.lbl Part No SW: 4L0 910 795 B HW: 4L0 959 794 B Component: TSG HR H21 0050 Coding: 0002058 Shop #: WSC 31414 790 00001 VCID: 3169A0C3A82953037C-8064 No fault code found. ------------------------------------------------------------------------------- Address 76: Park Assist Labels: 4Fx-910-283.lbl Part No SW: 4F0 910 283 G HW: 4F0 919 283 G Component: Parkhilfe 8-Kan H12 0060 Revision: 00H12000 Serial number: 06320620100691 Coding: 0201146 Shop #: WSC 31414 790 00001 VCID: 285F4DA79BF312CBAB-807C No fault code found. End-------------------------(Elapsed Time: 02:47)--------------------------]

Nope literally just the seat controls and the fact the car won’t start… but that’s it

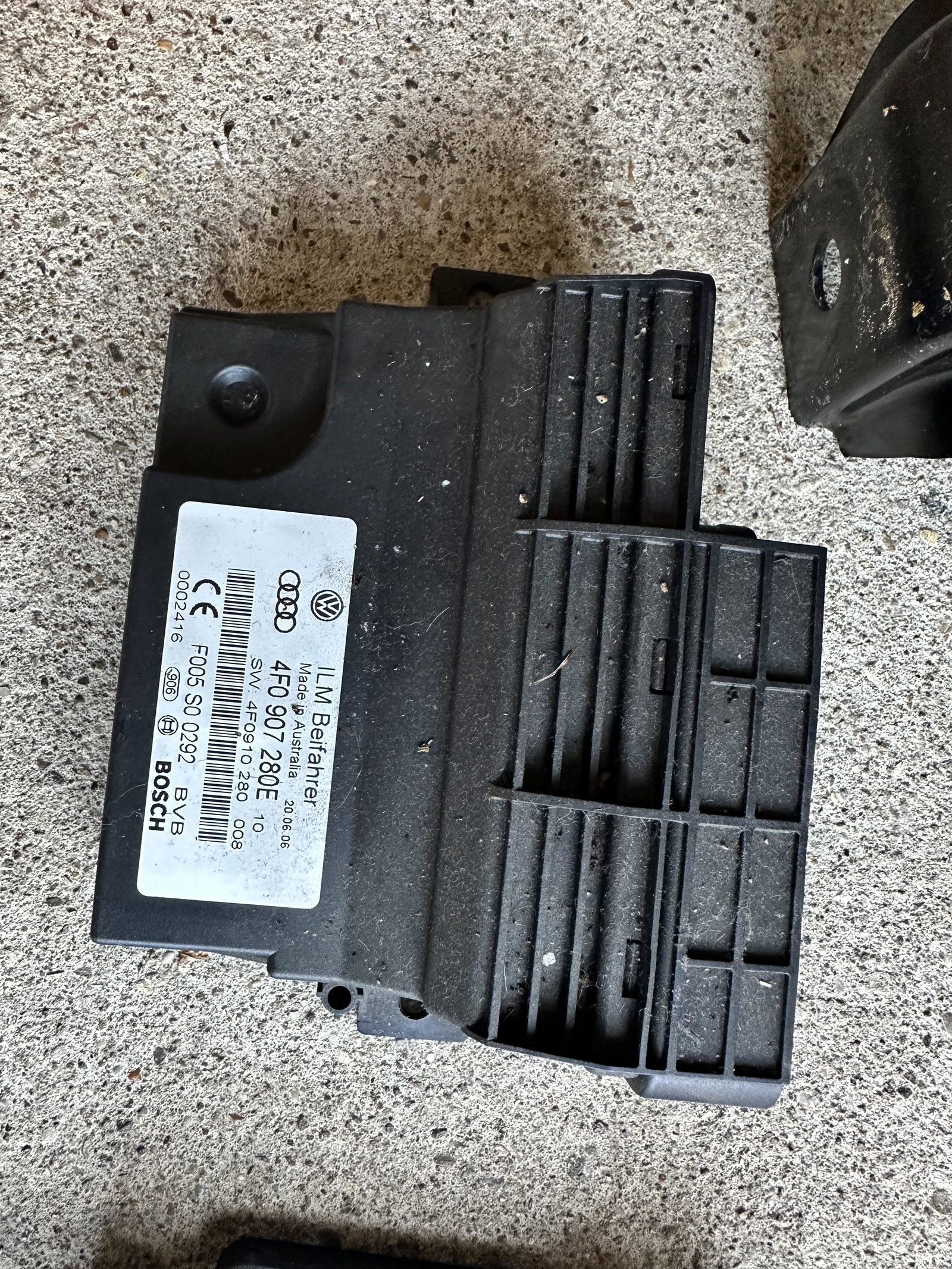

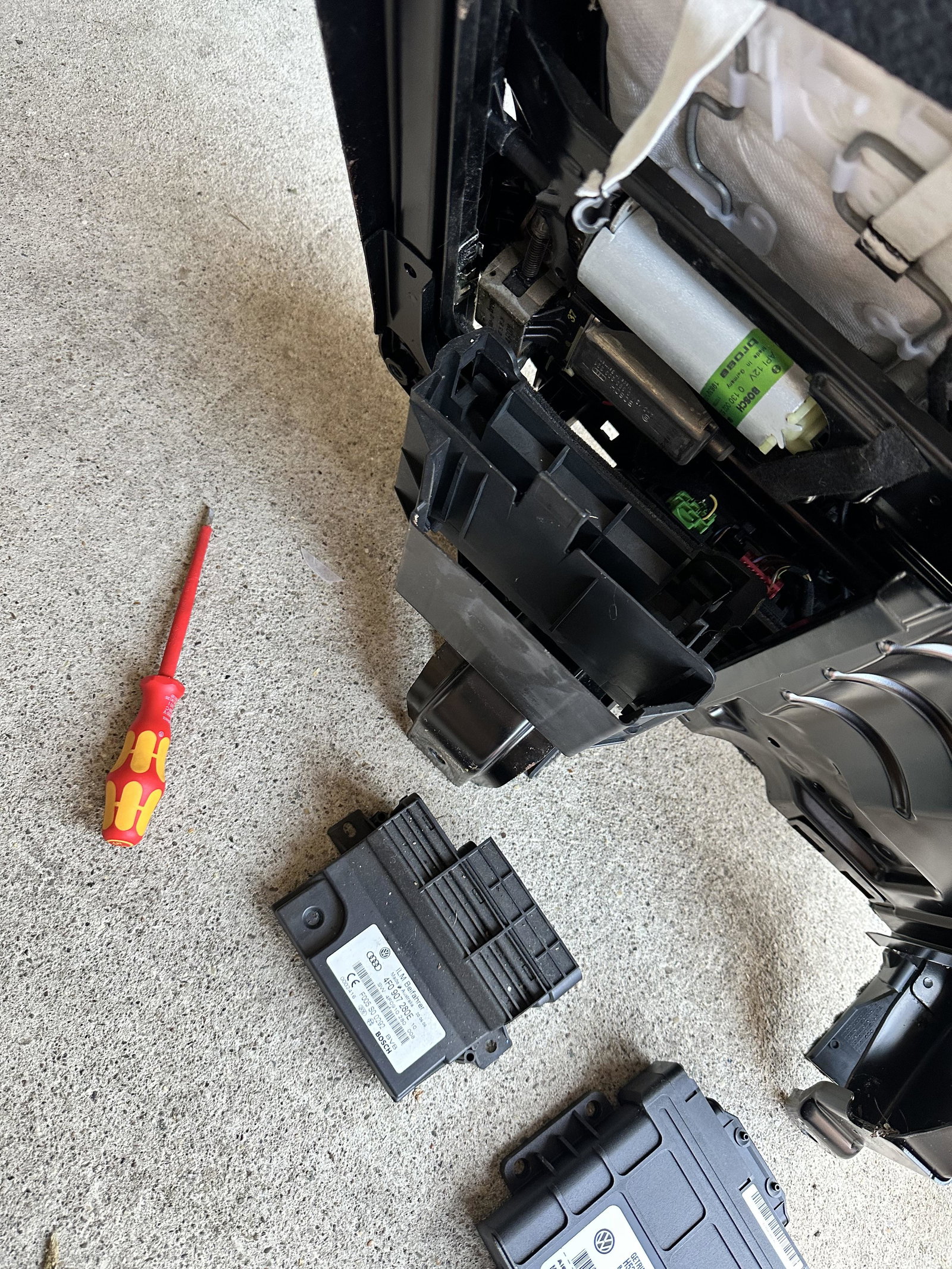

Anyone have any idea what this ONBOARD POWER SUPPLY CONTROL MODULE UNIT ECU 4F0907280E does??? I know the other one is for the gearbox but don’t know what this one does… basically I’ve found a broken wire on the 4 pin plug which goes to the seat controls on the drivers seat so I repaired the wire but none of the seats will work still. I have 12v to the 2 x red/blue wires on the 4 pin plug to the controls but nothing after that. Anyone have any idea what could have blown or be stopping the seats from working? Only found a broken wire on the drivers seat but both front seats won’t move.

Thanks, I think I managed to find the old post and contacted the ECU place that you mentioned (cartech) they want nearly £700 for an ECU replacement and didn’t even respond when I messaged them. Even tried ringing and got no answer. I was only 15mins from the place yesterday and hoped to drop mine off and see if they could test it but they wouldn’t answer the phone so just came home

It’s had a new throttle body fitted and I tried easy start but doesn’t change it. I will try cracking the injectors tomorrow but starting to loose any hope of it starting now and don’t want to destroy the brand new battery I’ve just fitted

Hi, I was told that it just cut out and wouldn’t start again. The glow plug light flashes every time I turn the ignition on now

Yes done a diagnostic and nothing comes up regarding the seats. Checked all plugs and everything is plugged in

So I’m slowly slowly working through my Q7 which I’ve just bought and none of the front electric seats are working. All interior lights, windows etc work and everything else I can see works but just not the seats… is there a common problem here or anything to check? I’ve checked the fuses and it’s not any of them… just seams strange how both aren’t working

Thanks for that. I’ve emailed a few garages today but heard nothing back as of yet. Got a funny feeling no one will want to touch it. Just hate to see it going to scrap if I can’t sort it.

Should there be an air bubble in the top of this clear pipe? It goes to the HPFP I think… but when I try and start the car the air bubble moves but the pipe doesn’t fill with fuel as I would expect it too…

Hi Gareth, I appreciate that and I am tempted. It’s just getting it to a garage and the hill that comes with it. It’s getting to a point where I don’t know if to just cut my losses but I’m the person that really can’t let something go… my mindset is that nothing is impossible and it must be fixable… but at what cost

Hi, all these faults keep appearing after I have cleared the faults. My thinking was that it’s maybe the DPF that’s blocked stopping the engine from starting so it doesn’t damage it but I just feel there is too many random faults for that to be the issue. I will try the fuel pump tomorrow and see how I get on. It’s annoying because I’ve removed the codes so many times and these just keep reappearing. I got a new ECU made because the old one was saying communication error but I’m unsure if the new ECU is even correct

Can anyone help me, I have a 2006 3.0tdi Q7 which cut out and won’t start. I’ve scanned the car and found the following faults. I’ve tried replacing the battery, high pressure fuel pump, injectors and still not getting anywhere. I can see it says the DPF pressure sensor and exhaust gas temp sensor but then there is glow plugs 1-6 all open circuit. To me there seams to just be too many errors for all them things to have failed. Can anyone point me in the right direction??? ------------------------------------------------------------------------------- Address 01: Engine Labels: 059-907-401-ASB.clb Part No SW: 4L0 910 401 K HW: 4L0 907 401 Component: 3.0L V6TDI G000AG 0030 Revision: --H04--- Serial number: XXXXXXXXXXXXXX Coding: 0011779 Shop #: WSC 00707 204 182212 VCID: 2A5BB7AF85FF20DBBD-807E 8 Faults Found: 009301 - Diesel Particle Filter; Differential Pressure Sensor P2455 - 001 - Short to Plus Freeze Frame: Fault Status: 01100001 Fault Priority: 0 Fault Frequency: 1 Reset counter: 255 Mileage: 179414 km Time Indication: 0 Date: 2006.03.18 Time: 09:38:19 Freeze Frame: RPM: 0 /min Torque: 0.0 Nm Speed: 0.0 km/h Temperature: 893.2°C Temperature: 165.2°C (no units): 0.0 Absolute Pres.: 81.6 mbar 009258 - Exhaust Gas Temperature Sensor; B1 S3 P242A - 000 - Malfunction Freeze Frame: Fault Status: 01100000 Fault Priority: 0 Fault Frequency: 1 Reset counter: 255 Mileage: 179414 km Time Indication: 0 Date: 2006.03.18 Time: 09:38:19 Freeze Frame: RPM: 0 /min Torque: 0.0 Nm Speed: 0.0 km/h Temperature: 893.2°C Temperature: 554.6°C (no units): 0.0 Temperature: 15.3°C 005658 - Glowplug for Cylinder 1 (Q10) P161A - 001 - Open Circuit Freeze Frame: Fault Status: 01100001 Fault Priority: 0 Fault Frequency: 1 Reset counter: 255 Mileage: 179414 km Time Indication: 0 Date: 2006.03.18 Time: 09:41:47 Freeze Frame: RPM: 0 /min Torque: 0.0 Nm Speed: 0.0 km/h Duty Cycle: 1.0 % Voltage: 11.93 V Duty Cycle: 15.0 % Temperature: 13.5°C 005659 - Glowplug for Cylinder 2 (Q11) P161B - 001 - Open Circuit Freeze Frame: Fault Status: 01100001 Fault Priority: 0 Fault Frequency: 1 Reset counter: 255 Mileage: 179414 km Time Indication: 0 Date: 2006.03.18 Time: 09:41:47 Freeze Frame: RPM: 0 /min Torque: 0.0 Nm Speed: 0.0 km/h Duty Cycle: 1.0 % Voltage: 11.93 V Duty Cycle: 15.0 % Temperature: 13.5°C 005660 - Glowplug for Cylinder 3 (Q12) P161C - 001 - Open Circuit Freeze Frame: Fault Status: 01100001 Fault Priority: 0 Fault Frequency: 1 Reset counter: 255 Mileage: 179414 km Time Indication: 0 Date: 2006.03.18 Time: 09:41:47 Freeze Frame: RPM: 0 /min Torque: 0.0 Nm Speed: 0.0 km/h Duty Cycle: 1.0 % Voltage: 11.93 V Duty Cycle: 15.0 % Temperature: 13.5°C 005661 - Glowplug for Cylinder 4 (Q13) P161D - 001 - Open Circuit Freeze Frame: Fault Status: 01100001 Fault Priority: 0 Fault Frequency: 1 Reset counter: 255 Mileage: 179414 km Time Indication: 0 Date: 2006.03.18 Time: 09:41:47 Freeze Frame: RPM: 0 /min Torque: 0.0 Nm Speed: 0.0 km/h Duty Cycle: 1.0 % Voltage: 11.93 V Duty Cycle: 15.0 % Temperature: 13.5°C 005662 - Glowplug for Cylinder 5 (Q15) P161E - 001 - Open Circuit Freeze Frame: Fault Status: 01100001 Fault Priority: 0 Fault Frequency: 1 Reset counter: 255 Mileage: 179414 km Time Indication: 0 Date: 2006.03.18 Time: 09:41:47 Freeze Frame: RPM: 0 /min Torque: 0.0 Nm Speed: 0.0 km/h Duty Cycle: 1.0 % Voltage: 11.93 V Duty Cycle: 15.0 % Temperature: 13.5°C 005663 - Glowplug for Cylinder 6 (Q15) P161F - 001 - Open Circuit Freeze Frame: Fault Status: 01100001 Fault Priority: 0 Fault Frequency: 1 Reset counter: 255 Mileage: 179414 km Time Indication: 0 Date: 2006.03.18 Time: 09:41:47 Freeze Frame: RPM: 0 /min Torque: 0.0 Nm Speed: 0.0 km/h Duty Cycle: 1.0 % Voltage: 11.93 V Duty Cycle: 15.0 % Temperature: 13.5°C Readiness: 1 2 0 0 1 ------------------------------------------------------------------------------- Address 02: Auto Trans Labels: 09D-927-750.clb Part No SW: 09D 927 750 FK HW: 09D 927 750 FK Component: AL 750 6A 0940 Revision: 00H52000 Serial number: Coding: 0000504 Shop #: WSC 31414 790 00001 VCID: 7CF741F73FEB6E6B9F-8028 No fault code found. ------------------------------------------------------------------------------- Address 03: ABS Brakes Labels:. 4L0-910-517-V1.clb Part No SW: 4L0 910 517 A HW: 4L0 614 517 A Component: ESP ALLRAD MK25E1 0130 Revision: 00H21001 Coding: 0038033 Shop #: WSC 31414 790 00001 VCID: 285F4DA79BF312CBAB-807C 1 Fault Found: 01826 - Sensor for Steering Angle (G85); Supply Voltage Terminal 30 000 - - Freeze Frame: Fault Status: 01100000 Fault Priority: 2 Fault Frequency: 1 Reset counter: 63 Mileage: 179414 km Time Indication: 0 Date: 2006.03.15 Time: 12:16:31 Freeze Frame: Count: 0 Count: 4353 Count: 297 Count: 43776 ------------------------------------------------------------------------------- Address 05: Acc/Start Auth. Labels:. 4F0-910-852.clb Part No SW: 4F0 910 852 HW: 4F0 905 852 B Component: FBSAUDIC6 ELV H31 0220 Revision: 31050601 Serial number: 10601000473437 Coding: 0000147 Shop #: WSC 00579 210 89301 VCID: 63C51A8BA255B193BE-8036 Subsystem 1 - Part No: 4F0 910 131 E Component: FBSAUDIC6 EZS H45 0080 Subsystem 2 - Part No: 4F0 910 220 D Component: FBSAUDIC6 IDG H01 0040 No fault code found. ------------------------------------------------------------------------------- Address 07: Control Head Labels: 4L0-910-7xx-07-H.clb Part No SW: 4L0 910 729 S HW: 4E0 035 729 Component: Interfacebox H43 2830 Revision: 00000000 Serial number: 386GV067515281 Coding: 0002002 Shop #: WSC 31414 790 00001 VCID: 3F8DF6FB6E7DB573FA-806A Subsystem 1 - Part No: 4L0 910 609 Component: E0380 BedienteilH02 0060 Subsystem 2 - Serial number: 00000000460480 Subsystem 3 - Serial number: 0103.07.060000000100010728ÿ Subsystem 4 - Serial number: 010728ÿ No fault code found. ------------------------------------------------------------------------------- Address 08: Auto HVAC Labels: None Part No SW: 4L0 910 043 HW: 4L0 820 043 F Component: KLIMABETAETIGUNGH05 0040 Revision: 00---008 Serial number: 00000000051235 Coding: 0001046 Shop #: WSC 31414 790 00001 VCID: 61C91083B849A383AC-8034 1 Fault Found: 01592 - Air Quality Sensor (G238) 014 - Defective Freeze Frame: Fault Status: 01101110 Fault Priority: 3 Fault Frequency: 4 Reset counter: 63 Mileage: 179414 km Time Indication: 0 Date: 2006.03.15 Time: 12:16:37 Freeze Frame: Temperature: 22.0°C ------------------------------------------------------------------------------- Address 09: Cent. Elect. Labels: 4F0-910-279.lbl Part No SW: 4F0 910 279 K HW: 4F0 907 279 Component: ILM Fahrer H17 0240 Revision: 00000000 Serial number: 4F0907279 Coding: 0011101 Shop #: WSC 31414 790 00001 VCID: 3169A0C3A82953037C-8064 Subsystem 1 - Part No: 4L2 910 113 Labels: 1KX-955-119.CLB Component: Wischer AU716 H08 0080 Coding: 00064792 Shop #: WSC 31414 Subsystem 2 - Part No: 4E0 910 557 A Labels: 8K0-955-559.CLB Component: REGENLICHTSENSORH13 0090 Coding: 00150059 Shop #: WSC 31414 2 Faults Found: 01493 - Bulb for Blinkers; Front Left (M5) 007 - Short to Ground - Intermittent Freeze Frame: Fault Status: 00100111 Fault Priority: 2 Fault Frequency: 2 Reset counter: 103 Mileage: 179412 km Time Indication: 0 Date: 2006.03.15 Time: 12:20:00 01498 - Bulb for Parking Lamps; Right (M3) 011 - Open Circuit Freeze Frame: Fault Status: 01101011 Fault Priority: 2 Fault Frequency: 1 Reset counter: 63 Mileage: 179412 km Time Indication: 0 Date: 2006.03.15 Time: 12:17:00 ------------------------------------------------------------------------------- Address 0E: Media Player 1 Labels: 4E0-910-111.lbl Part No SW: 4L0 910 111 A HW: 4L0 035 111 Component: CD-Changer H41 0100 Revision: 00000000 Serial number: AUZ5ZBF3029137 Shop #: WSC 00000 000 00000 VCID: 1E336B7FC9B7DC7BD1-804A No fault code found. ------------------------------------------------------------------------------- Address 15: Airbags Labels: 4L0-910-655.lbl Part No SW: 4L0 910 655 B HW: 4L0 959 655 Component: 31 AIRBAG AUDI8RH38 0120 Revision: 05H38000 Serial number: 0037GD06DEJ5 Coding: 0013105 Shop #: WSC 31414 790 00001 VCID: 2C57B1B78F0B3EEB4F-8078 Subsystem 1 - Serial number: 6332QSME0F433F1DT Subsystem 2 - Serial number: 6342QSME0F3035215 Subsystem 3 - Serial number: 6352QSME0F31146FM Subsystem 4 - Serial number: 6362QSME1241403D6 Subsystem 5 - Serial number: 63734SME11632061L Subsystem 6 - Serial number: 63834SME116D2239$ No fault code found. ------------------------------------------------------------------------------- Address 16: Steering wheel Labels: 4F0-910-549.lbl Part No SW: 4F0 910 549 HW: 4F0 953 549 A Component: Lenksäulenmodul H08 0230 Revision: 00H08000 Serial number: 90054061950102 Coding: 0102142 Shop #: WSC 31414 790 00001 VCID: 66C3039F5167C4BB59-8032 Subsystem 1 - Part No: XXXXXXXXXXX Component: Lenkradmodul H07 0090 No fault code found. ------------------------------------------------------------------------------- Address 17: Instruments Labels: 4L0-910-xxx-17.lbl Part No SW: 4F0 910 930 C HW: 4L0 920 980 G Component: KOMBIINSTR. M73 H17 0110 Revision: 00300000 Serial number: 5HJ321M76 Coding: 2593443 Shop #: WSC 27313 067 57207 VCID: 23455A8BE2D5F193FE-8076 No fault code found. ------------------------------------------------------------------------------- Address 18: Aux. Heat Labels: 4L0-910-105.lbl Part No SW: 4L0 910 105 HW: 4L0 815 071 C Component: Heizgeraet H07 0060 Revision: 0000000E Serial number: 00000009011043 Coding: 0000002 Shop #: WSC 31414 790 00001 VCID: 60CF1587B343AA8BA3-8034 4 Faults Found: 01330 - Central Control Module for Central Convenience (J393) 004 - No Signal/Communication - Intermittent 00456 - Control Module for Access and Start Control (J518) 004 - No Signal/Communication - Intermittent 02072 - Control Module for Energy Management (J644) 004 - No Signal/Communication - Intermittent 01408 - Under-Voltage Shut-Off (fixed Value) 000 - - - Intermittent ------------------------------------------------------------------------------- Address 19: CAN Gateway Labels:. 4L0-910-468.clb Part No SW: 4L0 910 468 HW: 4L0 907 468 Component: J533__Gateway H06 0040 Revision: 00H06000 Serial number: 0900B06715804B Coding: F55BBE7F302202 Shop #: WSC 80093 222 69422 VCID: 6CD771B74F8BFEEB0F-8038 1 Fault Found: 01771 - Control Module for Headlight Range (J431) 004 - No Signal/Communication Freeze Frame: Fault Status: 01100100 Fault Priority: 2 Fault Frequency: 1 Reset counter: 63 Mileage: 179414 km Time Indication: 0 Date: 2006.03.15 Time: 12:16:33 ------------------------------------------------------------------------------- Address 34: Level Control Labels: 4L0-910-553.lbl Part No SW: 4L0 910 553 B HW: 4L0 907 553 Component: LUFTFDR.-CDC H03 7550 Revision: --H03001 Serial number: 15.1528-0095.2 Coding: 0015510 Shop #: WSC 80093 222 69422 VCID: 295948A380F92BC3B4-807C 1 Fault Found: 00446 - Function Limitation due to Under-Voltage 002 - Lower Limit Exceeded - Intermittent Freeze Frame: Fault Status: 00100010 Fault Priority: 4 Fault Frequency: 5 Reset counter: 103 Mileage: 179414 km Time Indication: 0 Date: 2006.03.15 Time: 12:16:55 Freeze Frame: Error Code: 13 ------------------------------------------------------------------------------- Address 37: Navigation Labels: 4E0-910-88x-37.lbl Part No SW: 4E0 910 887 Q HW: 4E0 919 887 D Component: MNS ECE H48 0850 Revision: 00000000 Serial number: 399GU067530216 Shop #: WSC 00579 210 08335 VCID: 3B7582EB7A65A953D6-806E No fault code found. ------------------------------------------------------------------------------- Address 42: Door Elect, Driver Labels: 4L0-910-793-42.lbl Part No SW: 4L0 910 793 B HW: 4L0 959 793 B Component: TSG FA H12 0130 Revision: 00-00000 Coding: 0002651 Shop #: WSC 31414 790 00001 VCID: 2F6DA6BBBE1D45F36A-807A No fault code found. ------------------------------------------------------------------------------- Address 46: Central Conv. Labels:. 4L0-910-289.lbl Part No SW: 4L0 910 289 D HW: 4L0 907 289 A Component: Komfortgeraet H05 0020 Revision: 0020 --- Serial number: 01016234250000 Coding: 7348475 Shop #: WSC 31414 790 00001 VCID: 3169A0C3A82953037C-8064 Subsystem 1 - Part No: 1K0 951 605 C Component: LIN BACKUP HORN H03 1301 Subsystem 2 - Part No: 4F0 910 177 Component: Innenraumueberw.H01 0020 1 Fault Found: 01504 - Bulb for License-Plate Light (X) 009 - Open or Short to Ground Freeze Frame: Fault Status: 01101001 Fault Priority: 3 Fault Frequency: 254 Reset counter: 63 Mileage: 177361 km Time Indication: 0 Date: 2020.11.19 Time: 18:58:40 ------------------------------------------------------------------------------- Address 47: Sound System Labels: 4F0-910-223-AS.lbl Part No SW: 4L0 910 223 B HW: 4L0 035 223 Component: DSP-AU716 H20 0100 Revision: 11S00001 Serial number: 01507060321569 Coding: 0000003 Shop #: WSC 31414 790 00001 VCID: 23455A8BE2D5F193FE-8076 No fault code found. ------------------------------------------------------------------------------- Address 4F: Centr. Electr. II Labels: 4F0-910-280.lbl Part No SW: 4F0 910 280 HW: 4F0 907 280 E Component: ILM Beifahrer H10 0080 Revision: Serial number: 00000000002416 Coding: 0011101 Shop #: WSC 31414 790 00001 VCID: 5EB32B7F89379C7B91-800A No fault code found. ------------------------------------------------------------------------------- Address 52: Door Elect, Pass. Labels: 4L0-910-793-52.lbl Part No SW: 4L0 910 793 B HW: 4L0 959 792 B Component: TSG BF H12 0130 Revision: 00-00000 Coding: 0002651 Shop #: WSC 31414 790 00001 VCID: 2F6DA6BBBE1D45F36A-807A No fault code found. ------------------------------------------------------------------------------- Address 55: Headlight Range Cannot be reached ------------------------------------------------------------------------------- Address 56: Radio Labels: 4E0-910-541.lbl Part No SW: 4E0 910 541 M HW: 4E0 035 541 P Component: TUNER EU/US/RDW H42 0570 Revision: 00000000 Serial number: 388G%067539581 Coding: 0000001 Shop #: WSC 31414 790 00001 VCID: 2A5BB7AF85FF20DBBD-807E No fault code found. ------------------------------------------------------------------------------- Address 61: Battery Regul. Labels: 4F0-910-181.lbl Part No SW: 4L0 910 181 HW: 4L0 915 181 Component: J0644 BEM H12 0530 Revision: -------- Serial number: 00000000029587 Shop #: WSC 80093 222 69422 VCID: 64C71997A75BB6AB47-8030 Subsystem 1 - Part No: 4F0 915 105 D Component: von VA0 2607171435 Coding: 344630393135313035442056413032363037313731343335 Shop #: WSC 31414 790 00001 No fault code found. ------------------------------------------------------------------------------- Address 62: Door, Rear Left Labels: 4L0-910-795.lbl Part No SW: 4L0 910 795 B HW: 4L0 959 795 B Component: TSG HL H21 0050 Coding: 0002058 Shop #: WSC 31414 790 00001 VCID: 3169A0C3A82953037C-8064 No fault code found. ------------------------------------------------------------------------------- Address 6D: Trunk Elect. Labels: 4L0-910-945.clb Part No SW: 4L0 910 945 HW: 4L0 827 851 A Component: ValeoHeckdeckel H20 0280 Revision: --H20001 Serial number: E5030000B Shop #: WSC 98765 666 38354 VCID: 6CD771B74F8BFEEB0F-8038 Subsystem 1 - Part No: 4L0 910 946 Component: ValeoHeckdeckel H20 0280 Subsystem 2 - Serial number: E5030100B Subsystem 3 - Serial number: RD22.07.06--H20001001C0142ÿ Subsystem 4 - Serial number: 1C0142ÿ 1 Fault Found: 00317 - Rear Lid Control Module (J605) 008 - Implausible Signal - Intermittent Freeze Frame: Fault Status: 00101000 Fault Priority: 3 Fault Frequency: 1 Reset counter: 103 Mileage: 179414 km Time Indication: 0 ------------------------------------------------------------------------------- Address 6F: Centr. Conv. II Labels:. 4L0-910-290.lbl Part No SW: 4L0 910 290 HW: 4L0 907 290 Component: ILM HINTEN 2 H05 0060 Revision: AAH05061 Serial number: 001845080----- Coding: 0000001 Shop #: WSC 31414 790 00001 VCID: 65C10493AC61CFA350-8030 No fault code found. ------------------------------------------------------------------------------- Address 72: Door, Rear Right Labels: 4L0-910-795.lbl Part No SW: 4L0 910 795 B HW: 4L0 959 794 B Component: TSG HR H21 0050 Coding: 0002058 Shop #: WSC 31414 790 00001 VCID: 3169A0C3A82953037C-8064 No fault code found. ------------------------------------------------------------------------------- Address 76: Park Assist Labels: 4Fx-910-283.lbl Part No SW: 4F0 910 283 G HW: 4F0 919 283 G Component: Parkhilfe 8-Kan H12 0060 Revision: 00H12000 Serial number: 06320620100691 Coding: 0201146 Shop #: WSC 31414 790 00001 VCID: 285F4DA79BF312CBAB-807C No fault code found. End-------------------------(Elapsed Time: 02:51)--------------------------
