Ketan

Hi Chris, No i didnt manage to get this off. In the end i had asked the service garage to replace it for me whilst it was already in for a service. However, this did not fix my oroginal issue with the Car jerking at takeoff. Hope it works out for you.

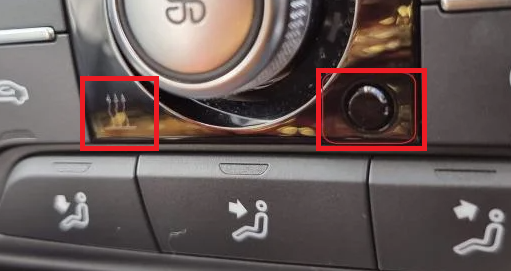

Any ideas what the icon to the left is?

Also what is the light/icon to the left of the button? It looks like some sort of heating indication, but i have never seen i come on. Thanks in advance!

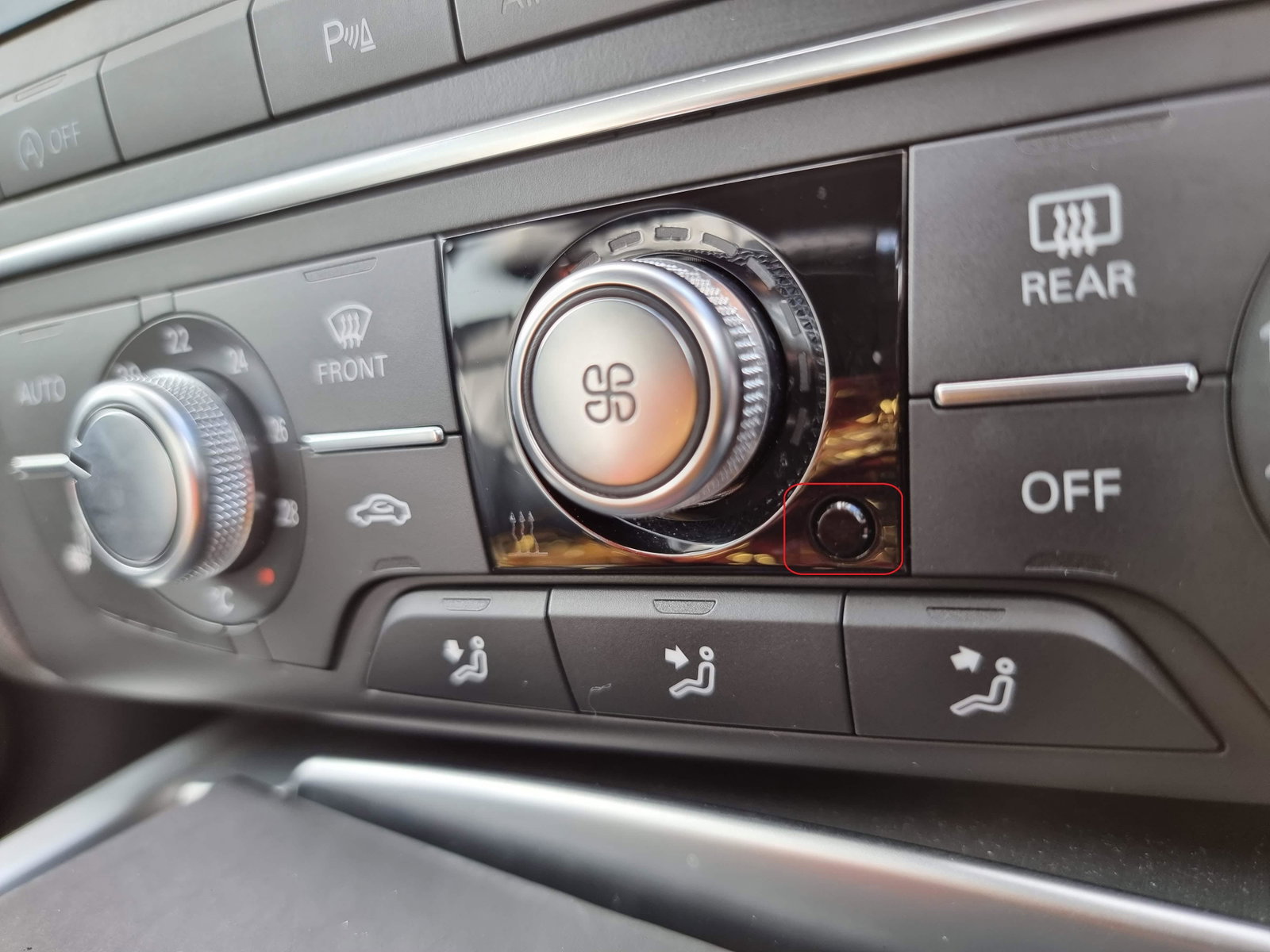

Can anyone tell me what the little small button does on this Air Conditioning unit. It does not seem to do anything when pressed.

Thanks Steve. The purple tags do not pull out, they actually rotate round. My assumption is that once the new part has been fitted, whilst the brake pedal is in its resting position, i need to rotate the purple tags to lock some sort of internal mechansim in place. I assume its some sort of calibration to determine where the plunger sits whilst the brake pedal is at rest. Either way, i did try to rotate the purple dial and tried removing also, but no luck with that approach either. I have tried to give this some welly and rotate it anti clockwise but it just does not want to budge. Bit scared that i end up breaking something in the process. I have also tried to de-press the brake pedal and then also rotate, but no luck with that either.

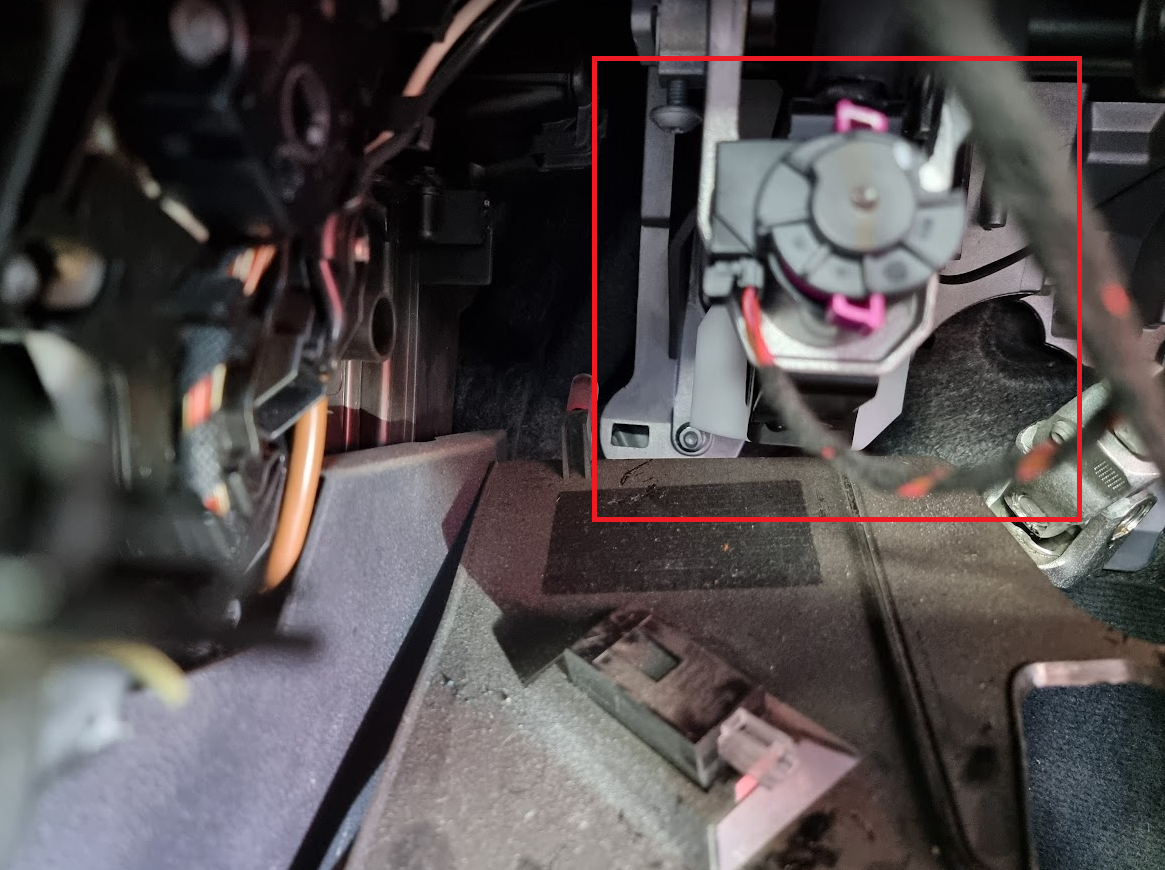

Attaching image of the brake light switch.

I am trying to replace the brake light switch on my car but are unable to actually get the switch removed. I have removed the panel under the steering wheel, also removed the air vent tube that blocks the switch from view. I can see the brake light switch, but my understanding is that you are meant to rotate the switch anti clockwise by 90 degrees or so, however when i try to turn the switch it just doesnt budge at all. I have tried rotating both ways but it does not seem to move in either direction. Also unable to remove the cable from the switch. I was expecting a to push in a pair of ears on either side to remove the cable, but cannot see anthing particular that would cause the wiring harness to be removed. The replacment part i have bought is "4f0945459b". Any help on how to actually remove this and any fitting instructions would be greatly appreciated, especially with regards to what the purple part of the brake switch is for, it seems to rotate and lock into a position. The reason i am trying to replace the switch in the first place, is because there seems to be a slight delay (2-3 second) for the clutch to sometimes engage when setting off. It happens when you are at a standstill, as you lightly press the accelarator, the engine revs increase but the clutch does not seem to fully engage, there is a slight delay of around 3 seconds, and when it does eventually engage the car jerks especially if the revs become too high as you wait. I ready a previous post that it could be due to a faulty brake light switch that is causing the transmission to think that the brake is still depressed and therefore not engage the clutch. This is therefore the reason why i am trying to replace the switch to see if it does the trick or not.
