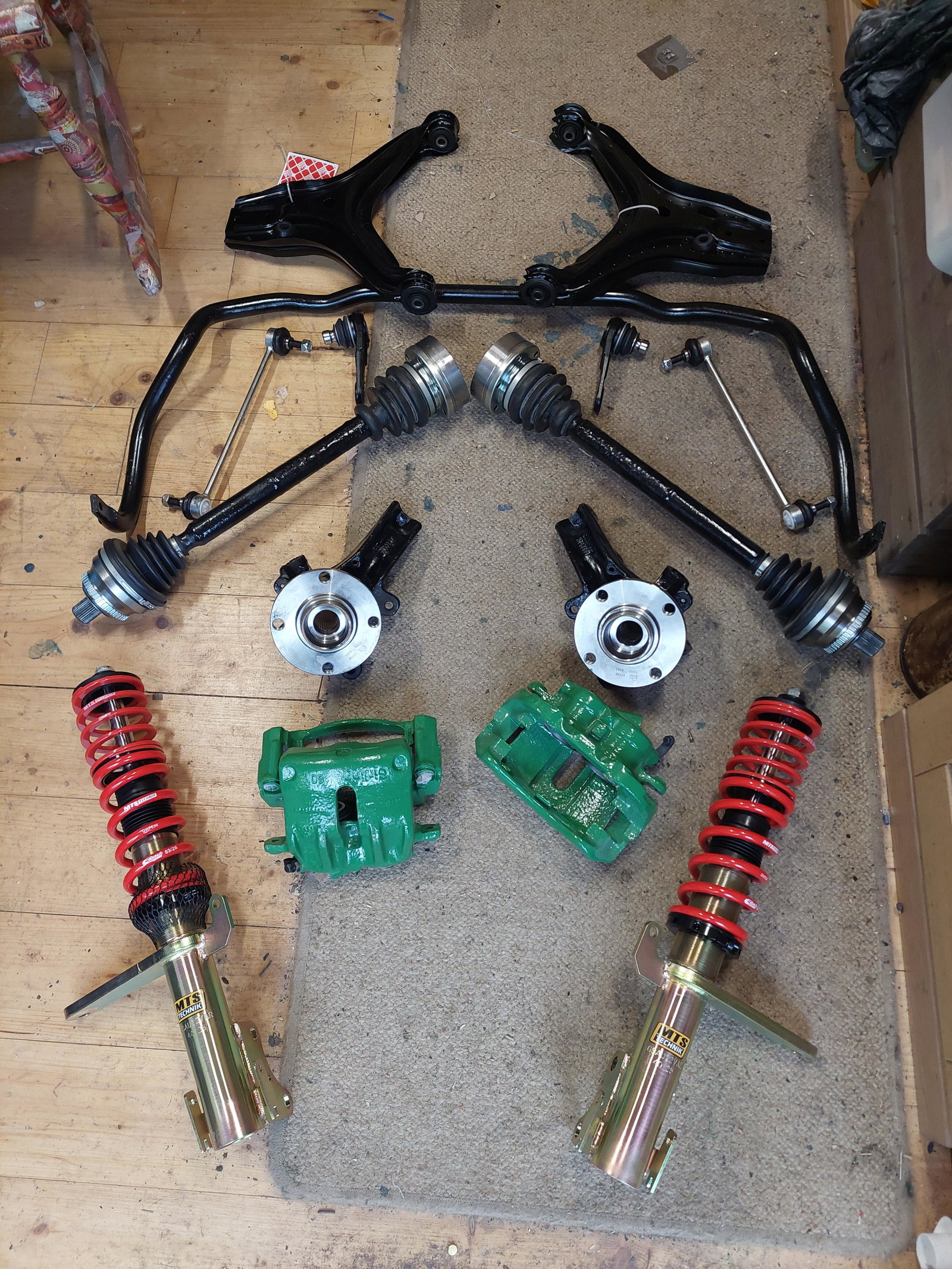

After an absolute nightmare with a rouge supplier, I’ve now got all the bits ready to start and rebuild the front end. It'll take me a while but hey 60 is a good age to start a project 🤣 I will post updates as and when I get bits done. p.s. Please PM me if you want details of the supplier.

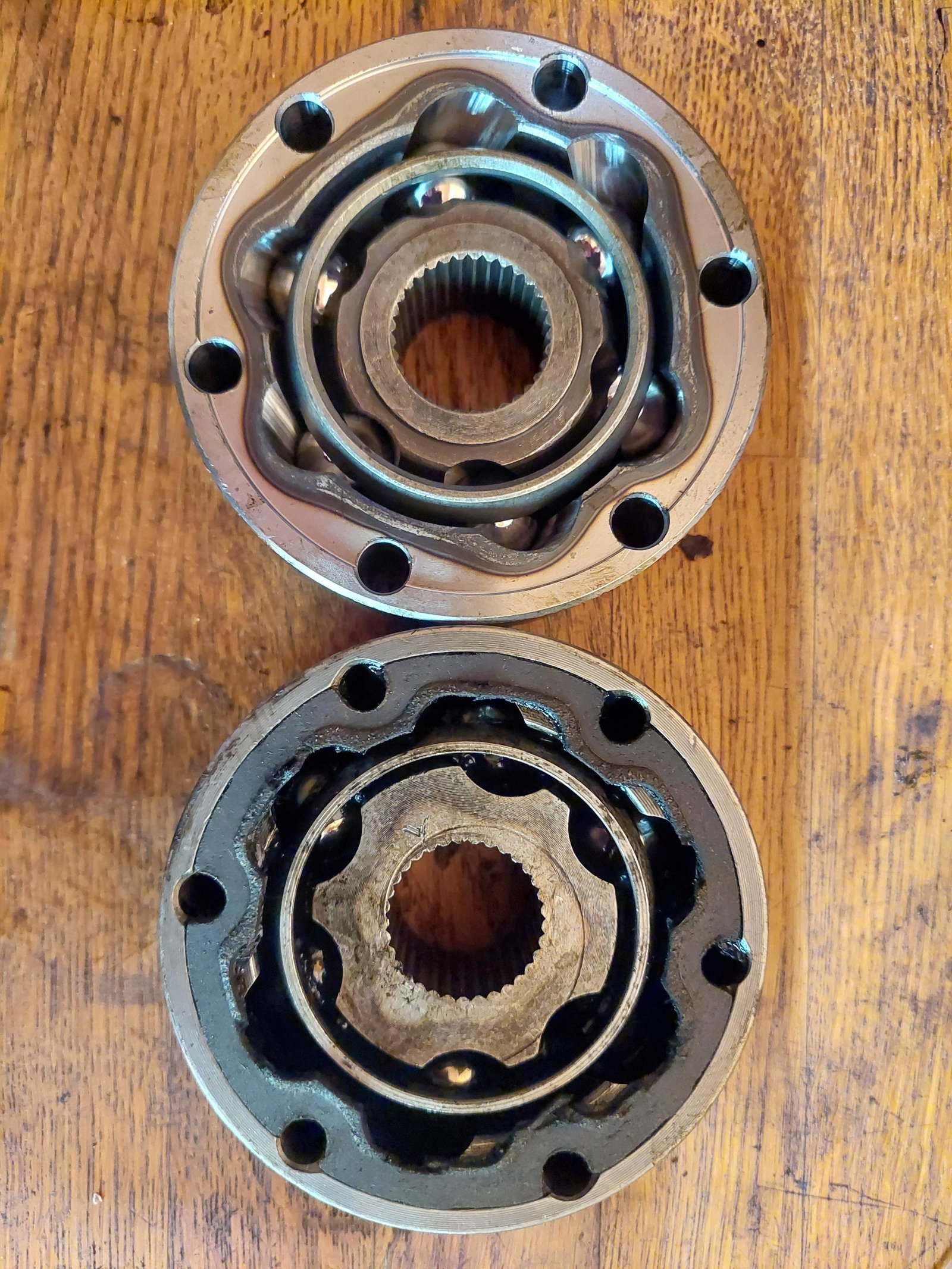

I've an issue whilst rebuilding my driveshafts on my b3 91 16vq the new part looks slightly different and won't fit as it should. I ordered it using my vin number and am assured it is correct, Meyle 100 498 0114, but it has this lip that faces the shaft end and once on it's a fraction of a mm above the groove for the retaining clip. Any pointers much appreciated.

Am looking into printing one 👍

Hi @Steve Q I've just put posts on here and a couple of fb groups also browsed ebay found a couple but prices are more than I need to spend tbh but I'm in no hurry tbf.

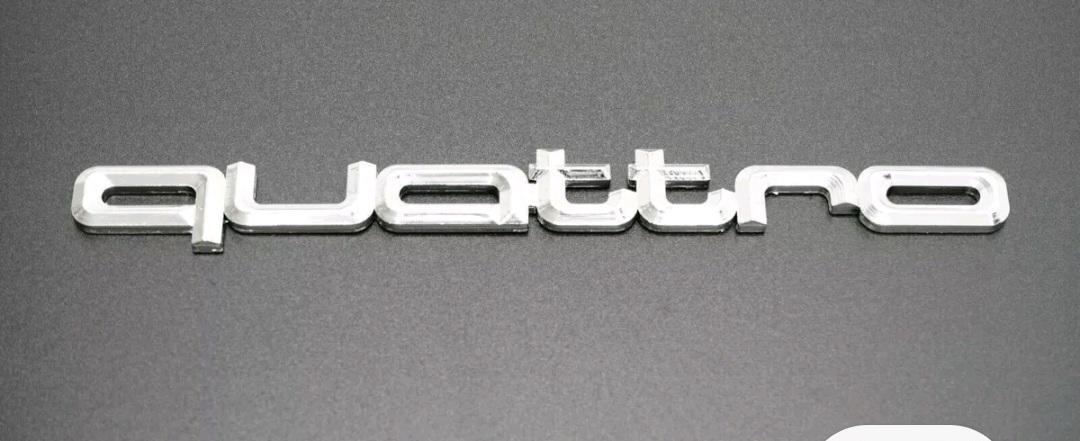

Anyone got one of these boot badges that won't cost me a kidney 🙄 just snapped mine doh.

I got both the hubs and bearing kit from ebay with the bearing kit £17.50 ea included both bolts from carpartsinmotion they had good feedback and the hubs purely on price 2 front for £50 from brillbuyuk although they have good feedback

Cheers @Turlough I remember buying Fedoro parts donkeys years ago when I had an old mk3 cortina never gave them a thought but haven't yet started on the rears.

Cheers Gareth I've just got Febi front hubs and wheel bearing kit along with a Frenkit caliper recon kit for my S2 front caliper conversion upgrade 🤞 but may need cv joints or complete shafts depending on their condition once off and wishbones.

Back again just started a refurb of front calipers, struts wishbones etc and will probably be replacing either the drive shafts as a whole or refurbing them with new joints but which manufacturers should I be looking to buy from as places like ebay are awash with different ones and I'd rather have decent quality items that are going to last but at a reasonable price. Cheers

Will do here's a couple of links for the 2 oil seals and the hall sender, the fibre washers I had and were m12 x 20m. Oil seal £2.51 https://simplybearings.co.uk/shop/p25677/12x19x5mm-Nitrile-Rubber-Double-Lip-Rotary-Shaft-Oil-Seal-with-Garter-Spring-R23-/-TC/product_info.html 'O' ring £4.13 https://simplybearings.co.uk/shop/Seals-O-Ring-Seals-NITRILE-O-Rings/c19_4501_4705/index.html?selection=Nitrile+Rubber+O-Rings Hall sender £35 https://www.ignitioncarparts.co.uk/PartDetails.aspx?s_pc=PPU2007

Cheers guys after changing the oil seals and fibre washers in the dizzy and replacing the hall sender I have a running engine ticking over nicely now to flush and replace the oil and coolant then onto the brakes and suspension. 👍

Strange request but I'm looking for the plastic casings from a pair of b3 80 headlights. Cheers

A quick update after fitting a new battery with no change I tested the hall sender by disconecting and grounding the middle connector and got the good spark I've been after so the dizzy is out and looking to source a new sender, if anyone can point me to a good supplier, along with new oil seals and fibre washers for the dizzy whilst it's out.

Hi Cliff I believe it's KE-Jetronic system there are no points involved. I tested the coil firstly by using a lead and cranking no spark from the coil I then removed it and did an ohm test which I'm sure was within the range. Now I'm after where to go next.

I did some multimeter testing set at 20k with the leads and got 8.5 , 9.2, 10.3 & 11.2 shortest to longest and with the coil to dizzy lead 4.3. On the coil itself also set at 20k from 1- to lead output 7.8 and set at 200 across terminals 1- & 15+ I got 03.2. Do these readings seem ok?
