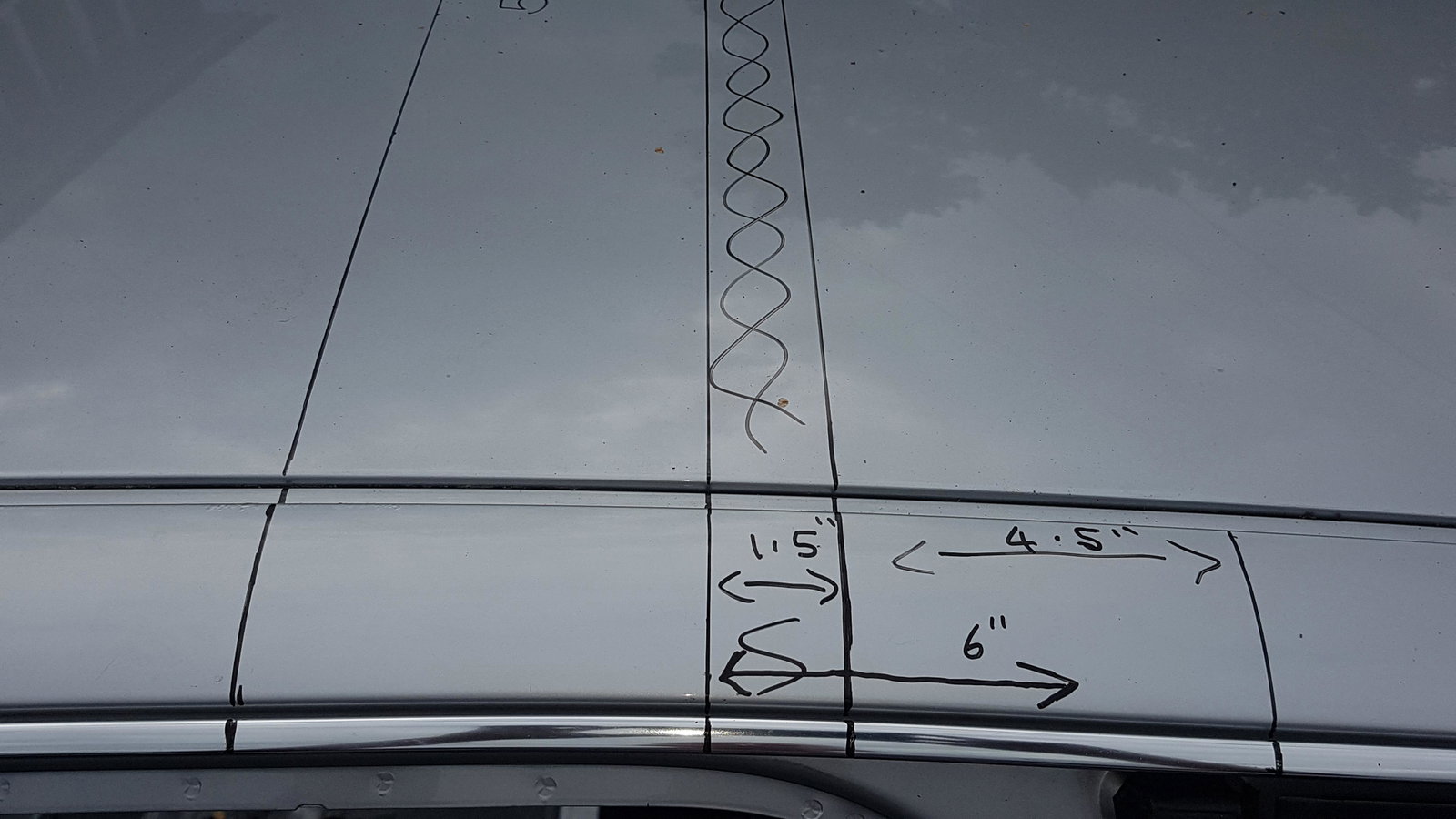

Profile Information

  • First Name
    Matthew
  • Location
    TADWORTH
  • Audi Model
    S4
  • Audi Year
    2003

Recent Profile Visitors

1,252 profile views

NoggyMatt's Achievements

Apprentice

Apprentice (3/14)

  • First Post
  • Collaborator Rare
  • Conversation Starter
  • Week One Done
  • One Month Later

Recent Badges

1

Reputation

  1. Hi my S4 had a problem with a flooded ECU box (previous owners neglect) and the 2 relays 219 & 373 where all corroded and the fan ran constantly, i paid the man, got the laptop out and cleared all the fault codes, fan stopped running when car was off, so drove home 350 miles, then a few days later it had rained and after my lights, indicators, horn, and key fob stopped working, and then the car would not start so i swapped out the BCM from under the dash with one from my other B6 S4 cleared the fault codes after saving them, then all worked ok, and the car started, it ran a bit lumpy but ok, then i disconnected the battery as was stored under a sheet outside and did not want it connected just in case and i wanted to change out the problematic relays and dry out ECU box, went to Audi Gatwick and paid the £85 for the 2 relays 219 & 373 now superseded with 645 relay, i de-pined and cleaned and dried all the terminals, 1 wire broke off the terminal on relay 219 on T pin, i stripped the wire and soldered it back to the plug terminal. put the relays in, connected the battery to make sure it still run, And Nothing, it just cranks over. today i changed out every relay in the car, still nothing. i have done another vcds scan which i will try and attach. Chassis Type: 8E (8E - Audi A4/S4/RS4 B6/B7 (2001 > 2008)) Scan: 01 02 03 08 09 0F 11 15 16 17 18 25 36 37 45 46 55 56 57 65 67 69 75 76 77 VIN: WAUZZZ8E33A332981 Mileage: 146160km-90819miles ------------------------------------------------------------------------------- Address 01: Engine Labels: 079-910-560-BBK.lbl Part No SW: 8E0 910 560 R HW: 8E0 907 560 Component: 4.2L V8/5V G 0030 Revision: 00000000 Serial number: AUZ6Z0C0013258 Coding: 0011711 Shop #: WSC 13873 026 419431 VCID: 346764BA54DA9C24D6-515A 13 Faults Found 17908 - Fuel Pump Relay (J17) P1500 - 004 - Electrical Malfunction 16666 - Fuel Injector #8 (N86) P0282 - 002 - Short to Ground - Intermittent 17833 - EVAP Purge Valve (N80) P1425 - 002 - Short to Ground - Intermittent 16645 - Fuel Injector #1 (N30) P0261 - 002 - Short to Ground - Intermittent 18010 - Power Supply Terminal 30 P1602 - 002 - Voltage too Low - Intermittent 18044 - Powertrain Data Bus P1636 - 008 - Missing Message from Airbag Controller 18036 - Powertrain Data Bus P1628 - 008 - Missing Message from Steering Angle Sensor 18057 - Powertrain Data Bus P1649 - 008 - Missing Message from ABS Controller 18107 - Powertrain Data Bus P1699 - 008 - Missing Message from Steering Wheel Electronics 18043 - Powertrain Data Bus P1635 - 008 - Missing Message from A/C Controller 18058 - Powertrain Data Bus P1650 - 008 - Missing Message from Instrument Cluster 18080 - Coolant Fan Control 1 P1672 - 004 - Open or Short to Ground 18308 - Coolant Fan Control 2 P1900 - 004 - Open or Short to Ground Readiness: 0110 1101 ------------------------------------------------------------------------------- Address 03: ABS Brakes Labels: 8E0-614-517.lbl Part No: 8E0 614 517 Q Component: ABS/ESP allrad 3032 Coding: 04595 Shop #: WSC 06435 VCID: 36635EB212A68E34E8-513C 3 Faults Found 18258 - Powertrain Data Bus P1850 - 35-00 - Missing Message from ECU 01826 - Sensor for Steering Angle (G85); Supply Voltage Terminal 30 35-00 - - 18258 - Powertrain Data Bus P1850 - 35-00 - Missing Message from ECU ------------------------------------------------------------------------------- Address 08: Auto HVAC Labels: 8E0-820-043.lbl Part No: 8E0 820 043 Q Component: A4 Klimaautomat 1116 Coding: 00000 Shop #: WSC 63351 VCID: 2F6D6BD6EDFCBFFCAB-513C 12 Faults Found 00710 - Defroster Flap Positioning Motor (V107) 41-10 - Blocked or No Voltage - Intermittent 01272 - Positioning Motor for Central Flap (V70) 41-10 - Blocked or No Voltage - Intermittent 00716 - Air recirculation Flap Positioning Motor (V113) 41-00 - Blocked or No Voltage 00735 - Potentiometer in Positioning Motor for Air recirculation Flap (G143) 30-10 - Open or Short to Plus - Intermittent 01592 - Air Quality Sensor (G238) 37-00 - Faulty 00819 - High Pressure Sensor (G65) 07-00 - Signal too Low 00532 - Supply Voltage B+ 53-10 - Supply Voltage Too Low - Intermittent 00466 - Control Module for Steering Column Electronics (J527) 49-10 - No Communications - Intermittent 00457 - Central Electronics Control Module / BCM (J519) 49-10 - No Communications - Intermittent 01206 - Signal for Duration of Ignition Off Time 27-00 - Implausible Signal 00474 - Control Module for Immobilizer 49-10 - No Communications - Intermittent 00474 - Control Module for Immobilizer 27-10 - Implausible Signal - Intermittent ------------------------------------------------------------------------------- Address 09: Cent. Elect. Labels: 8E0-907-279-8E2.lbl Part No: 8E0 907 279 F Component: int. Lastmodul RDW 0416 Coding: 01011 Shop #: WSC 00000 VCID: 356159BE0FA0852CE1-4B18 13 Faults Found 00984 - Left Tail Light (M4) 57-00 - Electric Circuit Failure 00985 - Right Tail Light (M2) 57-00 - Electric Circuit Failure 01518 - Bulb for Back-Up Lights; Left (M16) 57-00 - Electric Circuit Failure 01519 - Bulb for Back-Up Lights; Right (M17) 57-00 - Electric Circuit Failure 01502 - Bulb for Rear Fog; Left (L46) 57-00 - Electric Circuit Failure 00987 - Lamp for Brake Light; Left (M9) 57-00 - Electric Circuit Failure 00988 - Lamp for Brake Light; Right (M10) 57-00 - Electric Circuit Failure 01504 - Bulb for License-Plate Light (X) 57-00 - Electric Circuit Failure 01501 - Bulb for Blinkers; Rear Left (M6) 57-00 - Electric Circuit Failure 01505 - Bulb for Blinkers; Rear Right (M8) 57-00 - Electric Circuit Failure 01333 - Door Control Module; Rear Left (J388) 49-00 - No Communications 01334 - Door Control Module; Rear Right (J389) 49-00 - No Communications 01794 - Control Module - Incorrect Chassis (VIN) Number 35-00 - - ------------------------------------------------------------------------------- Address 15: Airbags Labels: 8E0-959-655-84.lbl Part No: 8E0 959 655 B Component: Airbag 8.4EP 2000 Coding: 0010702 Shop #: WSC 63351 000 00000 VCID: 36635EB242A68E34E8-515A 4 Faults Found 01220 - Rear Side Airbag Igniter; Passenger Side (N202) 001 - Upper Limit Exceeded - Intermittent - MIL ON 01219 - Rear Side Airbag Igniter; Driver Side (N201) 001 - Upper Limit Exceeded - Intermittent - MIL ON 01588 - Igniter for Head-Airbag; Drivers Side (N251) 001 - Upper Limit Exceeded - Intermittent - MIL ON 01589 - Igniter for Head-Airbag; Passenger Side (N252) 001 - Upper Limit Exceeded - Intermittent - MIL ON ------------------------------------------------------------------------------- Address 16: Steering wheel Labels: 8E0-953-549.lbl Part No: 8E0 953 549 N Component: Lenksáulenmodul 0308 Coding: 00041 Shop #: WSC 63351 VCID: 3E7346923A96467430-4B18 3 Faults Found 01333 - Door Control Module; Rear Left (J388) 49-00 - No Communications 01334 - Door Control Module; Rear Right (J389) 49-00 - No Communications 00474 - Control Module for Immobilizer 49-10 - No Communications - Intermittent ------------------------------------------------------------------------------- Address 17: Instruments Labels: None Part No: 8E0 920 981 F Component: KOMBI+WEGFAHRS. RB4 D42 Coding: 01400 Shop #: WSC 00001 VCID: 306F68AAF0C2A004B2-515A WAUZZZ8E33A332981 AUZ6Z0C0013258 7 Faults Found 00668 - Supply Voltage Terminal 30 53-10 - Supply Voltage Too Low - Intermittent 01314 - Engine Control Module 49-00 - No Communications 00457 - Central Electronics Control Module / BCM (J519) 49-10 - No Communications - Intermittent 01334 - Door Control Module; Rear Right (J389) 49-00 - No Communications 01333 - Door Control Module; Rear Left (J388) 49-00 - No Communications 00466 - Control Module for Steering Column Electronics (J527) 49-10 - No Communications - Intermittent 01304 - Radio 49-10 - No Communications - Intermittent ------------------------------------------------------------------------------- Address 46: Central Conv. Labels: Redir Fail! Part No: 8E0 959 433 BC Component: Komfortgerát T3B 1211 Coding: 06859 Shop #: WSC 63351 VCID: 73E5A7A64154DB1C0F-4B00 Subsystem 1 - Part No: 8E2959802 Component: Tõrsteuer.FS BRM 0002 Subsystem 2 - Part No: 8E2959801 Component: Tõrsteuer.BF BRM 0002 Subsystem 3 - Part No: Steuerger Component: t HL antwortet nicht Subsystem 4 - Part No: Steuerger Component: t HR antwortet nicht 17 Faults Found 01333 - Door Control Module; Rear Left (J388) 49-00 - No Communications 01334 - Door Control Module; Rear Right (J389) 49-00 - No Communications 01134 - Alarm Horn (H12) 29-10 - Short to Ground - Intermittent 01134 - Alarm Horn (H12) 49-10 - No Communications - Intermittent 01370 - Alarm triggered by Interior Monitoring 35-00 - - 01368 - Alarm triggered by Luggage Compartment Switch 35-00 - - 01369 - Alarm triggered by Hood Switch 35-00 - - 01374 - Alarm triggered by Terminal 15 35-00 - - 01371 - Alarm triggered by Door Contact Switch; Driver's Side 35-00 - - 00955 - Key 1 35-10 - - - Intermittent 00956 - Key 2 35-10 - - - Intermittent 00957 - Key 3 35-10 - - - Intermittent 00958 - Key 4 35-10 - - - Intermittent 00466 - Control Module for Steering Column Electronics (J527) 49-10 - No Communications - Intermittent 00457 - Central Electronics Control Module / BCM (J519) 49-10 - No Communications - Intermittent 01331 - Door Control Module; Driver Side (J386) 53-10 - Supply Voltage Too Low - Intermittent 01332 - Door Control Module; Passenger Side (J387) 53-10 - Supply Voltage Too Low - Intermittent End-------------------------(Elapsed Time: 05:44)--------------------------

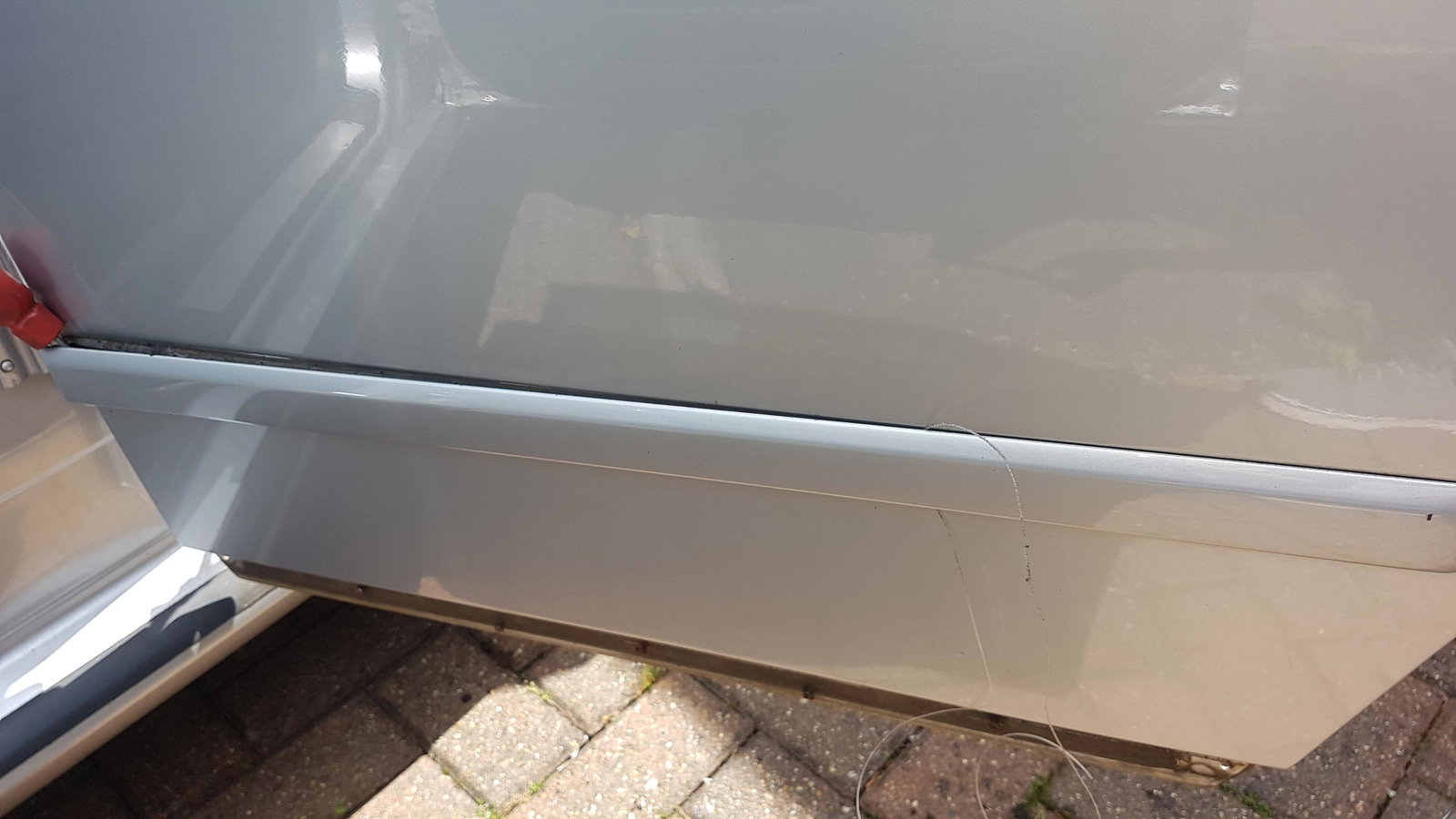

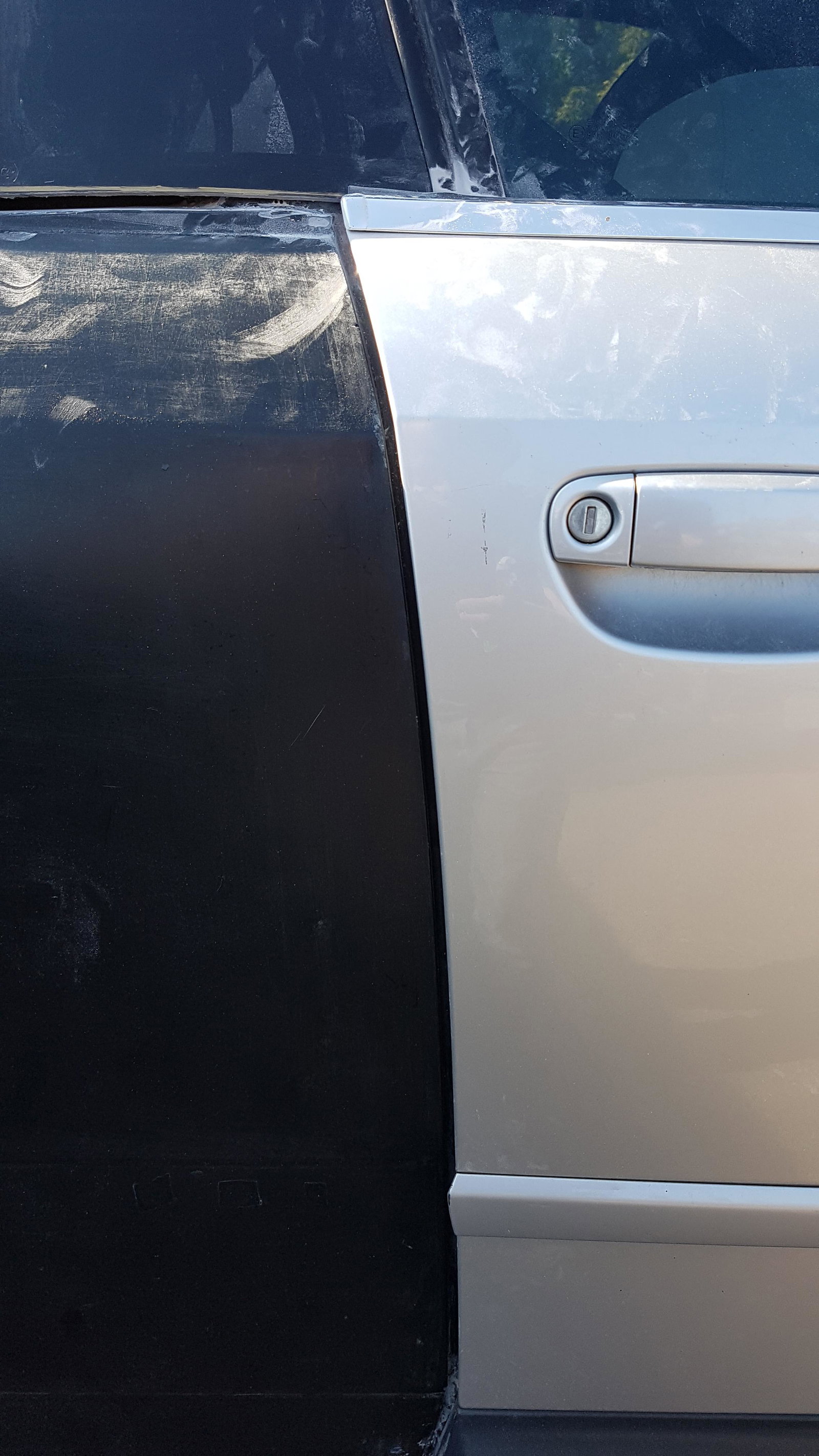

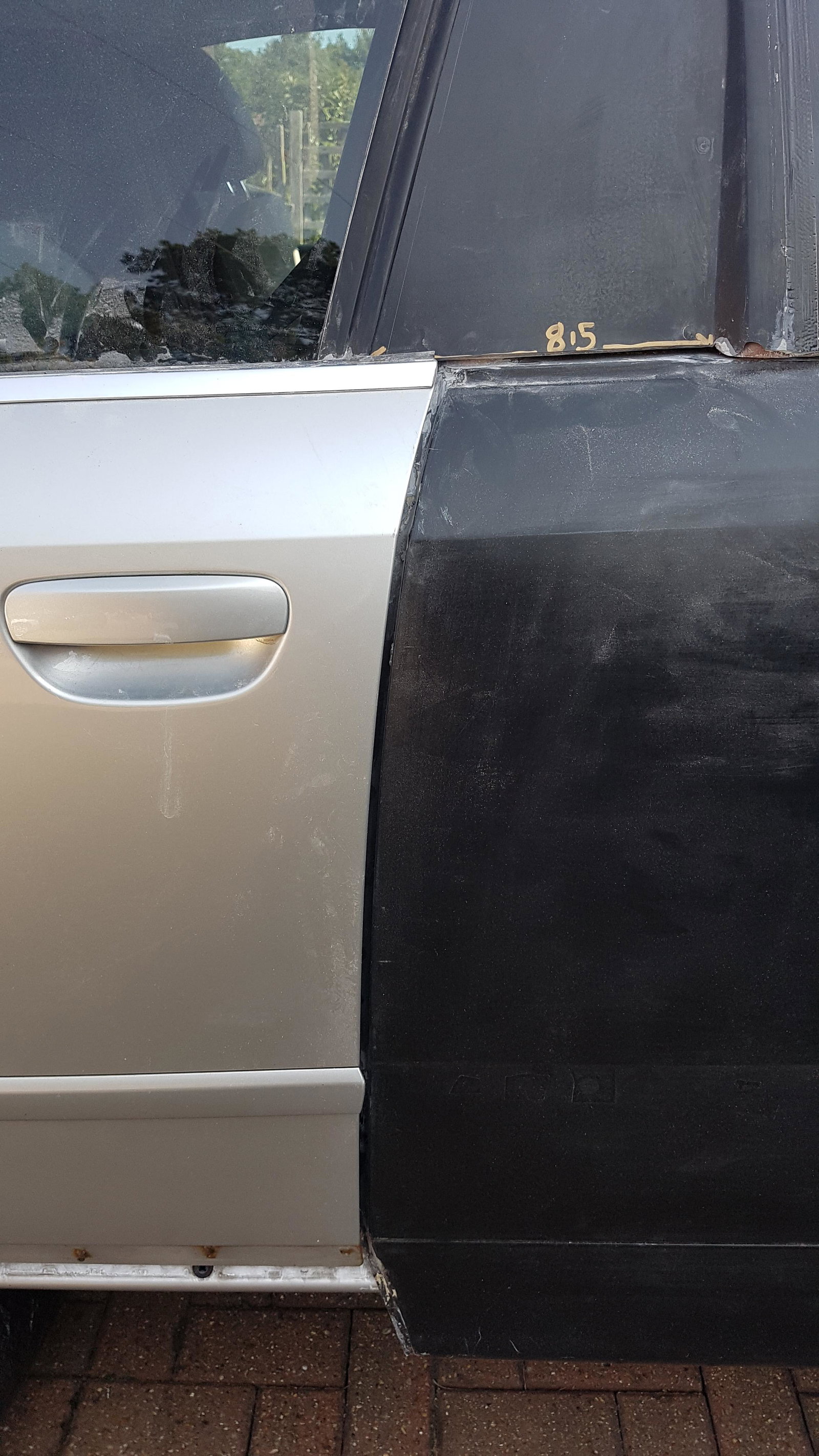

  2. A quick update, I have not done much over the past week as back at work🤪, still in the test fit stage but going wel, ( with the help from the UTE guru's on here. Thank you all again. ) All my tailgate gaps are equal. (Very surprised), It all straightened it's self up once I put the long wooden spacer in at the top of the tailgate, door gaps are near on equal with just minor adjustments needed. This morning I have been cutting and messaging the rear window surround in place, it is now sitting under the door rubbers and lined up with the fold impression line on the top wall. I'm just not to sure about the bottom corner that sits on the rear grander panels, it won't sit flush, I have sanded a bit but do not want to go to far.

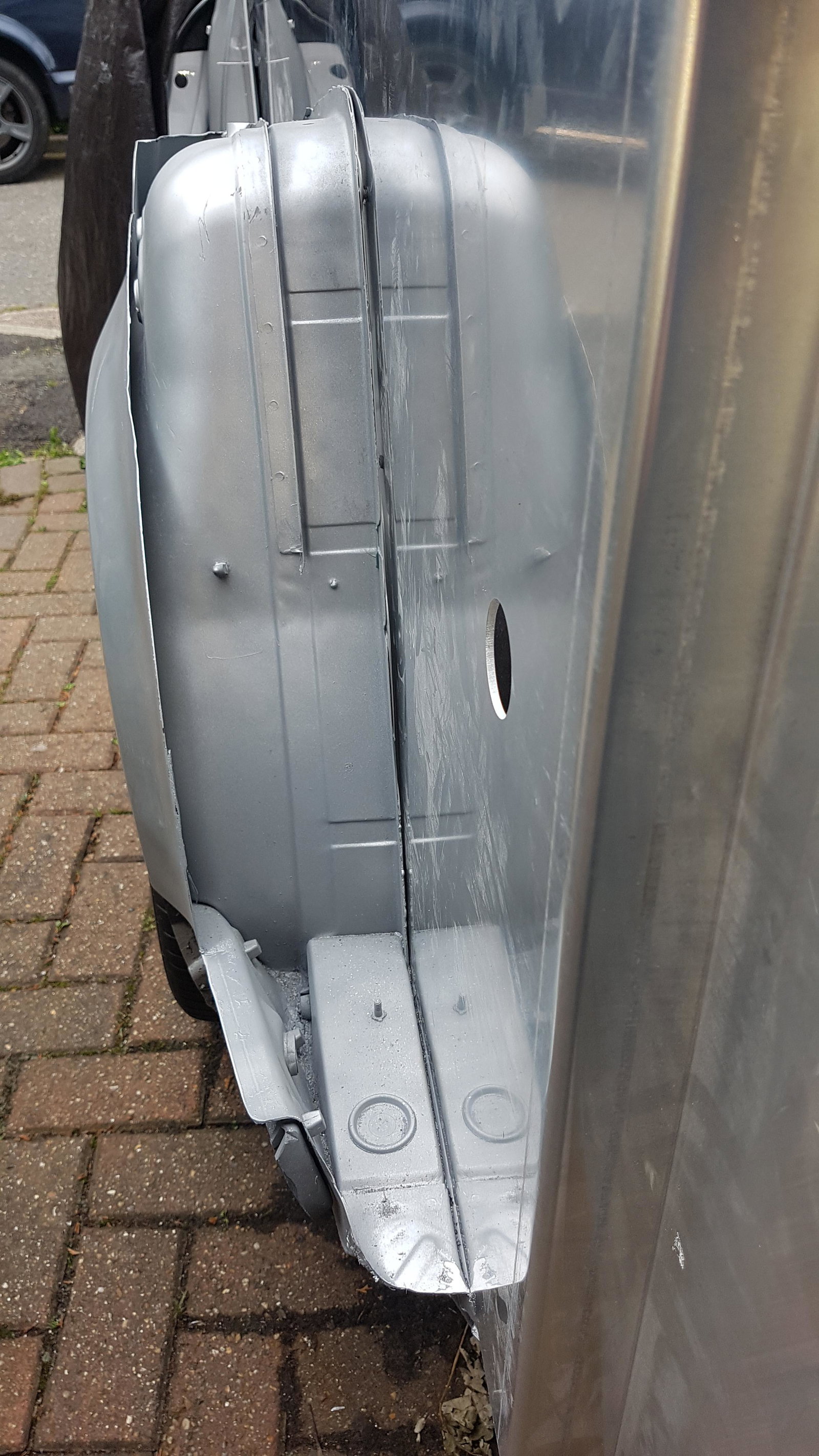

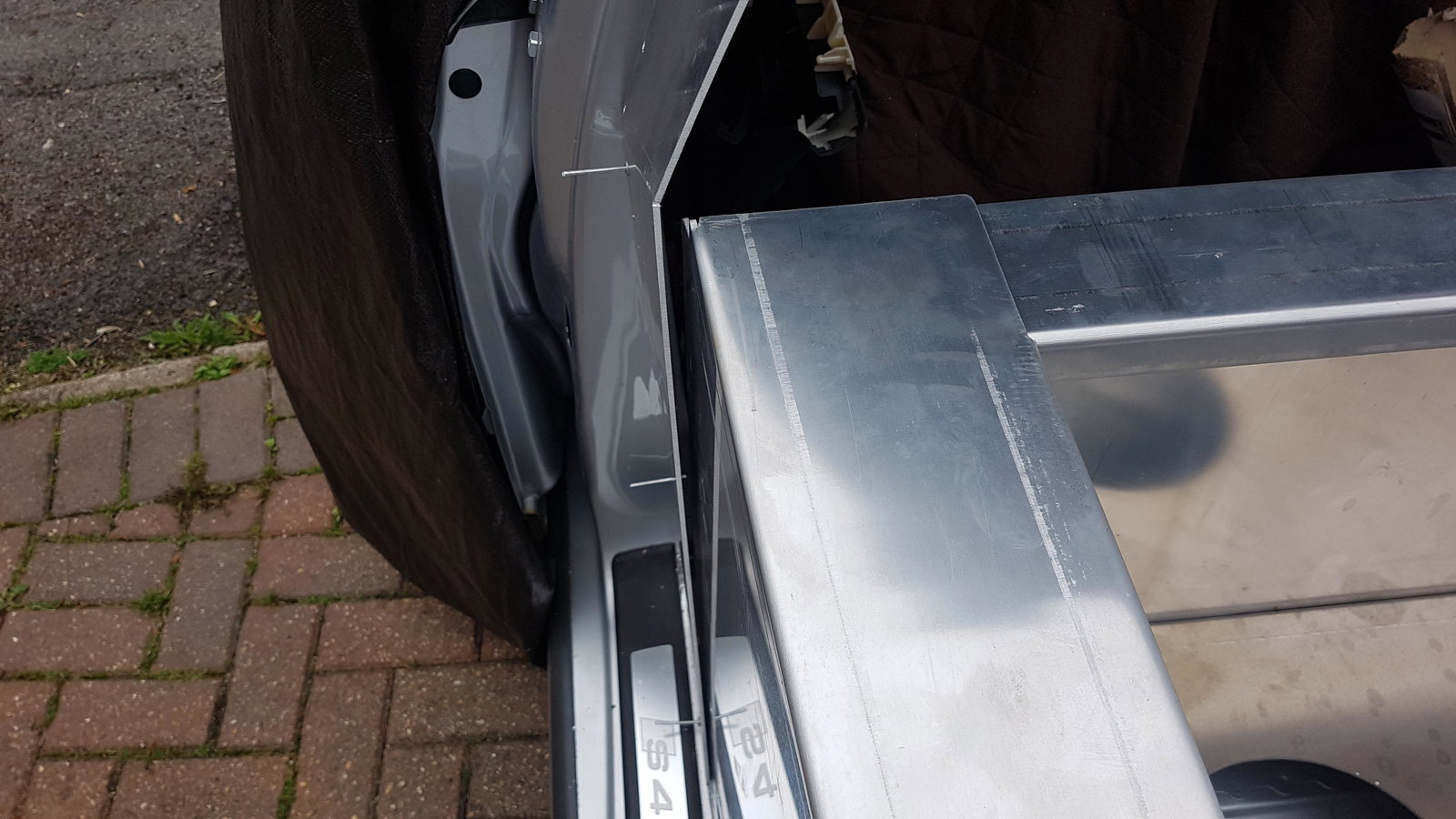

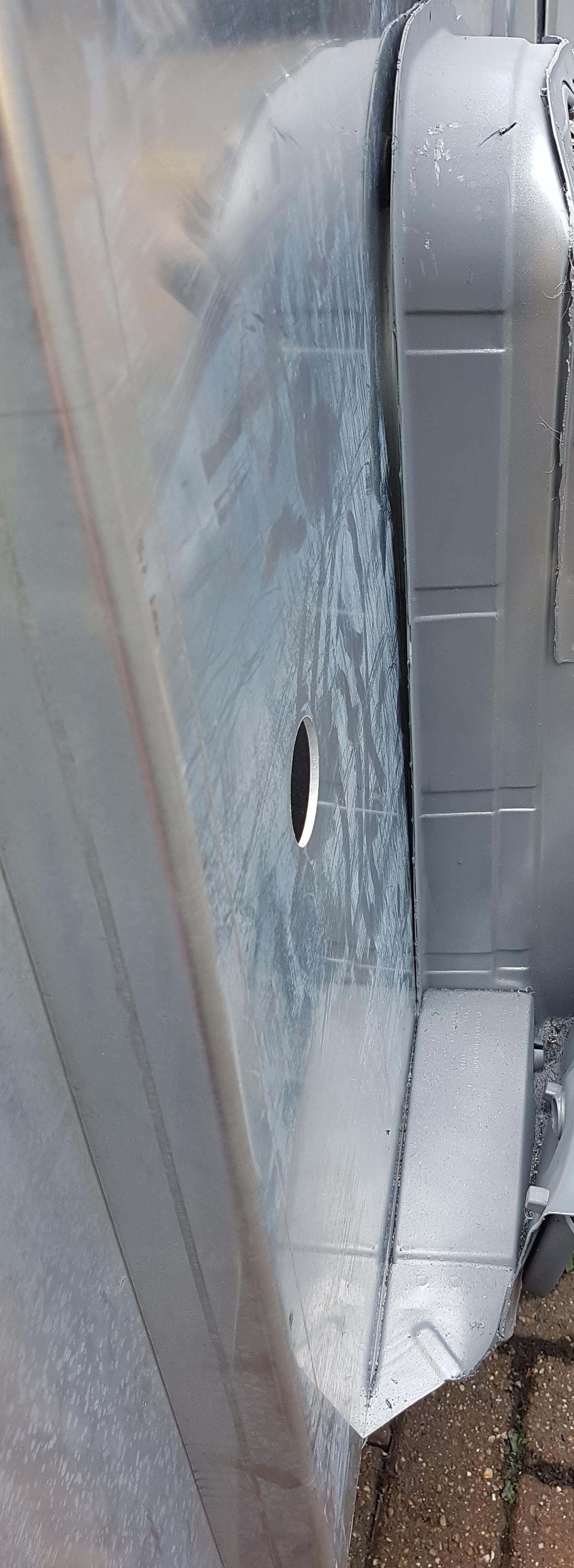

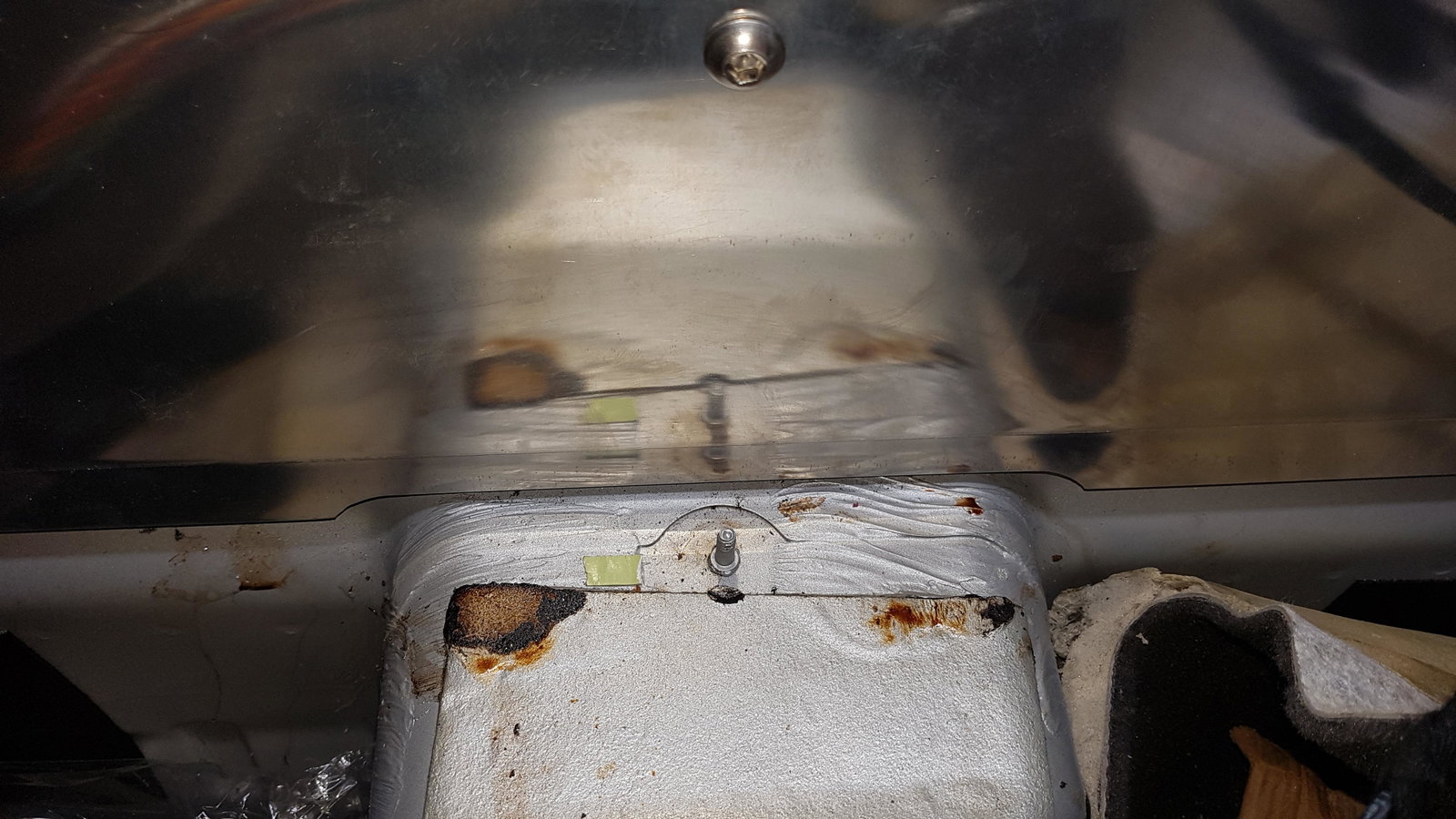

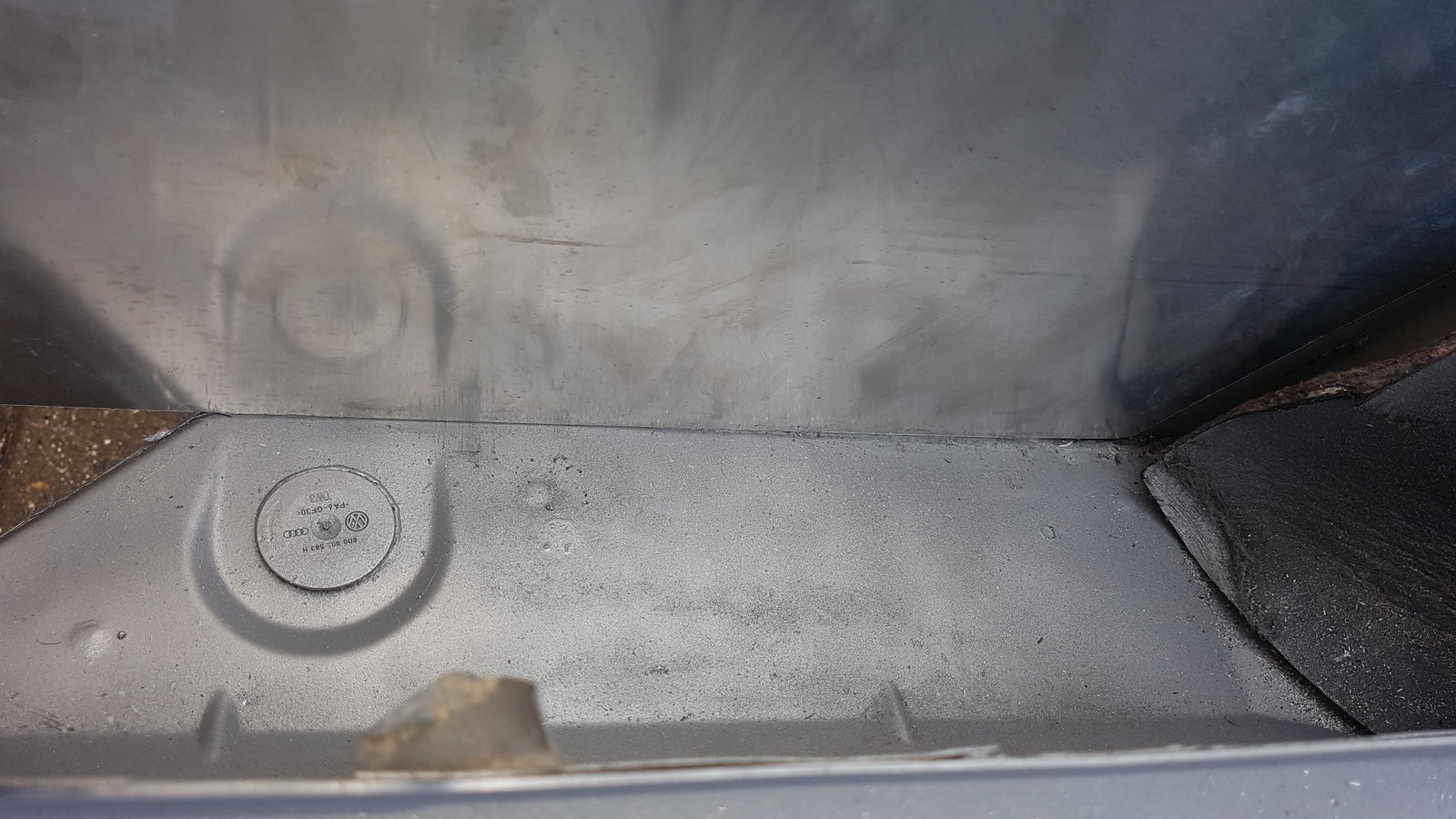

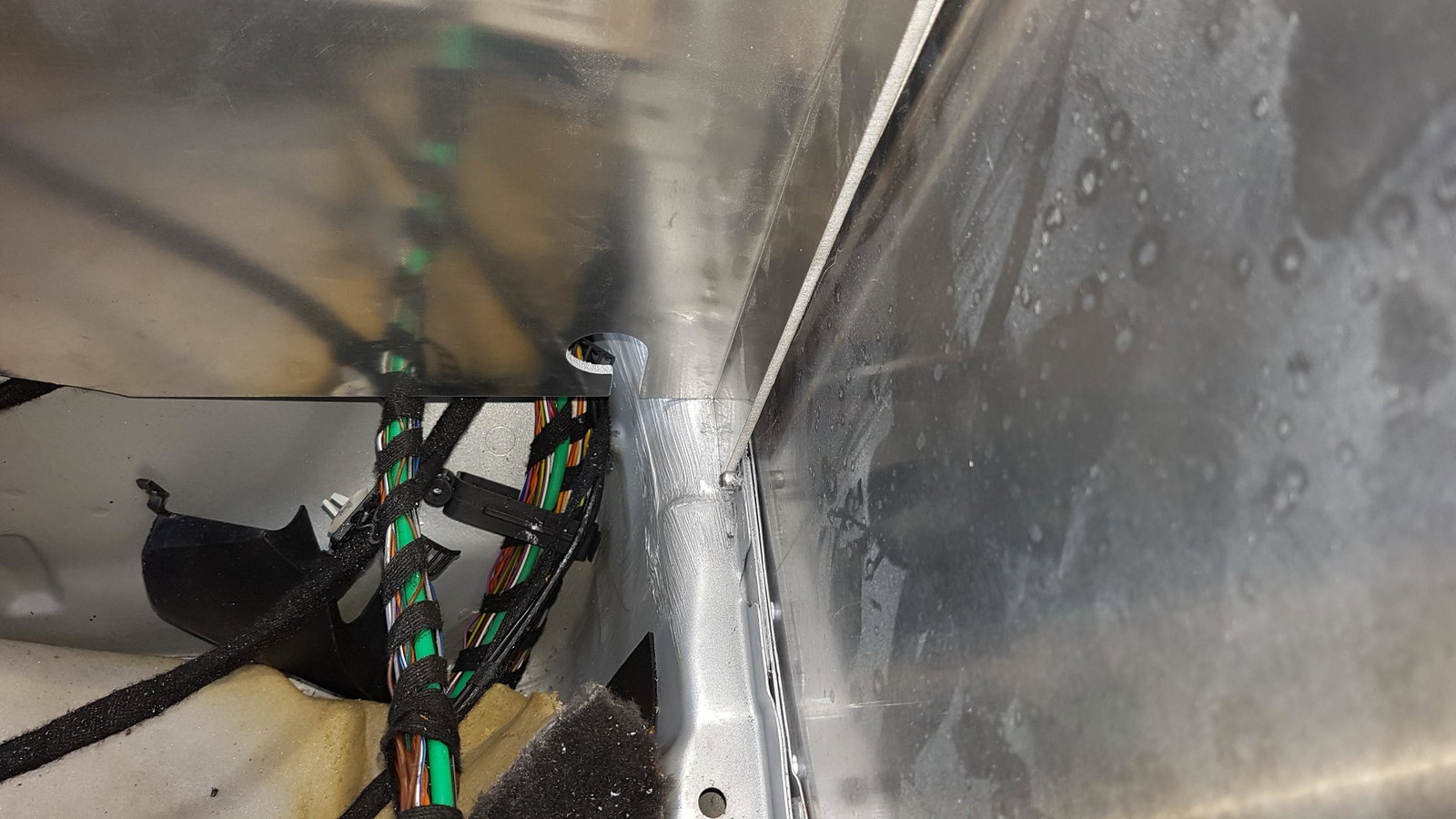

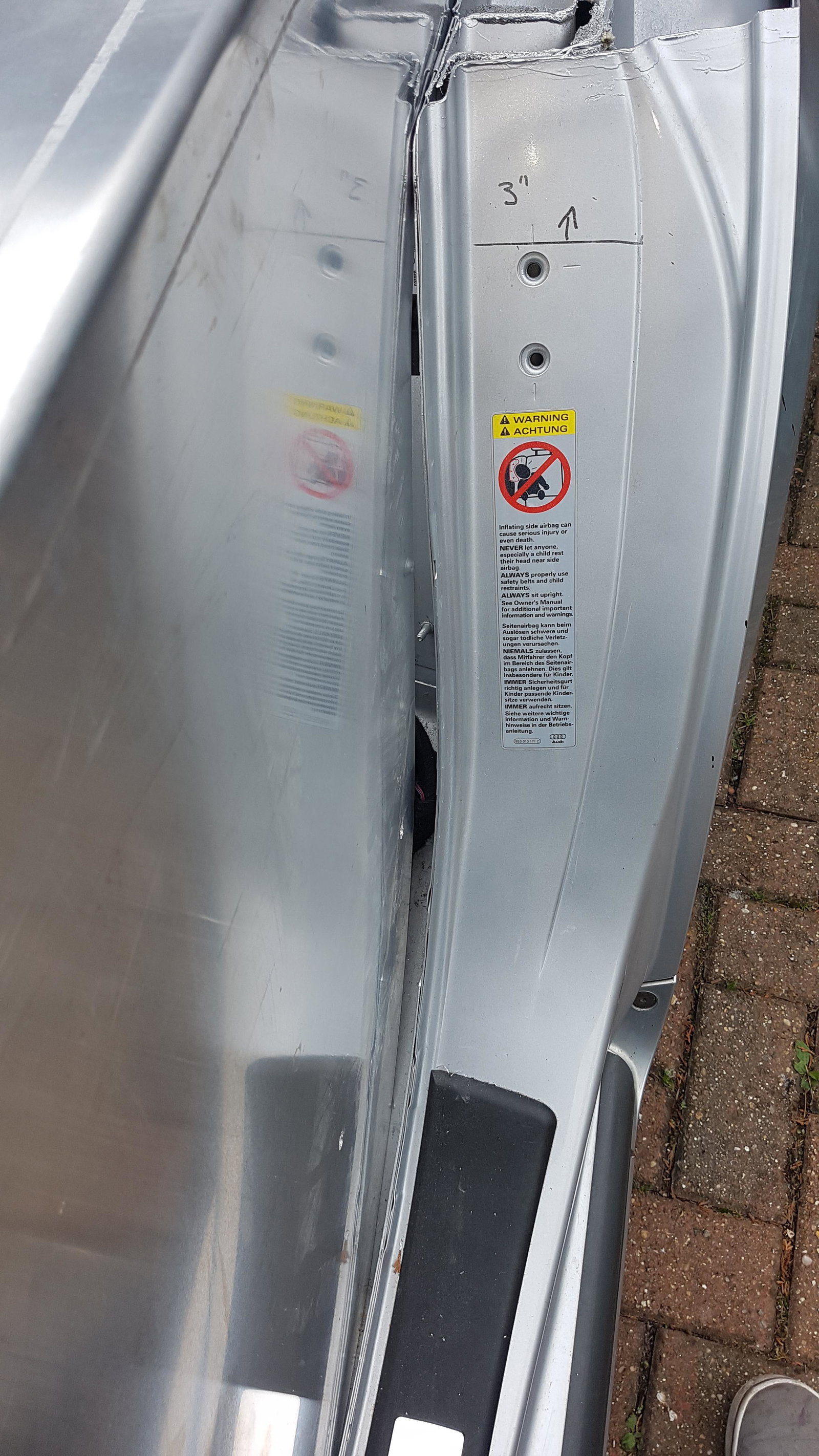

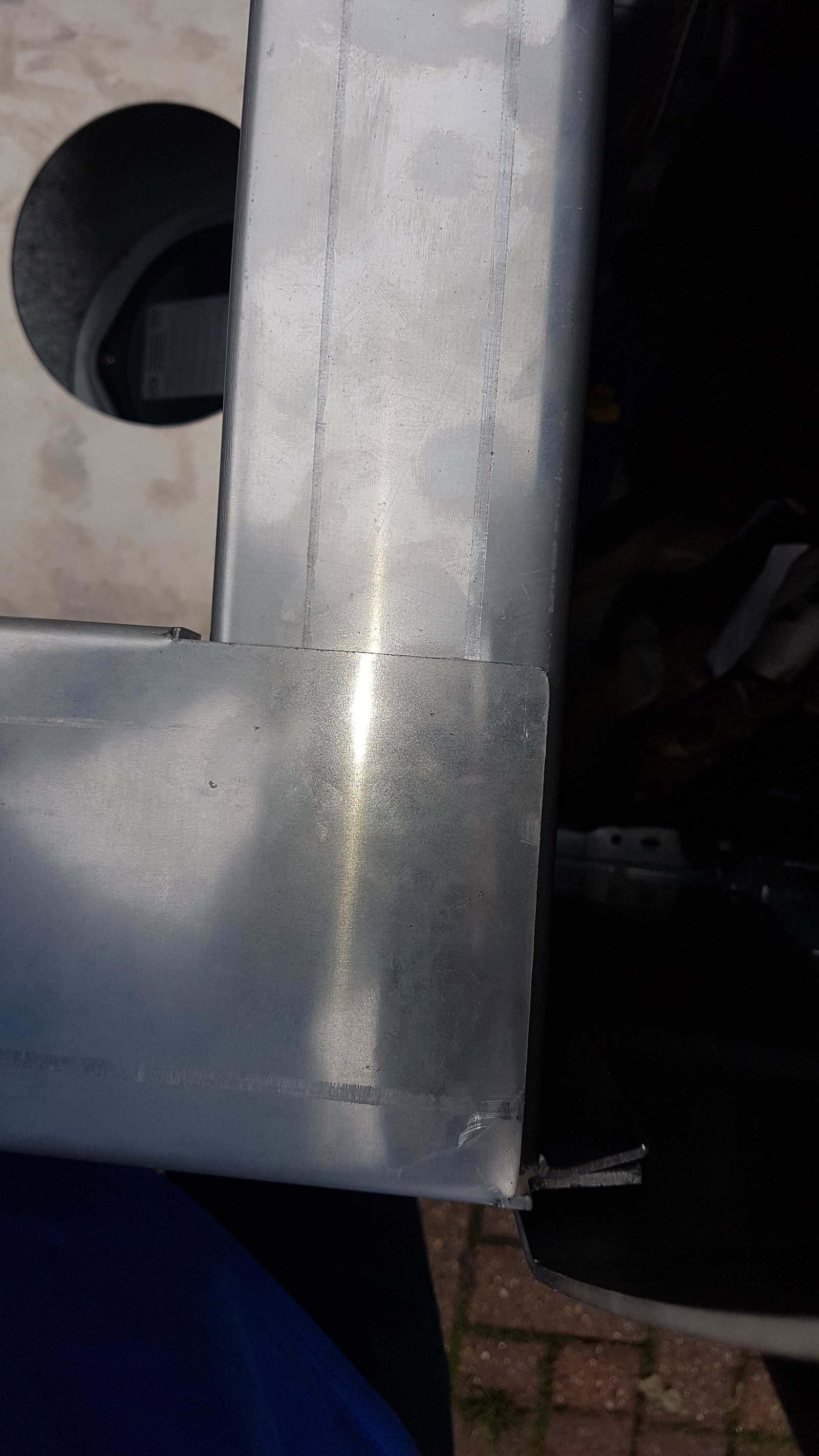

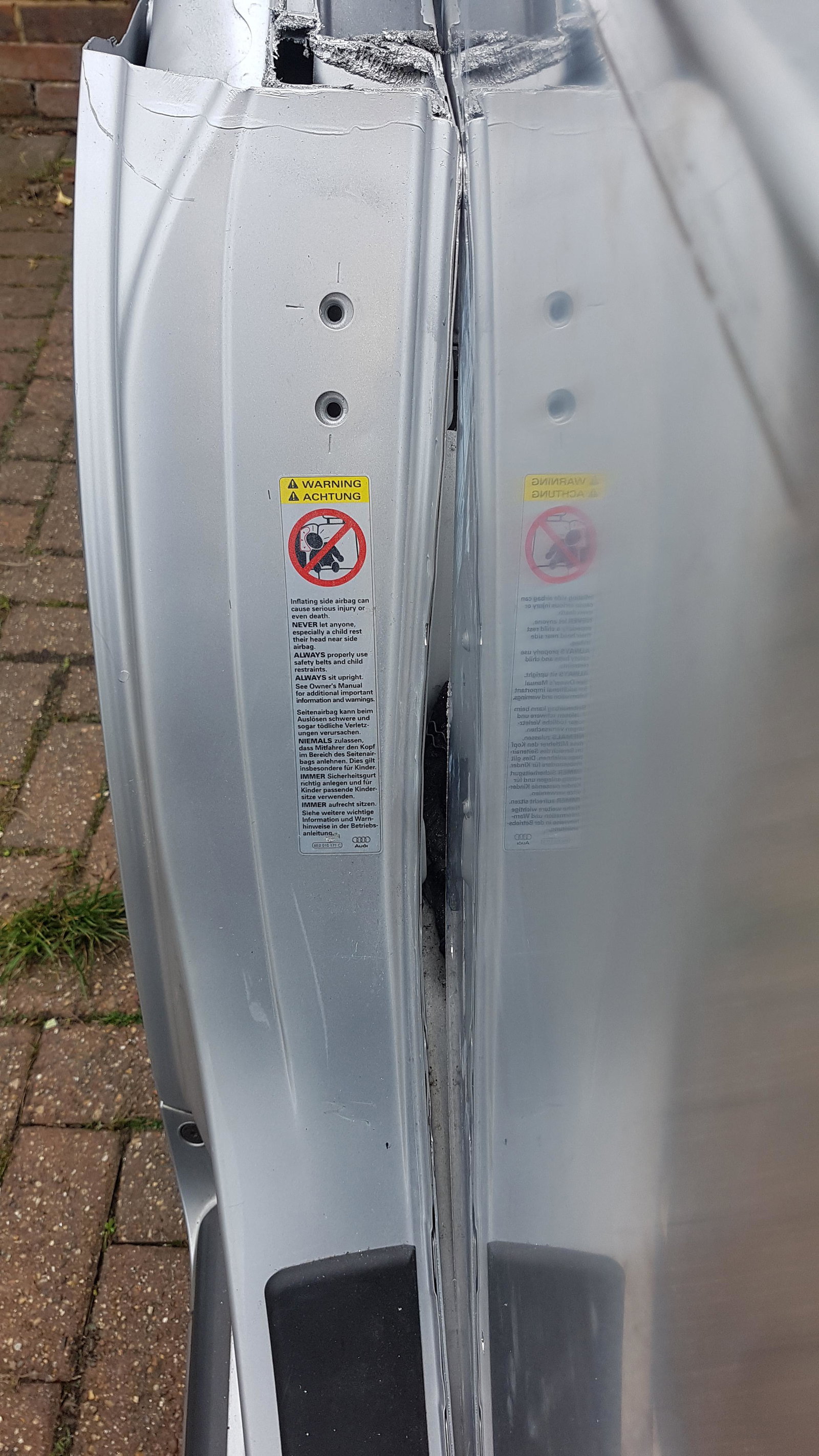

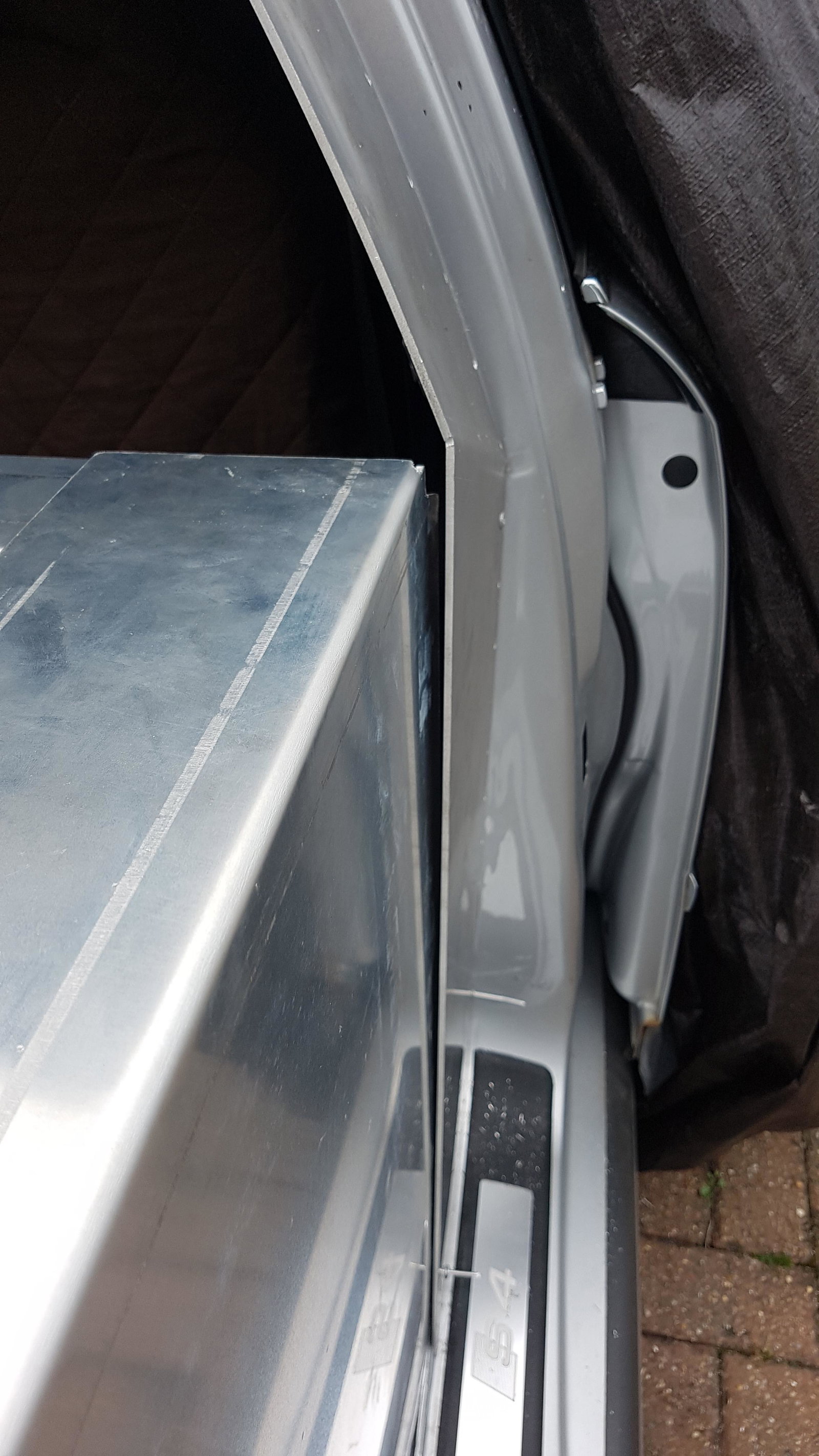

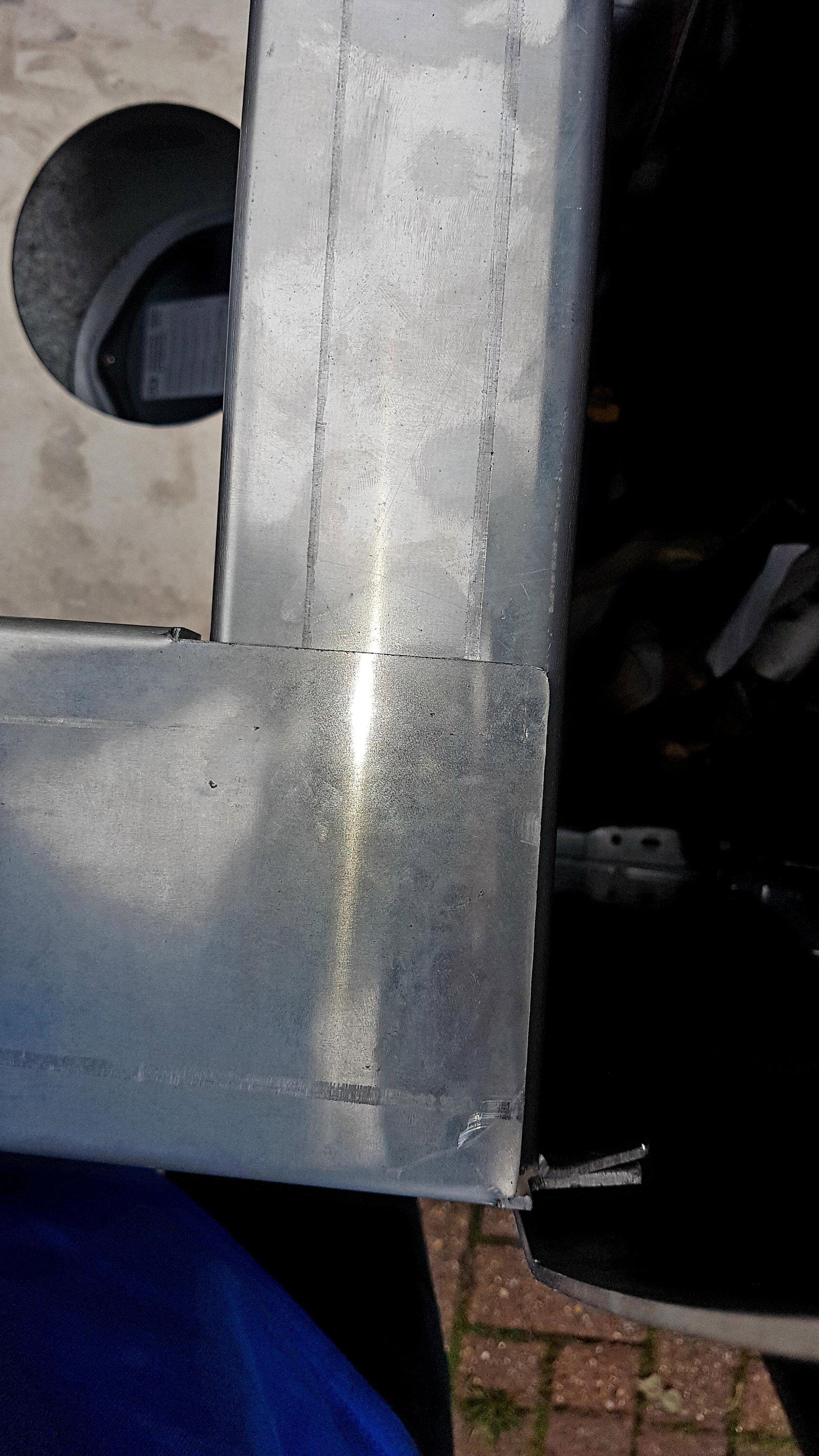

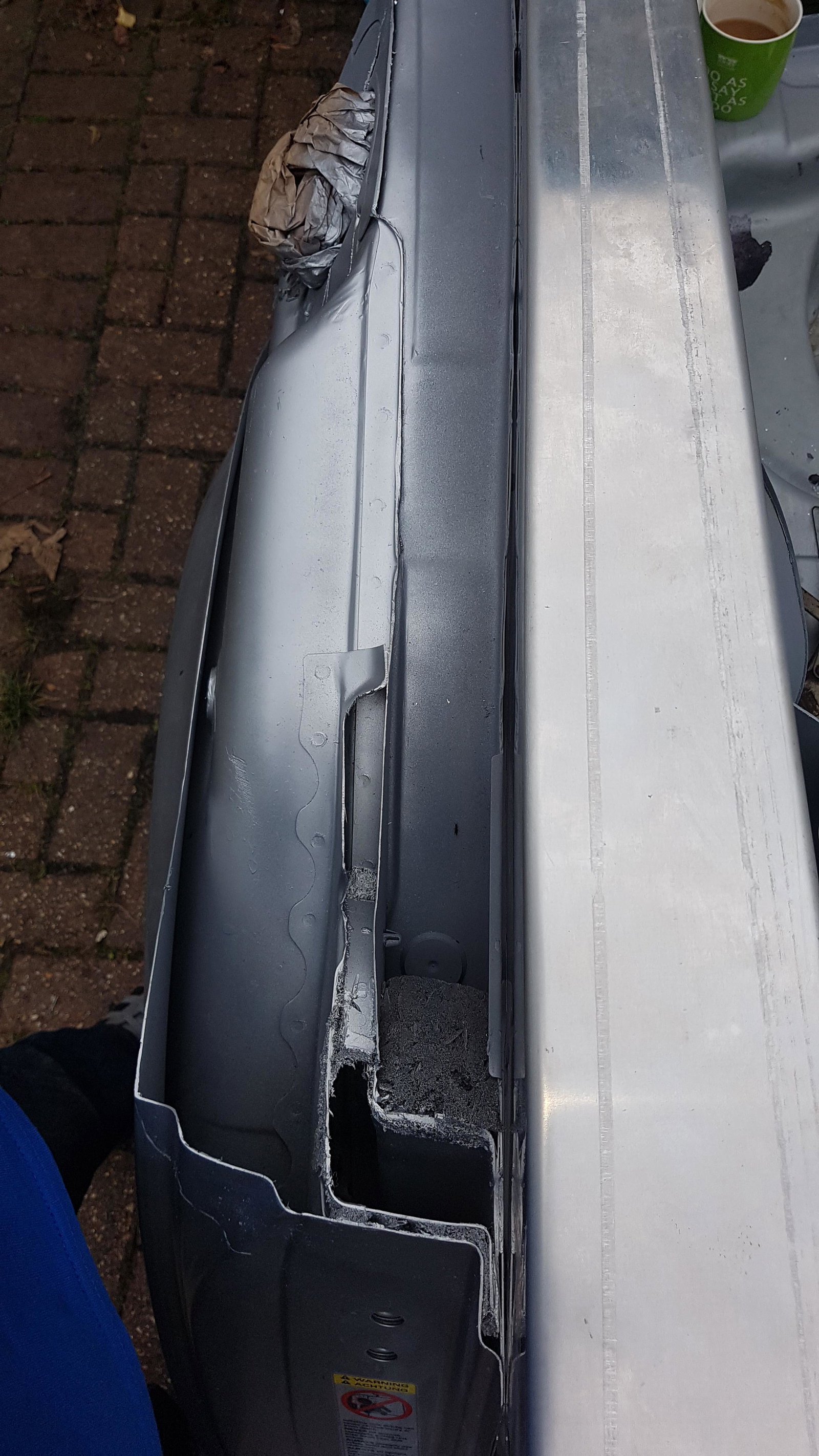

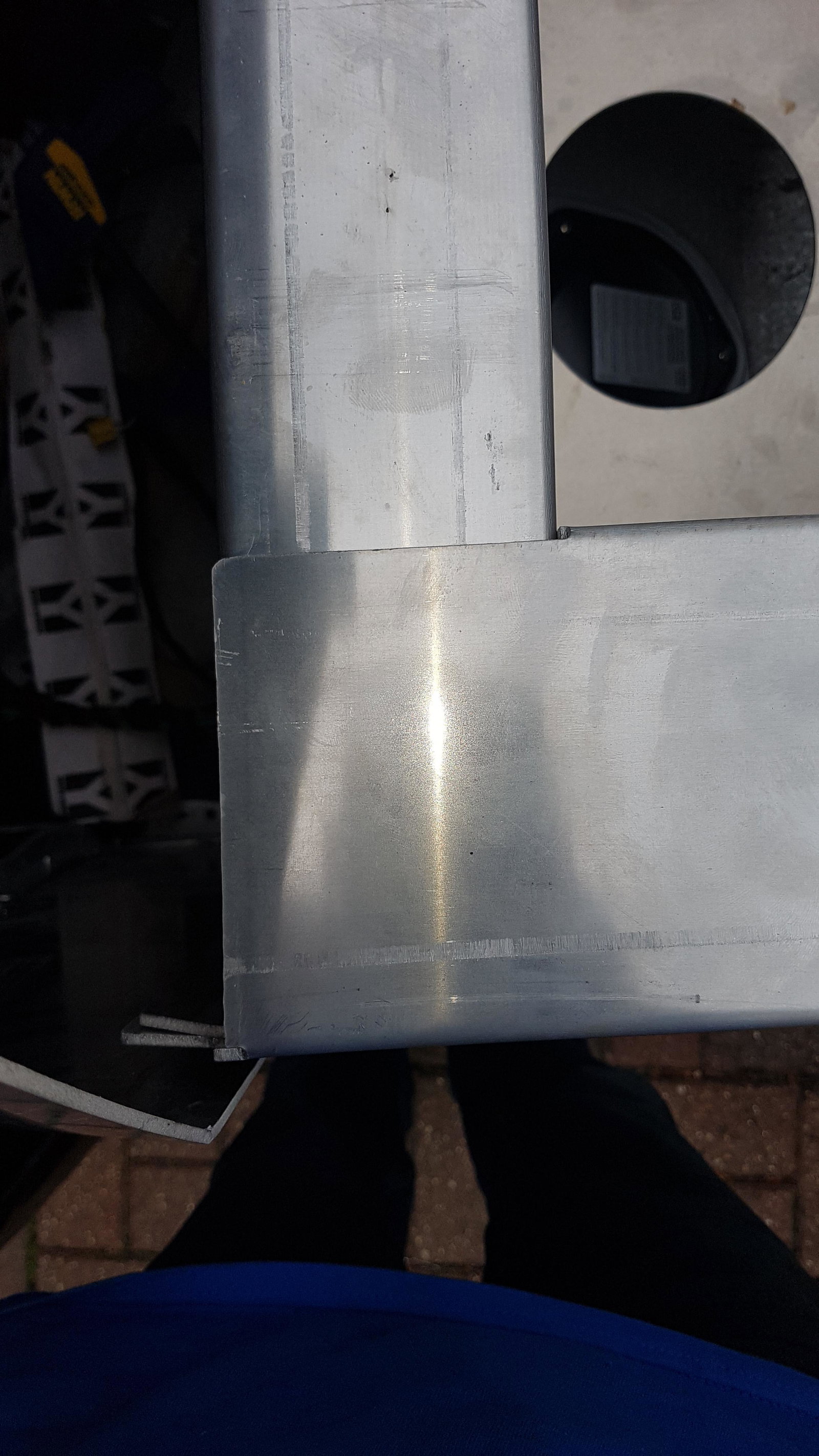

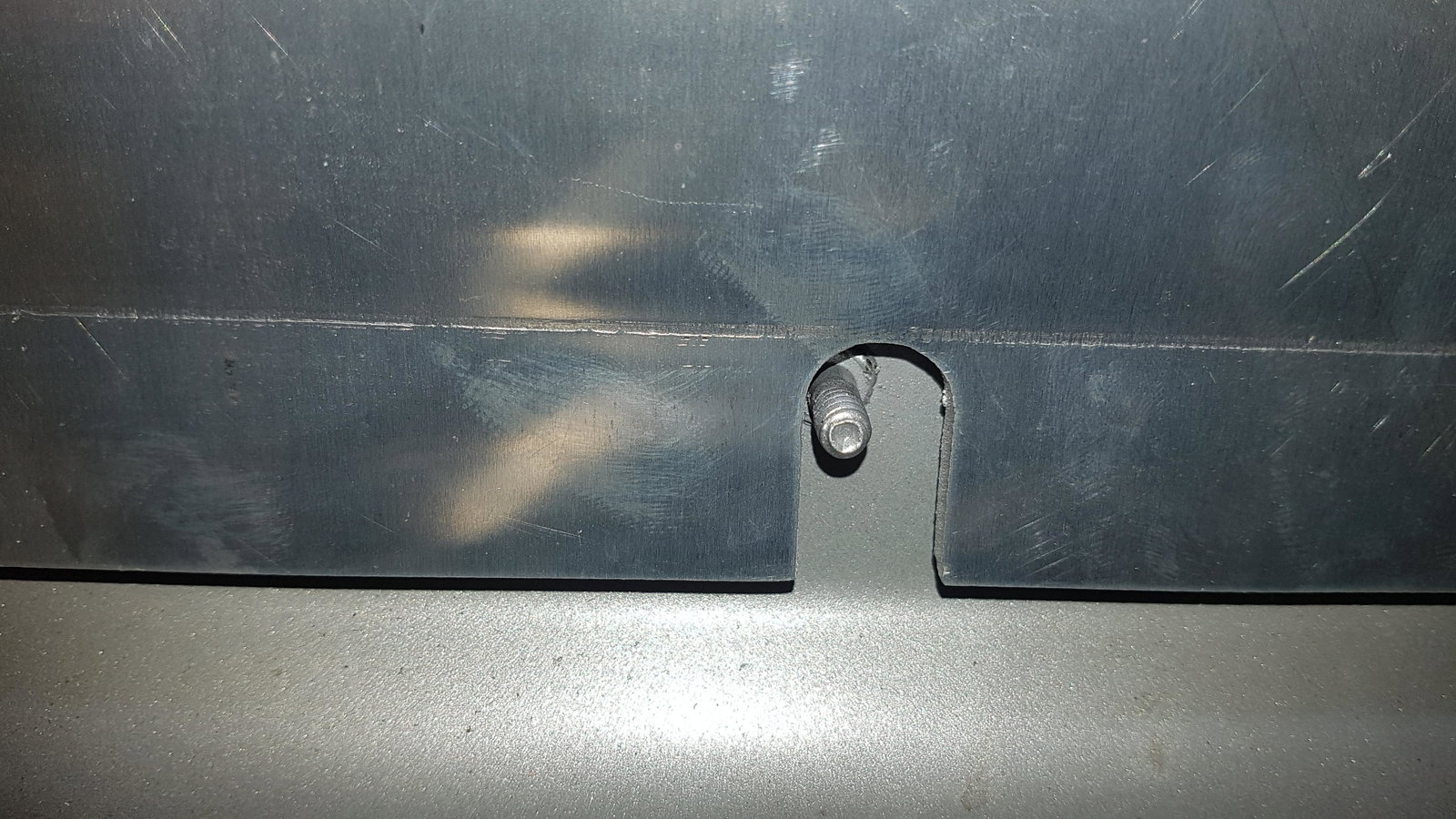

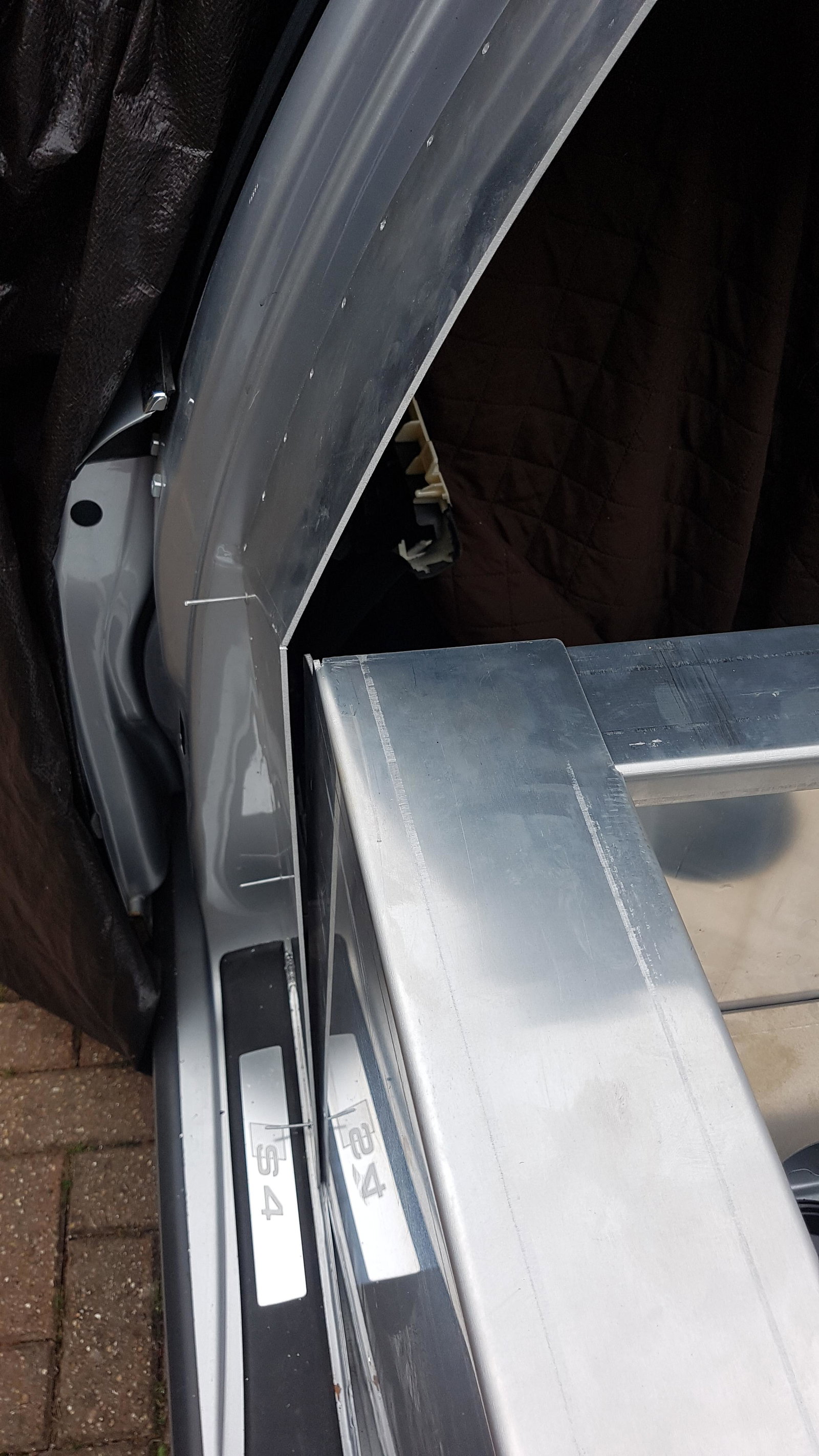

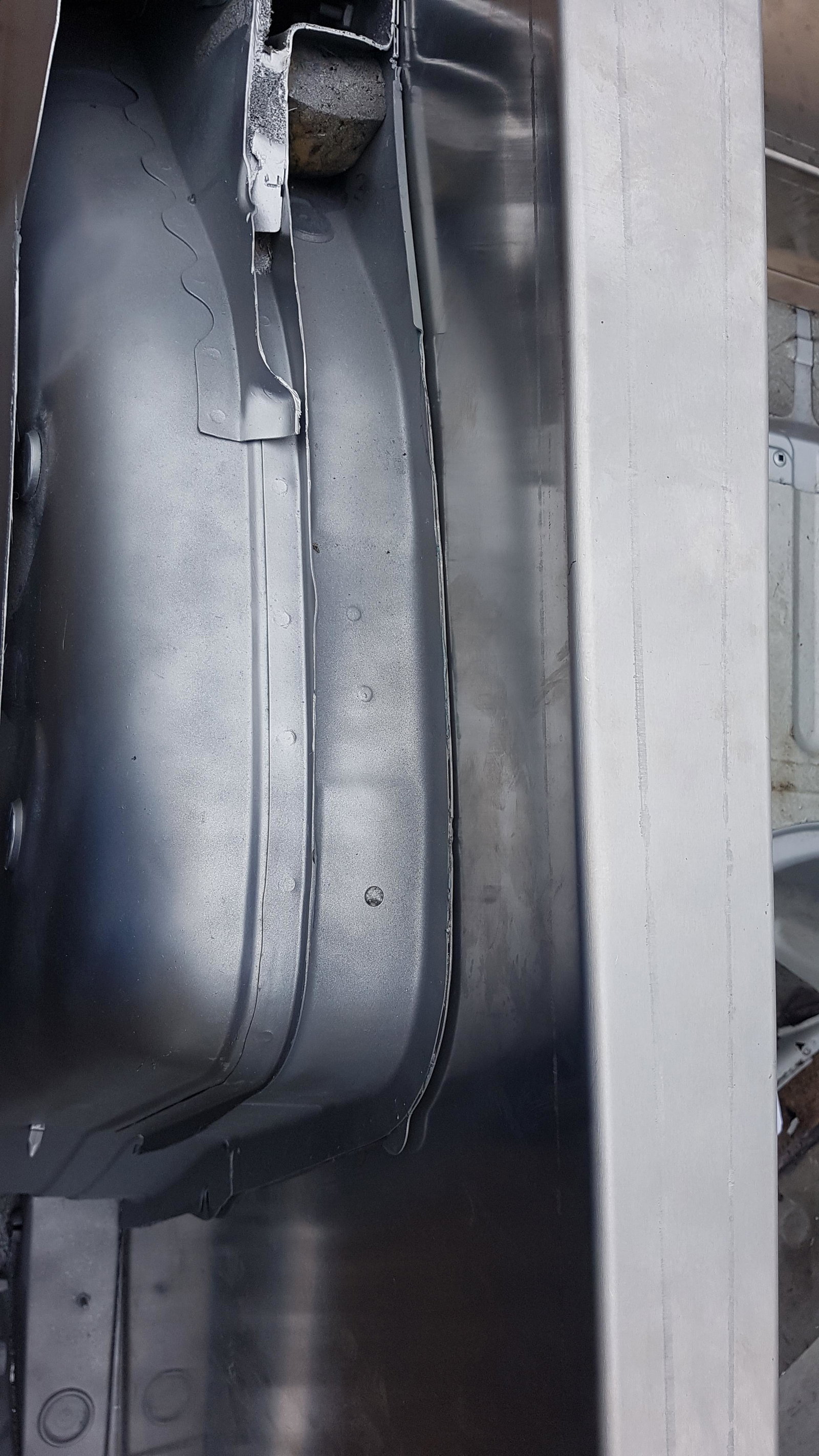

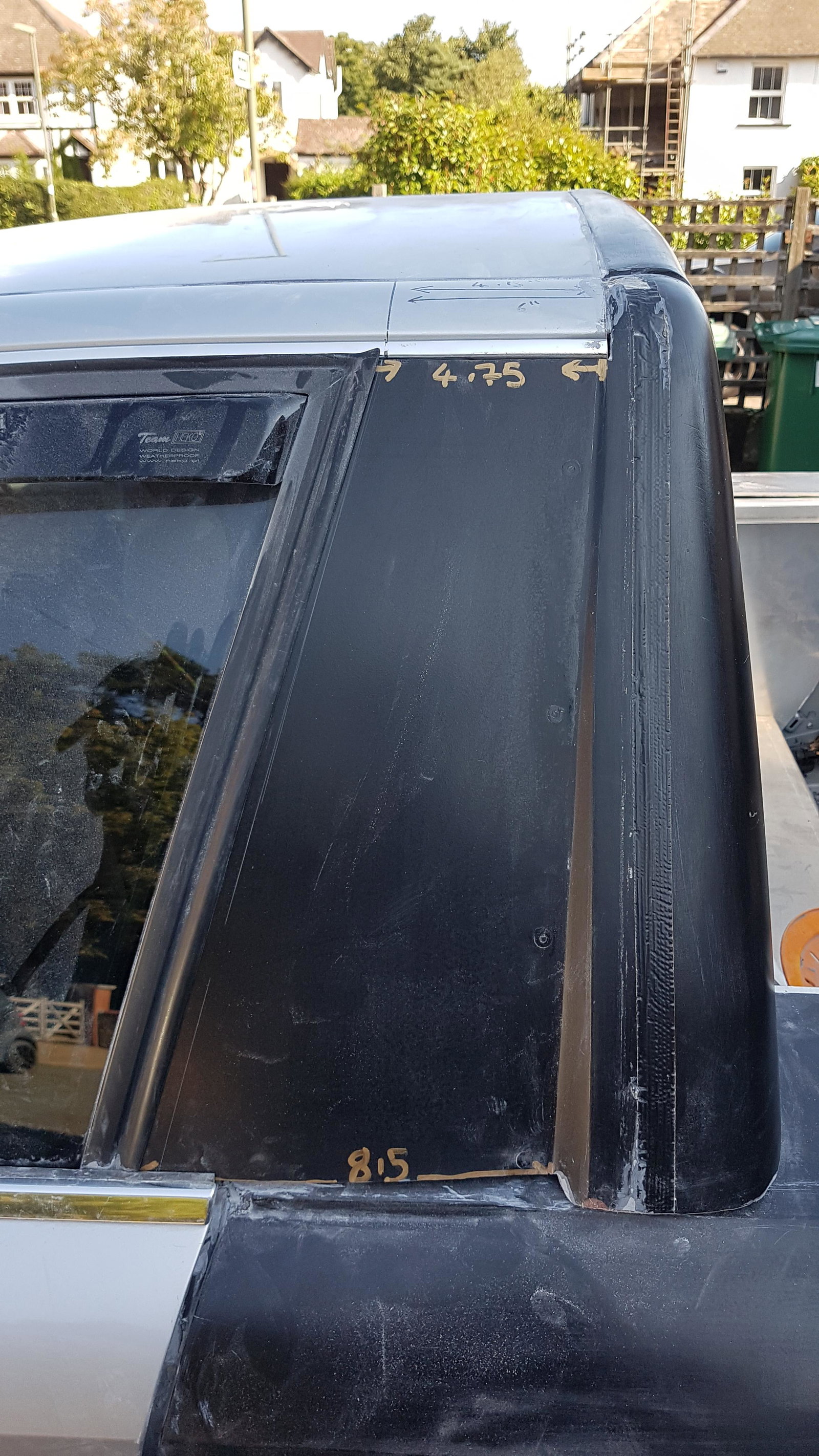

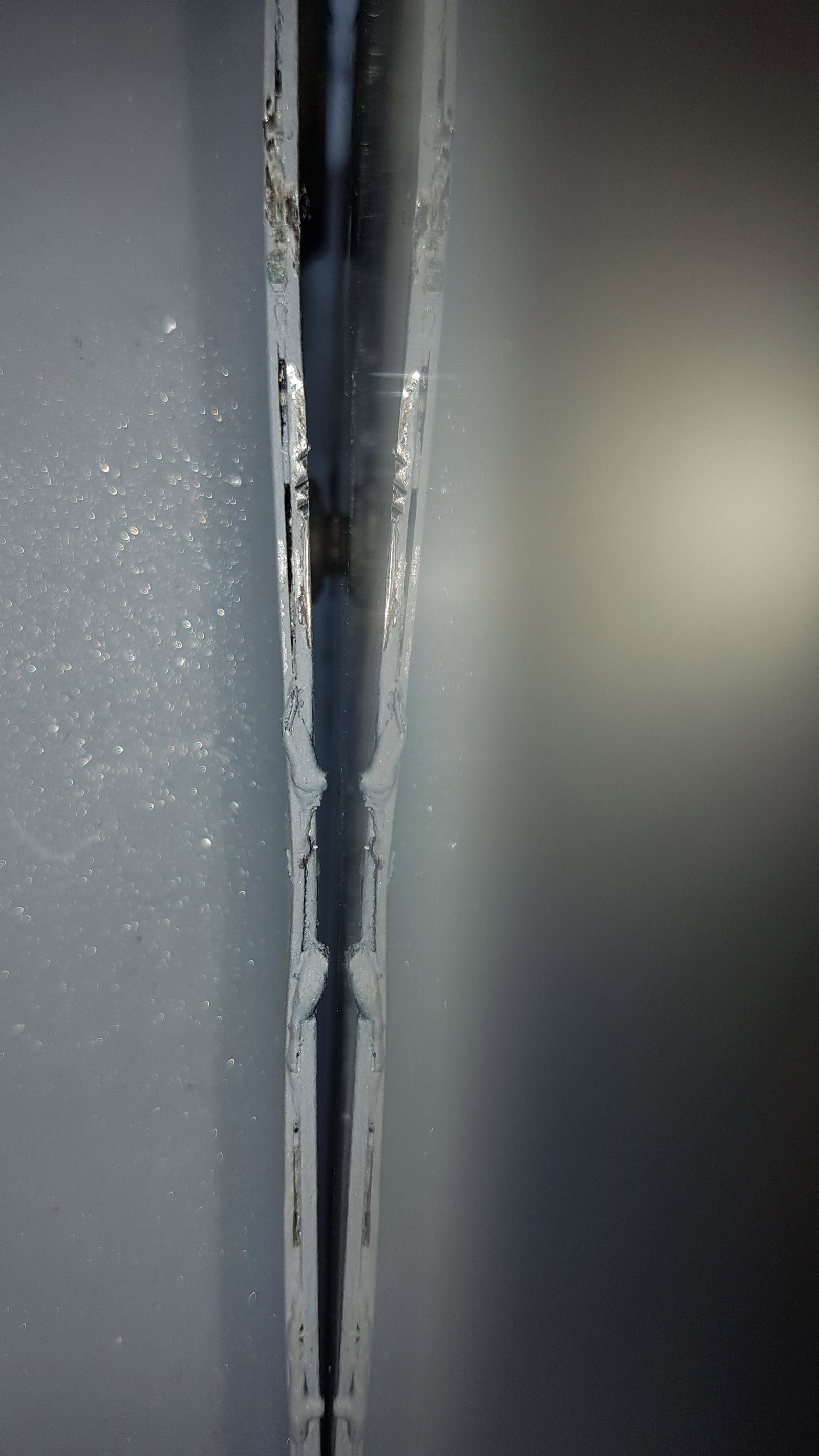

  3. B pillar loosely fitted with a few rivets, and test fitted the front wall, front tray, and bed sides, I had to make a few tweeks to the bolt holes so the bed sides sat flush front and back and also followed the lines over the inner wheel arches, i have a few gaps in places as shown in the pictures. Apart from them it all sit nicely.

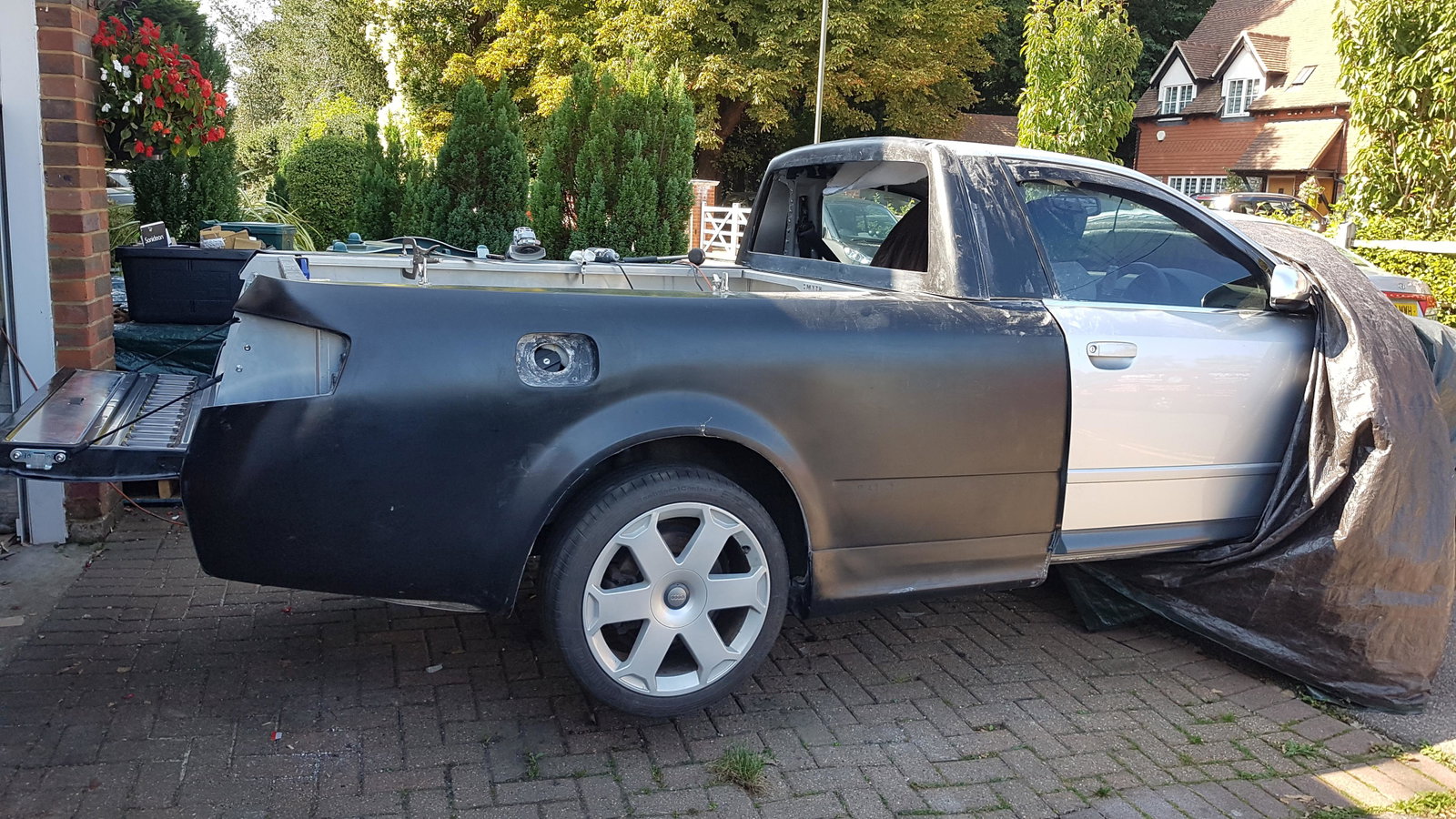

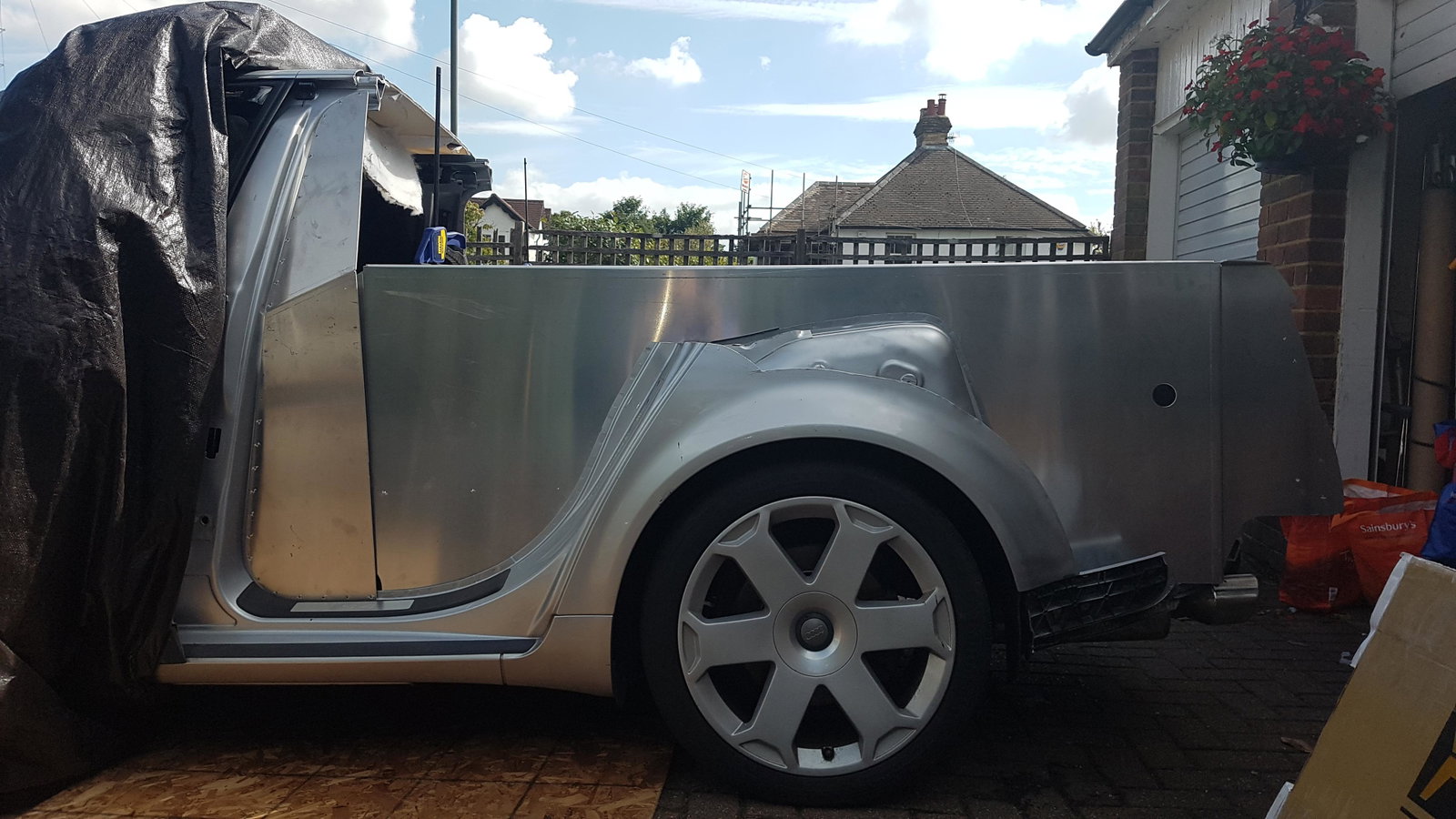

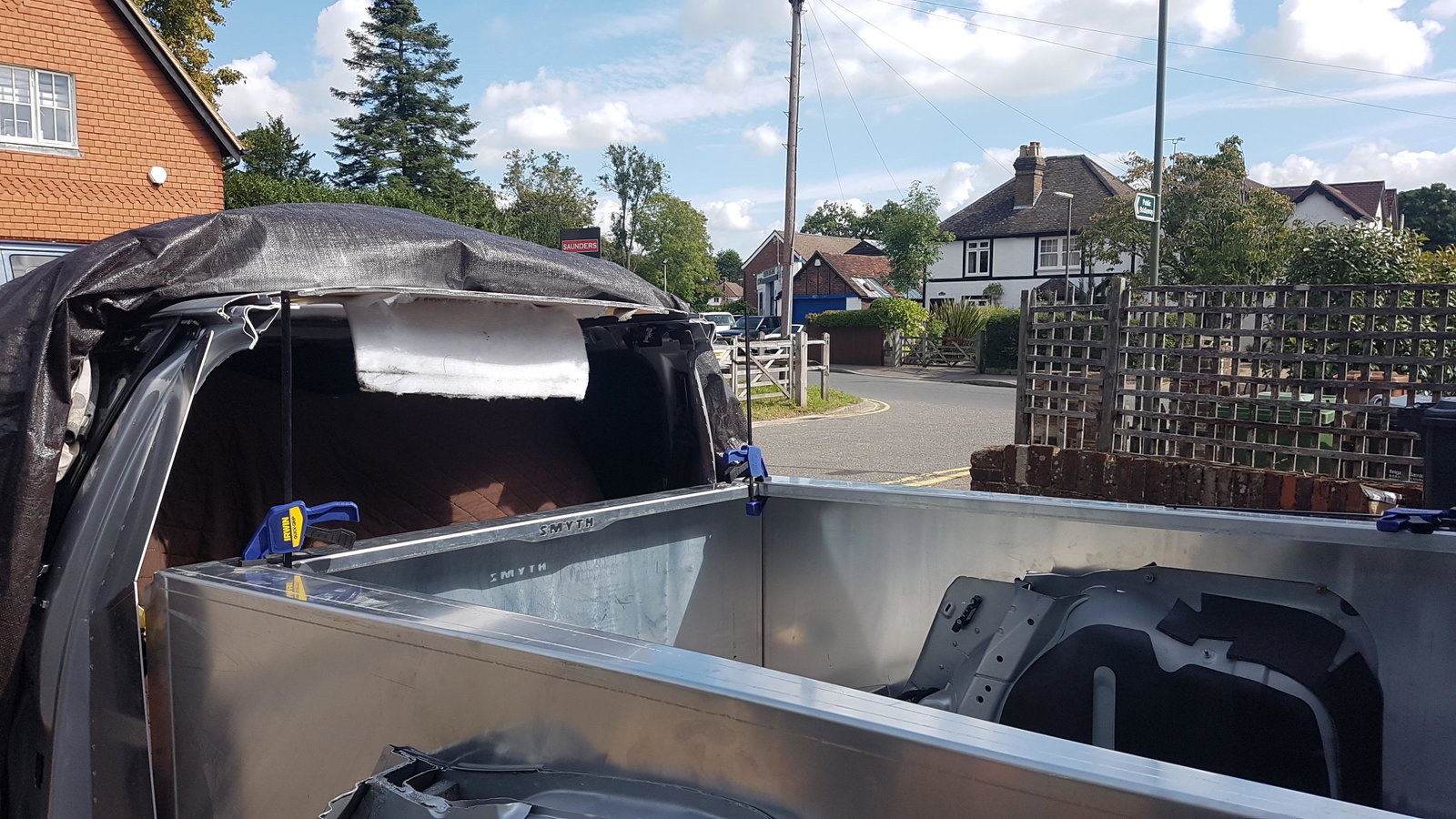

  4. Trial fitment of the front wall and bed sides today.
  5. Everyone was adamant it was a raven we had about 10 people stop and take pictures, phoning wildlife trust, rspca, and it seemed very domesticated towards men that went up to it, they think it's got out from somewhere maybe?

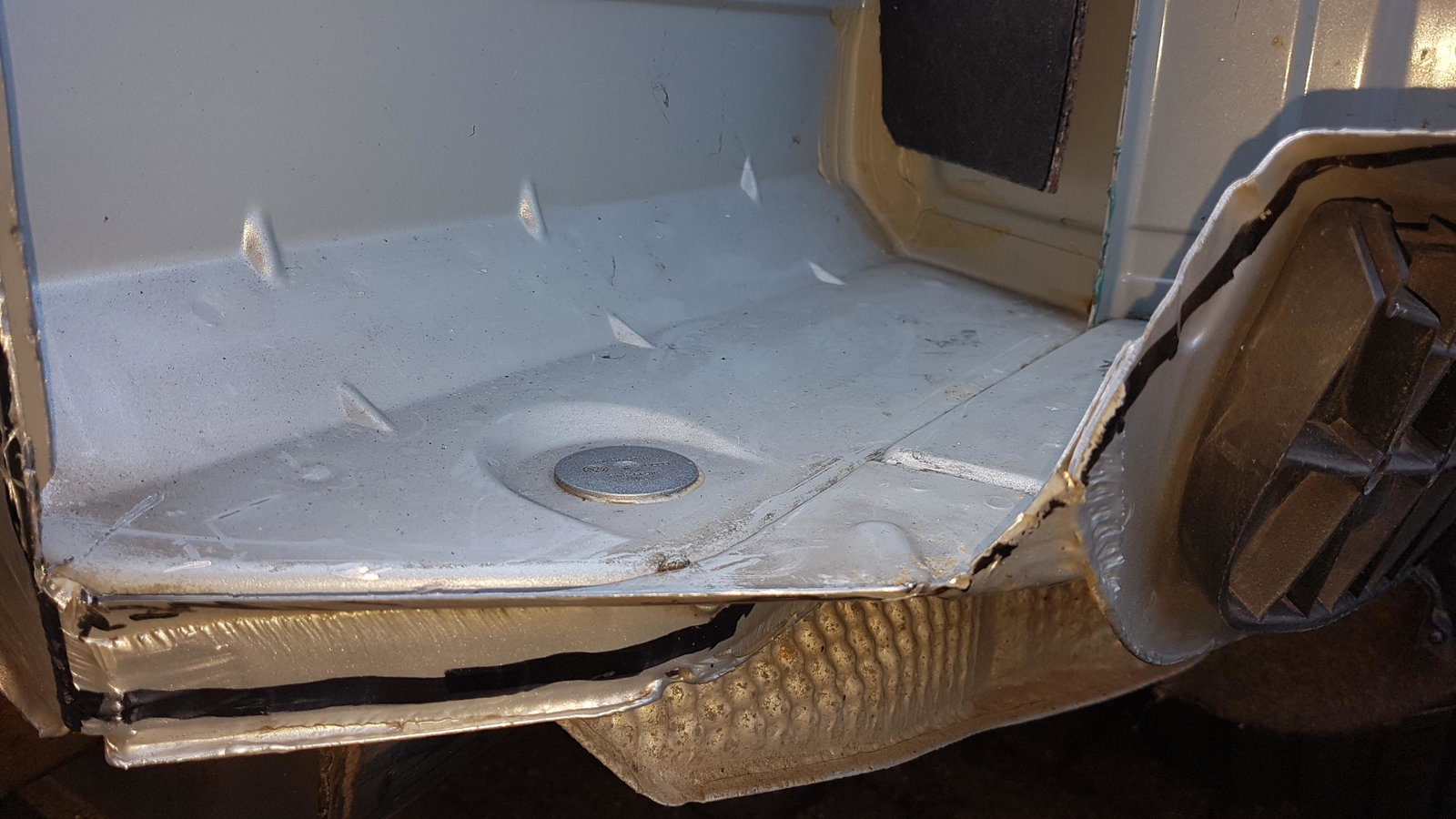

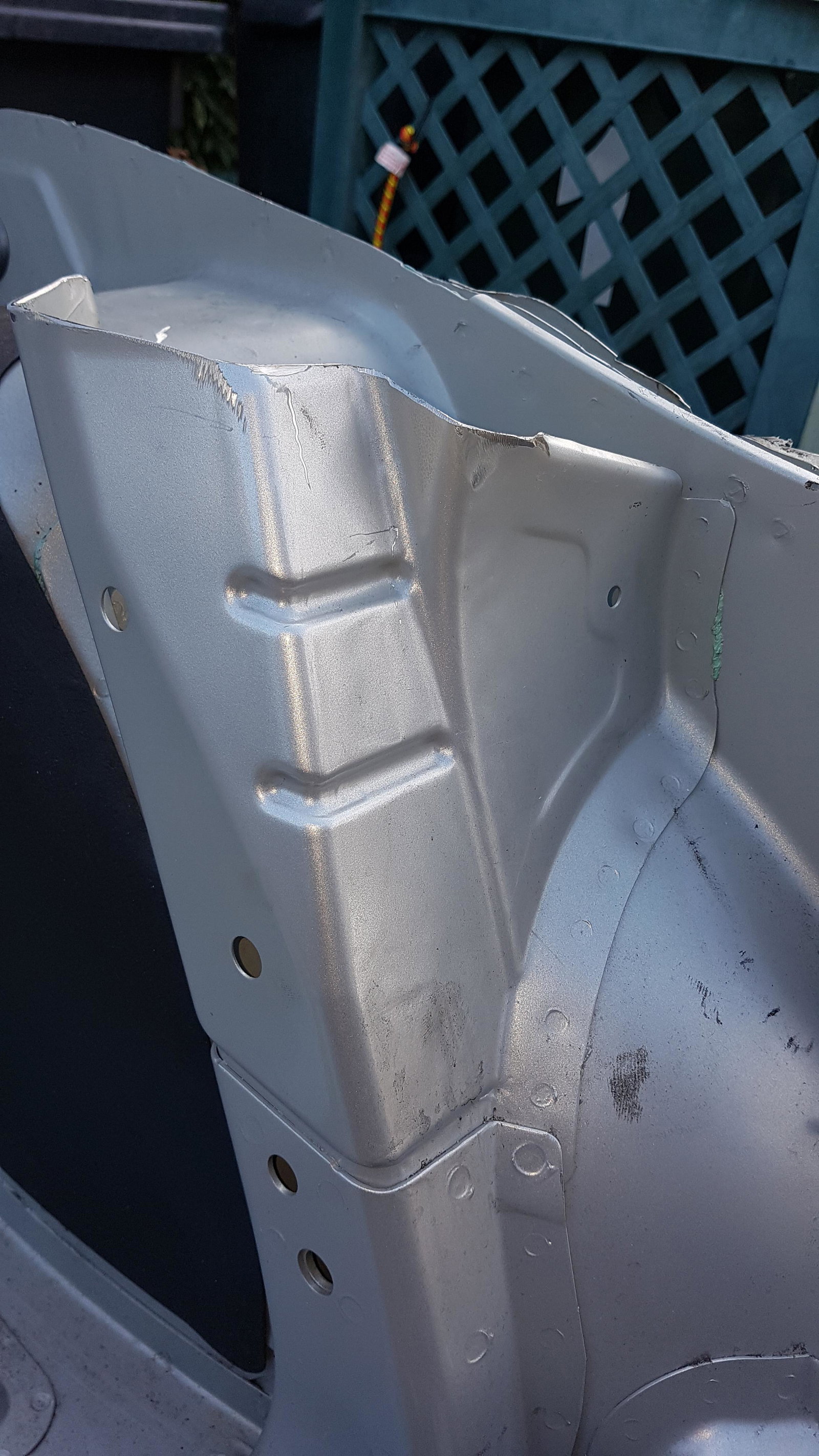

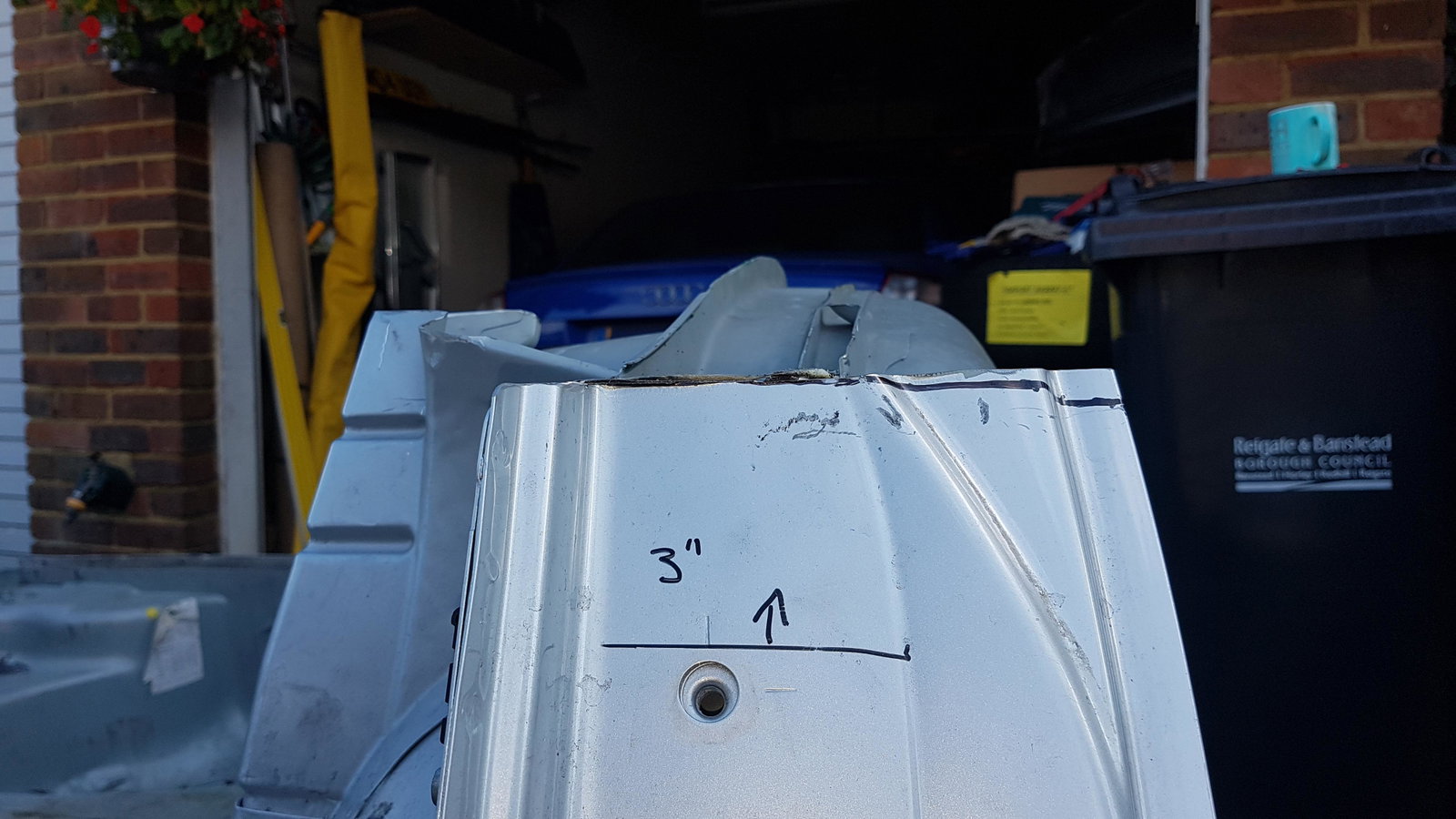

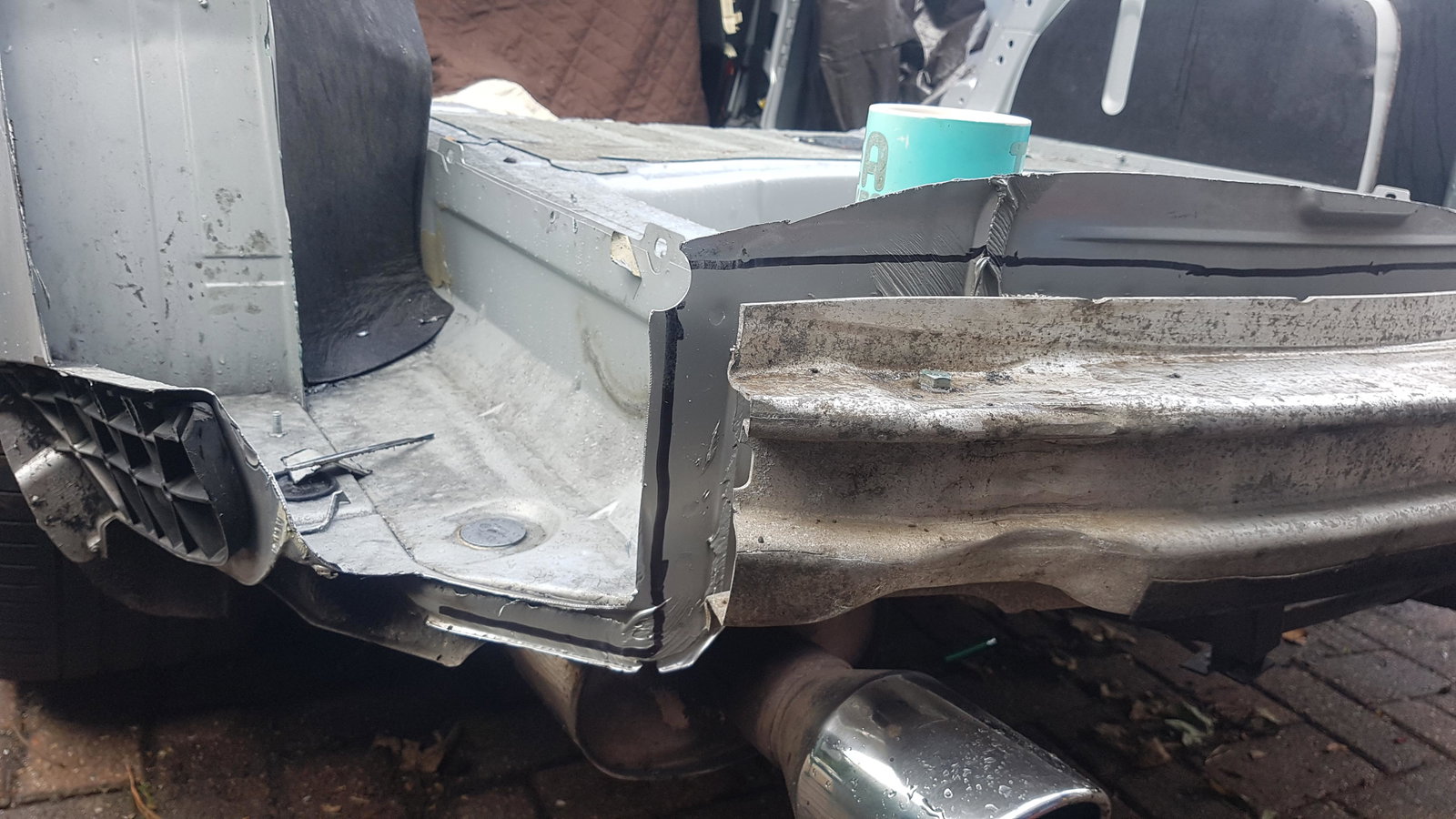

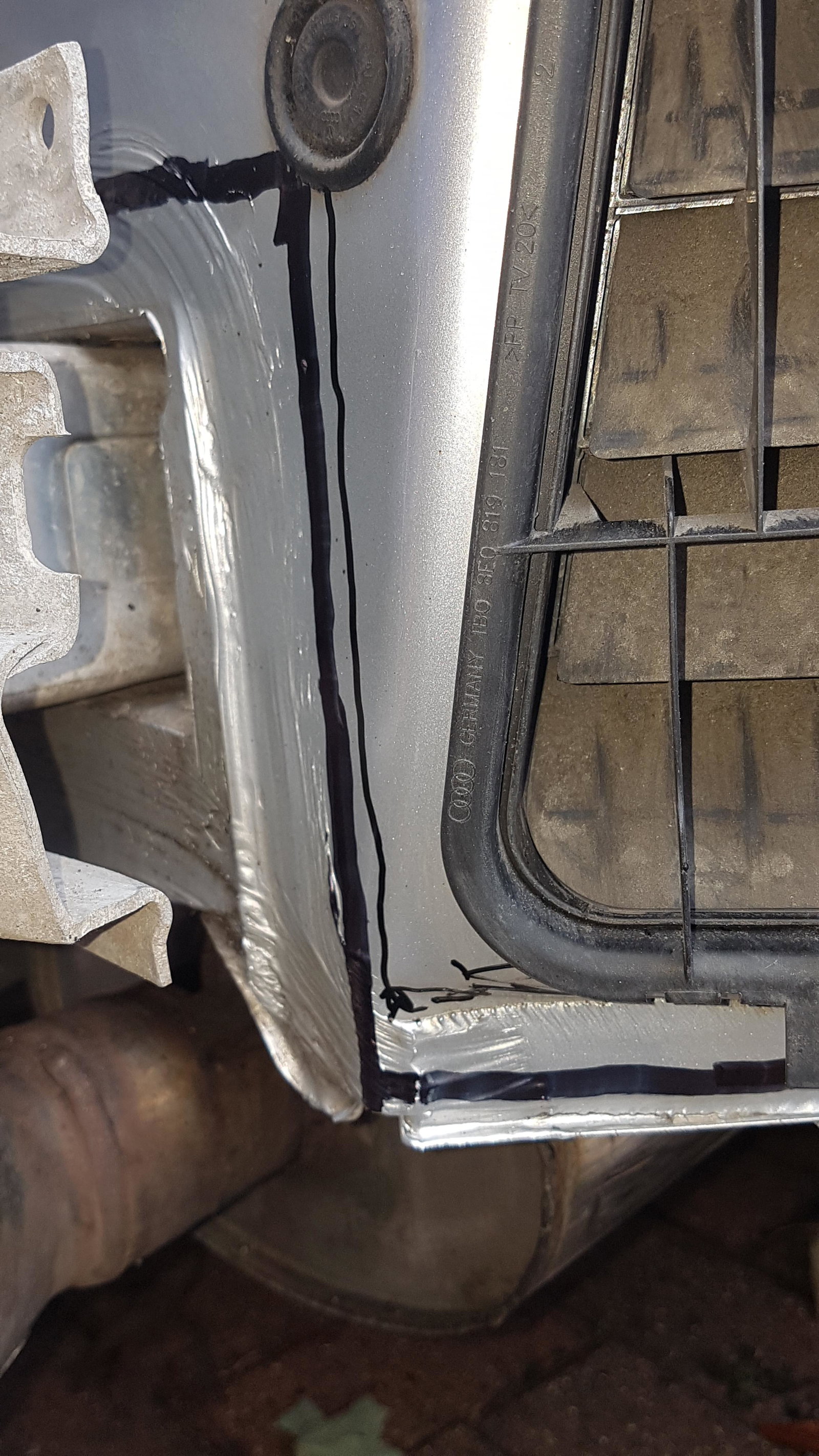

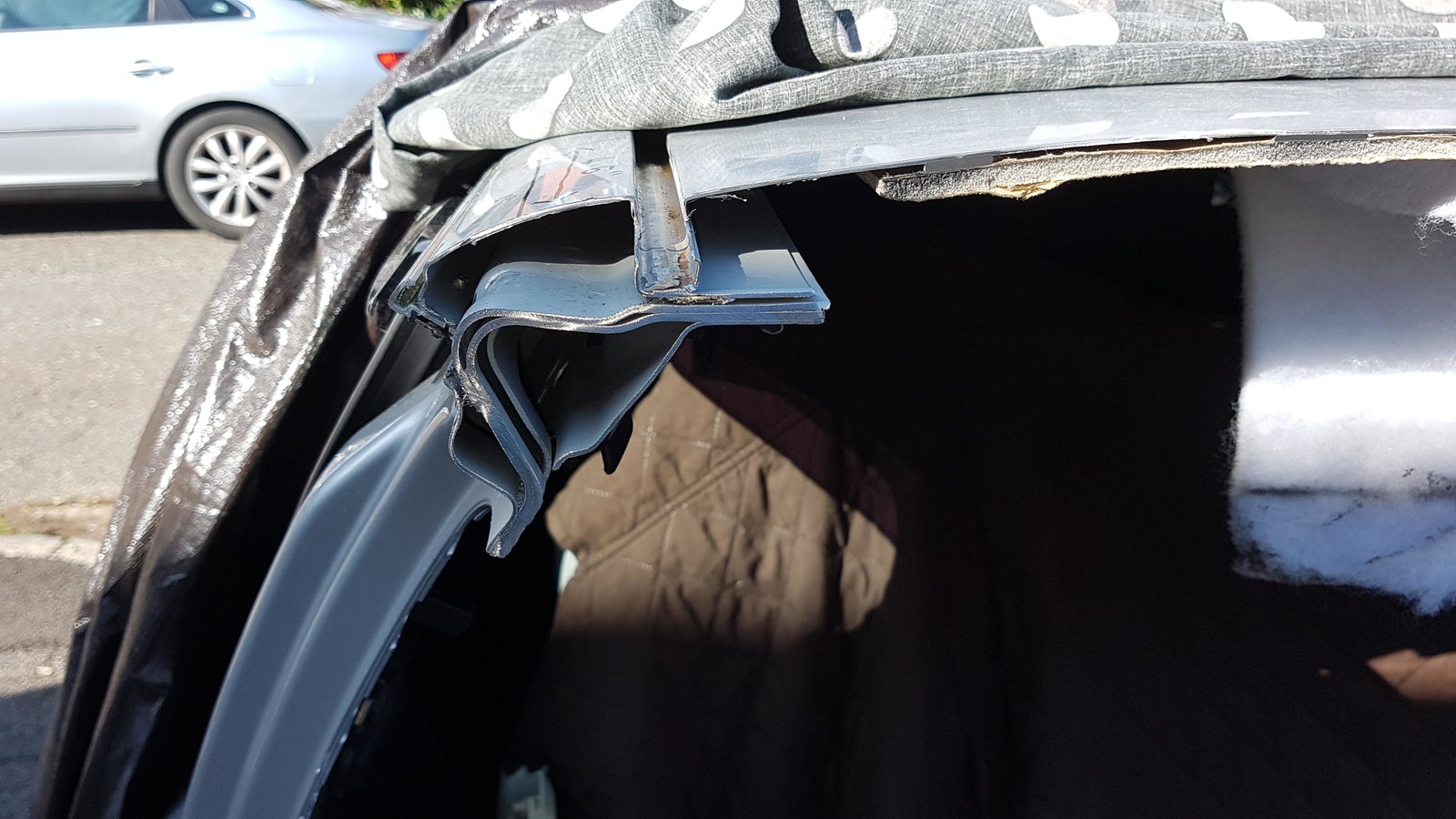

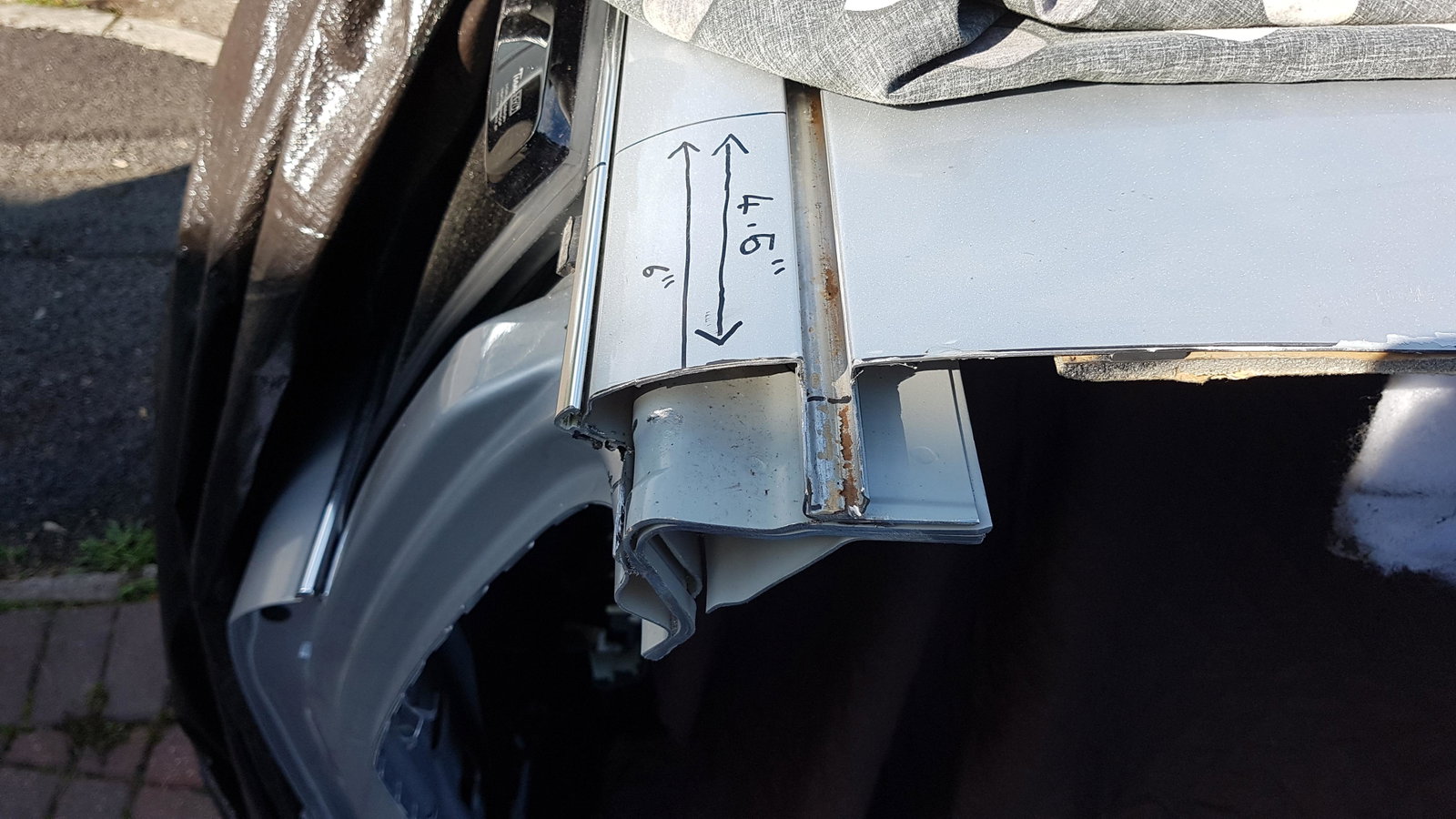

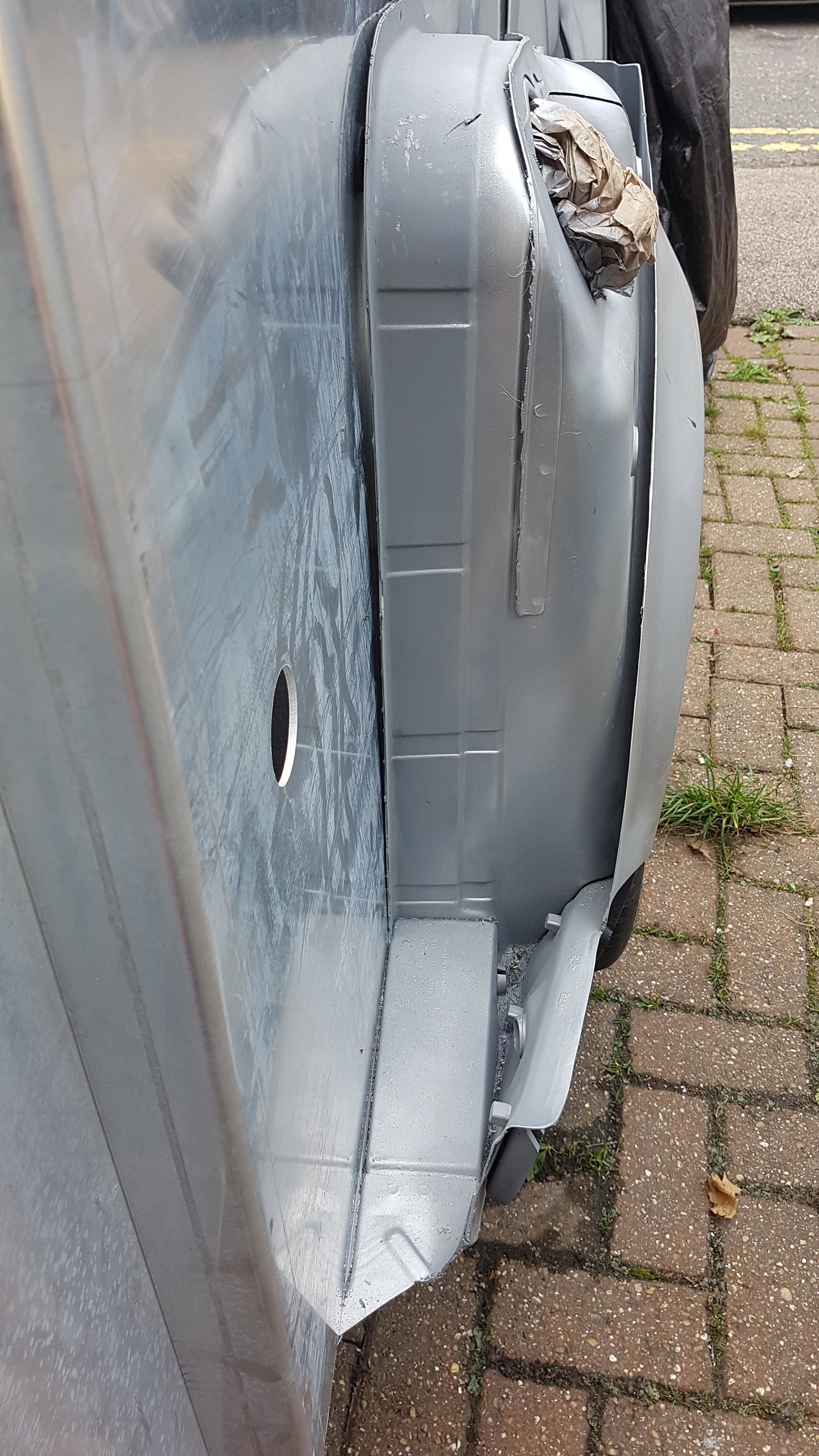

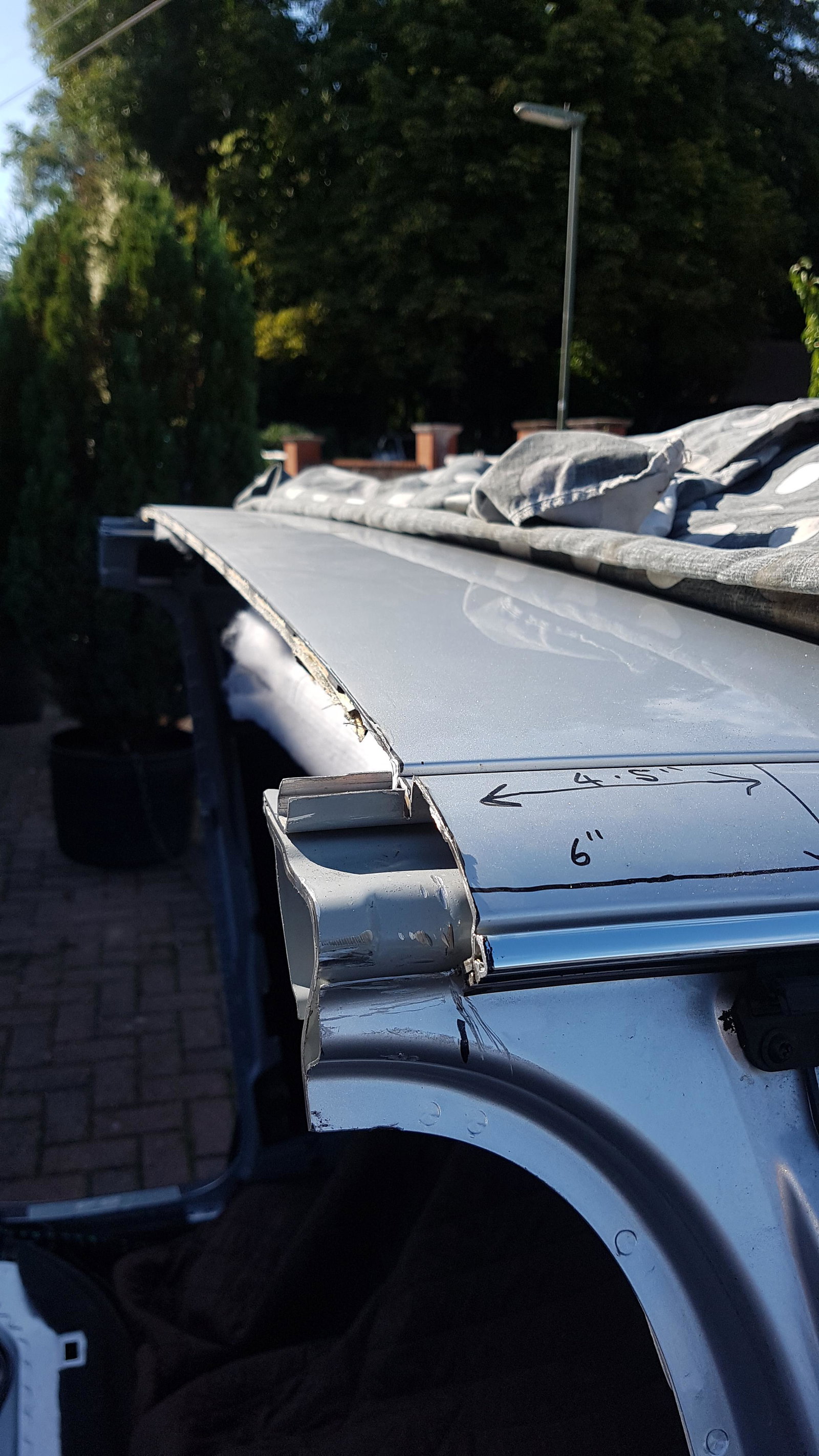

  6. So yesterday was just a tidying up and getting ready for the final cuts, checked all the measurements probably 10 times 🤓🤪. Today it took an hour as a raven decided to perch it's self on the Audi roof and would not shift, I got all the final cuts done and sanded back to the line and hovered all the metal filings up with a paint brush and hover to cut the risk of rusting later down the road. It needs some rust preventative over it and a bit of paint.
  7. No came by boat, and when unloading the amount of people asking if there was a body in it lol, have you put a ad in the wanted section on here?, MIT have some luck, or is there no way of getting them painted?, mite be cheaper than buying and fitting new handles.
  8. No, I don't think duct tape and glue will do for this job🤣

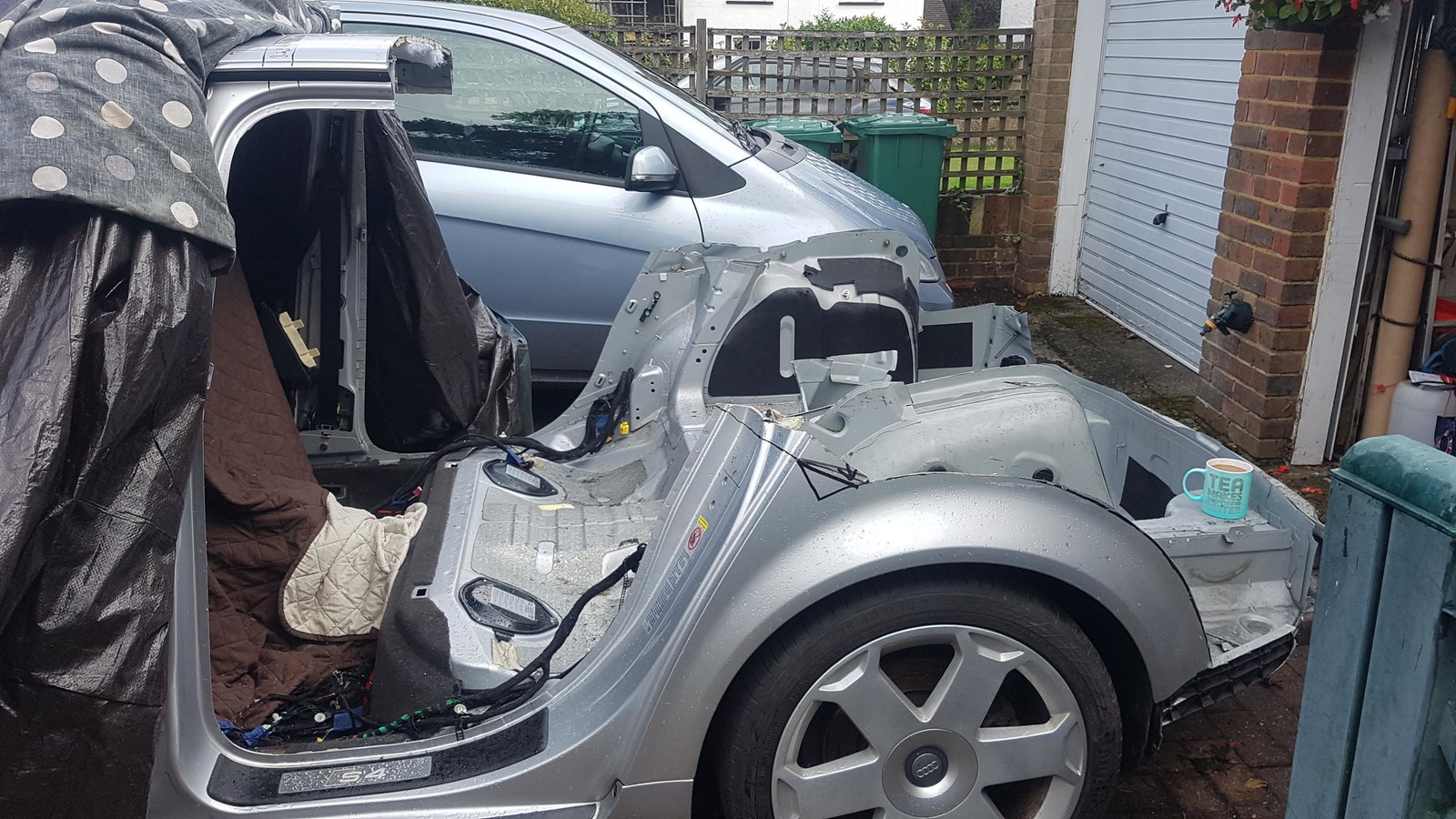

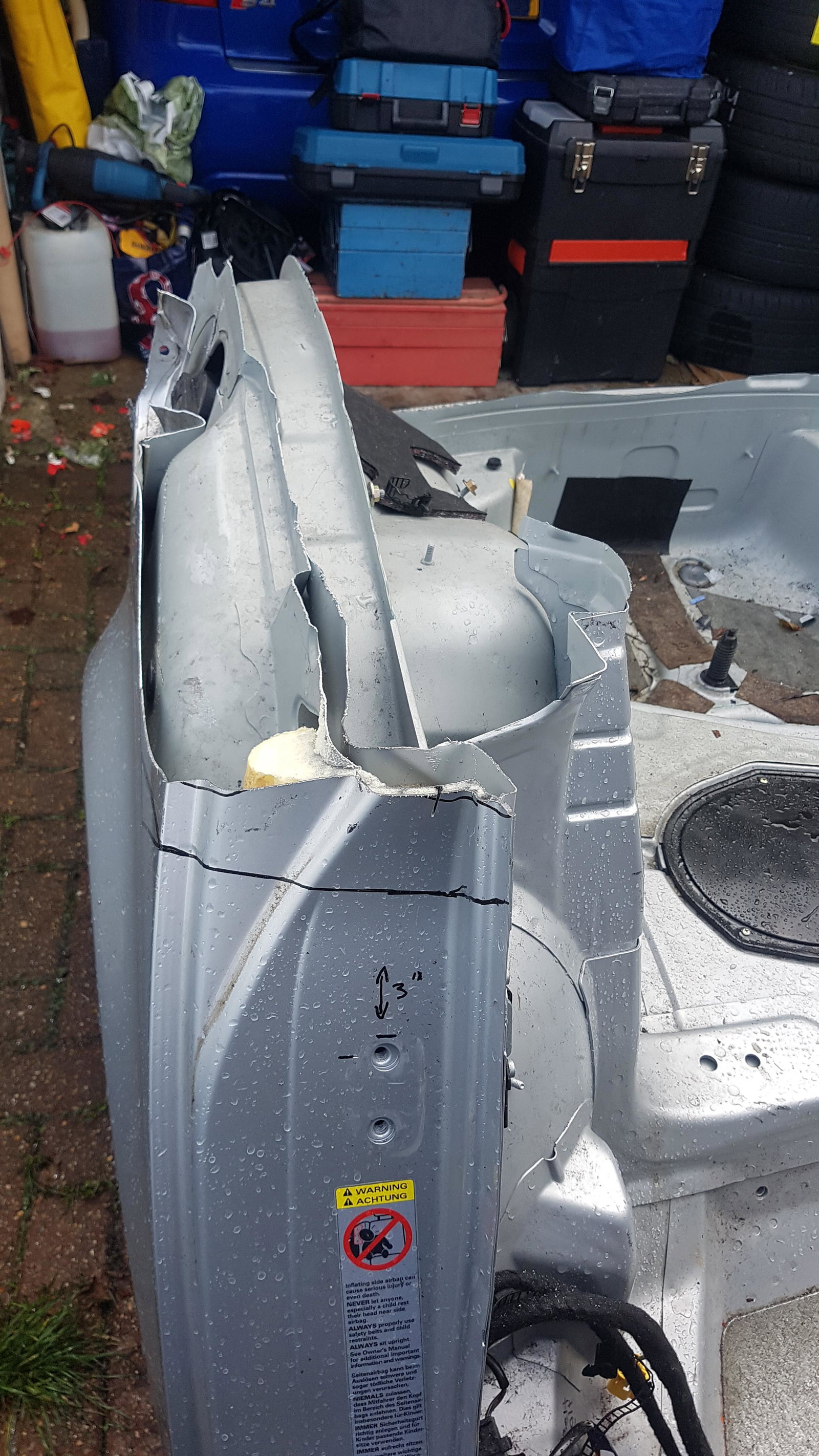

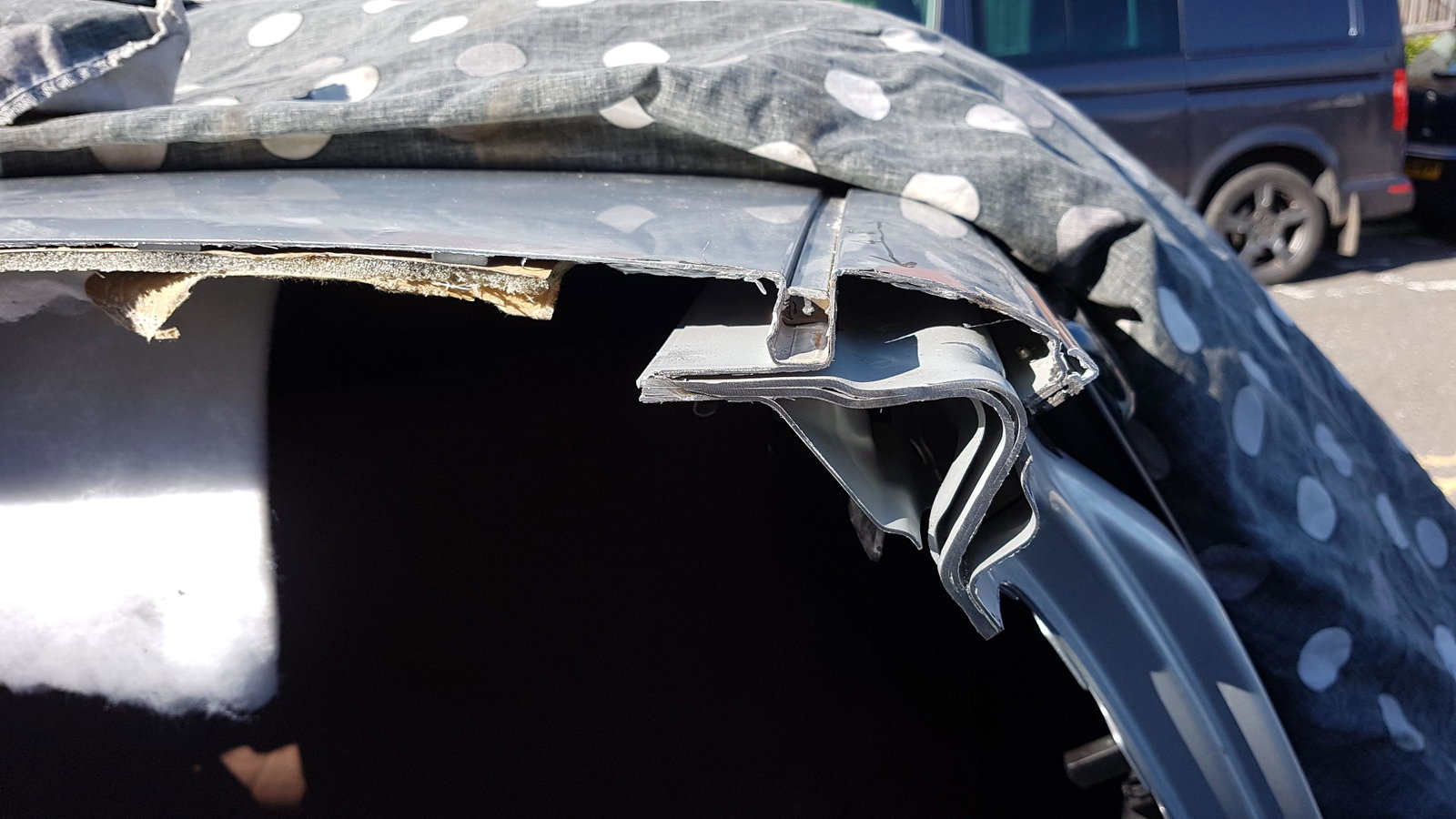

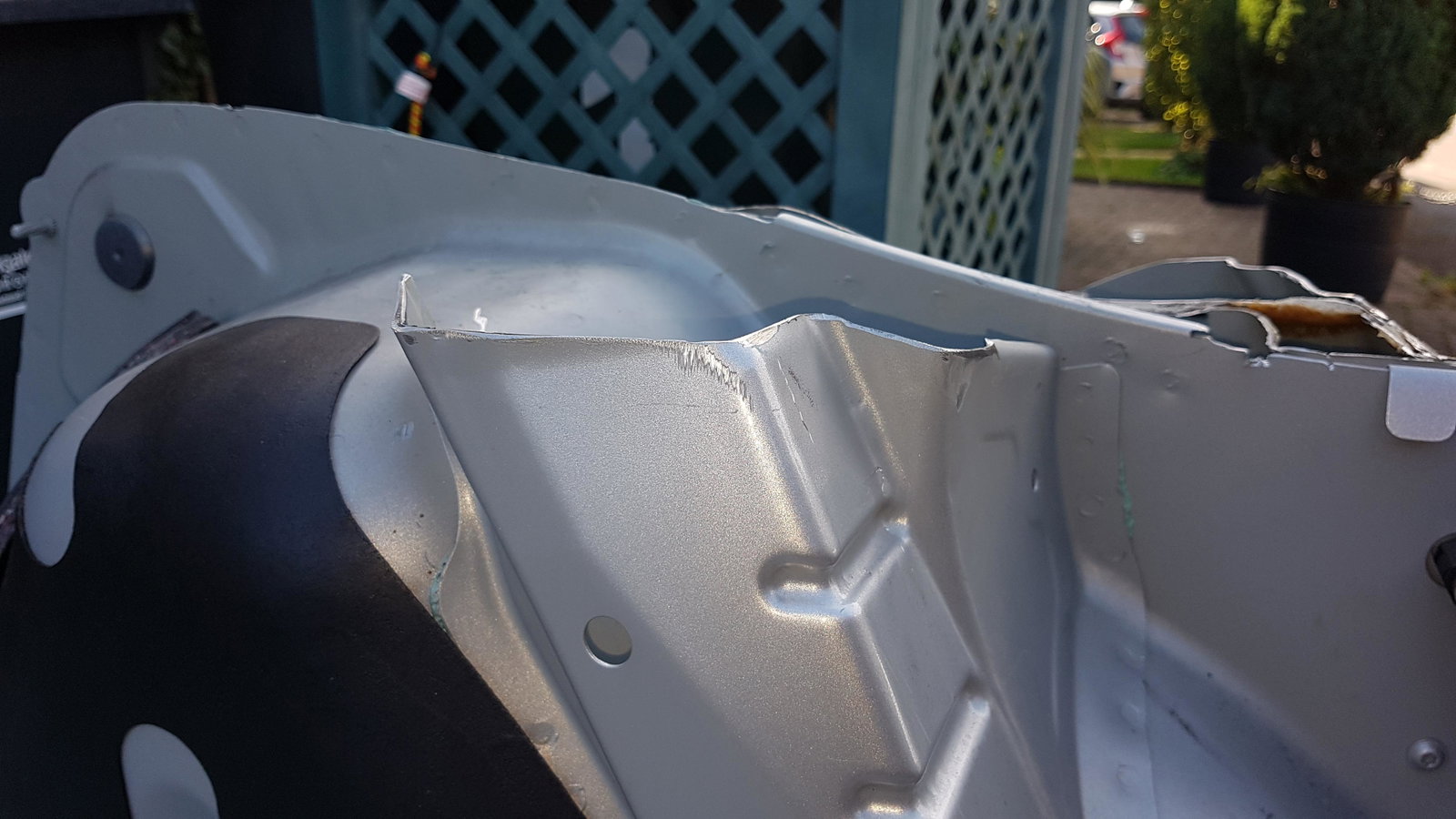

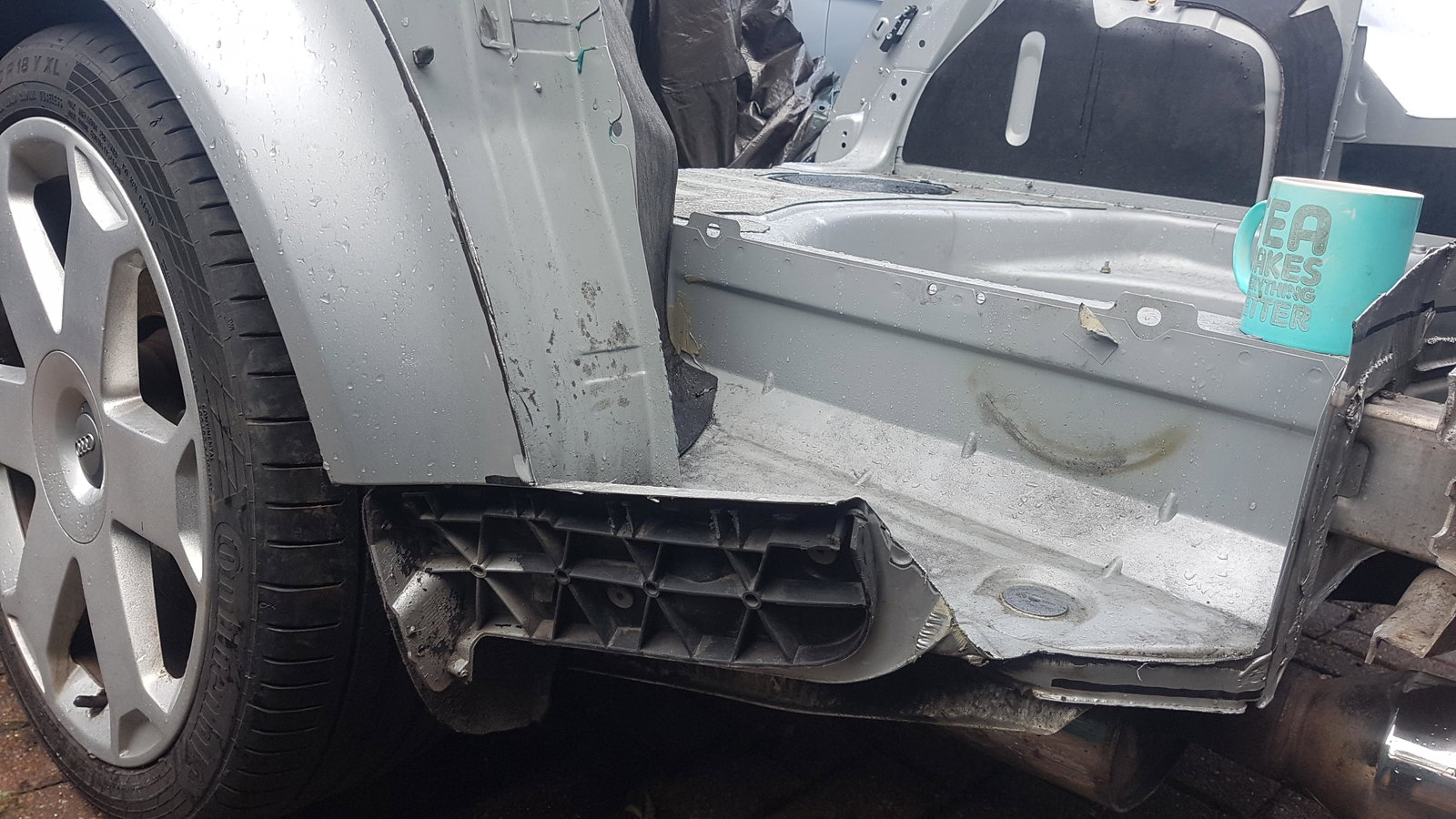

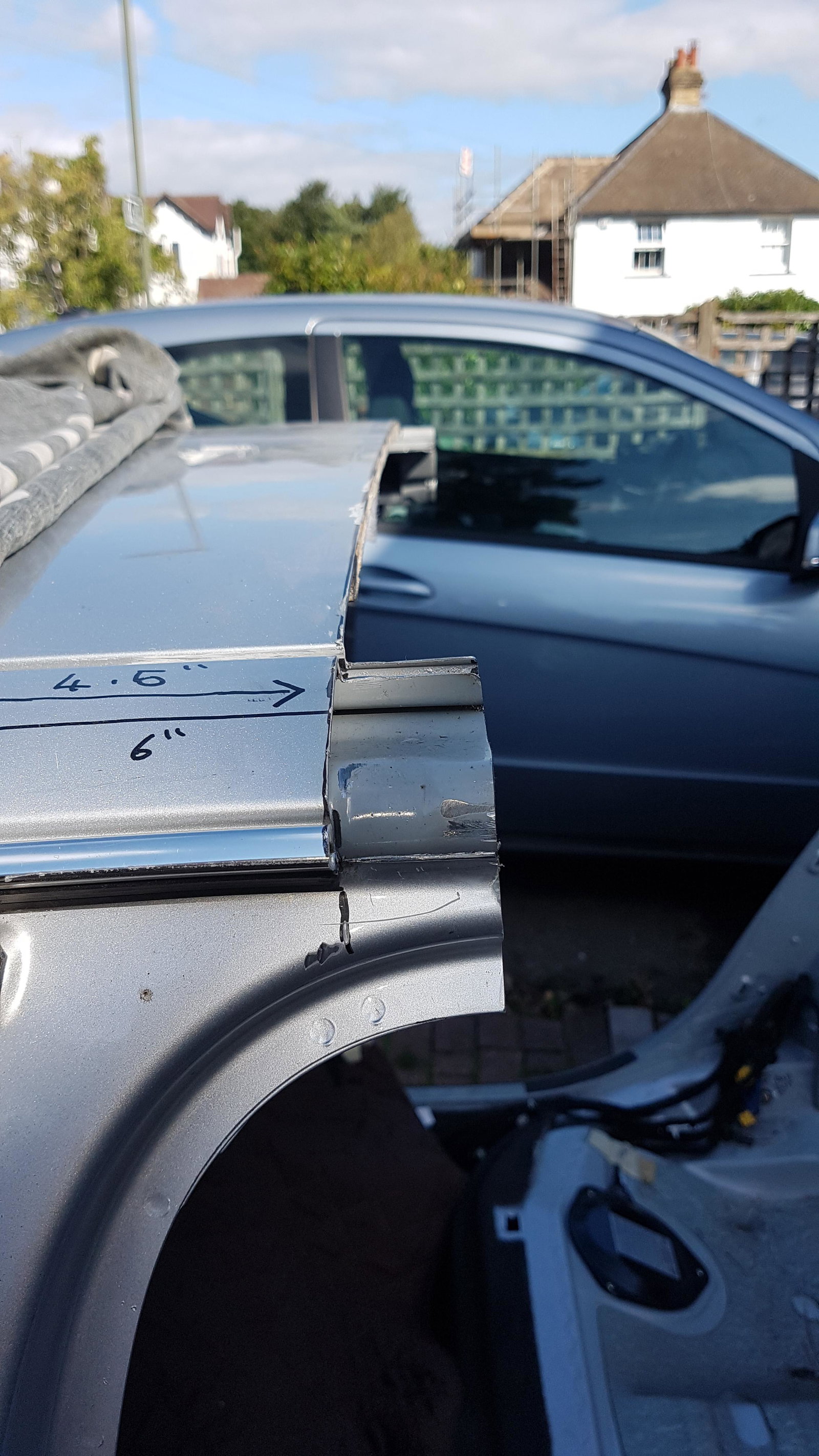

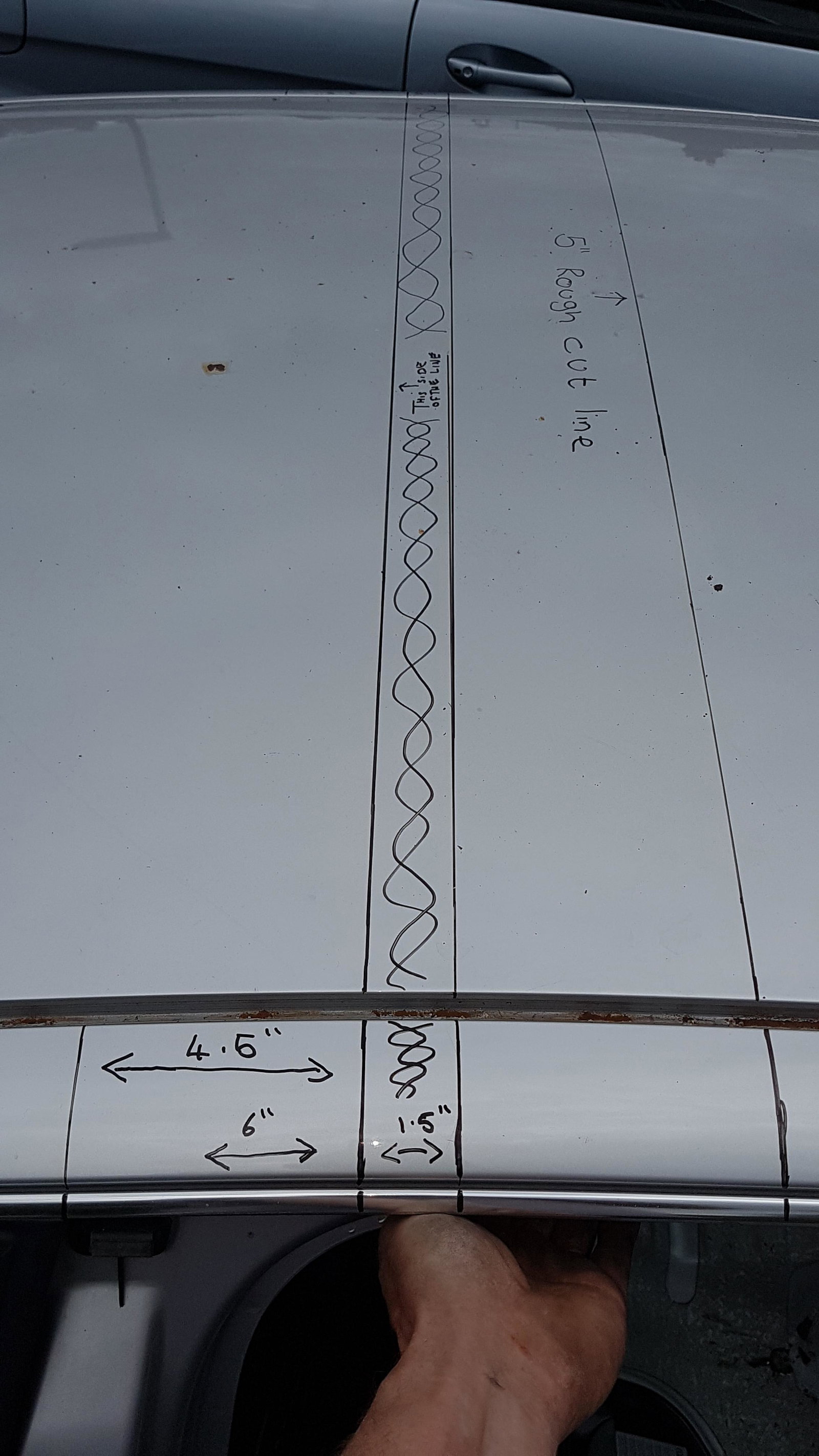

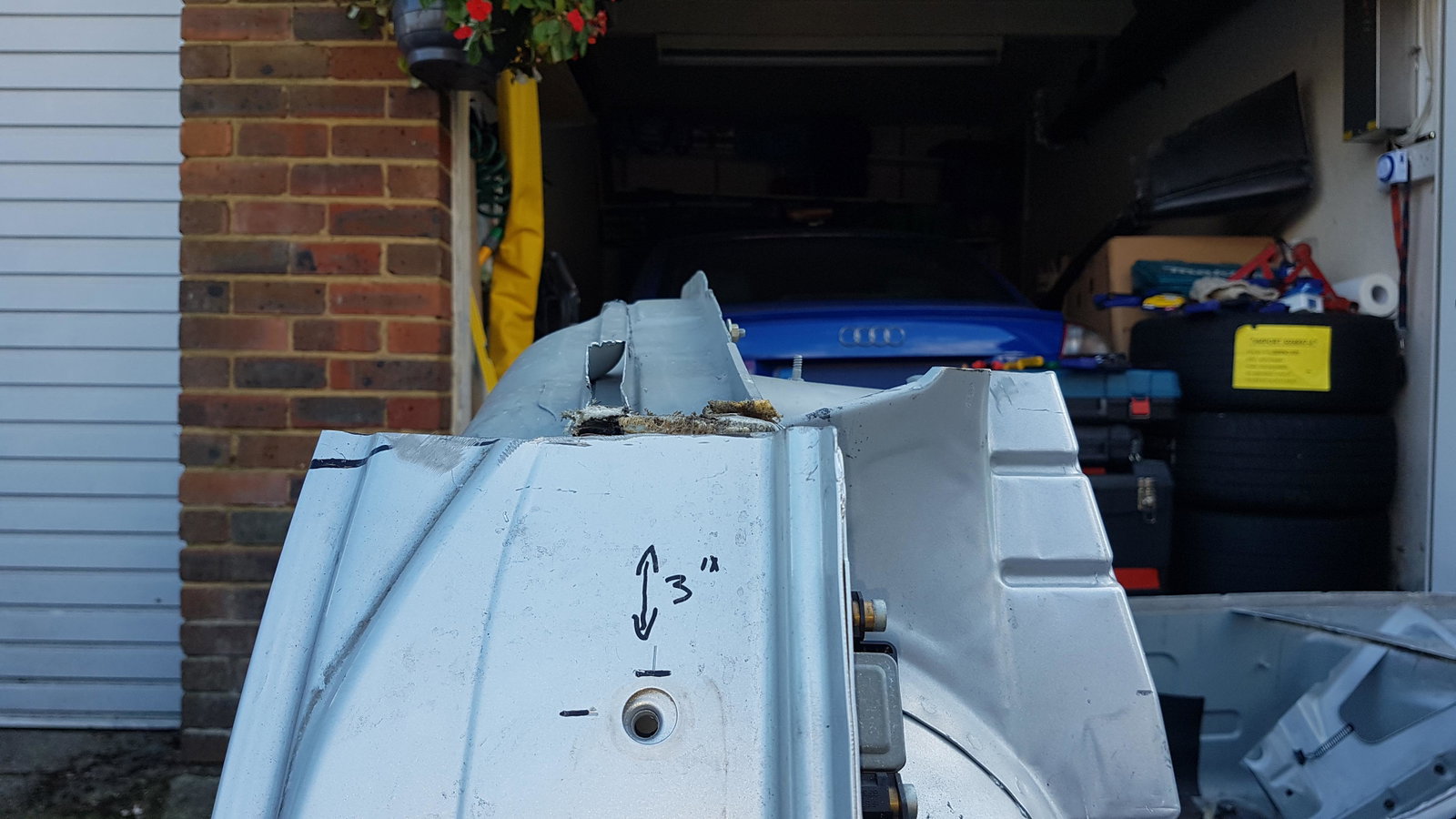

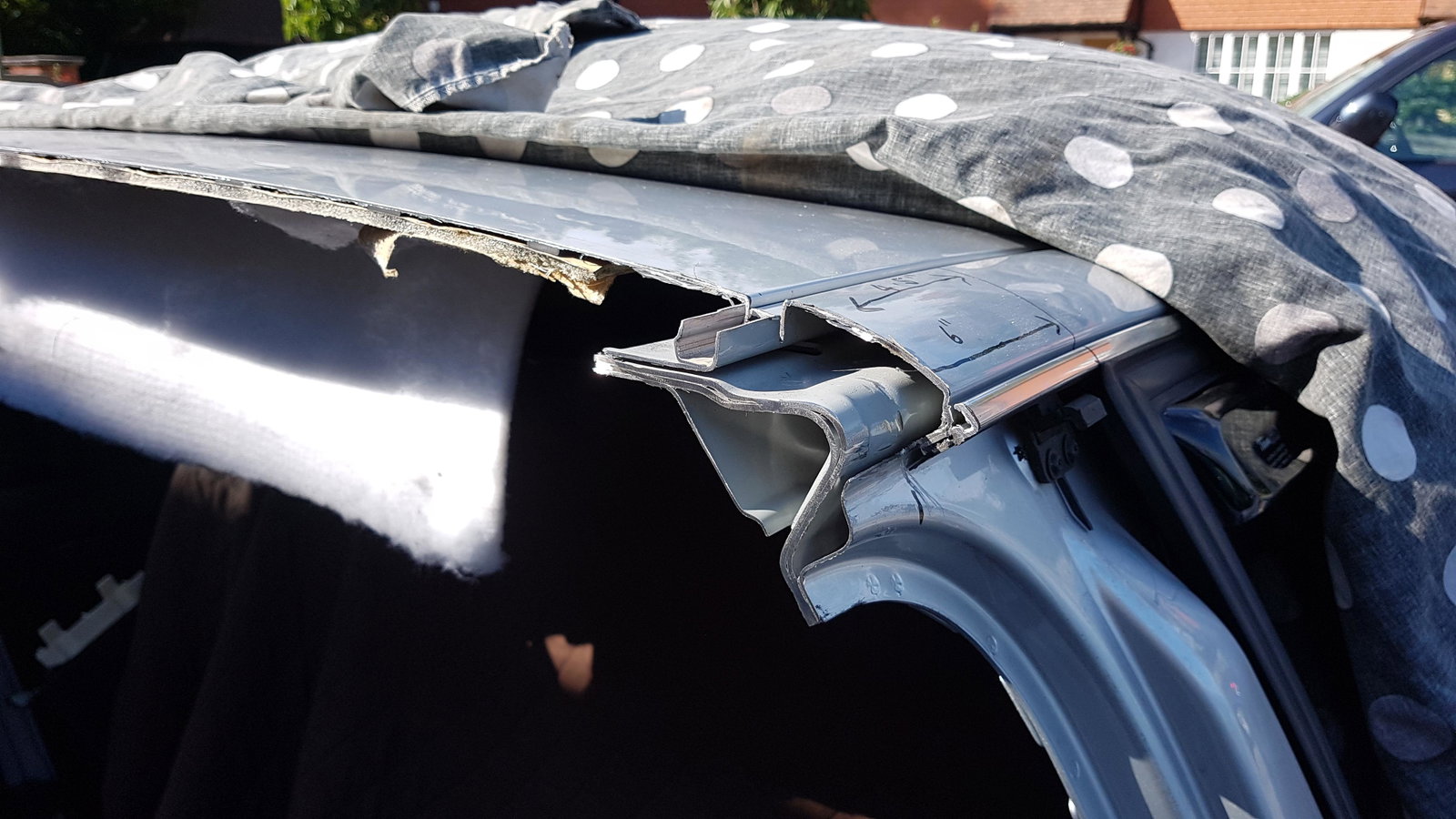

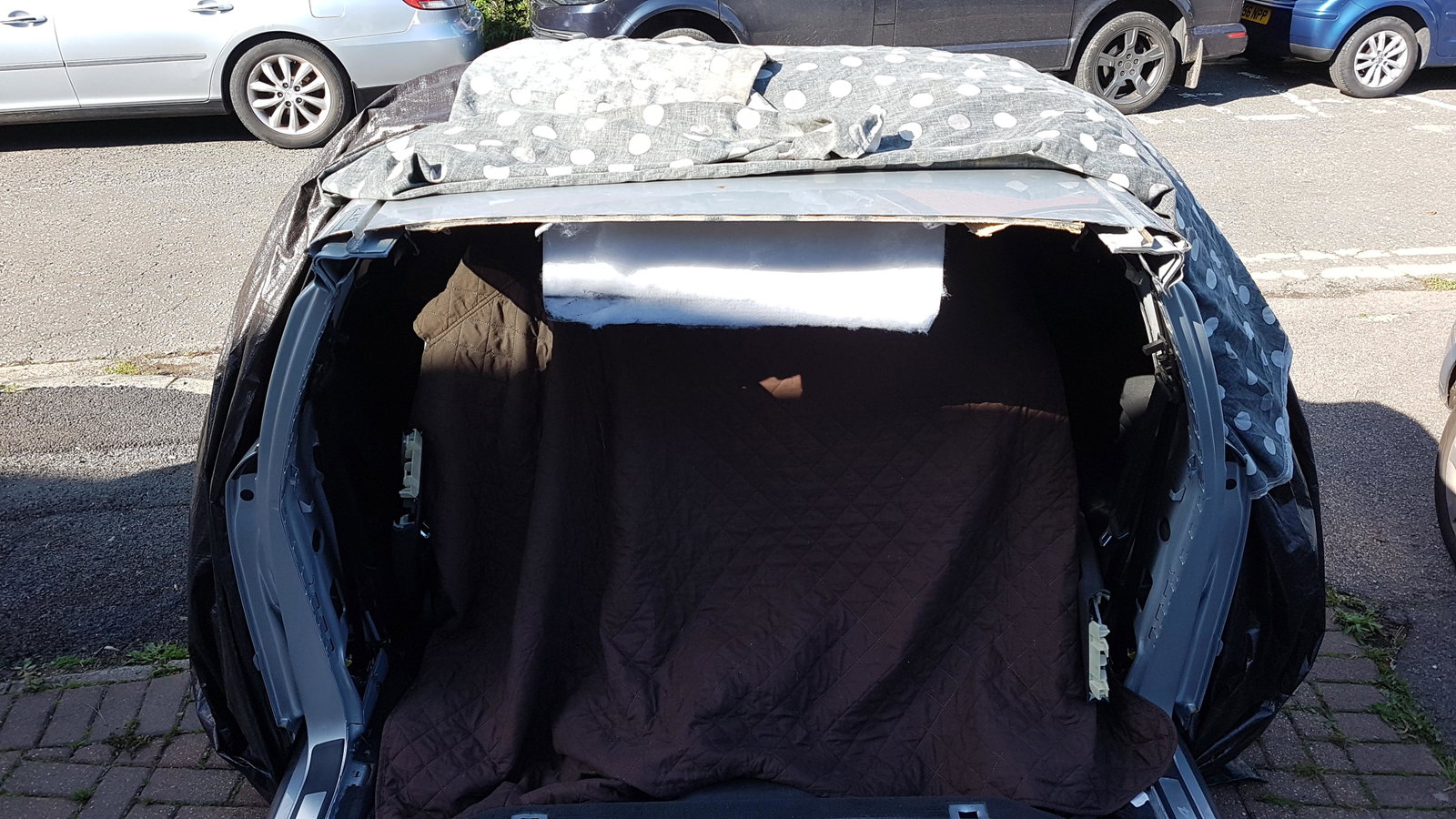

  9. I TOLD YOU TO ONLY BLOW THE !Removed! DOORS OFF!! No that's the roof rough cuts done and roof section off.
  10. Thanks Steve, they need a refurb first and some new tyres, did you find your black TT handles??
  11. Just loaded, now for the nice drive home.

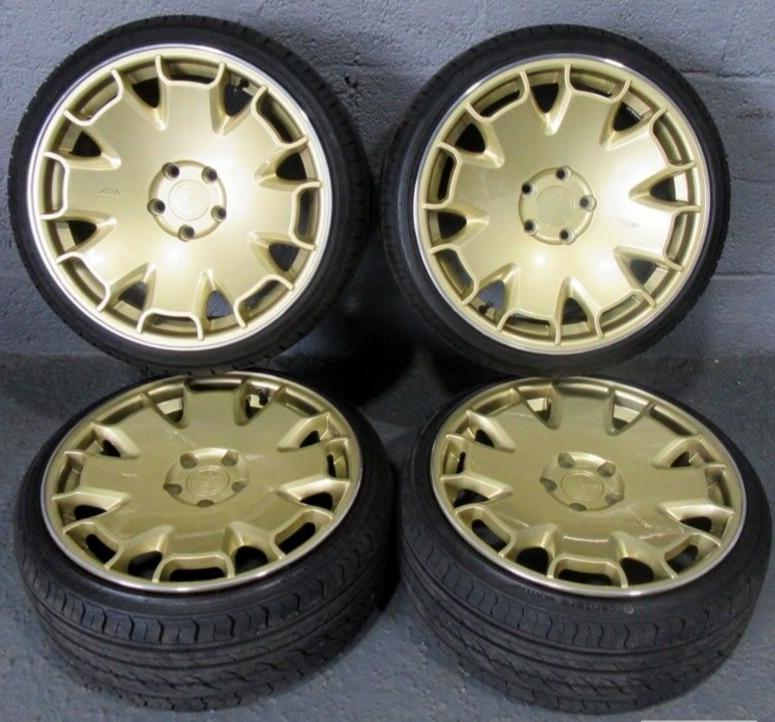

  12. New wheels for the S4 Ute, I wanted something not to far from oem style, just need a good refurbishment now.

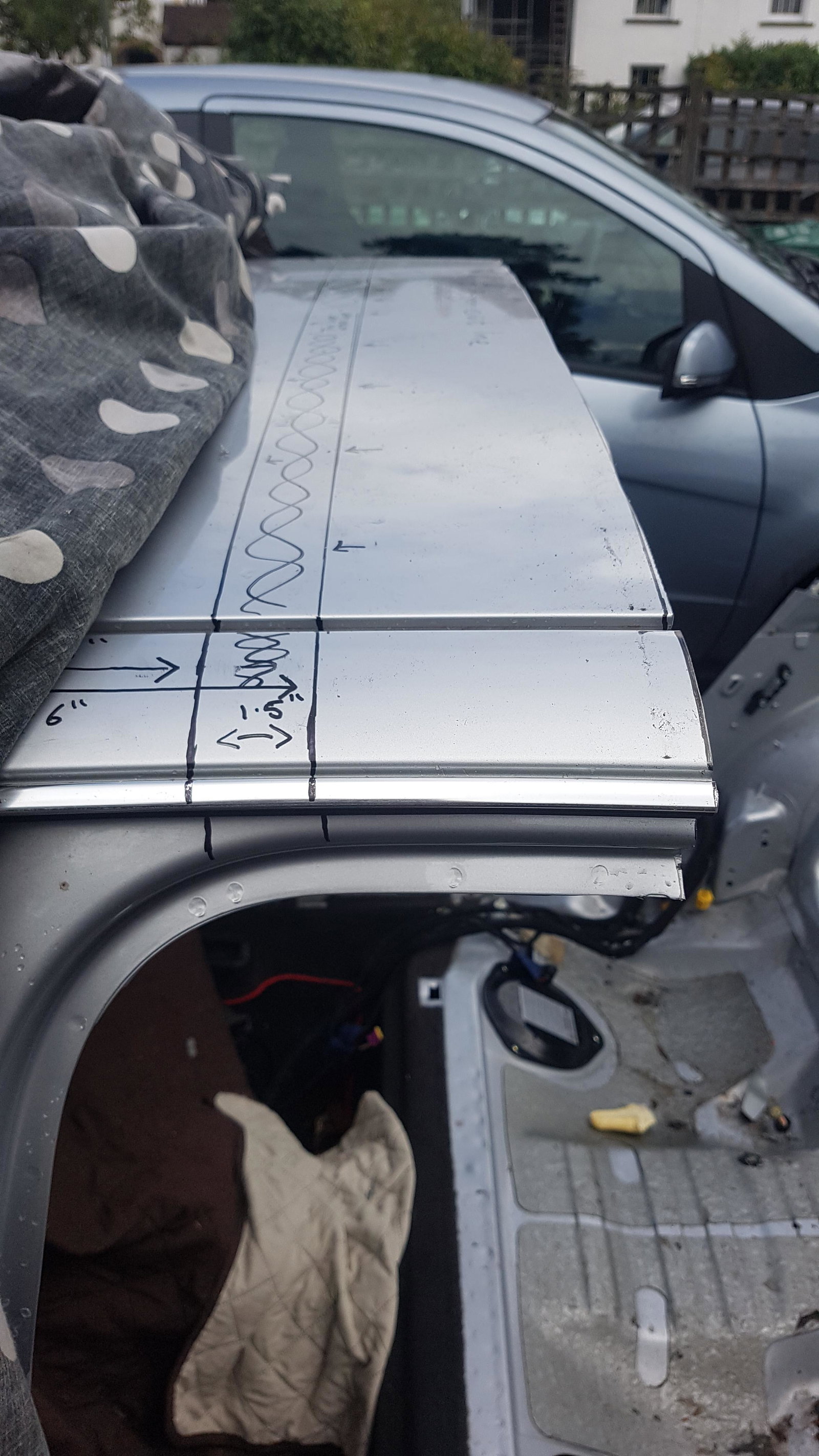

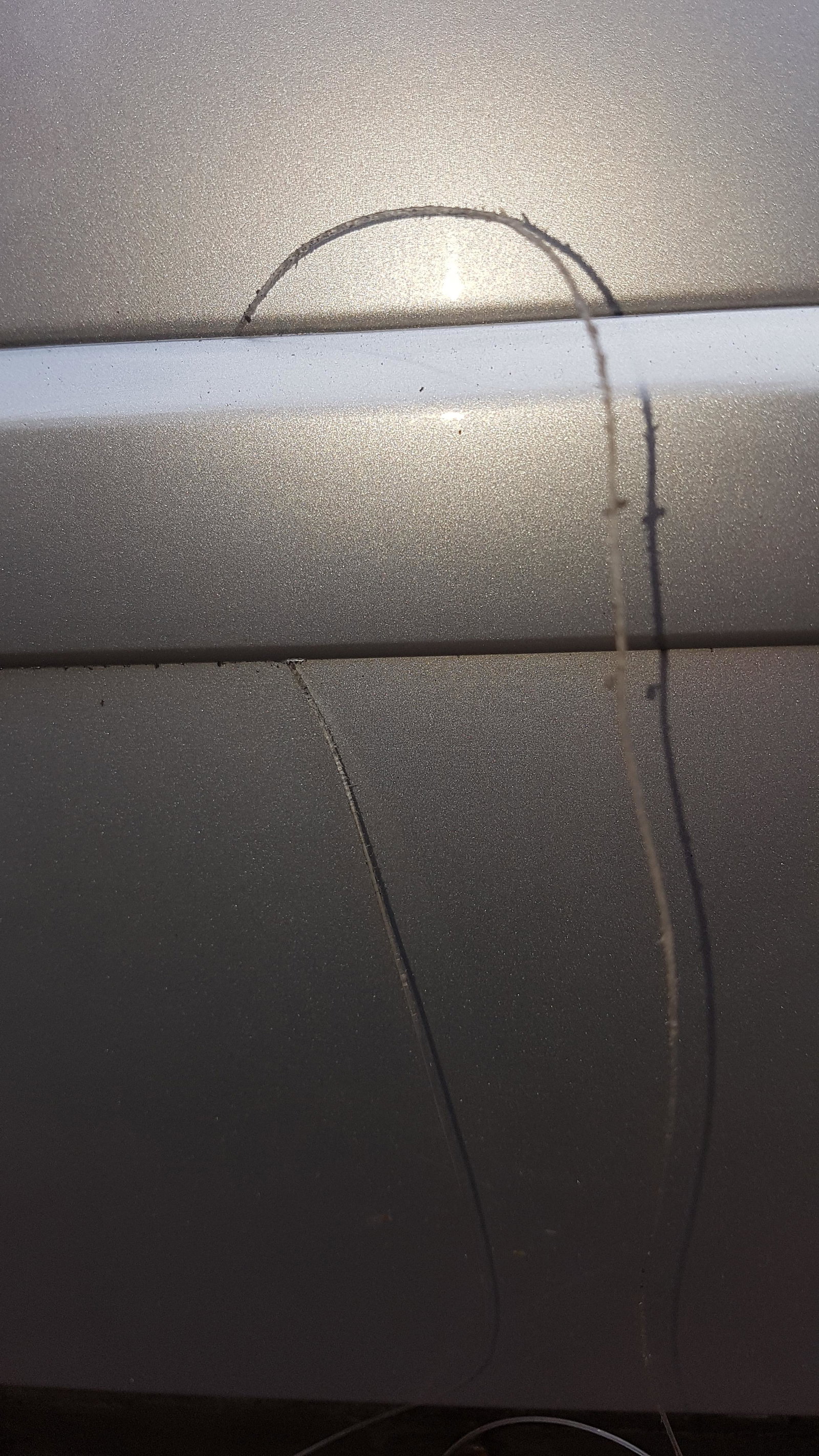

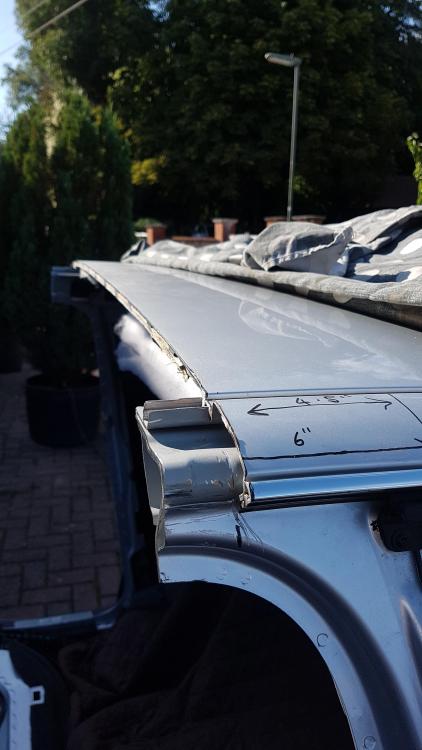

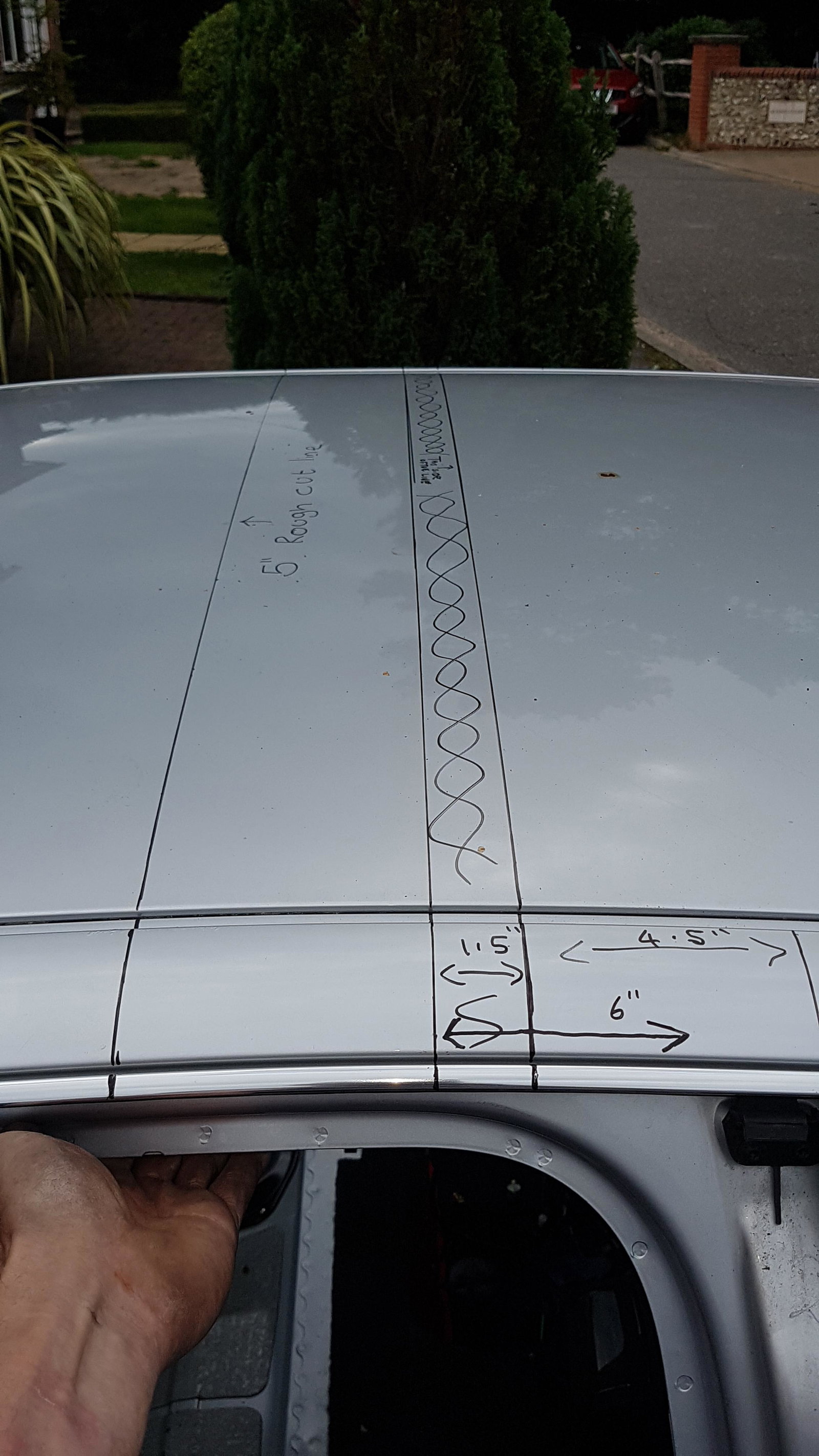

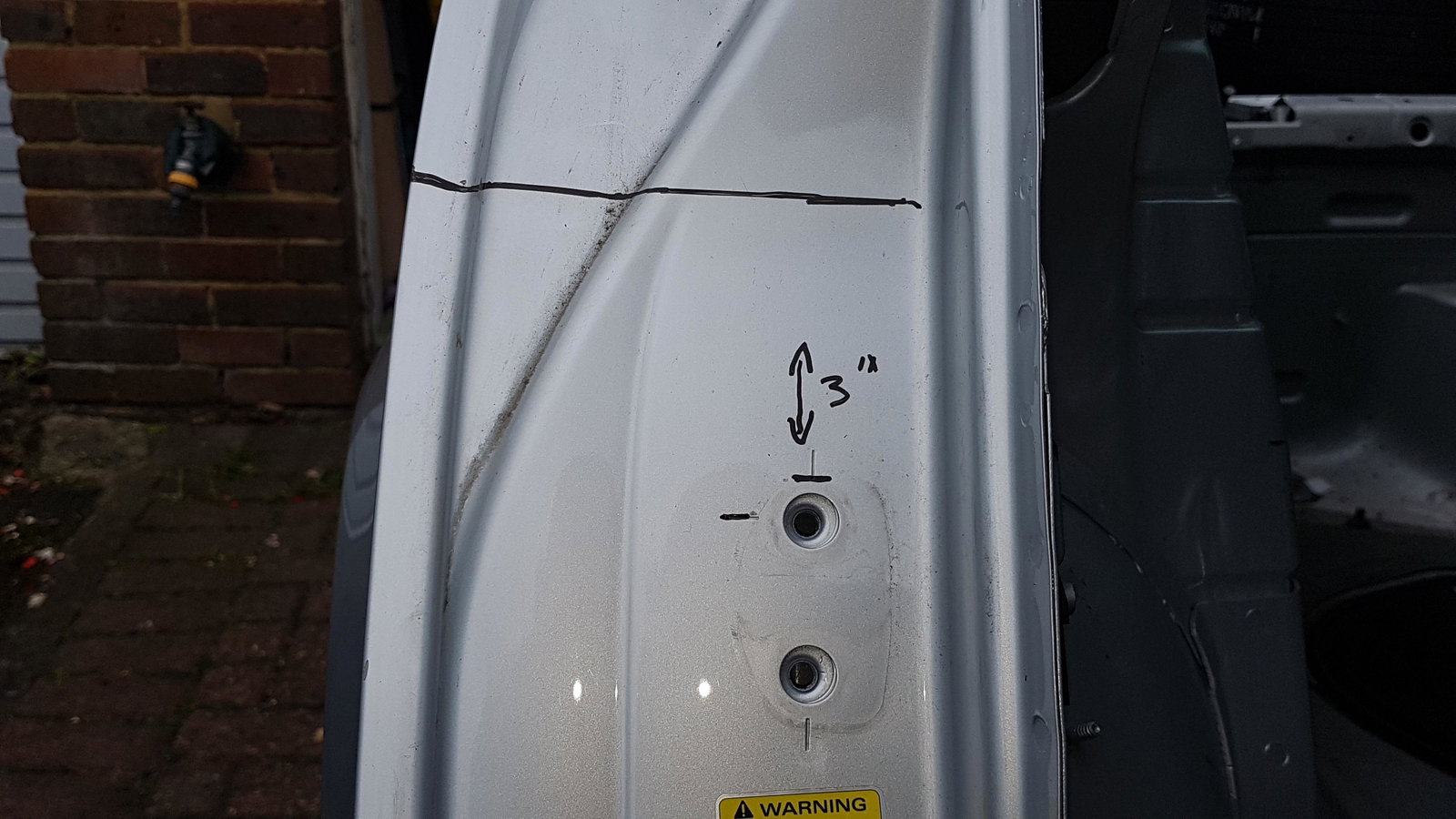

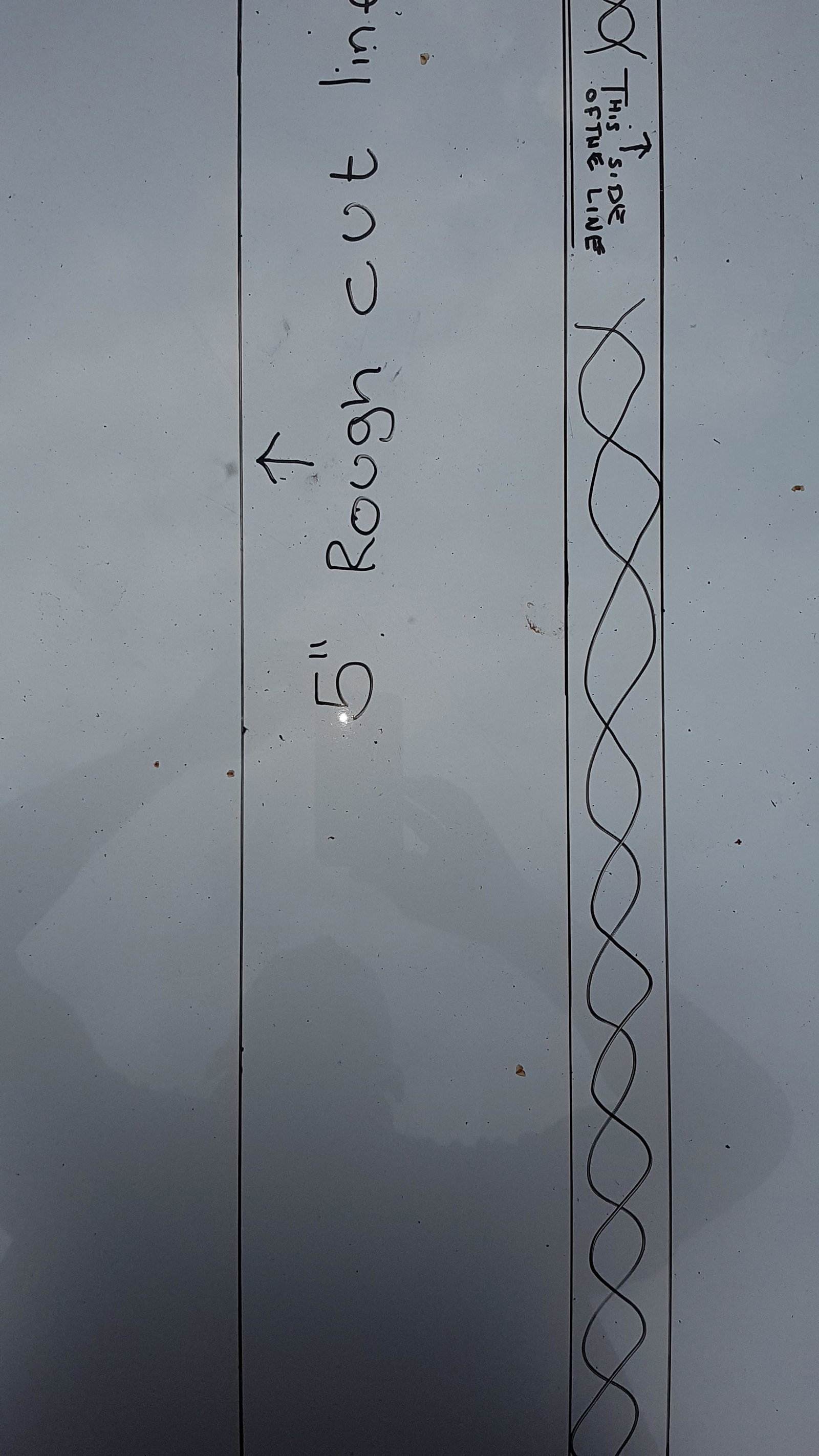

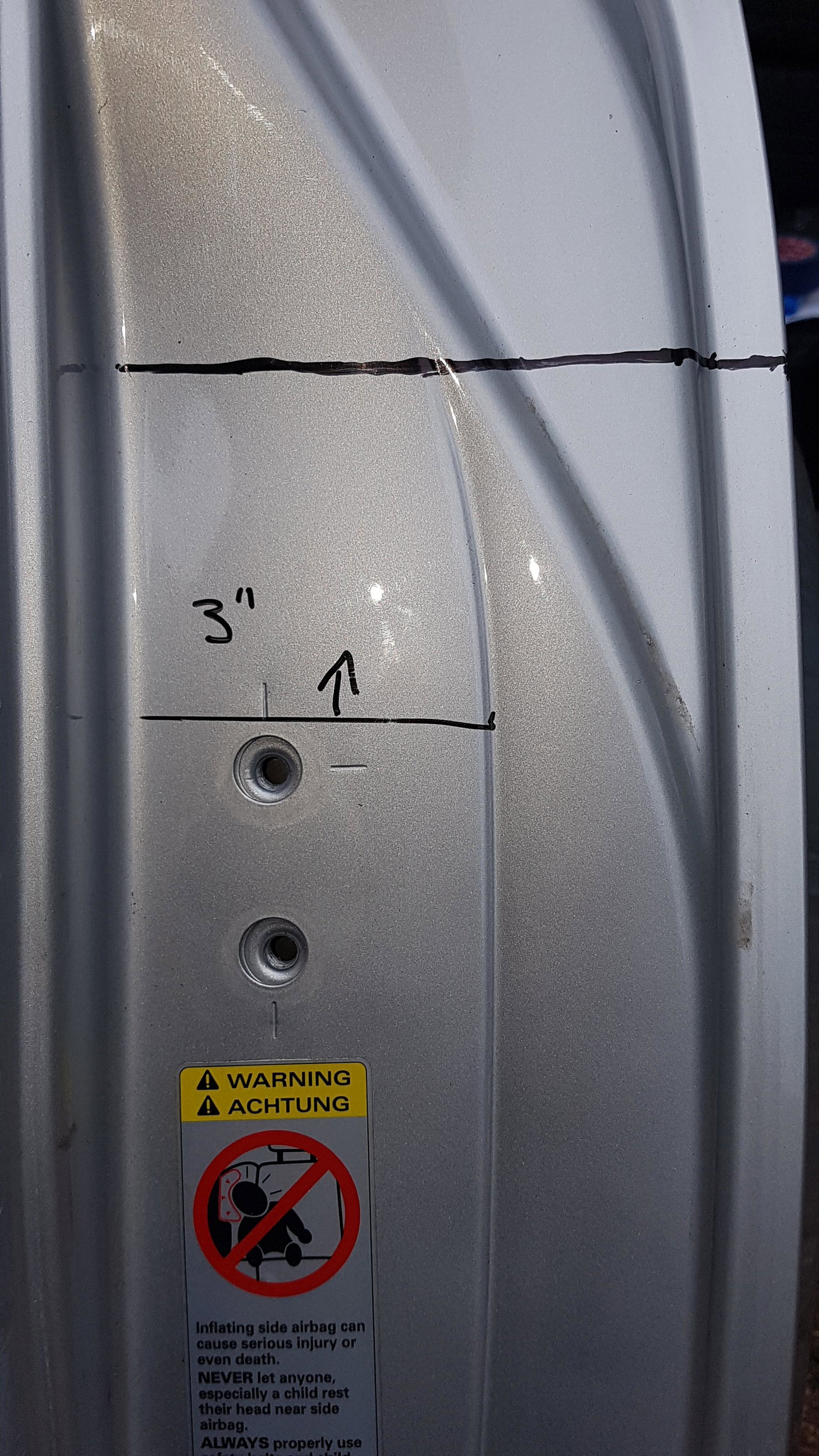

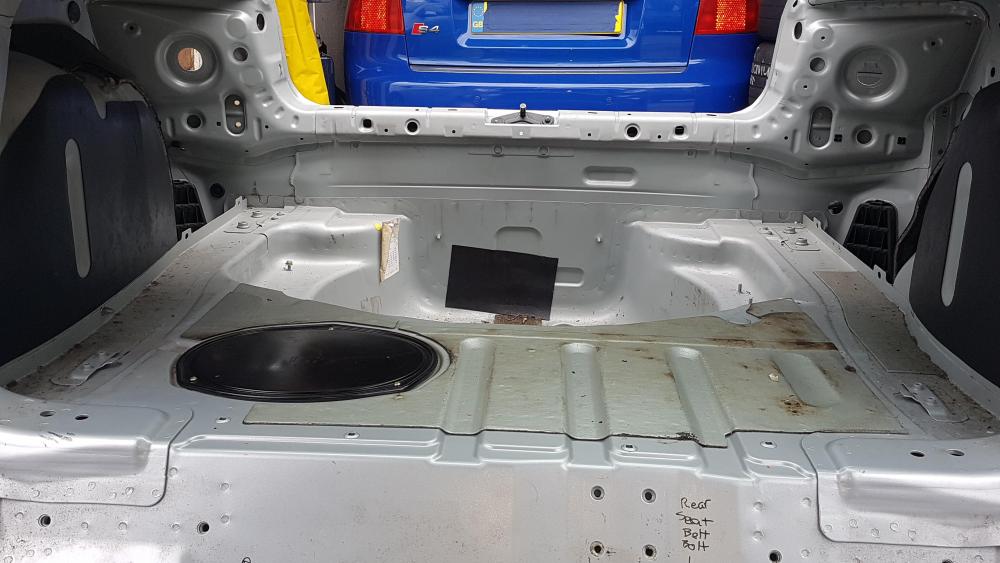

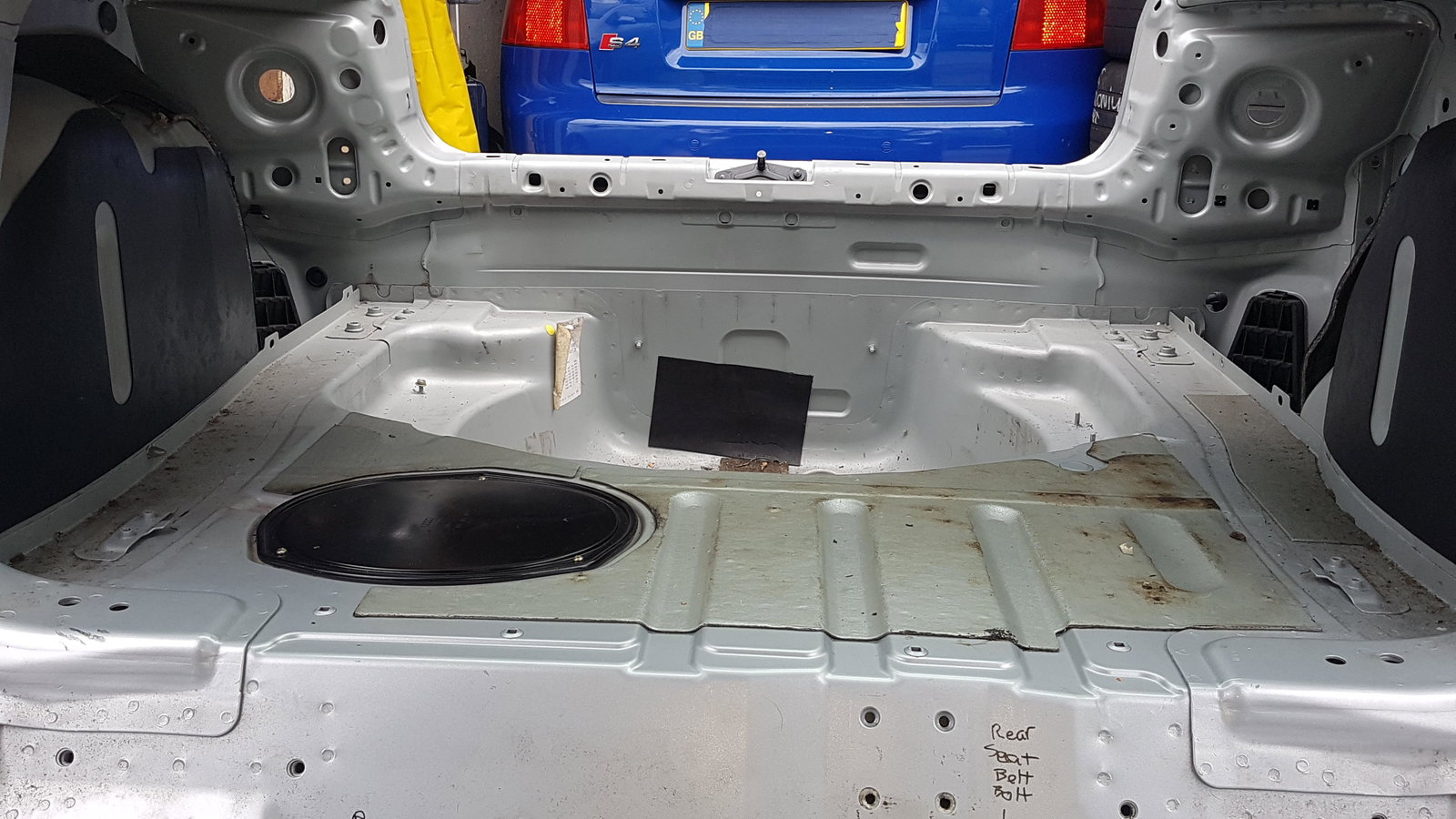

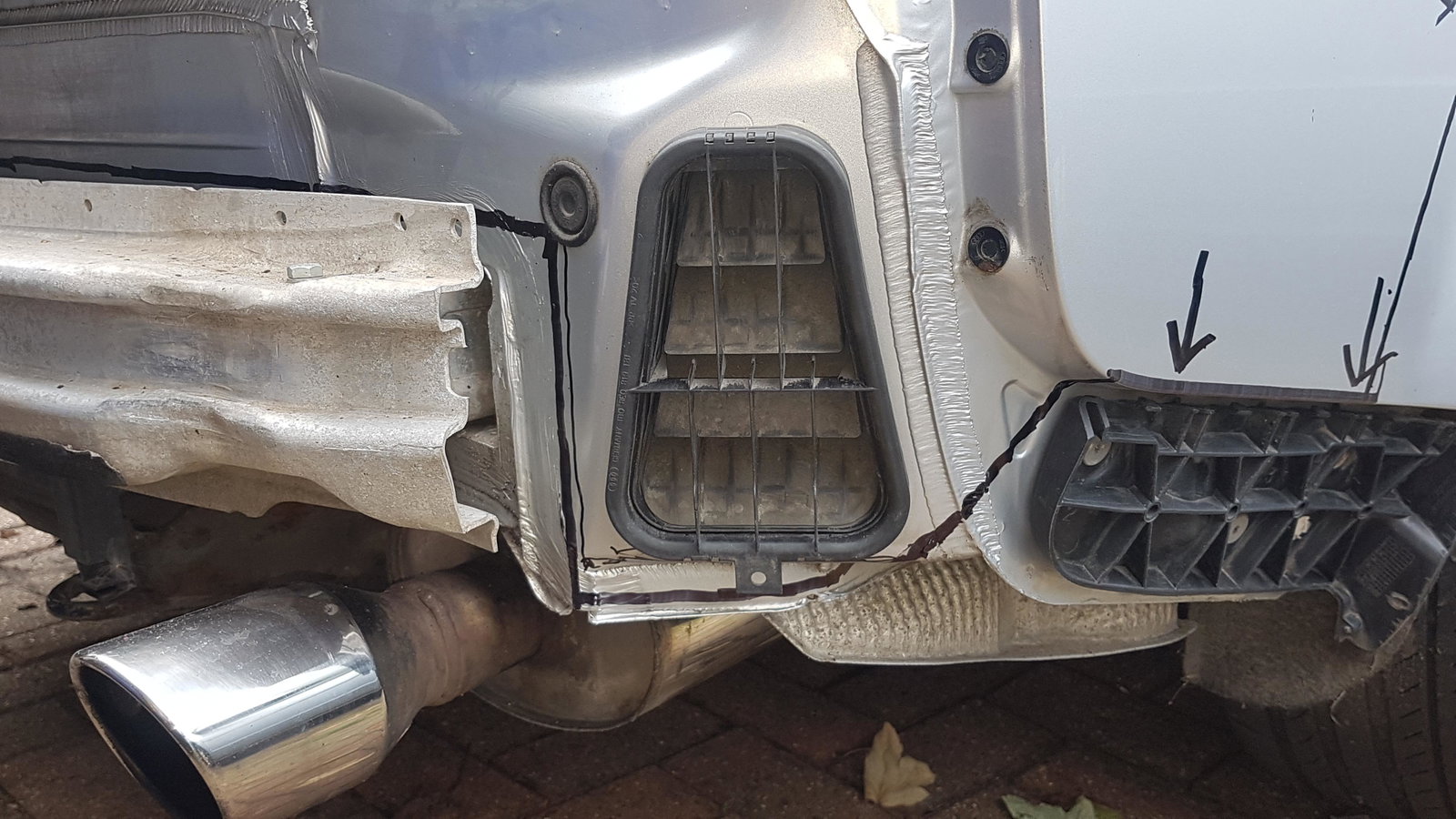

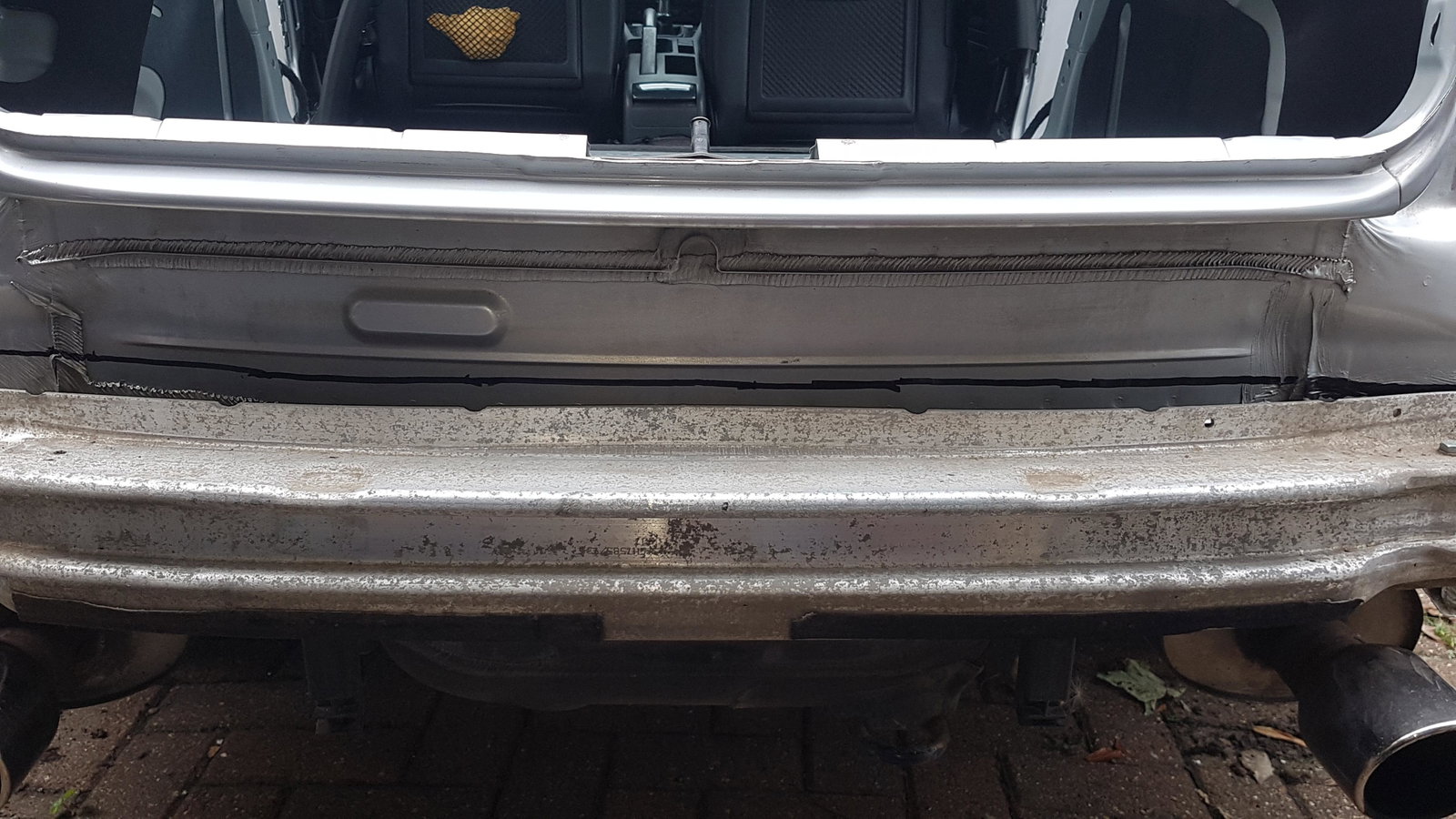

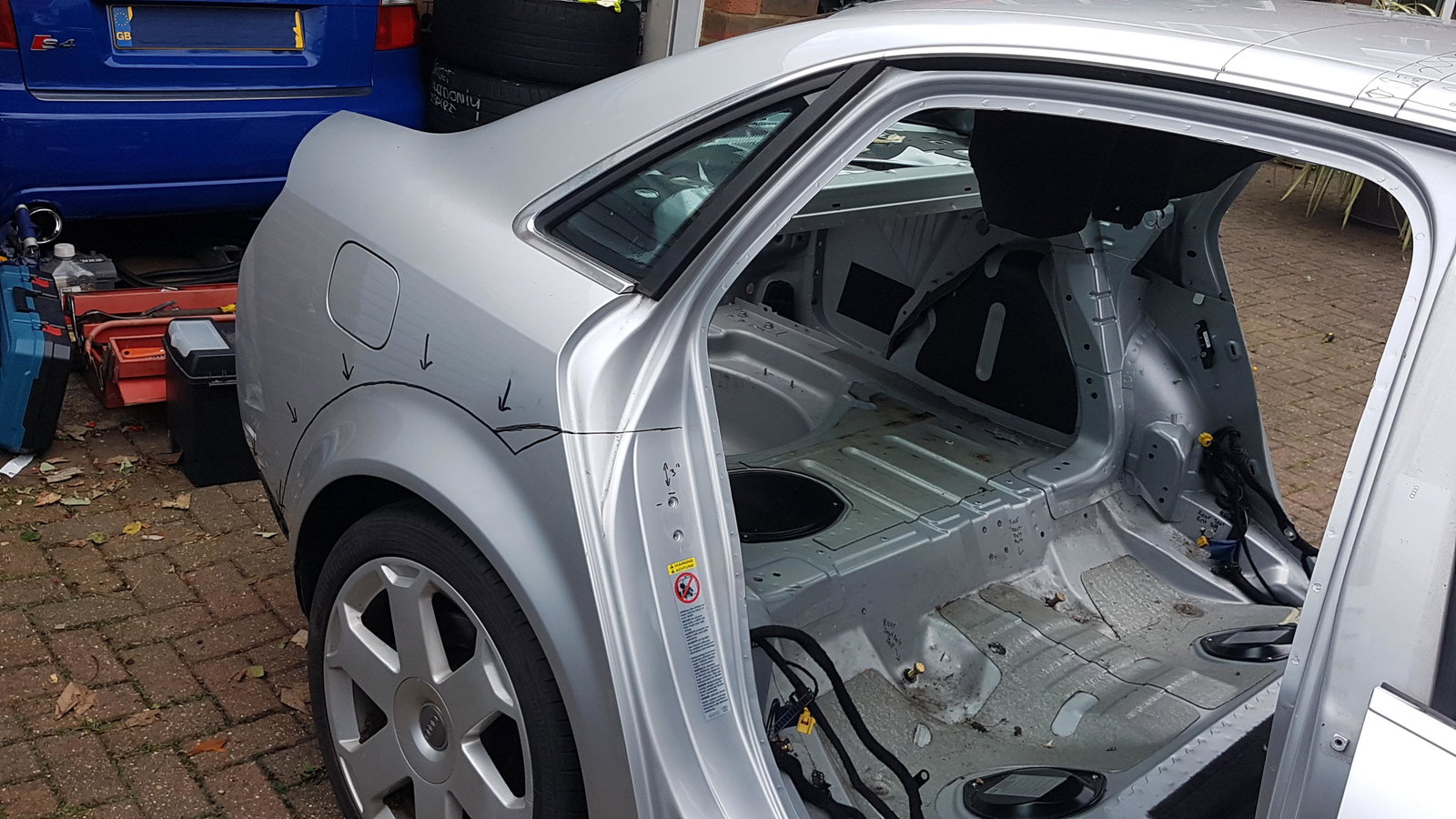

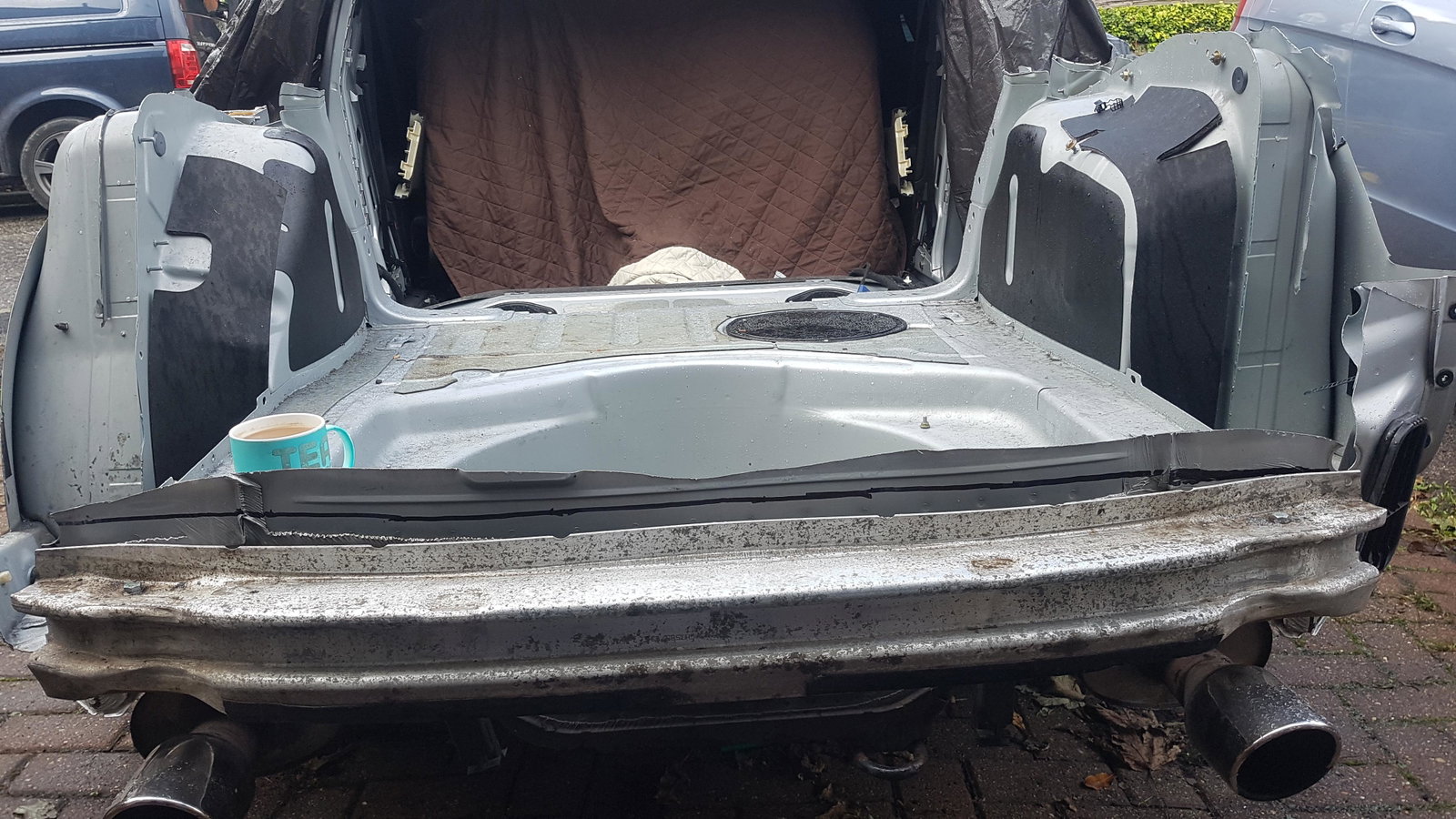

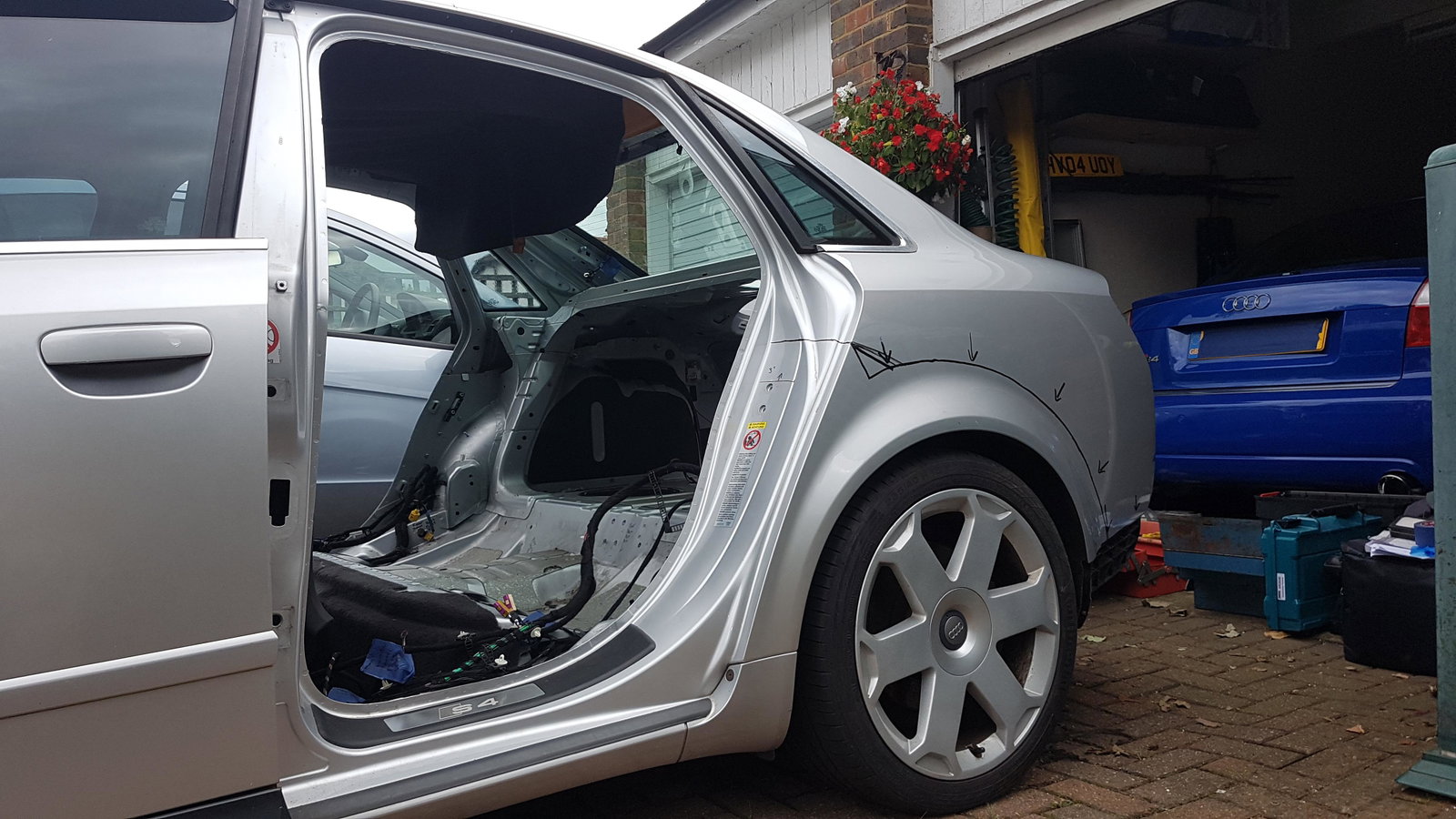

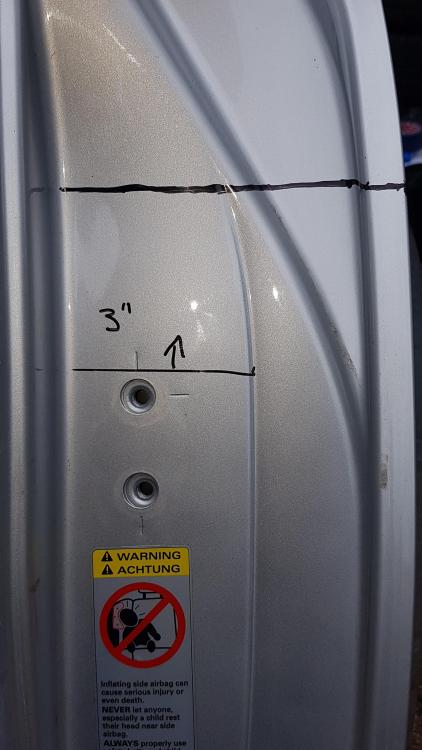

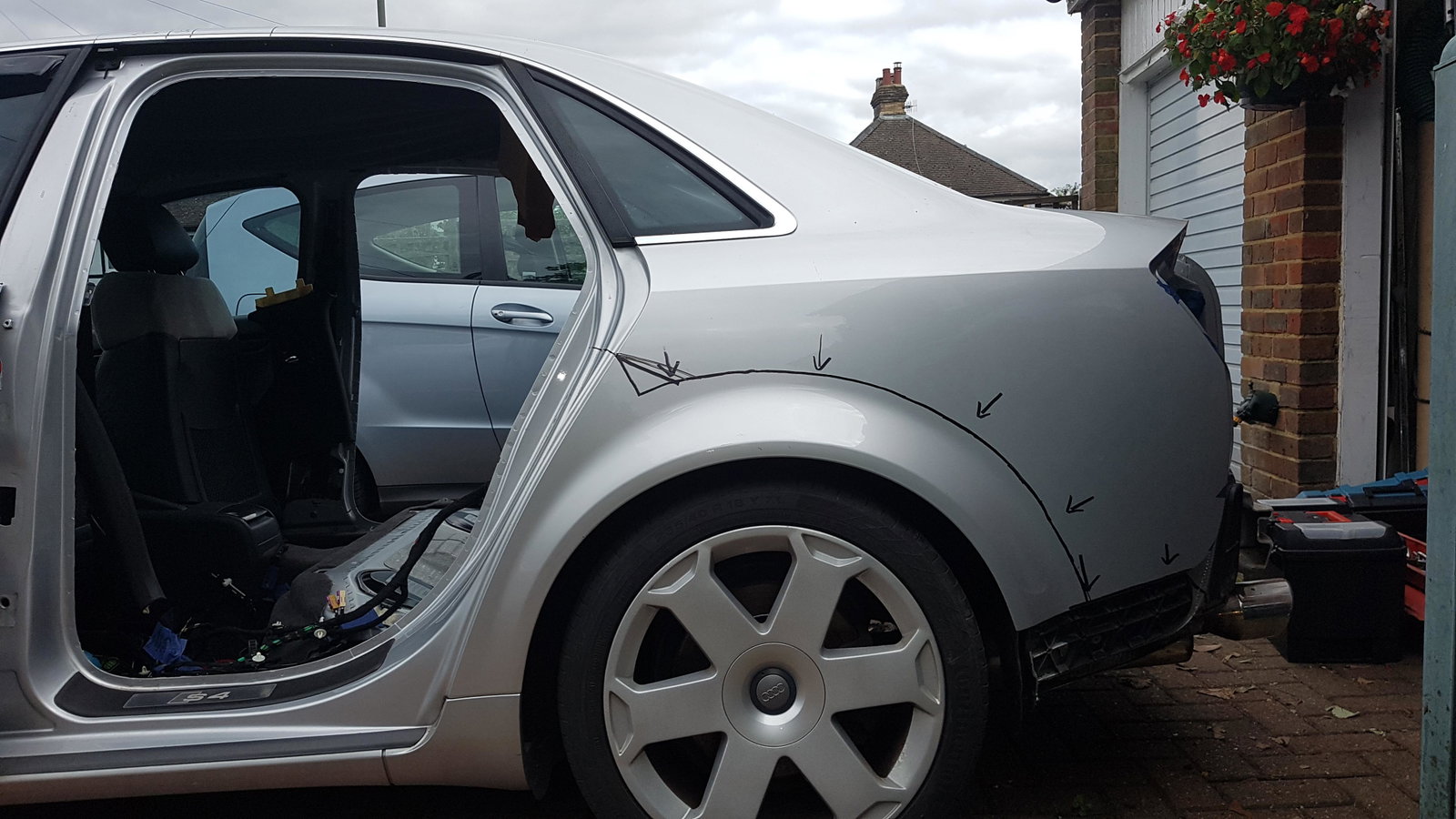

  13. Got the doors off, Boot/trunk off, car is completely stripped in the rear now and every single wire, connector all labled, And got all the measurements marked out ready for my fresh eyes to double check it all again tomorrow, measure twice, cut once as my old grandad used to say. And I got the call from shipping agent to say my kit is ready to collect tomorrow morning from 8am. So a very productive day.

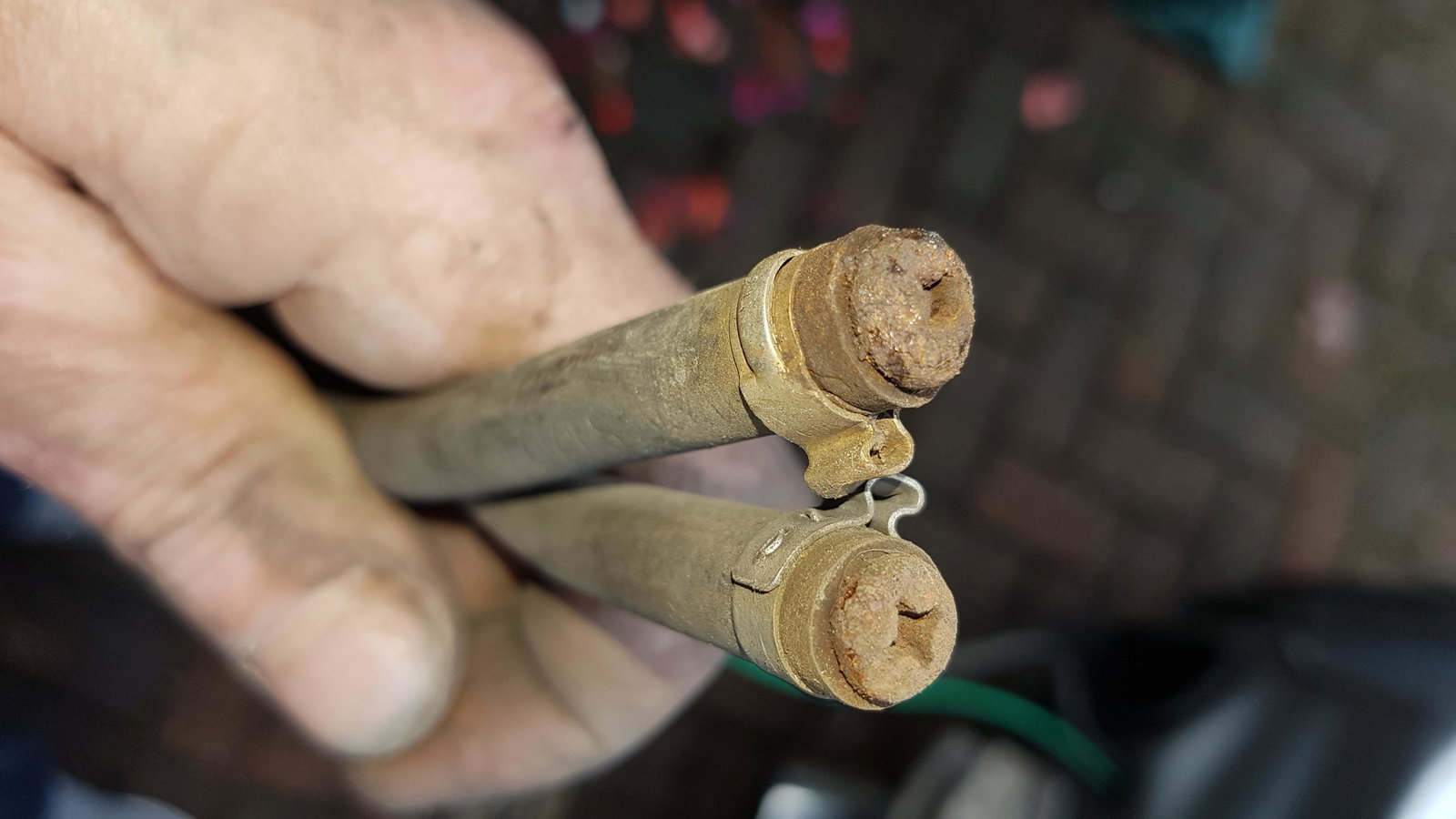

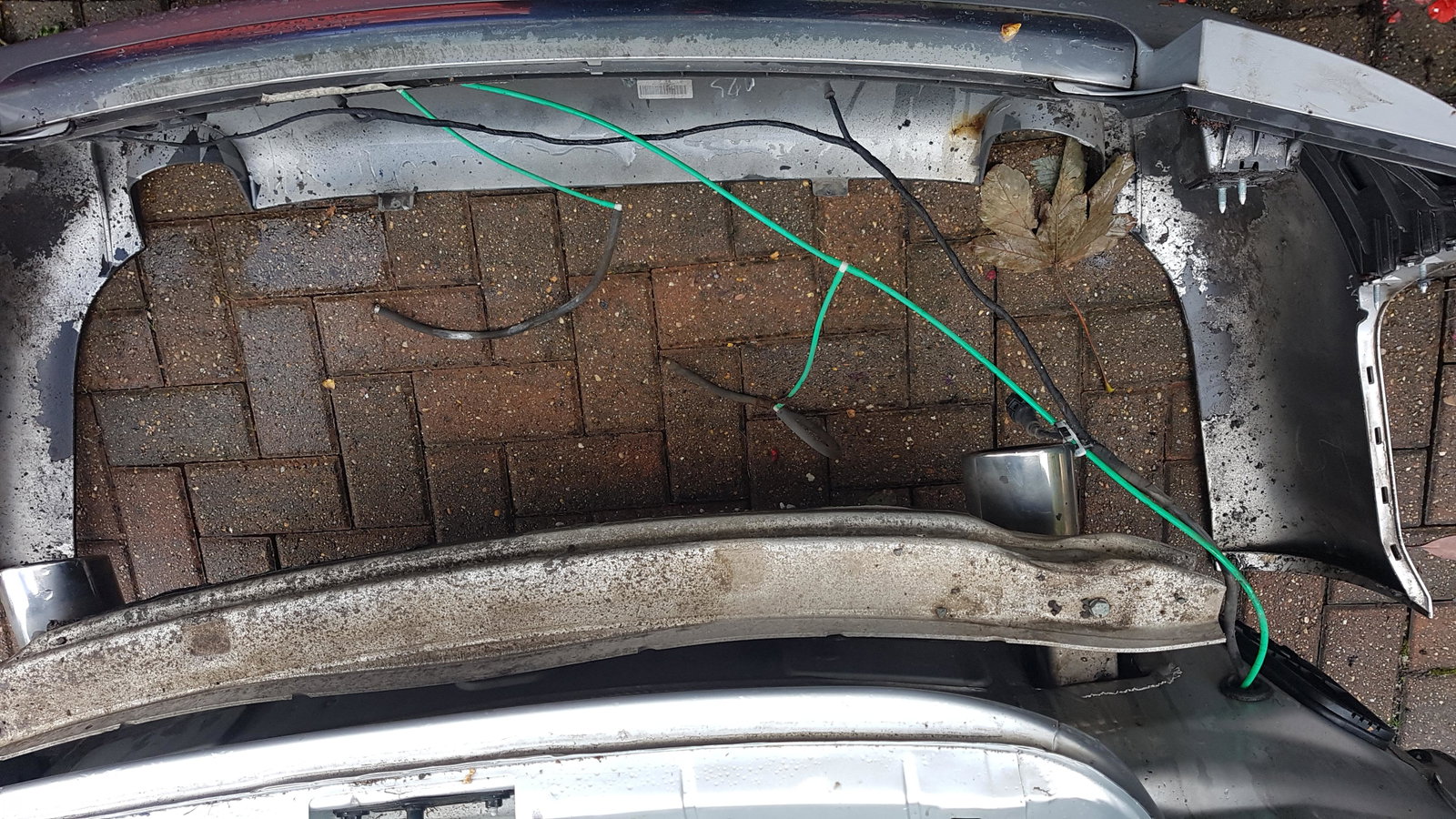

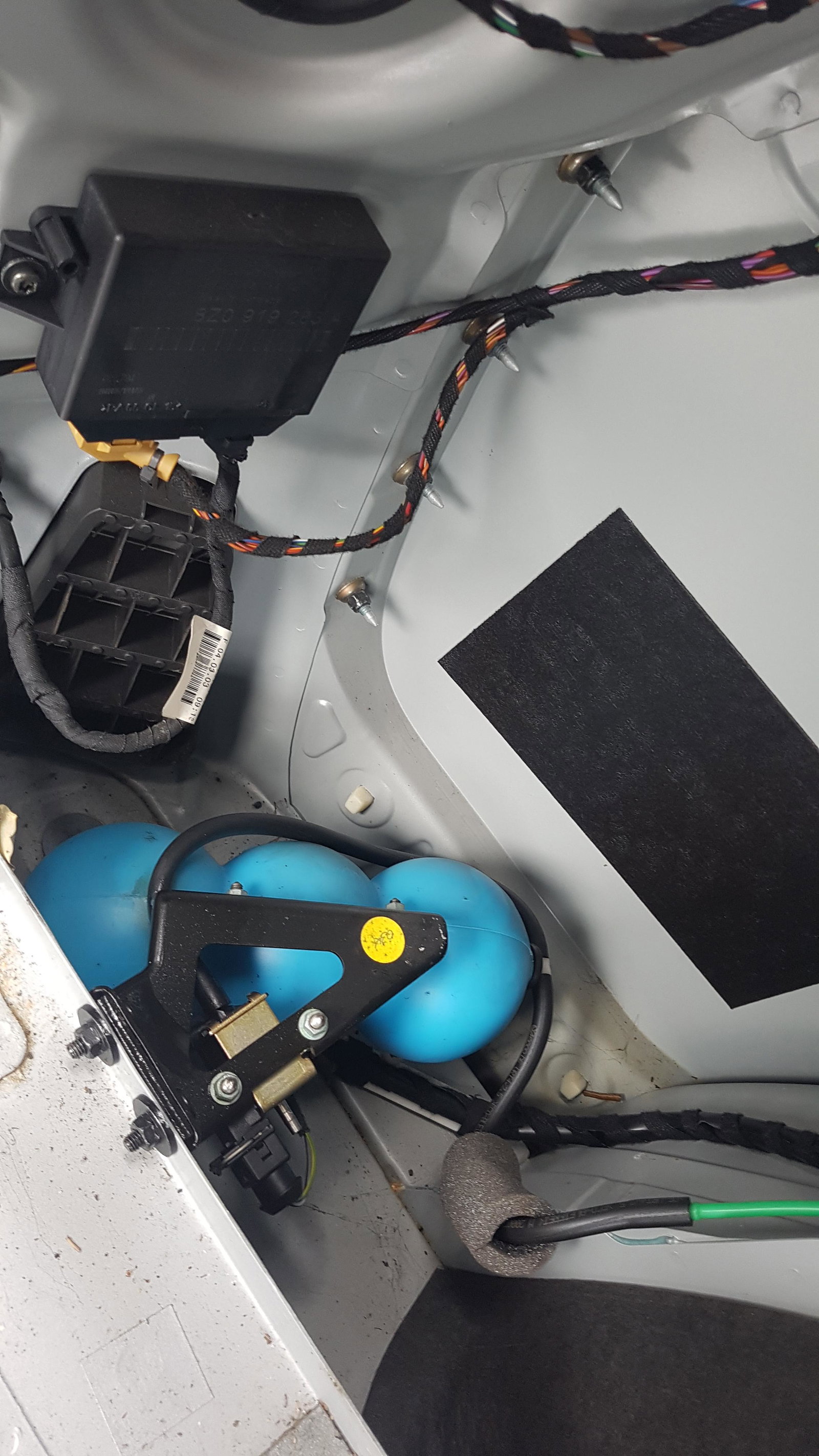

  14. Bumper is off and the tubing/hose goes into the rear bumper from the blue vaccum cylinder and tees off into 2 lines, then just ends and hangs loosely at the bottom of the bumper and someone has capped them off with 2 screws ( see pictures ). Am I right in thinking that these lines went to the old oem exhaust to control the flappers????

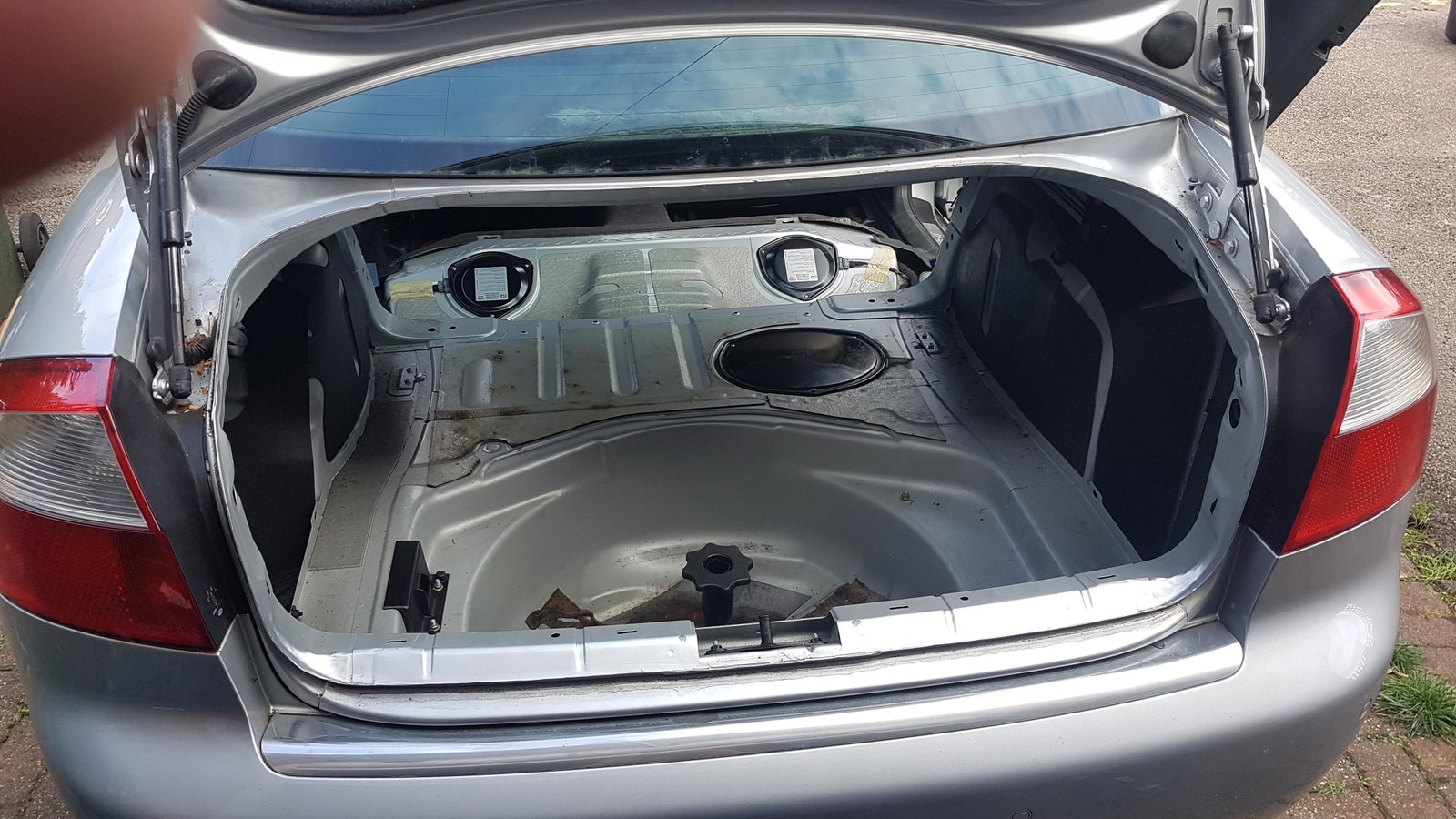

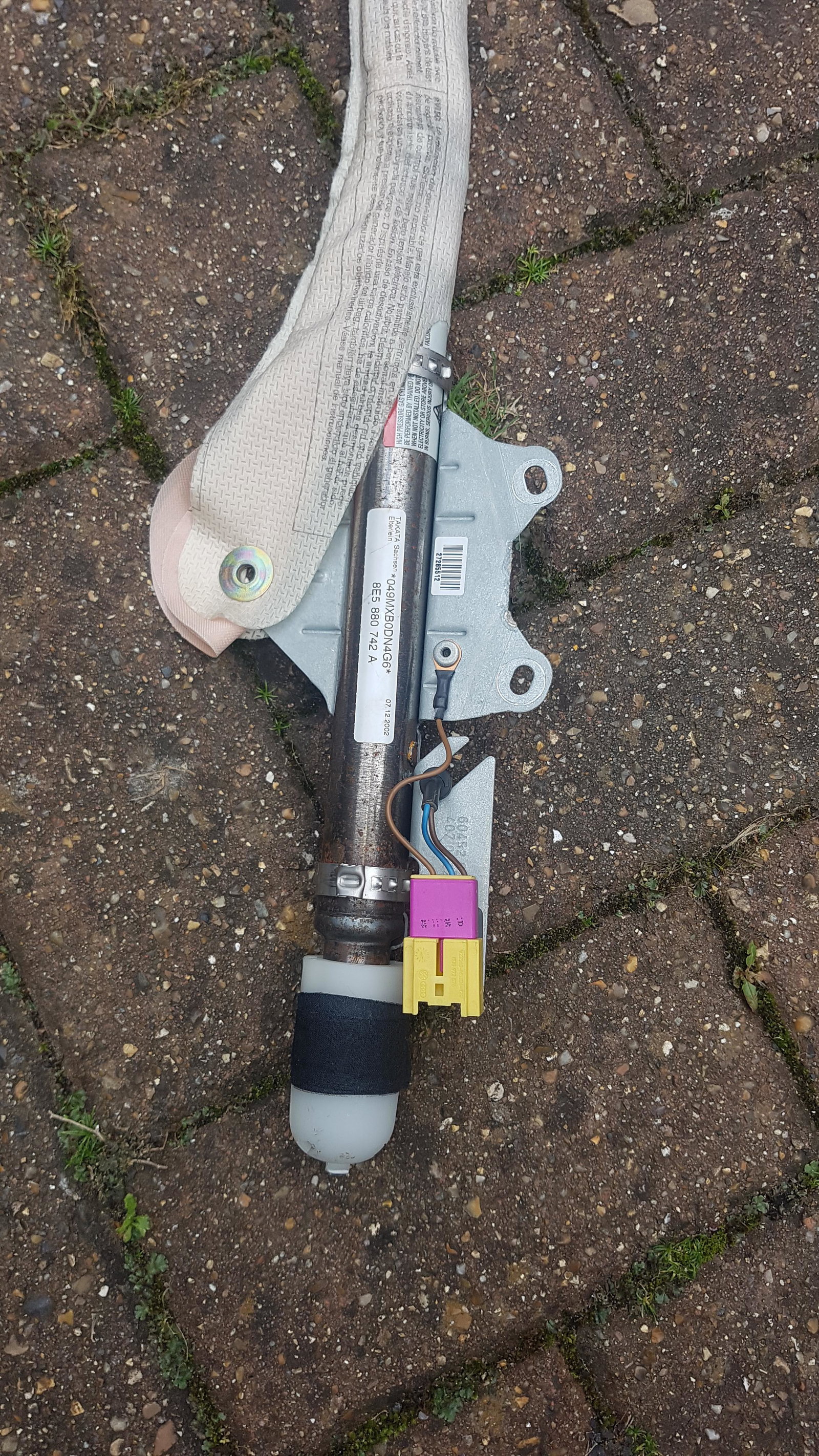

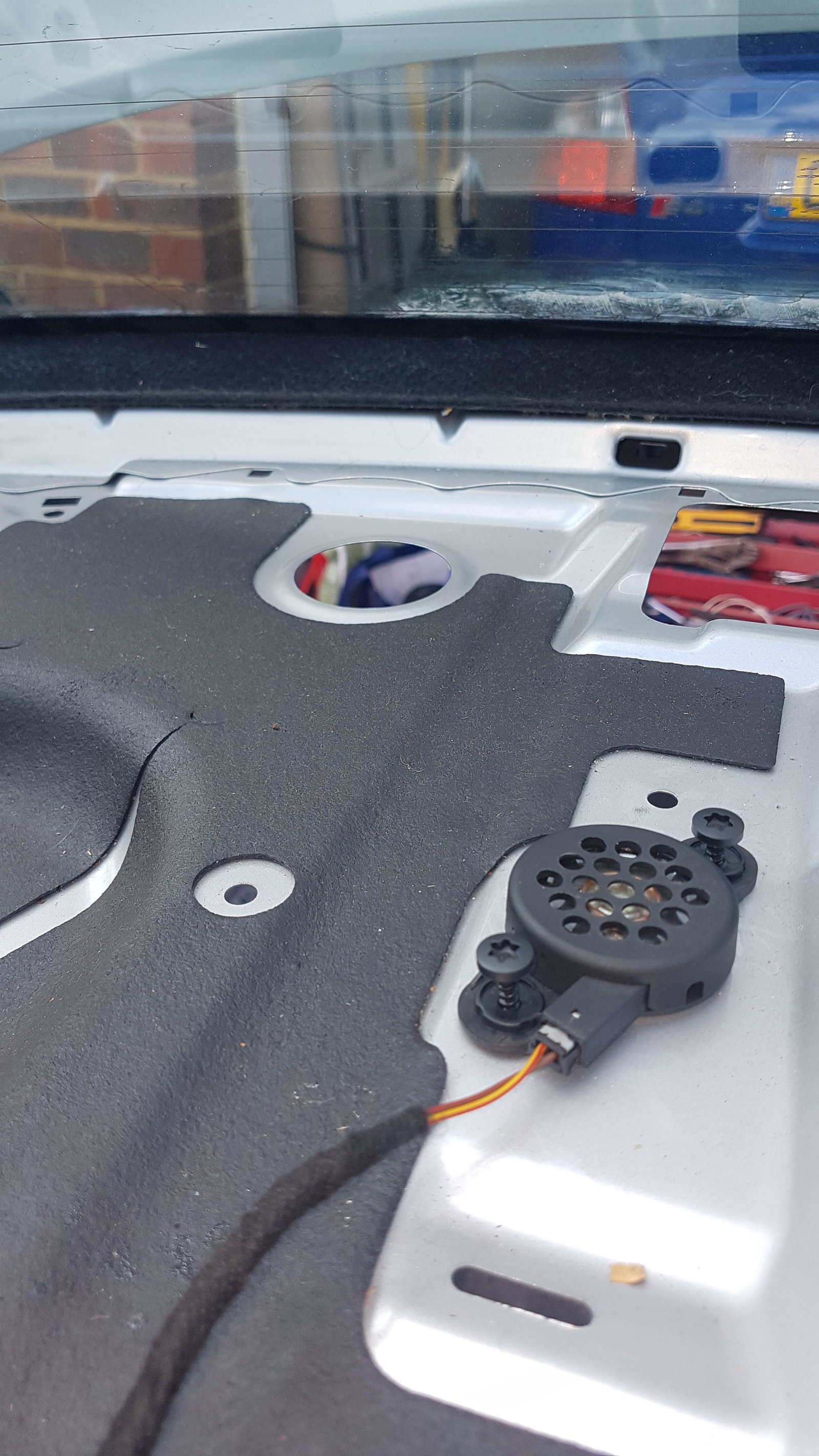

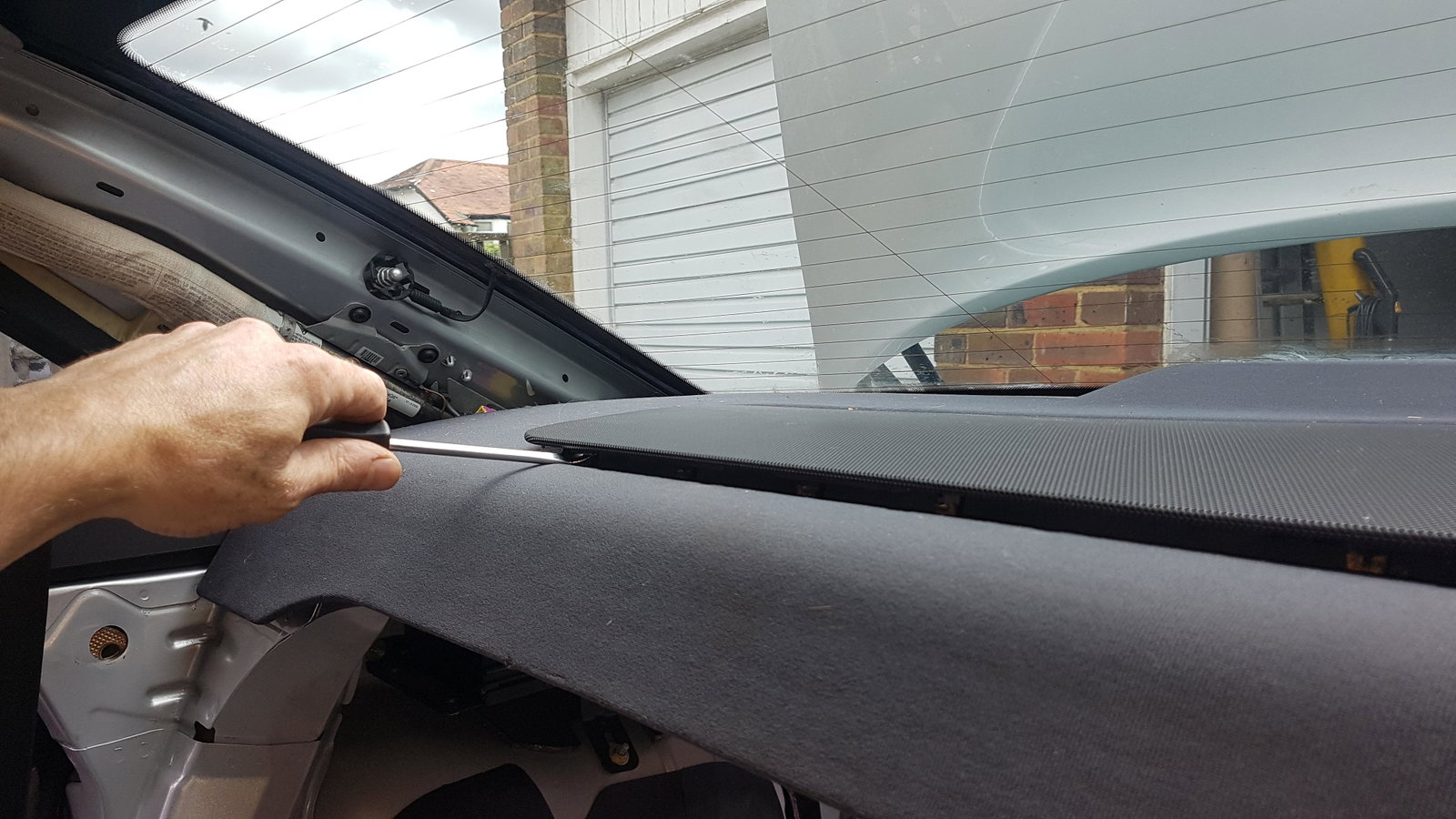

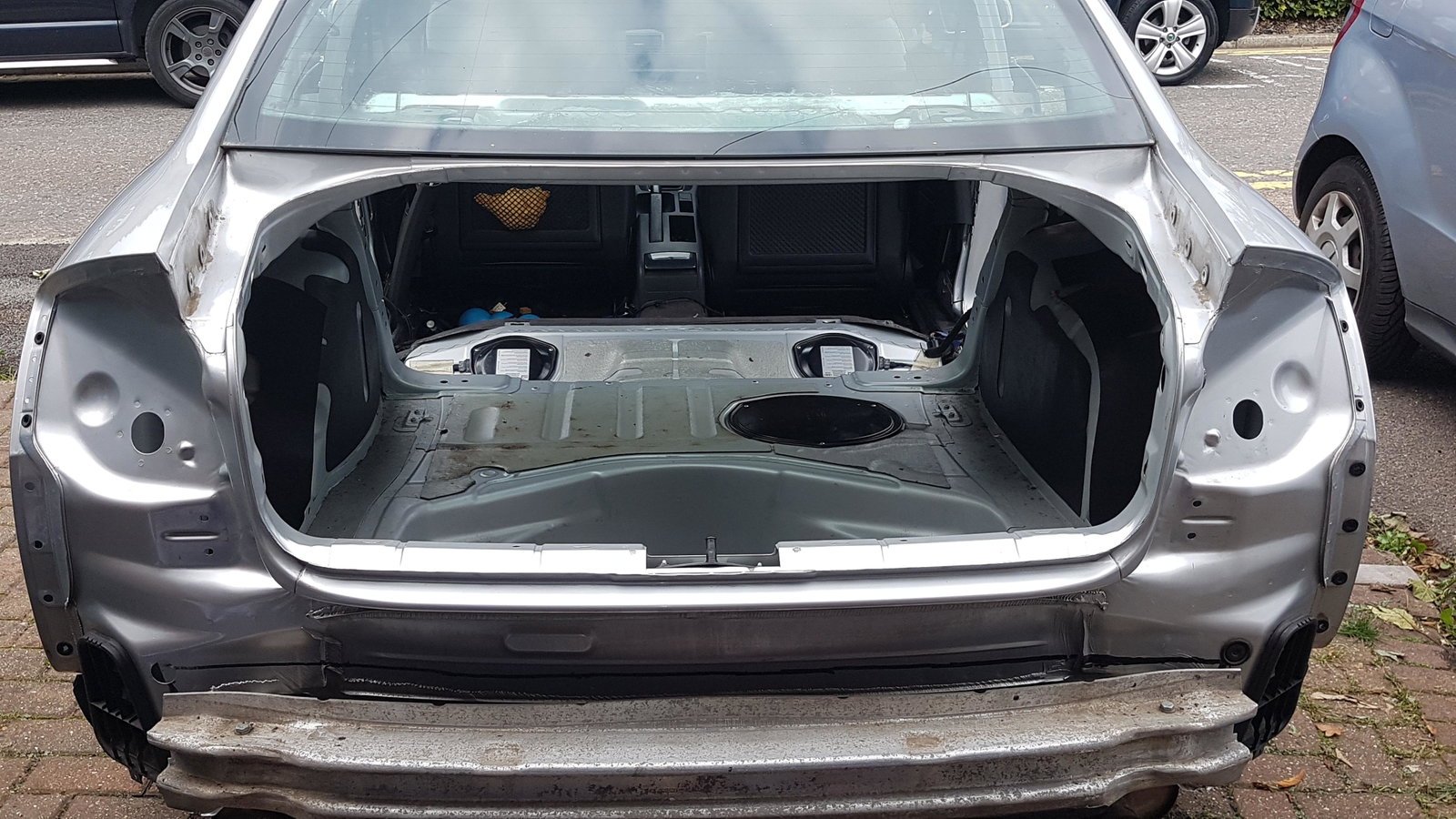

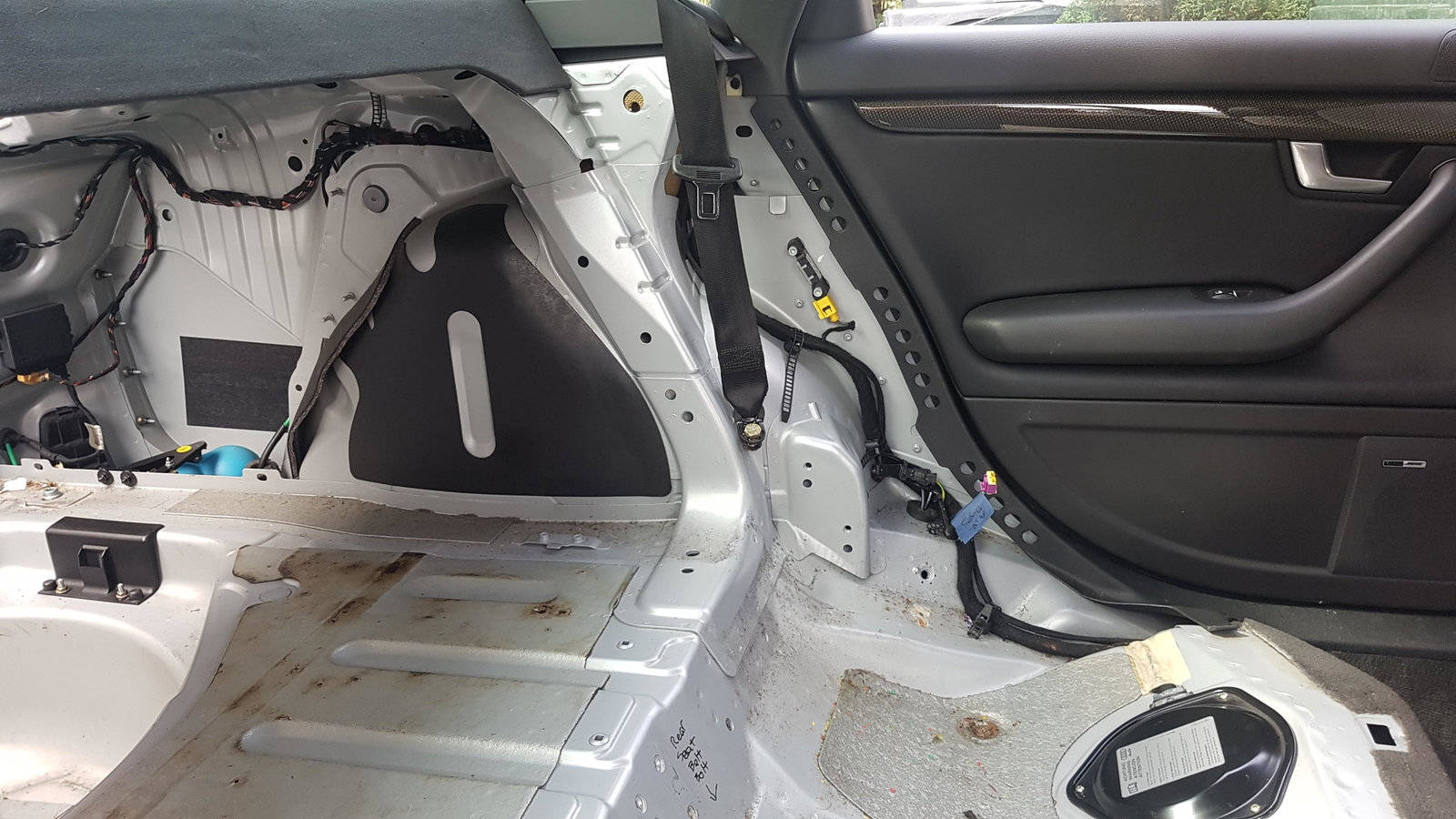

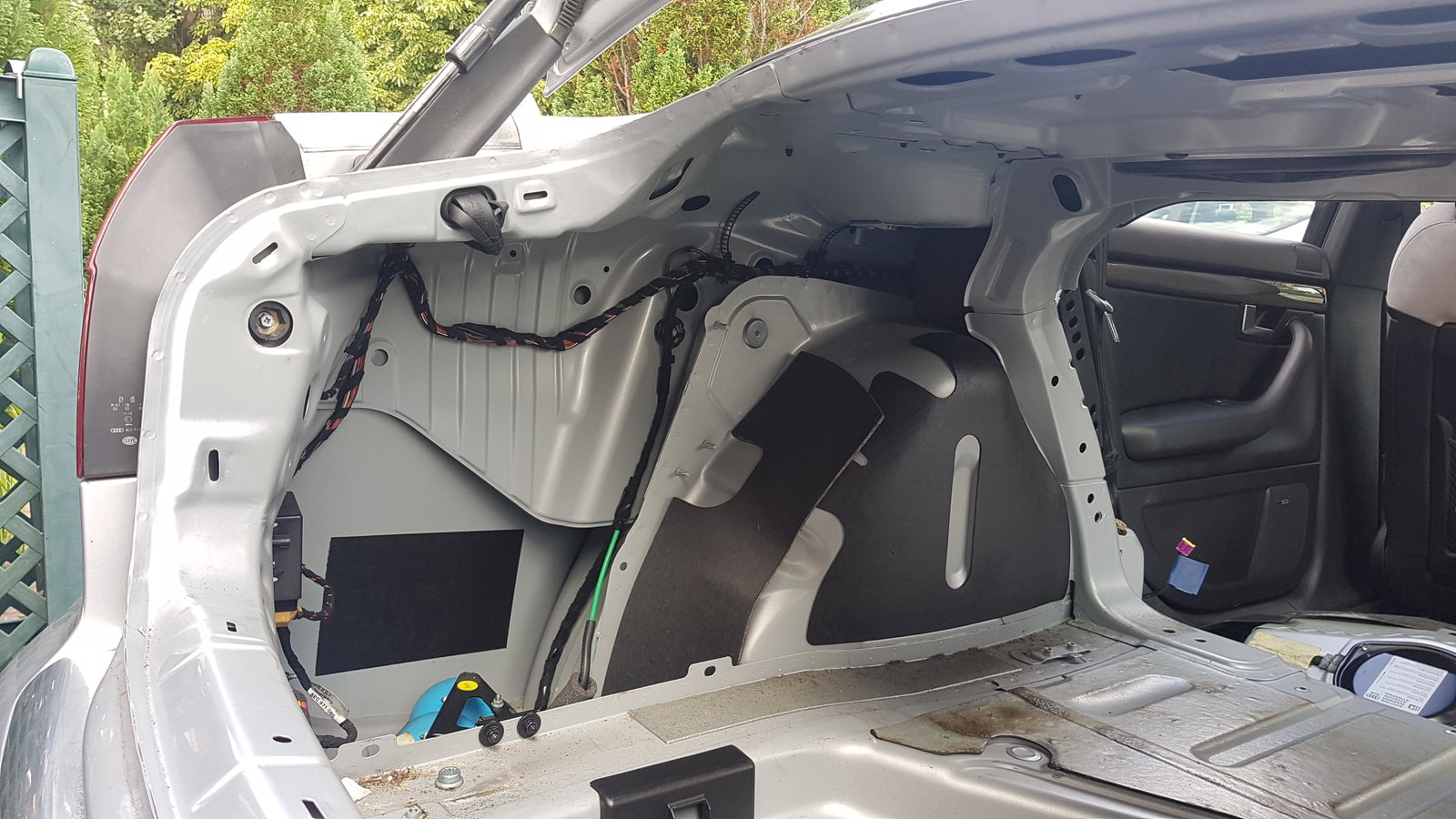

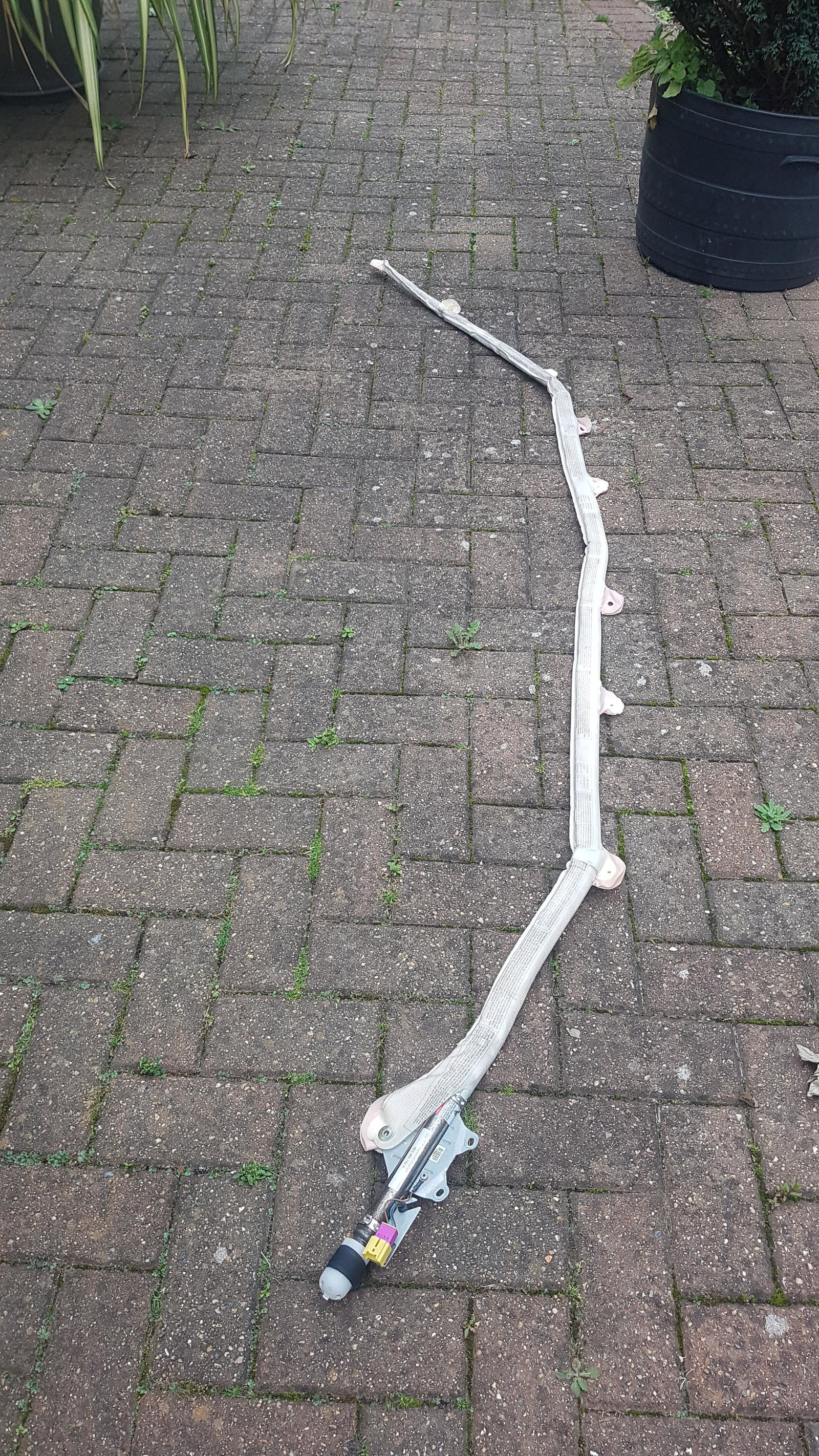

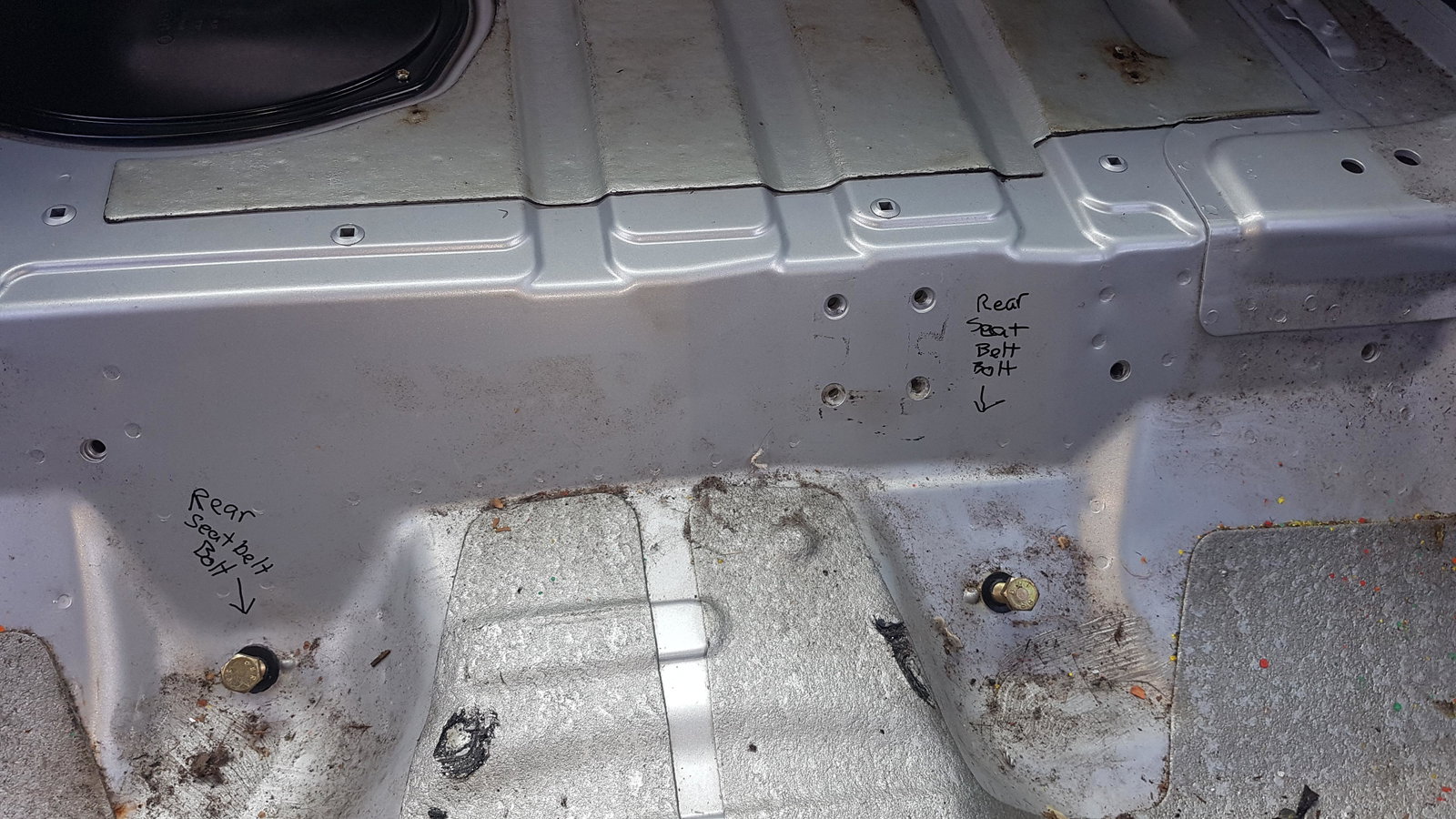

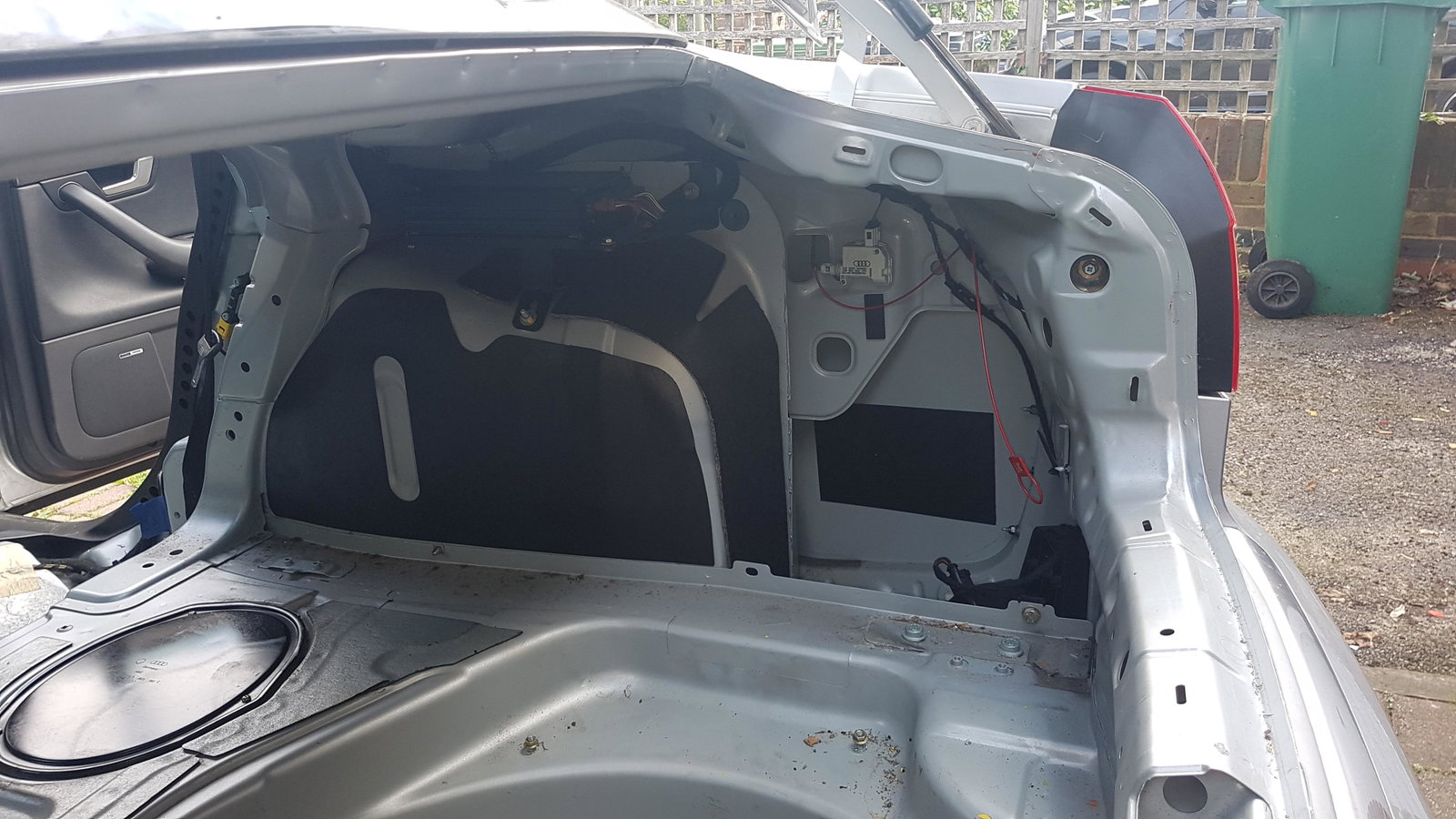

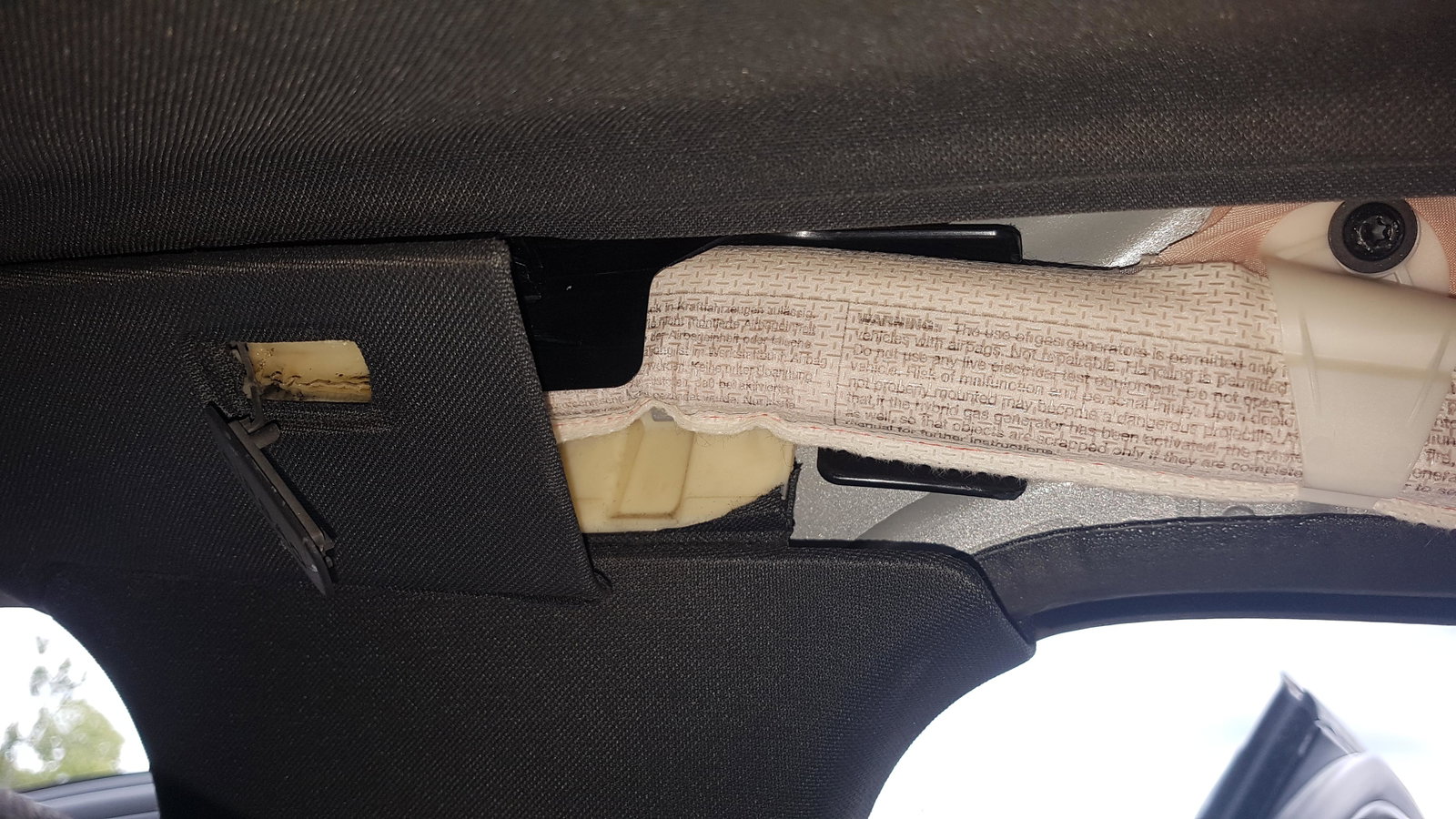

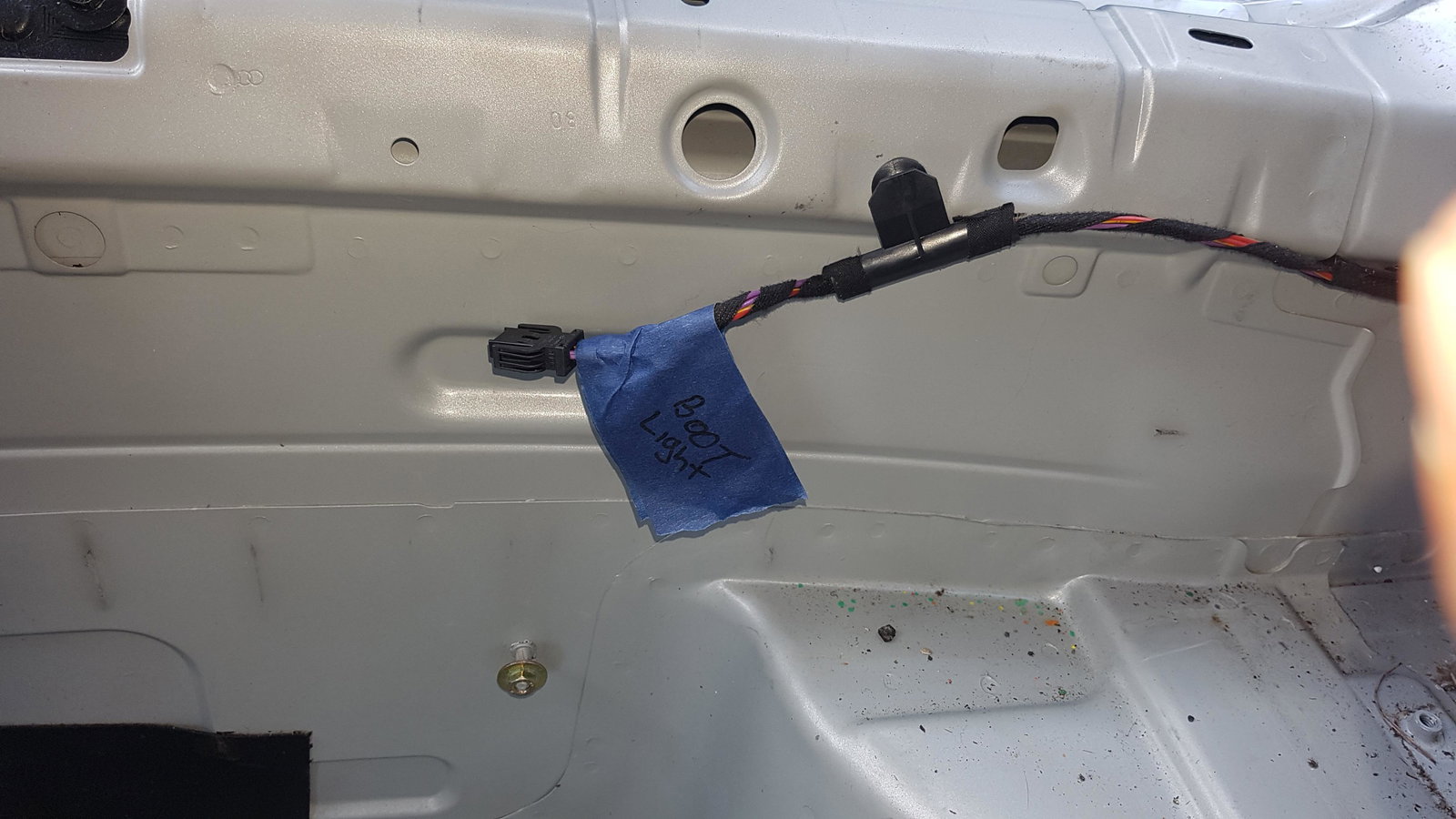

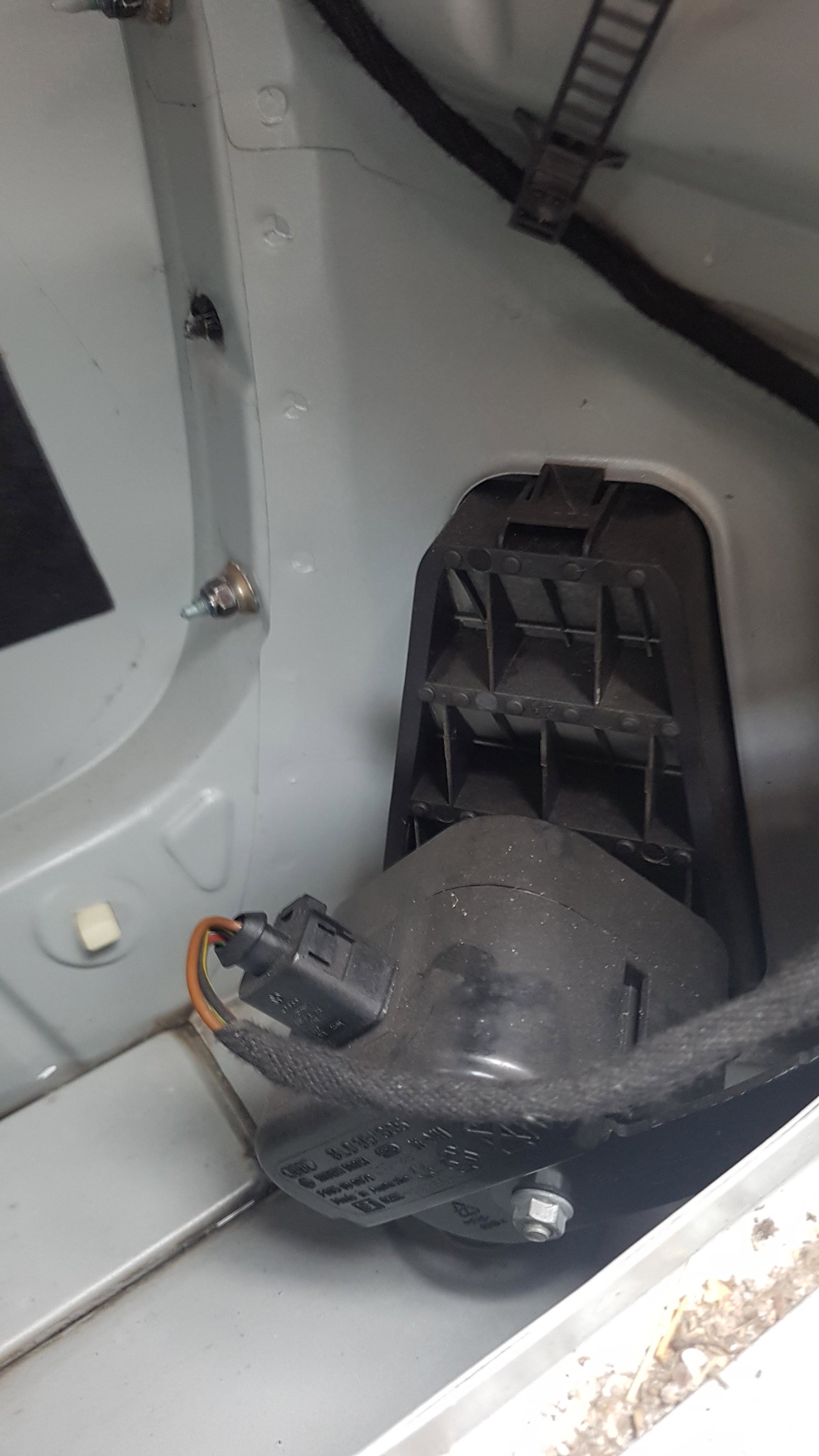

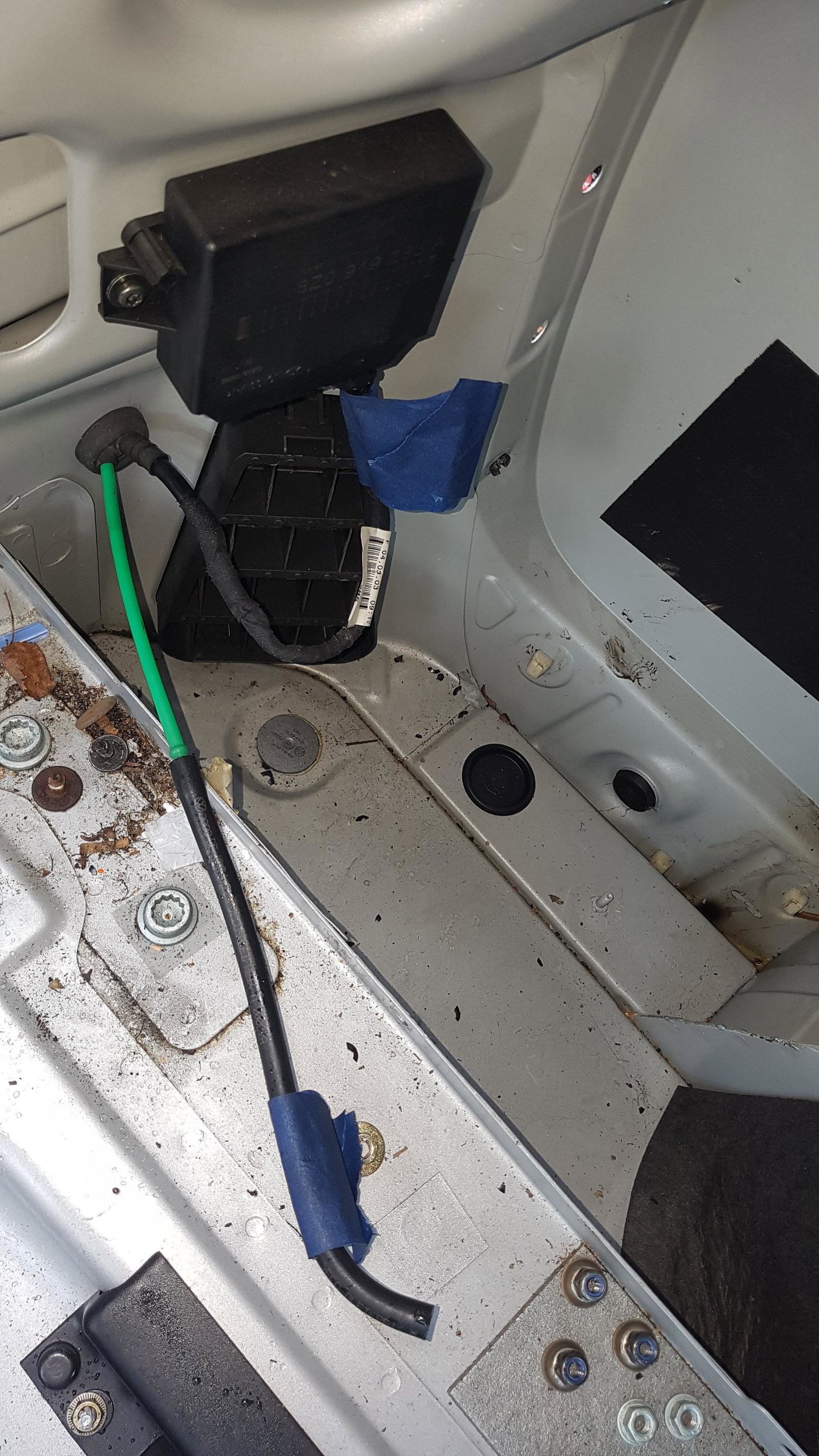

  15. Hi all I am just starting my smyth ute build and thought I would put a build diary up. Car is: 2004 Audi S4 B6 in silver, 90,000 miles, it like all cars this age it needs some loving 🤗. So yesterday I started to strip the rear ready for the cuts, Rear seats out, all rear trim, lights and curtain airbag' s, also labelling all wires and connectors, here is a few pictures.
×
×
