figo_rulz11

Thank you Sid, I appreciate you. I don't suppose you have the PDF/document you could send me for instructions too where it references the pages? I'll have to get error codes read to see where the problem lies with which component but may be difficult as it's intermittent but rather do the research now. Cheers

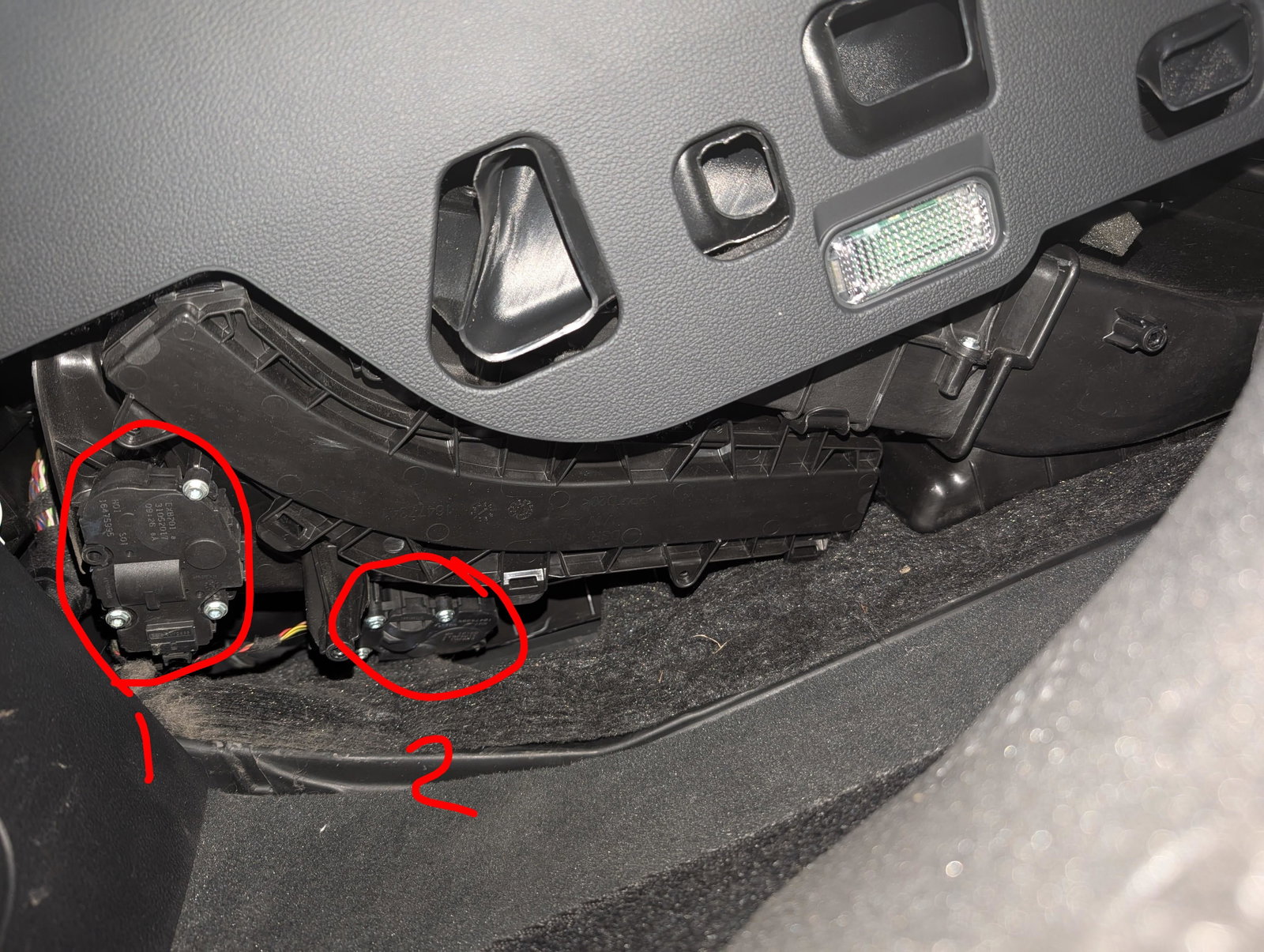

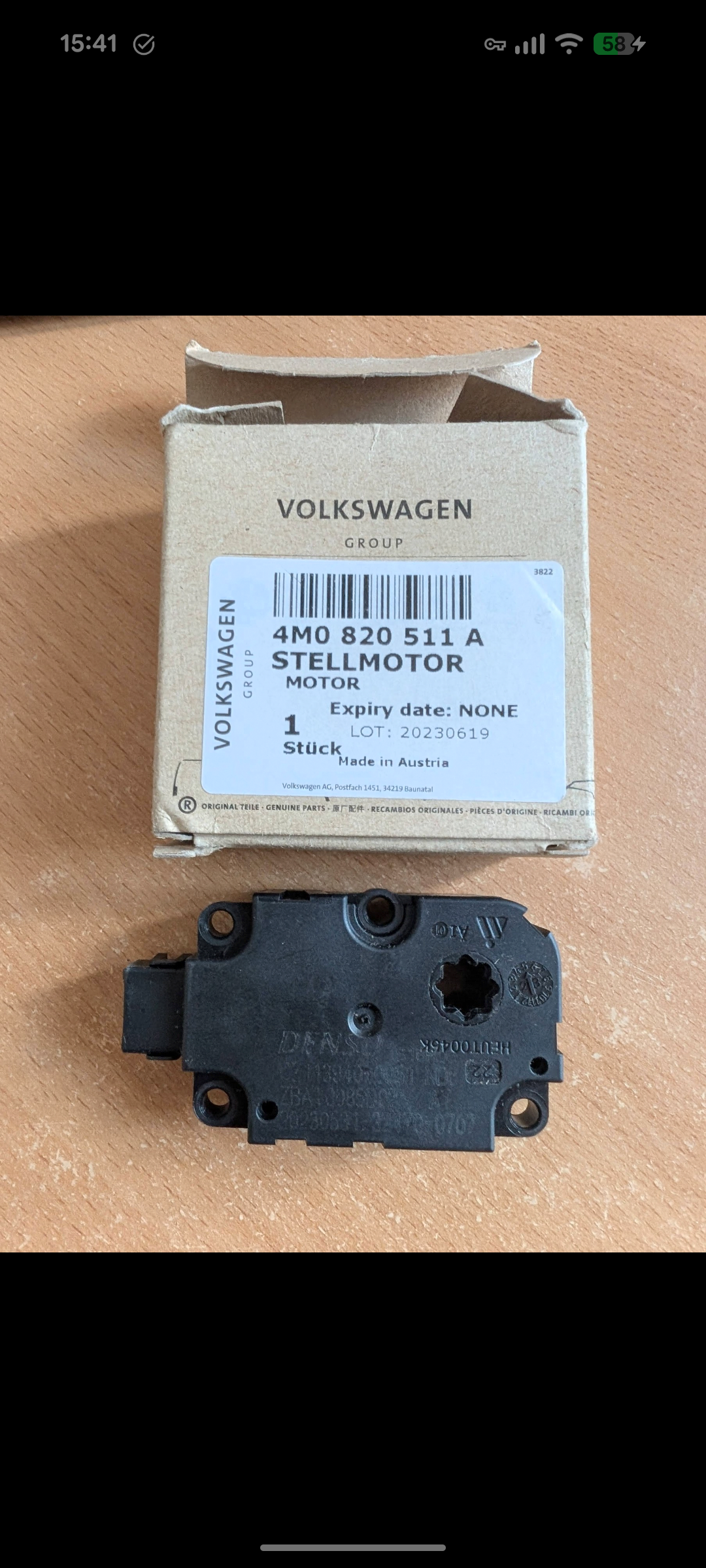

Thanks, heh so I actually replaced my regulator motor for recirculation flap 4m0820511a this summer as it wasn't blowing any air. Costly those actuator motors 😅. Any idea where this air flap motor is located in the car? I'm presuming it'll need programming by someone who has VCDS too? Also would it be the same part number as the recirculation motor too? The only picture I have under the glovebox from when I replaced the recirculation motor(example 1) was this one but I believe (example 2) is the fresh air motor. I couldn't see any others for the passenger side.

Hey guys, I have Audi A4 B9 2017. I have dual climate control on my car and when I say have temperature set to LO, the drivers side gets nice and cold but the passenger side is blowing hot air, regardless if I change the temperature or not. This has happened twice in the past few months now. After turning the car off and leaving it for a while then turning it back on, it seems to work fine again and I get cold air on the passenger side as well but I have a feeling it may get worse. Any ideas what this could be and if it's a easy fix? Cheers

The pictures I posted previously in the thread, I got mine from eBay - seller was audisytner. Note you will need VDCS software though to program it like in the YouTube video.

Not sure if YouTube link works above but this will help, it's literally under the glovebox behind the pollen filter towards left, like three screws and pull the connector and replace. I did that myself and just got the garage to program it like in the YouTube video.

Update: ordered the part £208 and found garage who has VDCS and they programmed the new motor module, just in time for the hot weather! Ice cold AC in all directions 👍🏽

I think the same thing has happened on my Audi A4 b9 2017. It looks easy enough to replace but not sure if it's recirculation or fresh air control motor. I need to find someone with VDCS who can do it for me, don't suppose you're near Northampton way by any chance? Do you know the part number?

I have same problem on my B9 A4 2017. I hear it more in the winter but seems to ease up a little in the summer. Happens during full lock / turning. Car drives fine through, no issues, drives straight. My garage took a look in Jan this year and said everything looks good with the suspension/joints etc no rips or tears etc. He even greased the engine mounts i think but that didn't seem to help much. Haven't experienced any significant issues driving though. Feels safe. I do have my MOT coming up in November I think so will see what MOT tester says as CV joints is something that is checked.

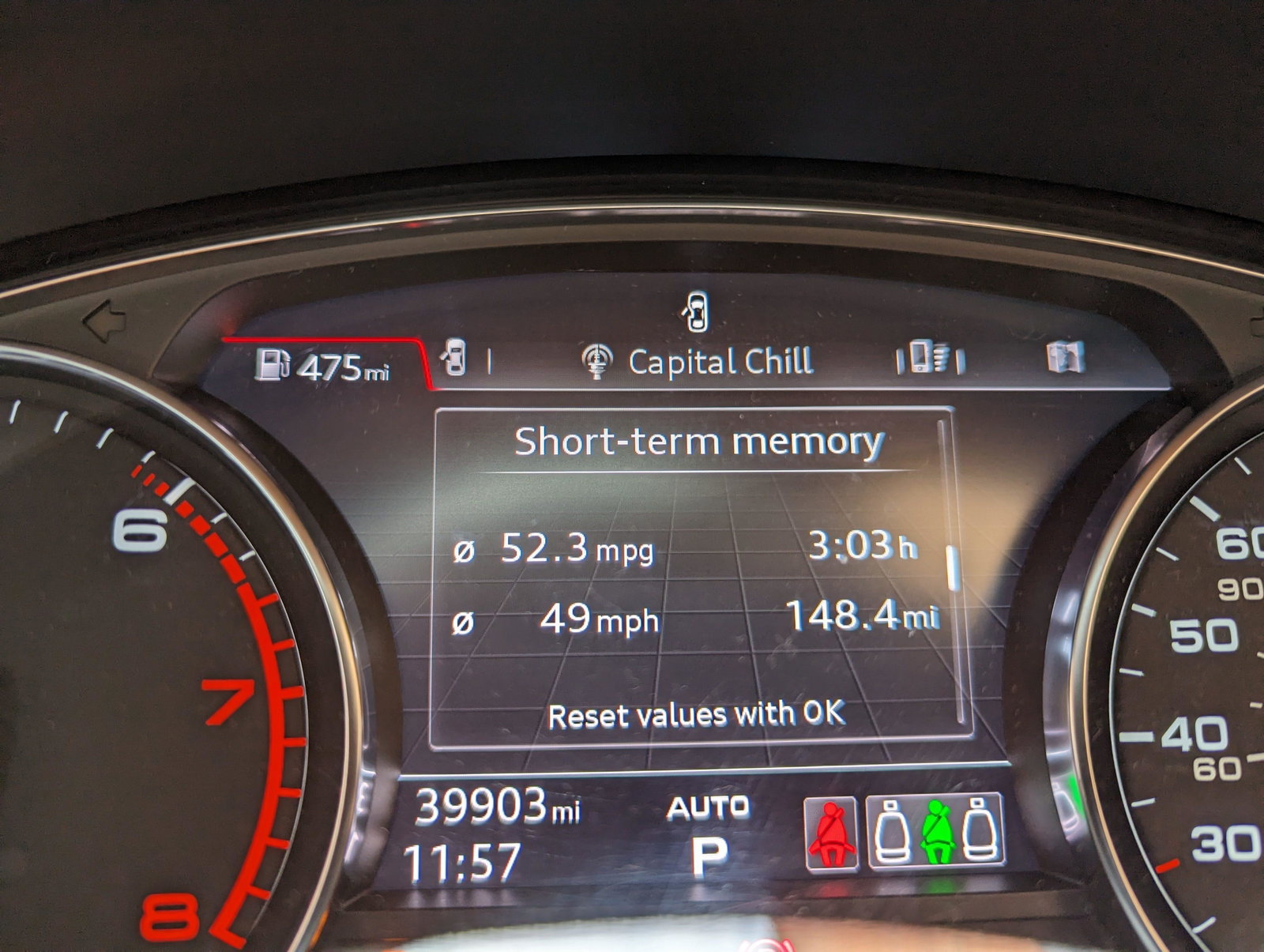

I most do town driving so mileage isn't great 25-30mpg on short journeys. I went to London and back and on a round trip and I managed 50mpg + 😲. I was quite shocked when i checked my short journeys on the trip computer when I got home. It was a mixture of motorway and town driving but didn't expect 50+ mpg from a 190bhp 2.0 engine sitting at 65-70mph on the motorway with AC on auto. Thought I'd share some good news for fellow petrol heads of similar engine. 🙂 Anyone else managed to eek out more then 52.3mpg to b exact from their 2.0T TFSI engine 190bhp?

Got a link to the deal please?

Thought I'd update here, the mechanic has fixed the issue, replaced the quick acting coupling properly, greased the ends, new coolant and bleed too. Didn't have to replace radiator. All sorted no more leak and temp staying at 90c on dash 😊.

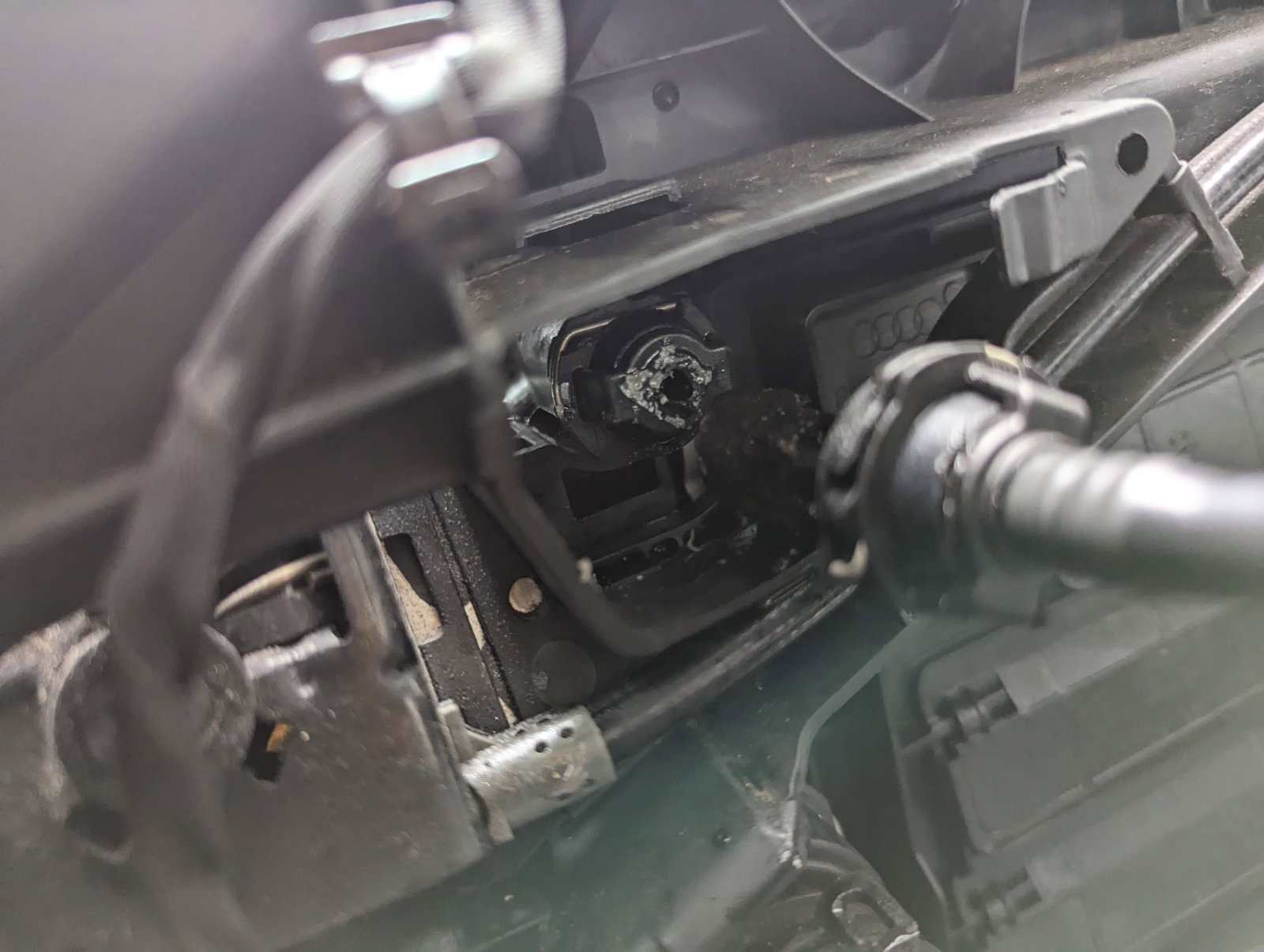

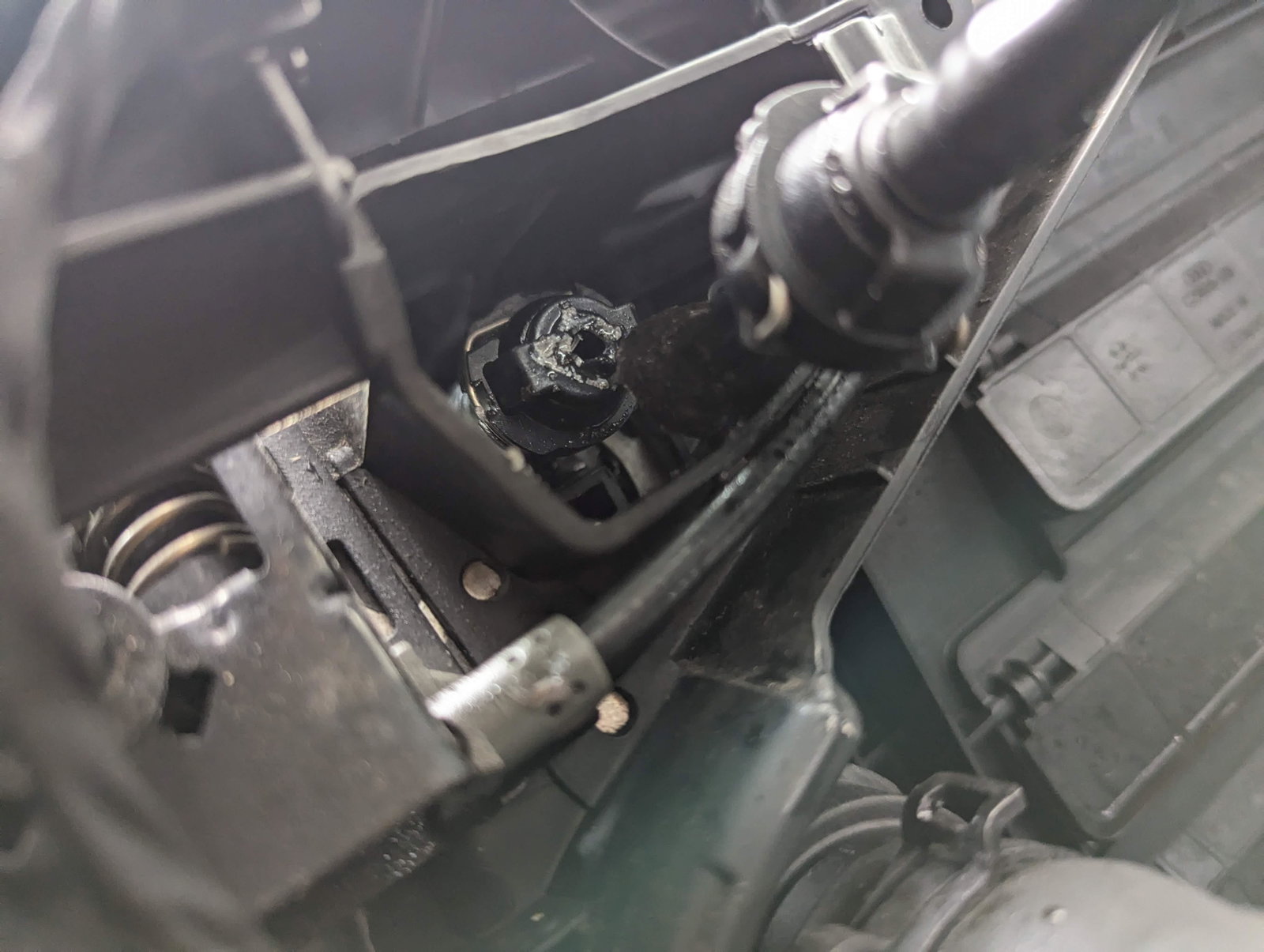

Just to confirm, i took some more picture of the clip from the radiator side and this clip can't be undone and replace right, it still has to be the whole radiator?

Ahhh right okay this makes sense. Thanks for taking a picture as well, I see what you mean. Both sides have clips but one is from the radiator which is the one that's broken and can only be replaced by replacing the radiator itself. 👍🏽 At least I can speak to my garage with some knowledge now. Thank you once again buddy. Let's see what they say next week. 👍🏽

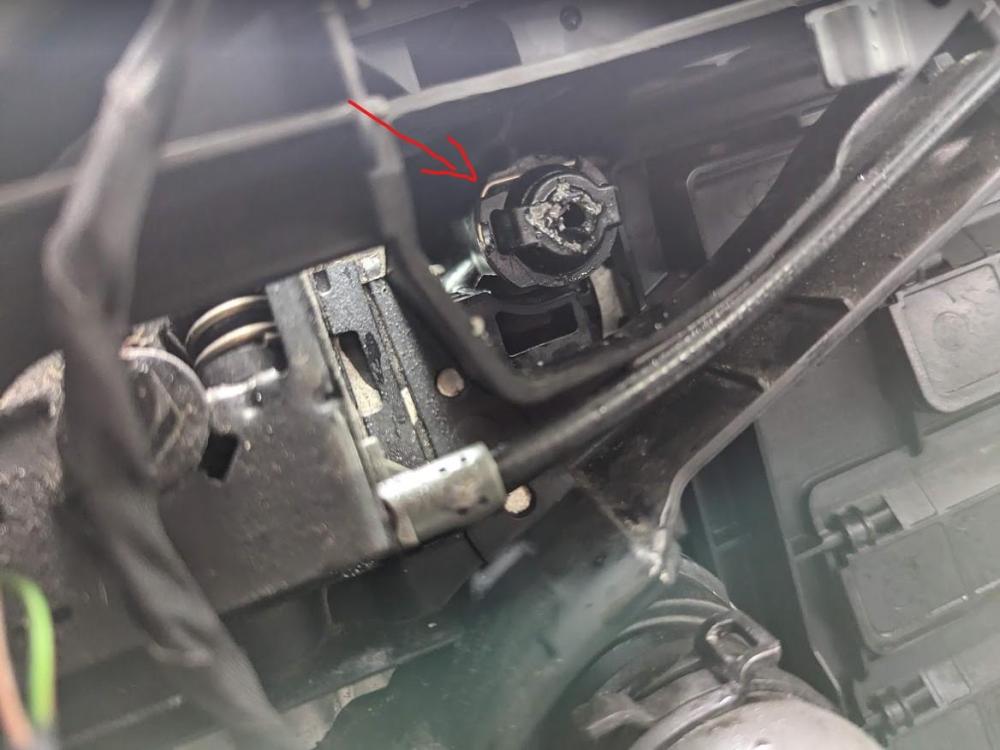

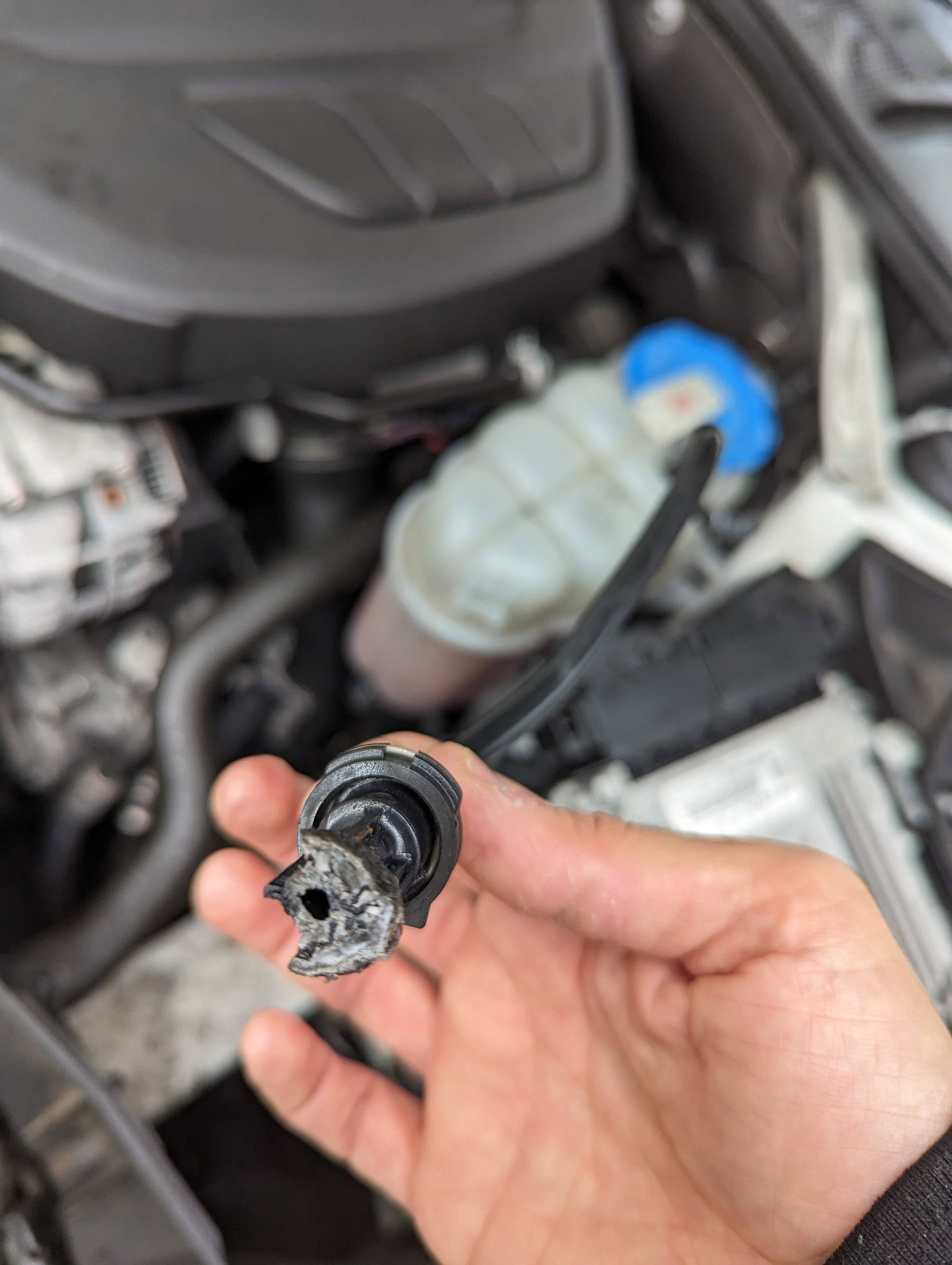

What do you mean outlet clip? Thanks, I'll have to get it towed to the garage as it's not fit for driving with no coolant going to radiator! Really don't understand how it could snap like that ugh. Just to confirm it will be the radiator / clip itself not just the clip that has to be replaced? I'm just asking more for me to understand the issue but will be getting it towed to a garage for them to diagnose the issue.

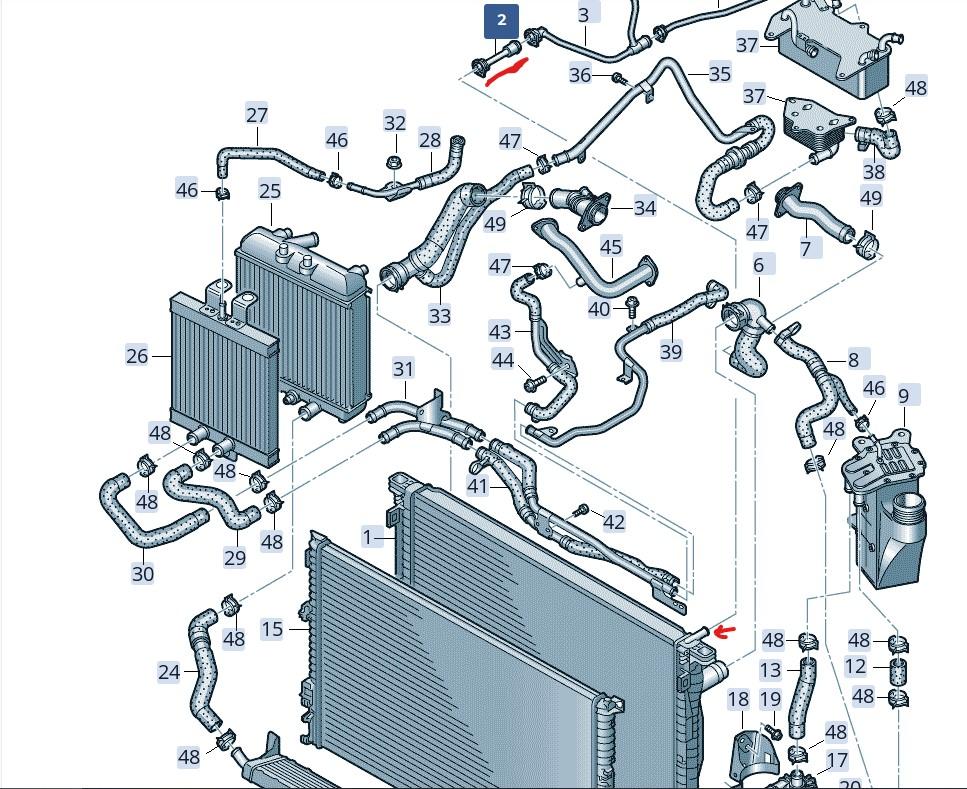

You don't think i could just get the part itself replaced? Managed to find this online Part - 8W0122293DL Quick acting coupling
