aakayamy79 Posted February 20, 2022 Share Posted February 20, 2022 (edited) Hi everyone. Need some help. recently i had AD-BLUE delete and stage 1 remap done which was few days ago as had issues with ad-blue sensor and tank so A4audi in glasgow recommended the ad-blue delete and remap. Everything was fine till past two days i got the Dpf filter light and limp mode isssues. I have scanned via my rosstech hex-v2 cable and get the following errors. VIN: License Plate: OW16 Mileage: 70244km-43647mi Repair Order: -------------------------------------------------------------------------------- -------------------------------------------------------------------------------- Chassis Type: F4-AU49 (4M1) Scan: 01 03 08 09 15 16 17 19 29 2B 39 42 44 46 47 52 5F 82 A5 AC BB BC D6 D7 VIN: Mileage: 70244km-43647miles 01-Engine -- Status: Malfunction 0010 03-ABS Brakes -- Status: OK 0000 08-Auto HVAC -- Status: OK 0000 09-Cent. Elect. -- Status: OK 0000 15-Airbags -- Status: OK 0000 16-Steering wheel -- Status: OK 0000 17-Instruments -- Status: OK 0000 19-CAN Gateway -- Status: OK 0000 29-Left Light -- Status: OK 0000 2B-Steer. Col. Lock -- Status: OK 0000 39-Right Light -- Status: OK 0000 42-Door Elect, Driver -- Status: OK 0000 44-Steering Assist -- Status: OK 0000 46-Central Conv. -- Status: Malfunction 0010 47-Sound System -- Status: OK 0000 52-Door Elect, Pass. -- Status: OK 0000 5F-Information Electr. -- Status: OK 0000 82-Head Up Display -- Status: OK 0000 A5-Frt Sens. Drv. Assist -- Status: OK 0000 AC-Reductant Control -- Status: Malfunction 0010 BB-Door Rear Drv -- Status: OK 0000 BC-Door Rear Pass -- Status: OK 0000 D6-Light Ctrl Left 2 -- Status: OK 0000 D7-Light Ctrl Right 2 -- Status: OK 0000 ------------------------------------------------------------------------------- Address 01: Engine (J623-DETA) Labels:. 04L-907-309-V1.clb Part No SW: 04L 906 026 AC HW: 04L 907 309 L Component: R4 2.0l TDI H34 3395 Revision: B1H34--- CVN: 8830F3874F8B6DFB31AEE350 Coding: 0A194032232405083408 Shop #: WSC 65535 000 00000 ASAM Dataset: EV_ECM20TDI01104L906026AC 004004 ROD: EV_ECM20TDI01104L906026AC_004.rod VCID: 6B823BC283066F13623-803E VINID: 9D196AAAA58409844004404214CC410309 2 Faults Found: 31254 - Particle Filter P2463 00 [175] - Excessive Soot Accumulation MIL ON - Confirmed - Tested Since Memory Clear Freeze Frame: Fault Status: 00000001 Fault Priority: 2 Fault Frequency: 1 Mileage: 70178 km Date: 2022.02.19 Time: 21:31:13 Engine RPM: 3232.50 /min Normed load value: 55.7 % Vehicle speed: 88 km/h Coolant temperature: 89 °C Intake air temperature: 81 °C Ambient air pressure: 990 mbar Voltage terminal 30: 12.760 V Unlearning counter according OBD: 40 Counter for regeneration time of particulate filter: 23095.7 s Particle filter: kilometers since last regeneration: 348.3 km Particle filter: soot mass measured: 6.49 g Particle filter: soot mass calculated: 40.00 g Particl.filt.: differential pressur.sensor 1 bank 1: dyn.offset: 0 hPa Particle filter field regeneration: cancel conditions-Bits 0-7: 0 Particle filter field regeneration: cancel conditions-Bits 0-7: 0 31255 - Diesel Particulate Filter P2458 00 [175] - Regeneration Duration MIL ON - Confirmed - Tested Since Memory Clear Freeze Frame: Fault Status: 00000001 Fault Priority: 2 Fault Frequency: 1 Mileage: 70125 km Date: 2022.02.19 Time: 20:40:56 Engine RPM: 860.00 /min Normed load value: 22.4 % Vehicle speed: 0 km/h Coolant temperature: 76 °C Intake air temperature: 38 °C Ambient air pressure: 990 mbar Voltage terminal 30: 14.940 V Unlearning counter according OBD: 40 Counter for regeneration time of particulate filter: 20448.6 s Particle filter: kilometers since last regeneration: 295.5 km Particle filter: soot mass measured: 5.13 g Particle filter: soot mass calculated: 37.76 g Particl.filt.: differential pressur.sensor 1 bank 1: dyn.offset: 0 hPa Particle filter field regeneration: cancel conditions-Bits 0-7: 0 Particle filter field regeneration: cancel conditions-Bits 0-7: 99 Readiness: 1 2 0 0 1 ------------------------------------------------------------------------------- Address 03: ABS Brakes (J104) Labels: 8W0-907-379-PLU-V1.clb Part No SW: 8W0 907 379 E HW: 8W0 907 379 J Component: ESP9 Plus H06 0593 CVN: B0FDBA67 Coding: 0CAA489908A30A9A159F489300825292E6C19630121050A812004A49678369 Shop #: WSC 06324 790 00001 ASAM Dataset: EV_ESP9BOSCHAU49X 012014 ROD: EV_ESP9BOSCHAU49X_012.rod VCID: 47CAA772FF2E6B7326B-8012 No fault code found. ------------------------------------------------------------------------------- Address 08: Auto HVAC (E87) Labels:* Redir Fail! Part No SW: 8W0 820 043 F HW: 8W0 820 043 F Component: Klima Zone 3 H32 0071 Coding: 141800295544450D02000100880000000000000000000000000000000000 Shop #: WSC 06325 790 00001 ASAM Dataset: EV_AirCondiBHTCAU491 001013 ROD: EV_AirCondiBHTCAU491.rod VCID: 3634DAB688C4E2FB4DD-8062 Fresh air blower control module (front): Subsystem 1 - Part No SW: 4M2 820 021 HW: 4M2 820 021 Component: J216 FLuftV H05 0001 Serial number: 00000000000000887516 Humidity sensor: exterior: Subsystem 2 - Part No SW: 4H0 907 658 A HW: 4H0 907 658 A Component: AQ_Hum_Sensor H01 0003 Serial number: 7F68CC28000000000001 Rear A/C control head: Subsystem 3 - Part No SW: 8W0 919 158 HW: 8W0 919 158 Component: E265 Kli Fond H40 0080 No fault code found. ------------------------------------------------------------------------------- Address 09: Cent. Elect. (J519) Labels:* Redir Fail! Part No SW: 8W0 907 063 BF HW: 8W0 907 063 BF Component: BCM1 MLBevo H13 0248 Coding: 07501143E11800CD014487151B0C00B9110B3108000000000000000020001A810A450122025601 Shop #: WSC 06325 790 00001 ASAM Dataset: EV_BCM1BOSCHAU736 016006 ROD: EV_BCM1BOSCHAU736_016.rod VCID: 00587C6E9A809C4BA71-8054 Wiper motor control module: Subsystem 1 - Part No SW: 8W2 955 119 HW: 8V2 955 119 A Labels: 1KX-955-119.CLB Component: WWS491 160312 043 0813 Serial number: 894253?0301607202303 Coding: 5BC7F7 Rain/Light Recognition Sensor: Subsystem 2 - Part No SW: 81A 955 555 HW: 81A 955 555 Component: G397_RLFSS H06 0001 Serial number: 20018931X81A95555500 Coding: 02005D Light switch: Subsystem 3 - Part No SW: 4M0 941 531 AB HW: 4M0 941 531 AB Component: E1 - LDS H06 0008 Serial number: 04 03 2016 00274925 Automatic dimming interior mirror: Subsystem 4 - Part No SW: 8W0 857 511 HW: 8W0 857 511 Component: Y7_Innenspieg H09 0002 Serial number: GX1CE107041611520368 Coding: 230000 Interior Light Module: Subsystem 5 - Part No SW: 8W0 947 135 D HW: 8W0 947 135 Component: J528-Dachele H13 0082 Serial number: B10152417 Control head for driving and comfort functions: Subsystem 6 - Part No SW: 8W0 925 301 BC HW: 8W0 925 301 BC Component: SL-B9/Q5NF H16 0010 Serial number: 2616000026036001 Coding: 000000 No fault code found. ------------------------------------------------------------------------------- Address 15: Airbags (J234) Labels:| 8W0-959-655.clb Part No SW: 8W0 959 655 HW: 8W0 959 655 Component: Airbag10.44 H72 0086 Serial number: 003M60045RN4 Coding: AACCF0C00C800000585400F3C08C00000000 Shop #: WSC 06325 790 00001 ASAM Dataset: EV_AirbaAU10BPAAU736 005012 ROD: EV_AirbaAU10BPAAU736_005_AU49.rod VCID: 06546A76B8A4B27B9DD-8052 Crash sensor for side airbag: driver side: Subsystem 1 - Part No SW: ----------- HW: 442 061 205 16 Component: SideSensor_Df 1E2 0887 Serial number: 3577Y009B1F4FCB2F13Q Coding: 2D2D2D Front Passenger's Side Airbag Crash Sensor: Subsystem 2 - Part No SW: ----------- HW: 442 061 105 16 Component: SideSensor_Pf 1E2 0887 Serial number: 3587Y009D1DE13F14237 Coding: 2D2D2D Rear Side Airbag Crash Sensor (on driver's side): Subsystem 3 - Part No SW: ----------- HW: 442 0B2 904 16 Component: SideSensor_Dr 1C7 0148 Serial number: 35177009F205BA55F15K Coding: 2D2D2D Passenger side rear thorax airbag crash sensor: Subsystem 4 - Part No SW: ----------- HW: 442 0B2 604 16 Component: SideSensor_Pr 1C7 0148 Serial number: 352770016293A82595FD Coding: 2D2D2D Crash sensor for front airbag: driver side: Subsystem 5 - Part No SW: ----------- HW: 442 0C0 405 16 Component: FrontSensor_D 1C5 014A Serial number: 3557500B120BEED1610D Coding: 2D2D2D Crash sensor for front airbag: front passenger side: Subsystem 6 - Part No SW: ----------- HW: 442 0C0 405 16 Component: FrontSensor_P 1C5 014A Serial number: 3567500B120BEED511ER Coding: 2D2D2D Center pedestrian protection crash sensor: Subsystem 7 - Part No SW: ----------- HW: 442 0C0 405 16 Component: PedP_Sensor_C 1C5 014A Serial number: 2307500AD20DD1E223DH Coding: 2D2D2D Driver's side crash data pedestrian protection 2: Subsystem 8 - Part No SW: ----------- HW: 442 430 905 16 Component: PedPSensor_D2 256 0887 Serial number: I0M9M00BB1F6314283CJ Coding: 2D2D2D Passenger's side crash data pedestrian protection 2: Subsystem 9 - Part No SW: ----------- HW: 442 430 905 16 Component: PedPSensor_P2 256 0887 Serial number: I0N9M00BB1F63140E23E Coding: 2D2D2D No fault code found. ------------------------------------------------------------------------------- Address 16: Steering wheel (J527) Labels: 4M0-907-129.clb Part No SW: 4M0 907 129 HA HW: 4M0 907 129 HA Component: Lenks.Modul H11 0009 ASAM Dataset: EV_SMLSKLOAU736 006008 ROD: EV_SMLSKLOAU736_006.rod VCID: 76B41AB6C844A2FB8DD-8022 No fault code found. ------------------------------------------------------------------------------- Address 17: Instruments (J285) Labels:* Redir Fail!-SRI2 Part No SW: 8W5 920 941 A HW: 8W5 920 941 A Component: MMA4M17DIEUK H06 0363 Revision: 0339v7 Serial number: PY5FGDN5S Coding: 24A4509028800600012069601000000000000000 Shop #: WSC 06325 790 00001 ASAM Dataset: EV_DashBoardAU736 001022 ROD: EV_DashBoardAU736_AU49.rod VCID: 3E24C296A0F42ABB95D-806A No fault code found. ------------------------------------------------------------------------------- Address 19: CAN Gateway (J533) Labels:* None Part No SW: 4M1 907 468 C HW: 4M1 907 468 A Component: Gateway H15 0097 Revision: 4R030001 Serial number: 0144R02A416514 Coding: 0301000100008E40410700000059001248080007000000000100000000000000 Shop #: WSC 06325 790 00001 GVL: 01503C0800040200408C00000000480000080000000000000000000000000000 ASAM Dataset: EV_GatewCONTIAU736 002060 ROD: EV_GatewCONTIAU736_002_AU49.rod VCID: 372AD7B28FCE1BF356B-8062 Multifunction steering wheel control module: Subsystem 1 - Part No SW: 8W0 951 523 C HW: 8W0 951 523 C Component: J453 MFL H02 0002 Serial number: 20160520095843 01307 Battery Monitoring Control Module: Subsystem 2 - Part No SW: 8S0 915 181 C HW: 8S0 915 181 C Component: J367-BDMHella H10 9070 Serial number: 0988090404 No fault code found. ------------------------------------------------------------------------------- Address 29: Left Light (J1018) Labels: 4M0-907-397.clb Part No SW: 4M0 907 397 AC HW: 4M0 907 397 C Component: LCM_MLBevoH05 0023 ASAM Dataset: EV_LCMLeftHELLAAU736 001012 ROD: EV_LCMLeftHELLAAU736_VW48.rod VCID: 78A8148EC250D48B9F1-802C No fault code found. ------------------------------------------------------------------------------- Address 2B: Steer. Col. Lock (J764) Labels:* 5Q0-905-861.clb Part No SW: 3Q0 905 861 A HW: 3Q0 905 861 A Component: ELV-MLBevo H05 0032 Serial number: 16000075784010 Coding: 0000000000000000 Shop #: WSC 00000 000 00000 ASAM Dataset: EV_ELVMarquMQBB 001007 ROD: EV_ELVMarquMQBB.rod VCID: 323CE6A664ACFEDB615-8066 No fault code found. ------------------------------------------------------------------------------- Address 39: Right Light (J1023) Labels: 4M0-907-397.clb Part No SW: 4M0 907 397 AC HW: 4M0 907 397 C Component: LCM_MLBevoH05 0023 ASAM Dataset: EV_LCMRightHELLAAU736 001012 ROD: EV_LCMLeftHELLAAU736_VW48.rod VCID: 78A8148EC250D48B9F1-802C No fault code found. ------------------------------------------------------------------------------- Address 42: Door Elect, Driver (J386) Labels:* None Part No SW: 8W0 959 593 G HW: 8W0 959 593 Component: TSG FS 005 0052 Serial number: 0000200702182 Coding: 005F9A214001000000001082 Shop #: WSC 06325 790 00001 ASAM Dataset: EV_DCU2DriveSideMAXHCONT 001005 ROD: EV_DCU2DriveSideMAXHCONT_AU37.rod VCID: 4EC492561054BA3B65D-801A No fault code found. ------------------------------------------------------------------------------- Address 44: Steering Assist (J500) Labels:* None Part No SW: 8W0 909 144 F HW: 8W0 909 144 B Component: EPS_MLBEVO_ZF H08 0407 Coding: 09000380008000 Shop #: WSC 06324 790 00001 ASAM Dataset: EV_EPSZFAU49X 002015 ROD: EV_EPSZFAU49X_002.rod VCID: 40D8BC6EDA005C4BE71-8014 No fault code found. ------------------------------------------------------------------------------- Address 46: Central Conv. (J393) Labels:* None Part No SW: 8W0 907 064 BC HW: 8W0 907 064 C Component: BCM2 MLBevo 018 0327 Coding: 012D00006F100000630180000E00000031024010004302500F0400000104803F001F0001000000 Shop #: WSC 06325 790 00001 ASAM Dataset: EV_BCM2HellaAU736 011012 ROD: EV_BCM2HellaAU736_011_AU49.rod VCID: 7EA40296E074EABBD5D-802A Anti-theft alarm system sensor: Subsystem 1 - Part No SW: 5Q0 951 177 HW: 5Q0 951 172 Component: Sensor, DWA 005 0316 Serial number: 000000000ZY161160WHQ Alarm horn: Subsystem 2 - Part No SW: 5Q0 951 605 A HW: 5Q0 951 605 A Component: Sirene, DWA 005 0313 Serial number: 00000000000035504126 Rear lid opener control module: Subsystem 3 - Part No SW: 3AA 962 243 G HW: 3AA 962 243 G Component: GEB.F.Heckoef H16 0903 Serial number: 84389598 1 Fault Found: 131115 - Touch Sensor on Exterior Door Grip; Rear Right B116E 13 [009] - Open Circuit Confirmed - Tested Since Memory Clear Freeze Frame: Fault Status: 00000001 Fault Priority: 5 Fault Frequency: 1 Reset counter: 203 Mileage: 70104 km Date: 2022.02.18 Time: 18:23:22 Supply voltages-Terminal 30 power supply: 12.066 V Supply voltages-Supply voltage Terminal 30 - 2: 12.038 V Supply voltages-Supply voltage Terminal 30 - 3: 12.011 V general_additional_freeze_frame-Ambient_temperature_not_filtered: -50.0 °C general_additional_freeze_frame-coprocessor_spi_status: 00000000 general_additional_freeze_frame-dataflash_status: 00000000 general_additional_freeze_frame-interior_temperature: -50.0 °C general_additional_freeze_frame-Operating_Status: 00000000 00000000 general_additional_freeze_frame-production_mode: not active general_additional_freeze_frame-reset_cause: 00000000 general_additional_freeze_frame-Reset_counter: 0 general_additional_freeze_frame-Stall_current_cutoff_level: Deactivation stage 0 general_additional_freeze_frame-Stall_Current_Measuring_Mode: not active general_additional_freeze_frame-subnetwork_status: 00000000 00000000 general_additional_freeze_frame-terminal_control_intern_status: 91 04 0A 18 00 00 general_additional_freeze_frame-Transport_Mode: not active general_additional_freeze_frame-Vehicle speed: 0.00 km/h exterior_handle_sensor_freeze_frame: 00000000 00000000 11111111 00000000 ------------------------------------------------------------------------------- Address 47: Sound System (J525) Labels:* None Part No SW: 8W0 035 465 HW: 8W0 035 465 Component: MIB2_amp_P_B9 H11 0420 Revision: 00000001 Serial number: AUZ8ZAGJA001PSC Coding: 0194010800AFAAAFAA0000010000 Shop #: WSC 06325 790 00001 ASAM Dataset: EV_AMPMst16C2Gen2ALPI 001012 ROD: EV_AMPMst16C2Gen2ALPI.rod VCID: 76B41AB6C844A2FB8DD-8022 No fault code found. ------------------------------------------------------------------------------- Address 52: Door Elect, Pass. (J387) Labels:* None Part No SW: 8W0 959 592 G HW: 8W0 959 592 Component: TSG BFS 005 0052 Serial number: 0000200735000 Coding: 005F9A214001000000001080 Shop #: WSC 06325 790 00001 ASAM Dataset: EV_DCU2PasseSideMAXHCONT 001005 ROD: EV_DCU2PasseSideMAXHCONT_AU37.rod VCID: 4DC6955A1D5281231C7-8018 No fault code found. ------------------------------------------------------------------------------- Address 5F: Information Electr. (J794) Labels:* 8W0-035-MIB-HGS2.clb Part No SW: 8W0 035 192 A HW: 8W0 035 192 A Component: MU-HS-LND-EU 045 0148 Serial number: Coding: 019401010000000013111102000A00102F0001E601F00100CE Shop #: WSC 06325 790 00001 ASAM Dataset: EV_MUHigScl6C3DELP 001011 ROD: EV_MUHigScl6C3DELP.rod VCID: 3430E0BE9EB8F0EB739-8060 Data carrier: Subsystem 1 - Part No SW: V03 959 802 LE HW: ----------- Component: ECE 2019/2020 --- 0043 Serial number: -------------------- Multimedia System 1: Subsystem 2 - Part No SW: 8W2 919 604 HW: 8W2 919 604 Component: AU49x_DU_STD H40 0008 Serial number: AUZ8Z9GBH009QS Multimedia system control head: Subsystem 3 - Part No SW: 8W0 919 614 J HW: 8W0 919 614 J Component: ControlUnit_B H21 0134 Serial number: APVAK102051600030012 No fault code found. ------------------------------------------------------------------------------- Address 82: Head Up Display (J898) Labels:* None Part No SW: 8W5 919 617 C HW: 8W5 919 617 C Component: HeadUpDisplay H15 1603 Coding: 2A01C0 Shop #: WSC 06325 790 00001 ASAM Dataset: EV_HudNSEIKAU736 001015 ROD: EV_HudNSEIKAU736_AU49.rod VCID: 48C8A44EF230640B2F1-801C No fault code found. ------------------------------------------------------------------------------- Address A5: Frt Sens. Drv. Assist (R242) Labels:* Redir Fail! Part No SW: 8W0 907 217 B HW: 8W0 907 217 Component: BVS H14 0042 Coding: 0404090100000403024023A0A40000FC00F0C020C000 Shop #: WSC 06325 790 00001 ASAM Dataset: EV_BVSMLBevKOSTAAU736 002026 ROD: EV_BVSMLBevKOSTAAU736_AU49.rod VCID: 3B22CB82B3E63F93B23-806E No fault code found. ------------------------------------------------------------------------------- Address AC: Reductant Control (J880) Labels: 4M0-907-355.clb Part No SW: 4M0 907 355 HW: 4M0 907 355 Component: SCR-Stg-G3H10 0003 ASAM Dataset: EV_RDCMINERGAU736 005009 ROD: EV_RDCMINERGAU736_AU49.rod VCID: 6E8432D6B0149A3B45D-803A 6 Faults Found: 0259 - Control Module for Reductant Metering System; Voltage Suppy P21CA 00 [013] - Electrical Malfunction Confirmed - Tested Since Memory Clear Freeze Frame: Fault Status: 00000001 Fault Priority: 2 Fault Frequency: 1 Reset counter: 204 Mileage: 70183 km Date: 2000.00.00 Time: 00:00:00 Terminal 30A voltage: 0.00 V Terminal 30B voltage: 0.01 V Supply voltage for external components: 4.99 V Reducing agent quality sensor: voltage terminal 31: 0.00 V Pump for reducing agent: speed: 0 /min Pump for reducing agent: current: 0.00 A Reducing agent pump: operating state: OFF Reducing agent pump: activation: 0.00 % Reducing agent pump: end stage activation status: not active Reducing agent pump: end stage temperature: 1 °C Heating circuit 1 f. red. agent metering sys.: end stage temp.: 1 °C Sensor for reducing agent tank temperature: temperature: 7 °C Pressure sensor for reducing agent: voltage: 0.71 V Sensor for reducing agent fill level: fill level height: 65515 mm Reducing agent quality sensor: urea concentration: 107.00 % Sensor 2 for temp. reducing agent: act. value: -45.00 °C Heating circuit 1 for reducing agent: power: 0 W Heating circuit 1 for reducing agent: power set value: 0 W Heating circuit 1 for reducing agent: power limitation: 142 W Heating circuit 3 for reducing agent: power: 0 W Heating circuit 3 for reducing agent: power set value: 0 W Heating circuit 3 for reducing agent: power limitation: 59 W Heating circuit 2 for reducing agent metering: power: 0 W Heating circuit 2 for reducing agent metering: activation: not active 262400 - Control Circuit for Reductant Heating 1 P20BC 00 [008] - Short to Plus [SCR_Tank_Heater_Shortcut_to_Vbat] Intermittent - Confirmed - Tested Since Memory Clear 262656 - Control Circuit for Reductant Heating 3 P20C4 00 [008] - Short to Plus [SCR_Tank_Heater_2_Shortcut_to_Vbat] Intermittent - Confirmed - Tested Since Memory Clear 196608 - Control Circuit for Reductant Pump 1 P208D 00 [008] - Short to Plus [SCR_Dosing_pump_Shortcut_to_Vbat] Intermittent - Confirmed - Tested Since Memory Clear 0003 - Control Module for Reductant Metering System; Voltage Suppy P21CA 00 [013] - Electrical Malfunction Confirmed - Tested Since Memory Clear Freeze Frame: Fault Status: 00000001 Fault Priority: 2 Fault Frequency: 1 Reset counter: 204 Mileage: 70183 km Date: 2000.00.00 Time: 00:00:00 Terminal 30A voltage: 0.00 V Terminal 30B voltage: 0.00 V Supply voltage for external components: 4.99 V Reducing agent quality sensor: voltage terminal 31: 0.00 V Pump for reducing agent: speed: 0 /min Pump for reducing agent: current: 0.00 A Reducing agent pump: operating state: OFF Reducing agent pump: activation: 0.00 % Reducing agent pump: end stage activation status: not active Reducing agent pump: end stage temperature: 1 °C Heating circuit 1 f. red. agent metering sys.: end stage temp.: 1 °C Sensor for reducing agent tank temperature: temperature: 7 °C Pressure sensor for reducing agent: voltage: 0.71 V Sensor for reducing agent fill level: fill level height: 65515 mm Reducing agent quality sensor: urea concentration: 107.00 % Sensor 2 for temp. reducing agent: act. value: -45.00 °C Heating circuit 1 for reducing agent: power: 0 W Heating circuit 1 for reducing agent: power set value: 0 W Heating circuit 1 for reducing agent: power limitation: 142 W Heating circuit 3 for reducing agent: power: 0 W Heating circuit 3 for reducing agent: power set value: 0 W Heating circuit 3 for reducing agent: power limitation: 59 W Heating circuit 2 for reducing agent metering: power: 0 W Heating circuit 2 for reducing agent metering: activation: not active 196612 - Control Circuit for Reductant Pump 1 P208C 00 [008] - Short to Ground [SCR_Dosing_pump_Shortcut_between_phase] Intermittent - Confirmed - Tested Since Memory Clear ------------------------------------------------------------------------------- Address BB: Door Rear Drv (J388) Labels:* None Part No SW: 8W0 959 595 G HW: 8W0 959 595 Component: TSG HFS 005 0052 Serial number: 0000202108446 Coding: 000F98200001000000001080 Shop #: WSC 06325 790 00001 ASAM Dataset: EV_DCU2RearDriveMAXHCONT 001005 ROD: EV_DCU2RearDriveMAXHCONT_AU37.rod VCID: 50F88C2E0A60ACCB771-8004 No fault code found. ------------------------------------------------------------------------------- Address BC: Door Rear Pass (J389) Labels:* None Part No SW: 8W0 959 595 G HW: 8W0 959 595 Component: TSG HBFS 005 0052 Serial number: 0000202108497 Coding: 000F98200001000000001080 Shop #: WSC 06325 790 00001 ASAM Dataset: EV_DCU2RearPasseMAXHCONT 001005 ROD: EV_DCU2RearPasseMAXHCONT_AU37.rod VCID: 50F88C2E0A60ACCB771-8004 No fault code found. ------------------------------------------------------------------------------- Address D6: Light Ctrl Left 2 (A31) Labels: 7PP-941-572.clb Part No SW: 7PP 941 572 AB HW: 7PP 941 572 A Component: LED1L H09 0003 Shop #: WSC 00000 000 00000 ASAM Dataset: EV_LEDModLeftMELCOAU736 001004 ROD: EV_LEDModLeftMELCOAU736_VW37.rod VCID: 16743A36E80402FB6DD-8042 No fault code found. ------------------------------------------------------------------------------- Address D7: Light Ctrl Right 2 (A27) Labels: 7PP-941-572.clb Part No SW: 7PP 941 572 AB HW: 7PP 941 572 A Component: LED1R H09 0003 Shop #: WSC 00000 000 00000 ASAM Dataset: EV_LEDModRightMELCOAU736 001004 ROD: EV_LEDModLeftMELCOAU736_VW37.rod VCID: 16743A36E80402FB6DD-8042 No fault code found. End----------(Elapsed Time: 01:45, VBatt start/end: 13.2V/13.2V)----------- Now i tried to take on motorway while forcing regen according to ross tech website but still not resolved. i also saved this information if this helps after 2 hours of driving on 3rd gear and above 2500-3000revs. IDE00432 Particle filter: time since last regeneration 23.369 H IDE00434 Particle filter: soot mass calculated 44.65 g IDE00435 Particle filter: soot mass measured -2.44 g IDE00436 Particle filter: kilometers since last regeneration 414.8 km IDE06059 Particulate filter: oil ash mass 22.3329579 g Edited February 20, 2022 by aakayamy79 needed to make adjustment to my post Quote Link to comment Share on other sites More sharing options...
Stevey Y Posted February 20, 2022 Share Posted February 20, 2022 52 minutes ago, aakayamy79 said: Hi everyone. Need some help. recently i had AD-BLUE delete and stage 1 remap done which was few days ago as had issues with ad-blue sensor and tank so A4audi in glasgow recommended the ad-blue delete and remap. Everything was fine till past two days i got the Dpf filter light and limp mode isssues. I have scanned via my rosstech hex-v2 cable and get the following errors. VIN: License Plate: OW16 Mileage: 70244km-43647mi Repair Order: -------------------------------------------------------------------------------- -------------------------------------------------------------------------------- Chassis Type: F4-AU49 (4M1) Scan: 01 03 08 09 15 16 17 19 29 2B 39 42 44 46 47 52 5F 82 A5 AC BB BC D6 D7 VIN: Mileage: 70244km-43647miles 01-Engine -- Status: Malfunction 0010 03-ABS Brakes -- Status: OK 0000 08-Auto HVAC -- Status: OK 0000 09-Cent. Elect. -- Status: OK 0000 15-Airbags -- Status: OK 0000 16-Steering wheel -- Status: OK 0000 17-Instruments -- Status: OK 0000 19-CAN Gateway -- Status: OK 0000 29-Left Light -- Status: OK 0000 2B-Steer. Col. Lock -- Status: OK 0000 39-Right Light -- Status: OK 0000 42-Door Elect, Driver -- Status: OK 0000 44-Steering Assist -- Status: OK 0000 46-Central Conv. -- Status: Malfunction 0010 47-Sound System -- Status: OK 0000 52-Door Elect, Pass. -- Status: OK 0000 5F-Information Electr. -- Status: OK 0000 82-Head Up Display -- Status: OK 0000 A5-Frt Sens. Drv. Assist -- Status: OK 0000 AC-Reductant Control -- Status: Malfunction 0010 BB-Door Rear Drv -- Status: OK 0000 BC-Door Rear Pass -- Status: OK 0000 D6-Light Ctrl Left 2 -- Status: OK 0000 D7-Light Ctrl Right 2 -- Status: OK 0000 ------------------------------------------------------------------------------- Address 01: Engine (J623-DETA) Labels:. 04L-907-309-V1.clb Part No SW: 04L 906 026 AC HW: 04L 907 309 L Component: R4 2.0l TDI H34 3395 Revision: B1H34--- CVN: 8830F3874F8B6DFB31AEE350 Coding: 0A194032232405083408 Shop #: WSC 65535 000 00000 ASAM Dataset: EV_ECM20TDI01104L906026AC 004004 ROD: EV_ECM20TDI01104L906026AC_004.rod VCID: 6B823BC283066F13623-803E VINID: 9D196AAAA58409844004404214CC410309 2 Faults Found: 31254 - Particle Filter P2463 00 [175] - Excessive Soot Accumulation MIL ON - Confirmed - Tested Since Memory Clear Freeze Frame: Fault Status: 00000001 Fault Priority: 2 Fault Frequency: 1 Mileage: 70178 km Date: 2022.02.19 Time: 21:31:13 Engine RPM: 3232.50 /min Normed load value: 55.7 % Vehicle speed: 88 km/h Coolant temperature: 89 °C Intake air temperature: 81 °C Ambient air pressure: 990 mbar Voltage terminal 30: 12.760 V Unlearning counter according OBD: 40 Counter for regeneration time of particulate filter: 23095.7 s Particle filter: kilometers since last regeneration: 348.3 km Particle filter: soot mass measured: 6.49 g Particle filter: soot mass calculated: 40.00 g Particl.filt.: differential pressur.sensor 1 bank 1: dyn.offset: 0 hPa Particle filter field regeneration: cancel conditions-Bits 0-7: 0 Particle filter field regeneration: cancel conditions-Bits 0-7: 0 31255 - Diesel Particulate Filter P2458 00 [175] - Regeneration Duration MIL ON - Confirmed - Tested Since Memory Clear Freeze Frame: Fault Status: 00000001 Fault Priority: 2 Fault Frequency: 1 Mileage: 70125 km Date: 2022.02.19 Time: 20:40:56 Engine RPM: 860.00 /min Normed load value: 22.4 % Vehicle speed: 0 km/h Coolant temperature: 76 °C Intake air temperature: 38 °C Ambient air pressure: 990 mbar Voltage terminal 30: 14.940 V Unlearning counter according OBD: 40 Counter for regeneration time of particulate filter: 20448.6 s Particle filter: kilometers since last regeneration: 295.5 km Particle filter: soot mass measured: 5.13 g Particle filter: soot mass calculated: 37.76 g Particl.filt.: differential pressur.sensor 1 bank 1: dyn.offset: 0 hPa Particle filter field regeneration: cancel conditions-Bits 0-7: 0 Particle filter field regeneration: cancel conditions-Bits 0-7: 99 Readiness: 1 2 0 0 1 ------------------------------------------------------------------------------- Address 03: ABS Brakes (J104) Labels: 8W0-907-379-PLU-V1.clb Part No SW: 8W0 907 379 E HW: 8W0 907 379 J Component: ESP9 Plus H06 0593 CVN: B0FDBA67 Coding: 0CAA489908A30A9A159F489300825292E6C19630121050A812004A49678369 Shop #: WSC 06324 790 00001 ASAM Dataset: EV_ESP9BOSCHAU49X 012014 ROD: EV_ESP9BOSCHAU49X_012.rod VCID: 47CAA772FF2E6B7326B-8012 No fault code found. ------------------------------------------------------------------------------- Address 08: Auto HVAC (E87) Labels:* Redir Fail! Part No SW: 8W0 820 043 F HW: 8W0 820 043 F Component: Klima Zone 3 H32 0071 Coding: 141800295544450D02000100880000000000000000000000000000000000 Shop #: WSC 06325 790 00001 ASAM Dataset: EV_AirCondiBHTCAU491 001013 ROD: EV_AirCondiBHTCAU491.rod VCID: 3634DAB688C4E2FB4DD-8062 Fresh air blower control module (front): Subsystem 1 - Part No SW: 4M2 820 021 HW: 4M2 820 021 Component: J216 FLuftV H05 0001 Serial number: 00000000000000887516 Humidity sensor: exterior: Subsystem 2 - Part No SW: 4H0 907 658 A HW: 4H0 907 658 A Component: AQ_Hum_Sensor H01 0003 Serial number: 7F68CC28000000000001 Rear A/C control head: Subsystem 3 - Part No SW: 8W0 919 158 HW: 8W0 919 158 Component: E265 Kli Fond H40 0080 No fault code found. ------------------------------------------------------------------------------- Address 09: Cent. Elect. (J519) Labels:* Redir Fail! Part No SW: 8W0 907 063 BF HW: 8W0 907 063 BF Component: BCM1 MLBevo H13 0248 Coding: 07501143E11800CD014487151B0C00B9110B3108000000000000000020001A810A450122025601 Shop #: WSC 06325 790 00001 ASAM Dataset: EV_BCM1BOSCHAU736 016006 ROD: EV_BCM1BOSCHAU736_016.rod VCID: 00587C6E9A809C4BA71-8054 Wiper motor control module: Subsystem 1 - Part No SW: 8W2 955 119 HW: 8V2 955 119 A Labels: 1KX-955-119.CLB Component: WWS491 160312 043 0813 Serial number: 894253?0301607202303 Coding: 5BC7F7 Rain/Light Recognition Sensor: Subsystem 2 - Part No SW: 81A 955 555 HW: 81A 955 555 Component: G397_RLFSS H06 0001 Serial number: 20018931X81A95555500 Coding: 02005D Light switch: Subsystem 3 - Part No SW: 4M0 941 531 AB HW: 4M0 941 531 AB Component: E1 - LDS H06 0008 Serial number: 04 03 2016 00274925 Automatic dimming interior mirror: Subsystem 4 - Part No SW: 8W0 857 511 HW: 8W0 857 511 Component: Y7_Innenspieg H09 0002 Serial number: GX1CE107041611520368 Coding: 230000 Interior Light Module: Subsystem 5 - Part No SW: 8W0 947 135 D HW: 8W0 947 135 Component: J528-Dachele H13 0082 Serial number: B10152417 Control head for driving and comfort functions: Subsystem 6 - Part No SW: 8W0 925 301 BC HW: 8W0 925 301 BC Component: SL-B9/Q5NF H16 0010 Serial number: 2616000026036001 Coding: 000000 No fault code found. ------------------------------------------------------------------------------- Address 15: Airbags (J234) Labels:| 8W0-959-655.clb Part No SW: 8W0 959 655 HW: 8W0 959 655 Component: Airbag10.44 H72 0086 Serial number: 003M60045RN4 Coding: AACCF0C00C800000585400F3C08C00000000 Shop #: WSC 06325 790 00001 ASAM Dataset: EV_AirbaAU10BPAAU736 005012 ROD: EV_AirbaAU10BPAAU736_005_AU49.rod VCID: 06546A76B8A4B27B9DD-8052 Crash sensor for side airbag: driver side: Subsystem 1 - Part No SW: ----------- HW: 442 061 205 16 Component: SideSensor_Df 1E2 0887 Serial number: 3577Y009B1F4FCB2F13Q Coding: 2D2D2D Front Passenger's Side Airbag Crash Sensor: Subsystem 2 - Part No SW: ----------- HW: 442 061 105 16 Component: SideSensor_Pf 1E2 0887 Serial number: 3587Y009D1DE13F14237 Coding: 2D2D2D Rear Side Airbag Crash Sensor (on driver's side): Subsystem 3 - Part No SW: ----------- HW: 442 0B2 904 16 Component: SideSensor_Dr 1C7 0148 Serial number: 35177009F205BA55F15K Coding: 2D2D2D Passenger side rear thorax airbag crash sensor: Subsystem 4 - Part No SW: ----------- HW: 442 0B2 604 16 Component: SideSensor_Pr 1C7 0148 Serial number: 352770016293A82595FD Coding: 2D2D2D Crash sensor for front airbag: driver side: Subsystem 5 - Part No SW: ----------- HW: 442 0C0 405 16 Component: FrontSensor_D 1C5 014A Serial number: 3557500B120BEED1610D Coding: 2D2D2D Crash sensor for front airbag: front passenger side: Subsystem 6 - Part No SW: ----------- HW: 442 0C0 405 16 Component: FrontSensor_P 1C5 014A Serial number: 3567500B120BEED511ER Coding: 2D2D2D Center pedestrian protection crash sensor: Subsystem 7 - Part No SW: ----------- HW: 442 0C0 405 16 Component: PedP_Sensor_C 1C5 014A Serial number: 2307500AD20DD1E223DH Coding: 2D2D2D Driver's side crash data pedestrian protection 2: Subsystem 8 - Part No SW: ----------- HW: 442 430 905 16 Component: PedPSensor_D2 256 0887 Serial number: I0M9M00BB1F6314283CJ Coding: 2D2D2D Passenger's side crash data pedestrian protection 2: Subsystem 9 - Part No SW: ----------- HW: 442 430 905 16 Component: PedPSensor_P2 256 0887 Serial number: I0N9M00BB1F63140E23E Coding: 2D2D2D No fault code found. ------------------------------------------------------------------------------- Address 16: Steering wheel (J527) Labels: 4M0-907-129.clb Part No SW: 4M0 907 129 HA HW: 4M0 907 129 HA Component: Lenks.Modul H11 0009 ASAM Dataset: EV_SMLSKLOAU736 006008 ROD: EV_SMLSKLOAU736_006.rod VCID: 76B41AB6C844A2FB8DD-8022 No fault code found. ------------------------------------------------------------------------------- Address 17: Instruments (J285) Labels:* Redir Fail!-SRI2 Part No SW: 8W5 920 941 A HW: 8W5 920 941 A Component: MMA4M17DIEUK H06 0363 Revision: 0339v7 Serial number: PY5FGDN5S Coding: 24A4509028800600012069601000000000000000 Shop #: WSC 06325 790 00001 ASAM Dataset: EV_DashBoardAU736 001022 ROD: EV_DashBoardAU736_AU49.rod VCID: 3E24C296A0F42ABB95D-806A No fault code found. ------------------------------------------------------------------------------- Address 19: CAN Gateway (J533) Labels:* None Part No SW: 4M1 907 468 C HW: 4M1 907 468 A Component: Gateway H15 0097 Revision: 4R030001 Serial number: 0144R02A416514 Coding: 0301000100008E40410700000059001248080007000000000100000000000000 Shop #: WSC 06325 790 00001 GVL: 01503C0800040200408C00000000480000080000000000000000000000000000 ASAM Dataset: EV_GatewCONTIAU736 002060 ROD: EV_GatewCONTIAU736_002_AU49.rod VCID: 372AD7B28FCE1BF356B-8062 Multifunction steering wheel control module: Subsystem 1 - Part No SW: 8W0 951 523 C HW: 8W0 951 523 C Component: J453 MFL H02 0002 Serial number: 20160520095843 01307 Battery Monitoring Control Module: Subsystem 2 - Part No SW: 8S0 915 181 C HW: 8S0 915 181 C Component: J367-BDMHella H10 9070 Serial number: 0988090404 No fault code found. ------------------------------------------------------------------------------- Address 29: Left Light (J1018) Labels: 4M0-907-397.clb Part No SW: 4M0 907 397 AC HW: 4M0 907 397 C Component: LCM_MLBevoH05 0023 ASAM Dataset: EV_LCMLeftHELLAAU736 001012 ROD: EV_LCMLeftHELLAAU736_VW48.rod VCID: 78A8148EC250D48B9F1-802C No fault code found. ------------------------------------------------------------------------------- Address 2B: Steer. Col. Lock (J764) Labels:* 5Q0-905-861.clb Part No SW: 3Q0 905 861 A HW: 3Q0 905 861 A Component: ELV-MLBevo H05 0032 Serial number: 16000075784010 Coding: 0000000000000000 Shop #: WSC 00000 000 00000 ASAM Dataset: EV_ELVMarquMQBB 001007 ROD: EV_ELVMarquMQBB.rod VCID: 323CE6A664ACFEDB615-8066 No fault code found. ------------------------------------------------------------------------------- Address 39: Right Light (J1023) Labels: 4M0-907-397.clb Part No SW: 4M0 907 397 AC HW: 4M0 907 397 C Component: LCM_MLBevoH05 0023 ASAM Dataset: EV_LCMRightHELLAAU736 001012 ROD: EV_LCMLeftHELLAAU736_VW48.rod VCID: 78A8148EC250D48B9F1-802C No fault code found. ------------------------------------------------------------------------------- Address 42: Door Elect, Driver (J386) Labels:* None Part No SW: 8W0 959 593 G HW: 8W0 959 593 Component: TSG FS 005 0052 Serial number: 0000200702182 Coding: 005F9A214001000000001082 Shop #: WSC 06325 790 00001 ASAM Dataset: EV_DCU2DriveSideMAXHCONT 001005 ROD: EV_DCU2DriveSideMAXHCONT_AU37.rod VCID: 4EC492561054BA3B65D-801A No fault code found. ------------------------------------------------------------------------------- Address 44: Steering Assist (J500) Labels:* None Part No SW: 8W0 909 144 F HW: 8W0 909 144 B Component: EPS_MLBEVO_ZF H08 0407 Coding: 09000380008000 Shop #: WSC 06324 790 00001 ASAM Dataset: EV_EPSZFAU49X 002015 ROD: EV_EPSZFAU49X_002.rod VCID: 40D8BC6EDA005C4BE71-8014 No fault code found. ------------------------------------------------------------------------------- Address 46: Central Conv. (J393) Labels:* None Part No SW: 8W0 907 064 BC HW: 8W0 907 064 C Component: BCM2 MLBevo 018 0327 Coding: 012D00006F100000630180000E00000031024010004302500F0400000104803F001F0001000000 Shop #: WSC 06325 790 00001 ASAM Dataset: EV_BCM2HellaAU736 011012 ROD: EV_BCM2HellaAU736_011_AU49.rod VCID: 7EA40296E074EABBD5D-802A Anti-theft alarm system sensor: Subsystem 1 - Part No SW: 5Q0 951 177 HW: 5Q0 951 172 Component: Sensor, DWA 005 0316 Serial number: 000000000ZY161160WHQ Alarm horn: Subsystem 2 - Part No SW: 5Q0 951 605 A HW: 5Q0 951 605 A Component: Sirene, DWA 005 0313 Serial number: 00000000000035504126 Rear lid opener control module: Subsystem 3 - Part No SW: 3AA 962 243 G HW: 3AA 962 243 G Component: GEB.F.Heckoef H16 0903 Serial number: 84389598 1 Fault Found: 131115 - Touch Sensor on Exterior Door Grip; Rear Right B116E 13 [009] - Open Circuit Confirmed - Tested Since Memory Clear Freeze Frame: Fault Status: 00000001 Fault Priority: 5 Fault Frequency: 1 Reset counter: 203 Mileage: 70104 km Date: 2022.02.18 Time: 18:23:22 Supply voltages-Terminal 30 power supply: 12.066 V Supply voltages-Supply voltage Terminal 30 - 2: 12.038 V Supply voltages-Supply voltage Terminal 30 - 3: 12.011 V general_additional_freeze_frame-Ambient_temperature_not_filtered: -50.0 °C general_additional_freeze_frame-coprocessor_spi_status: 00000000 general_additional_freeze_frame-dataflash_status: 00000000 general_additional_freeze_frame-interior_temperature: -50.0 °C general_additional_freeze_frame-Operating_Status: 00000000 00000000 general_additional_freeze_frame-production_mode: not active general_additional_freeze_frame-reset_cause: 00000000 general_additional_freeze_frame-Reset_counter: 0 general_additional_freeze_frame-Stall_current_cutoff_level: Deactivation stage 0 general_additional_freeze_frame-Stall_Current_Measuring_Mode: not active general_additional_freeze_frame-subnetwork_status: 00000000 00000000 general_additional_freeze_frame-terminal_control_intern_status: 91 04 0A 18 00 00 general_additional_freeze_frame-Transport_Mode: not active general_additional_freeze_frame-Vehicle speed: 0.00 km/h exterior_handle_sensor_freeze_frame: 00000000 00000000 11111111 00000000 ------------------------------------------------------------------------------- Address 47: Sound System (J525) Labels:* None Part No SW: 8W0 035 465 HW: 8W0 035 465 Component: MIB2_amp_P_B9 H11 0420 Revision: 00000001 Serial number: AUZ8ZAGJA001PSC Coding: 0194010800AFAAAFAA0000010000 Shop #: WSC 06325 790 00001 ASAM Dataset: EV_AMPMst16C2Gen2ALPI 001012 ROD: EV_AMPMst16C2Gen2ALPI.rod VCID: 76B41AB6C844A2FB8DD-8022 No fault code found. ------------------------------------------------------------------------------- Address 52: Door Elect, Pass. (J387) Labels:* None Part No SW: 8W0 959 592 G HW: 8W0 959 592 Component: TSG BFS 005 0052 Serial number: 0000200735000 Coding: 005F9A214001000000001080 Shop #: WSC 06325 790 00001 ASAM Dataset: EV_DCU2PasseSideMAXHCONT 001005 ROD: EV_DCU2PasseSideMAXHCONT_AU37.rod VCID: 4DC6955A1D5281231C7-8018 No fault code found. ------------------------------------------------------------------------------- Address 5F: Information Electr. (J794) Labels:* 8W0-035-MIB-HGS2.clb Part No SW: 8W0 035 192 A HW: 8W0 035 192 A Component: MU-HS-LND-EU 045 0148 Serial number: Coding: 019401010000000013111102000A00102F0001E601F00100CE Shop #: WSC 06325 790 00001 ASAM Dataset: EV_MUHigScl6C3DELP 001011 ROD: EV_MUHigScl6C3DELP.rod VCID: 3430E0BE9EB8F0EB739-8060 Data carrier: Subsystem 1 - Part No SW: V03 959 802 LE HW: ----------- Component: ECE 2019/2020 --- 0043 Serial number: -------------------- Multimedia System 1: Subsystem 2 - Part No SW: 8W2 919 604 HW: 8W2 919 604 Component: AU49x_DU_STD H40 0008 Serial number: AUZ8Z9GBH009QS Multimedia system control head: Subsystem 3 - Part No SW: 8W0 919 614 J HW: 8W0 919 614 J Component: ControlUnit_B H21 0134 Serial number: APVAK102051600030012 No fault code found. ------------------------------------------------------------------------------- Address 82: Head Up Display (J898) Labels:* None Part No SW: 8W5 919 617 C HW: 8W5 919 617 C Component: HeadUpDisplay H15 1603 Coding: 2A01C0 Shop #: WSC 06325 790 00001 ASAM Dataset: EV_HudNSEIKAU736 001015 ROD: EV_HudNSEIKAU736_AU49.rod VCID: 48C8A44EF230640B2F1-801C No fault code found. ------------------------------------------------------------------------------- Address A5: Frt Sens. Drv. Assist (R242) Labels:* Redir Fail! Part No SW: 8W0 907 217 B HW: 8W0 907 217 Component: BVS H14 0042 Coding: 0404090100000403024023A0A40000FC00F0C020C000 Shop #: WSC 06325 790 00001 ASAM Dataset: EV_BVSMLBevKOSTAAU736 002026 ROD: EV_BVSMLBevKOSTAAU736_AU49.rod VCID: 3B22CB82B3E63F93B23-806E No fault code found. ------------------------------------------------------------------------------- Address AC: Reductant Control (J880) Labels: 4M0-907-355.clb Part No SW: 4M0 907 355 HW: 4M0 907 355 Component: SCR-Stg-G3H10 0003 ASAM Dataset: EV_RDCMINERGAU736 005009 ROD: EV_RDCMINERGAU736_AU49.rod VCID: 6E8432D6B0149A3B45D-803A 6 Faults Found: 0259 - Control Module for Reductant Metering System; Voltage Suppy P21CA 00 [013] - Electrical Malfunction Confirmed - Tested Since Memory Clear Freeze Frame: Fault Status: 00000001 Fault Priority: 2 Fault Frequency: 1 Reset counter: 204 Mileage: 70183 km Date: 2000.00.00 Time: 00:00:00 Terminal 30A voltage: 0.00 V Terminal 30B voltage: 0.01 V Supply voltage for external components: 4.99 V Reducing agent quality sensor: voltage terminal 31: 0.00 V Pump for reducing agent: speed: 0 /min Pump for reducing agent: current: 0.00 A Reducing agent pump: operating state: OFF Reducing agent pump: activation: 0.00 % Reducing agent pump: end stage activation status: not active Reducing agent pump: end stage temperature: 1 °C Heating circuit 1 f. red. agent metering sys.: end stage temp.: 1 °C Sensor for reducing agent tank temperature: temperature: 7 °C Pressure sensor for reducing agent: voltage: 0.71 V Sensor for reducing agent fill level: fill level height: 65515 mm Reducing agent quality sensor: urea concentration: 107.00 % Sensor 2 for temp. reducing agent: act. value: -45.00 °C Heating circuit 1 for reducing agent: power: 0 W Heating circuit 1 for reducing agent: power set value: 0 W Heating circuit 1 for reducing agent: power limitation: 142 W Heating circuit 3 for reducing agent: power: 0 W Heating circuit 3 for reducing agent: power set value: 0 W Heating circuit 3 for reducing agent: power limitation: 59 W Heating circuit 2 for reducing agent metering: power: 0 W Heating circuit 2 for reducing agent metering: activation: not active 262400 - Control Circuit for Reductant Heating 1 P20BC 00 [008] - Short to Plus [SCR_Tank_Heater_Shortcut_to_Vbat] Intermittent - Confirmed - Tested Since Memory Clear 262656 - Control Circuit for Reductant Heating 3 P20C4 00 [008] - Short to Plus [SCR_Tank_Heater_2_Shortcut_to_Vbat] Intermittent - Confirmed - Tested Since Memory Clear 196608 - Control Circuit for Reductant Pump 1 P208D 00 [008] - Short to Plus [SCR_Dosing_pump_Shortcut_to_Vbat] Intermittent - Confirmed - Tested Since Memory Clear 0003 - Control Module for Reductant Metering System; Voltage Suppy P21CA 00 [013] - Electrical Malfunction Confirmed - Tested Since Memory Clear Freeze Frame: Fault Status: 00000001 Fault Priority: 2 Fault Frequency: 1 Reset counter: 204 Mileage: 70183 km Date: 2000.00.00 Time: 00:00:00 Terminal 30A voltage: 0.00 V Terminal 30B voltage: 0.00 V Supply voltage for external components: 4.99 V Reducing agent quality sensor: voltage terminal 31: 0.00 V Pump for reducing agent: speed: 0 /min Pump for reducing agent: current: 0.00 A Reducing agent pump: operating state: OFF Reducing agent pump: activation: 0.00 % Reducing agent pump: end stage activation status: not active Reducing agent pump: end stage temperature: 1 °C Heating circuit 1 f. red. agent metering sys.: end stage temp.: 1 °C Sensor for reducing agent tank temperature: temperature: 7 °C Pressure sensor for reducing agent: voltage: 0.71 V Sensor for reducing agent fill level: fill level height: 65515 mm Reducing agent quality sensor: urea concentration: 107.00 % Sensor 2 for temp. reducing agent: act. value: -45.00 °C Heating circuit 1 for reducing agent: power: 0 W Heating circuit 1 for reducing agent: power set value: 0 W Heating circuit 1 for reducing agent: power limitation: 142 W Heating circuit 3 for reducing agent: power: 0 W Heating circuit 3 for reducing agent: power set value: 0 W Heating circuit 3 for reducing agent: power limitation: 59 W Heating circuit 2 for reducing agent metering: power: 0 W Heating circuit 2 for reducing agent metering: activation: not active 196612 - Control Circuit for Reductant Pump 1 P208C 00 [008] - Short to Ground [SCR_Dosing_pump_Shortcut_between_phase] Intermittent - Confirmed - Tested Since Memory Clear ------------------------------------------------------------------------------- Address BB: Door Rear Drv (J388) Labels:* None Part No SW: 8W0 959 595 G HW: 8W0 959 595 Component: TSG HFS 005 0052 Serial number: 0000202108446 Coding: 000F98200001000000001080 Shop #: WSC 06325 790 00001 ASAM Dataset: EV_DCU2RearDriveMAXHCONT 001005 ROD: EV_DCU2RearDriveMAXHCONT_AU37.rod VCID: 50F88C2E0A60ACCB771-8004 No fault code found. ------------------------------------------------------------------------------- Address BC: Door Rear Pass (J389) Labels:* None Part No SW: 8W0 959 595 G HW: 8W0 959 595 Component: TSG HBFS 005 0052 Serial number: 0000202108497 Coding: 000F98200001000000001080 Shop #: WSC 06325 790 00001 ASAM Dataset: EV_DCU2RearPasseMAXHCONT 001005 ROD: EV_DCU2RearPasseMAXHCONT_AU37.rod VCID: 50F88C2E0A60ACCB771-8004 No fault code found. ------------------------------------------------------------------------------- Address D6: Light Ctrl Left 2 (A31) Labels: 7PP-941-572.clb Part No SW: 7PP 941 572 AB HW: 7PP 941 572 A Component: LED1L H09 0003 Shop #: WSC 00000 000 00000 ASAM Dataset: EV_LEDModLeftMELCOAU736 001004 ROD: EV_LEDModLeftMELCOAU736_VW37.rod VCID: 16743A36E80402FB6DD-8042 No fault code found. ------------------------------------------------------------------------------- Address D7: Light Ctrl Right 2 (A27) Labels: 7PP-941-572.clb Part No SW: 7PP 941 572 AB HW: 7PP 941 572 A Component: LED1R H09 0003 Shop #: WSC 00000 000 00000 ASAM Dataset: EV_LEDModRightMELCOAU736 001004 ROD: EV_LEDModLeftMELCOAU736_VW37.rod VCID: 16743A36E80402FB6DD-8042 No fault code found. End----------(Elapsed Time: 01:45, VBatt start/end: 13.2V/13.2V)----------- Now i tried to take on motorway while forcing regen according to ross tech website but still not resolved. i also saved this information if this helps after 2 hours of driving on 3rd gear and above 2500-3000revs. IDE00432 Particle filter: time since last regeneration 23.369 H IDE00434 Particle filter: soot mass calculated 44.65 g IDE00435 Particle filter: soot mass measured -2.44 g IDE00436 Particle filter: kilometers since last regeneration 414.8 km IDE06059 Particulate filter: oil ash mass 22.3329579 g Hi most Adblue deletes are legally sold on the understanding that the the car will not be driven on public roads therefore they are able to do it, lots of people have this done which is fine until the government introduce the new legislation and particle analysing equipment in to the MOT system, its coming, the Adblue helps with regeneration of the DPF, which in your case allied to the extra fuel used with the remap and the lack of Adblue may result in the regeneration cycle not being of sufficient duration to clear the soot particles and as Audi use a very low soot/ash calculation will cause it to block more quickly so try a forced regeneration as from your data the fault has only occurred once. Steve. Quote Link to comment Share on other sites More sharing options...
aakayamy79 Posted February 20, 2022 Author Share Posted February 20, 2022 I've tried a forced regen while driving and parked but both get timed out after one hour. I've tried the Ross tech methods for the Audi but no luck what so ever. Quote Link to comment Share on other sites More sharing options...
Stevey Y Posted February 20, 2022 Share Posted February 20, 2022 8 minutes ago, aakayamy79 said: I've tried a forced regen while driving and parked but both get timed out after one hour. I've tried the Ross tech methods for the Audi but no luck what so ever. Hi the timing out is so you don't cook the car, did you delete the light and codes before trying to regen as it won't work with the light/codes still present, delete and try again also did you have a look at the soot/ash loadings after the run. Steve. Quote Link to comment Share on other sites More sharing options...
aakayamy79 Posted February 20, 2022 Author Share Posted February 20, 2022 I will go give this a bash again and see what happens. 1 Quote Link to comment Share on other sites More sharing options...
aakayamy79 Posted February 20, 2022 Author Share Posted February 20, 2022 The soot loadings on my first post at the bottom are from after the last regen I tried to do before it cut out. Showing minus Quote Link to comment Share on other sites More sharing options...
Stevey Y Posted February 20, 2022 Share Posted February 20, 2022 25 minutes ago, aakayamy79 said: The soot loadings on my first post at the bottom are from after the last regen I tried to do before it cut out. Showing minus Hi sorry what are your current Soot/Ash loadings and what has cut out am a bit confused. Steve. Quote Link to comment Share on other sites More sharing options...
aakayamy79 Posted February 20, 2022 Author Share Posted February 20, 2022 IDE00432 Particle filter: time since last regeneration 23.369 H IDE00434 Particle filter: soot mass calculated 44.65 g IDE00435 Particle filter: soot mass measured -2.44 g IDE00436 Particle filter: kilometers since last regeneration 414.8 km IDE06059 Particulate filter: oil ash mass 22.3329579 g Quote Link to comment Share on other sites More sharing options...
Stevey Y Posted February 20, 2022 Share Posted February 20, 2022 1 minute ago, aakayamy79 said: IDE00432 Particle filter: time since last regeneration 23.369 H IDE00434 Particle filter: soot mass calculated 44.65 g IDE00435 Particle filter: soot mass measured -2.44 g IDE00436 Particle filter: kilometers since last regeneration 414.8 km IDE06059 Particulate filter: oil ash mass 22.3329579 g Hi second one down is what it thinks its got, the third one down is what its got real time, this is really strange also is the DPF light still on? and is all the reductant pump information still present. Steve. Quote Link to comment Share on other sites More sharing options...
aakayamy79 Posted February 20, 2022 Author Share Posted February 20, 2022 Yeah all that is still present. Not sure if I should bite the bullet and change the dpf sensor and then try doing regen again as the calculated soot level showing 44.65g and measured mass soot showing -2.44g. I've tried clear codes but the engine dpf codes won't clear so didn't do a regen again as I'm guessing it will time out again after 1 hour. Quote Link to comment Share on other sites More sharing options...
Stevey Y Posted February 20, 2022 Share Posted February 20, 2022 2 minutes ago, aakayamy79 said: Yeah all that is still present. Not sure if I should bite the bullet and change the dpf sensor and then try doing regen again as the calculated soot level showing 44.65g and measured mass soot showing -2.44g. I've tried clear codes but the engine dpf codes won't clear so didn't do a regen again as I'm guessing it will time out again after 1 hour. Have you got a code for the DPF sensor as this will show as reading high. Also is it VCDS you are using as the live data for the sensor should give you an indication of its operating values. Steve. Steve. Quote Link to comment Share on other sites More sharing options...
Stevey Y Posted February 20, 2022 Share Posted February 20, 2022 13 minutes ago, aakayamy79 said: Yeah all that is still present. Not sure if I should bite the bullet and change the dpf sensor and then try doing regen again as the calculated soot level showing 44.65g and measured mass soot showing -2.44g. I've tried clear codes but the engine dpf codes won't clear so didn't do a regen again as I'm guessing it will time out again after 1 hour. Thinking about it it could well be the DPF pressure sensor as the ECU uses that and algorithm to do a soot mass calculation and for what a decent sensor costs its worth a go. Steve. Quote Link to comment Share on other sites More sharing options...
aakayamy79 Posted February 20, 2022 Author Share Posted February 20, 2022 I'm using a genuine Ross tech VCDS hex-v2 with the latest vcds software. Im not getting any error codes for the sensor but I'm tempted to replace the sensor and then see if it helps clear the codes and also force regen. Quote Link to comment Share on other sites More sharing options...

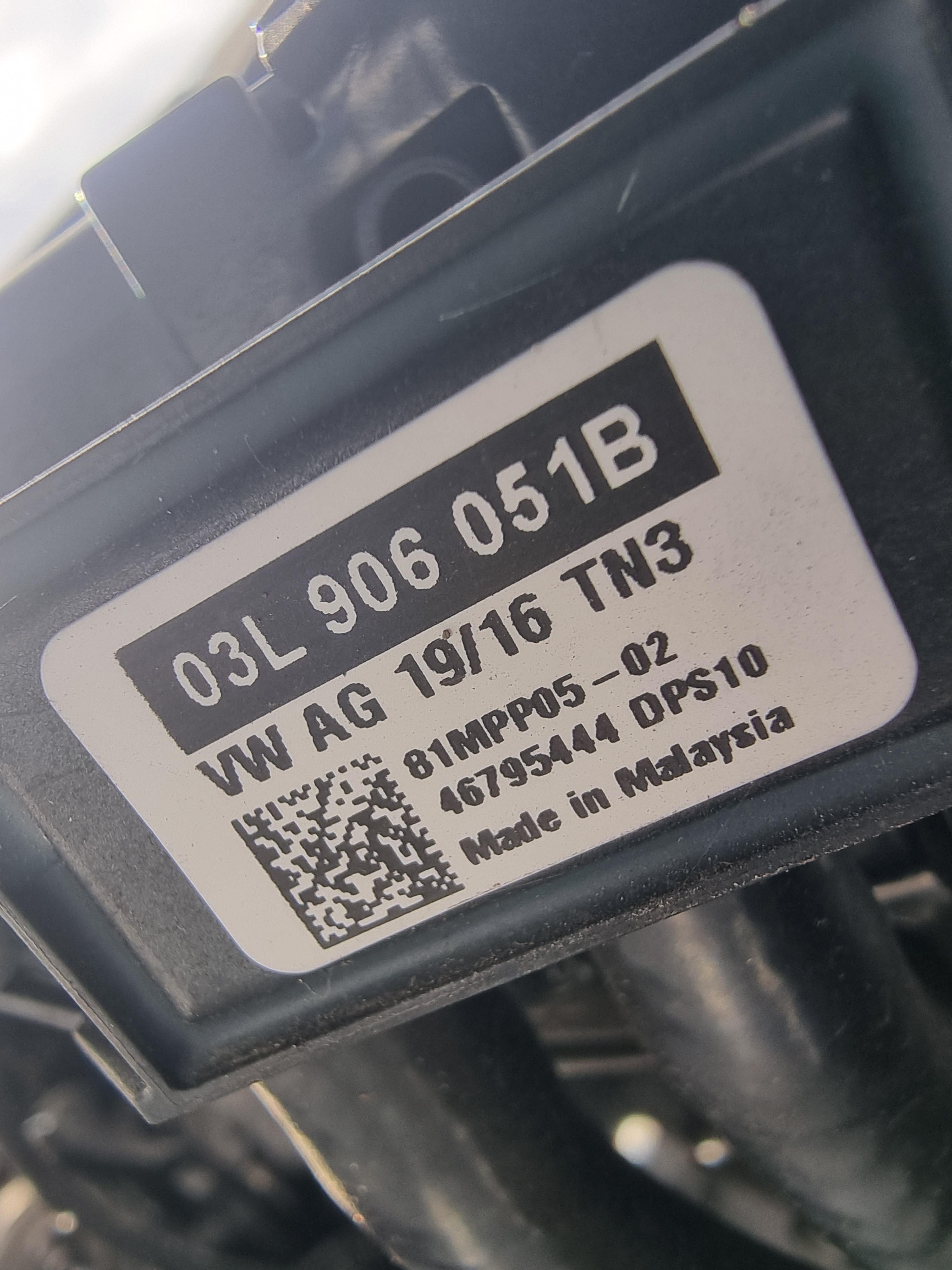

aakayamy79 Posted February 20, 2022 Author Share Posted February 20, 2022 I have two of these sensors. This is the front one and other one is behind this. Quote Link to comment Share on other sites More sharing options...
Stevey Y Posted February 20, 2022 Share Posted February 20, 2022 11 minutes ago, aakayamy79 said: I have two of these sensors. This is the front one and other one is behind this. Hi I am certain you only have the one shown as that has both pipes for measuring the pressure before the DPF and after the DPF there would be no point in having two sensors I suspect the one behind might only have one pipe and that would be to do with boost control or MAP pressure. Steve. Quote Link to comment Share on other sites More sharing options...

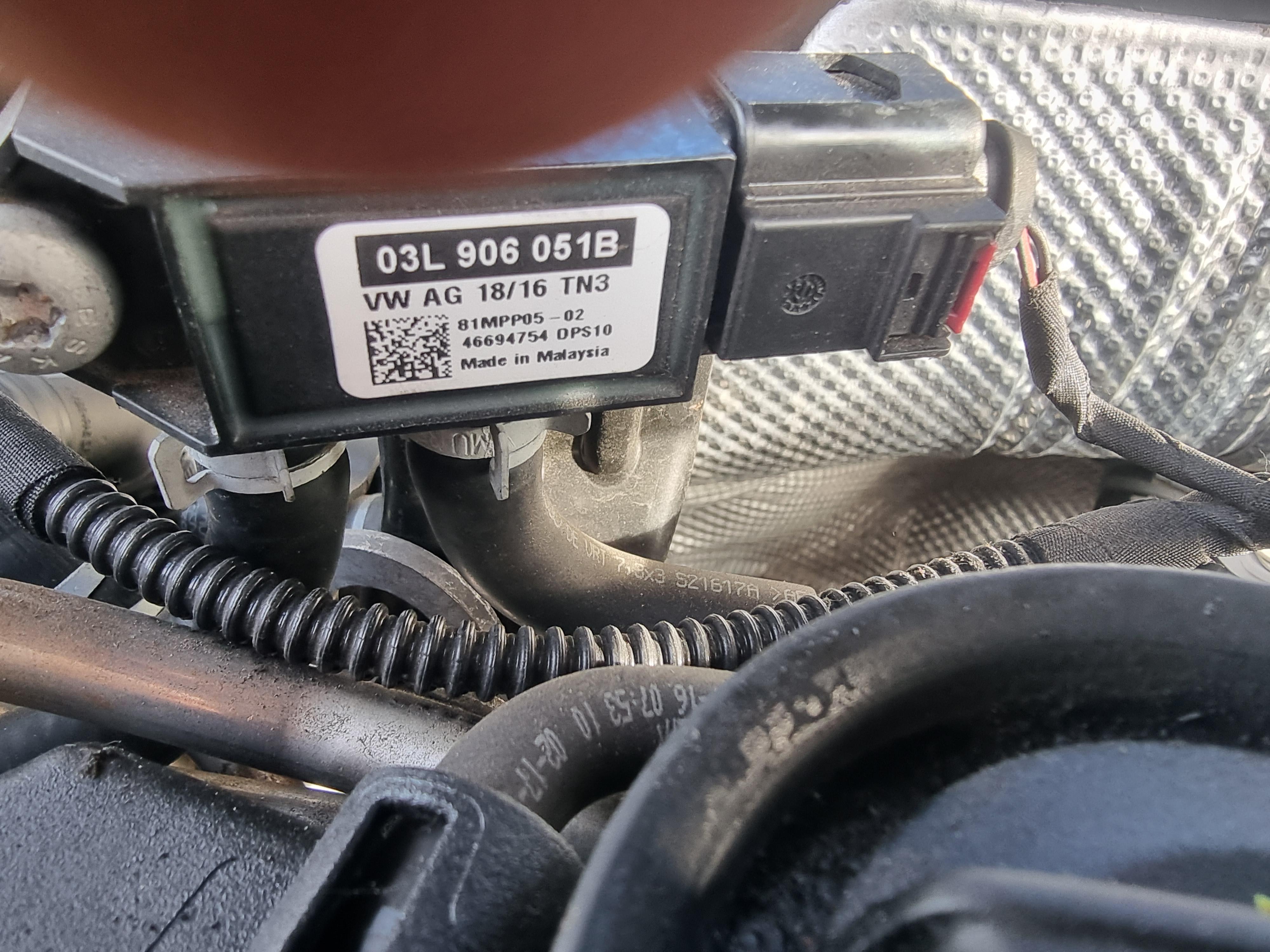

aakayamy79 Posted February 20, 2022 Author Share Posted February 20, 2022 They both habe same part number on them and both have two pipes on each. Quote Link to comment Share on other sites More sharing options...
aakayamy79 Posted February 20, 2022 Author Share Posted February 20, 2022 Quote Link to comment Share on other sites More sharing options...
Stevey Y Posted February 20, 2022 Share Posted February 20, 2022 19 minutes ago, aakayamy79 said: Hi you have lost me just looked on ETKA generic part finder and the the diagram only shows one unit for that year of vehicle but your pictures say otherwise so therefore it would seem you may well have to change and re adapt both. According to my Autodata fault finder excessive soot calculation is a classic sign of sensor failure. Steve. Steve. Quote Link to comment Share on other sites More sharing options...
aakayamy79 Posted February 20, 2022 Author Share Posted February 20, 2022 I searched online myself and only see one of them sensors but when I seen two sensors in mines i was just as confused. I will speak to A4audi who did my adblue delete and remap tomorrow and see what they say first and if no luck then will fit two sensors myself and see how I get on Quote Link to comment Share on other sites More sharing options...
aakayamy79 Posted February 21, 2022 Author Share Posted February 21, 2022 Took car back to A4AUDI and they did regen and that sorted out the issue. Hopefully that will be the end of it. Thanks for helping. Quote Link to comment Share on other sites More sharing options...
Stevey Y Posted February 21, 2022 Share Posted February 21, 2022 1 hour ago, aakayamy79 said: Took car back to A4AUDI and they did regen and that sorted out the issue. Hopefully that will be the end of it. Thanks for helping. Hi did you find out why it has two sensors as the only thing I could think of was is it a V6. Steve. Quote Link to comment Share on other sites More sharing options...
aakayamy79 Posted February 21, 2022 Author Share Posted February 21, 2022 I honestly don't know why I have two sensors and I didn't ask the garage I fit the regen done from. But am glad my problem is sorted. Quote Link to comment Share on other sites More sharing options...
